Brief:The solder paste rewarming machine is a specialised piece of equipment used in electronics manufacturing to process refrigerated solder paste. It uses precise temperature control to restore the solder paste to a suitable working state, ensuring high-quality soldering. Removing the low-temperature state Heat refrigerated solder paste (typically 2–10°C) to room temperature (22–28°C) to eliminate temperature differences between the solder paste and the environment, preventing moisture condensation when opening the container that could cause the solder paste to become damp or oxidised. Activating solder paste performance Even temperature recovery ensures that the flux and tin powder are fully integrated, restoring flowability and soldering activity, and improving coating uniformity during printing.

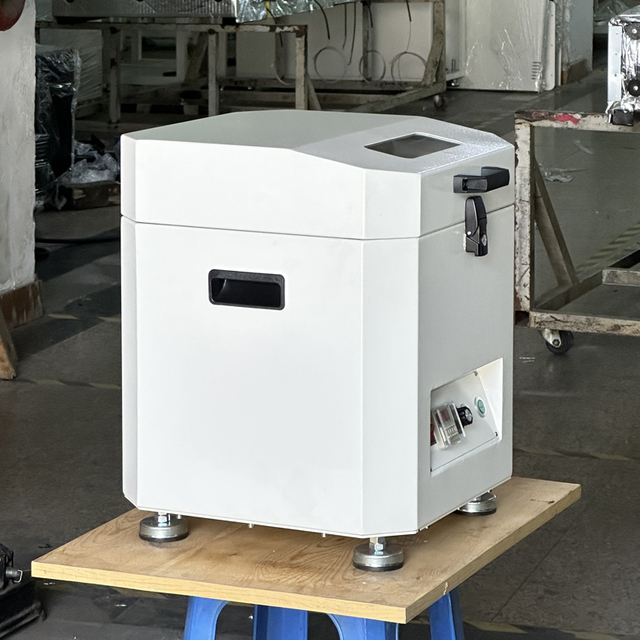

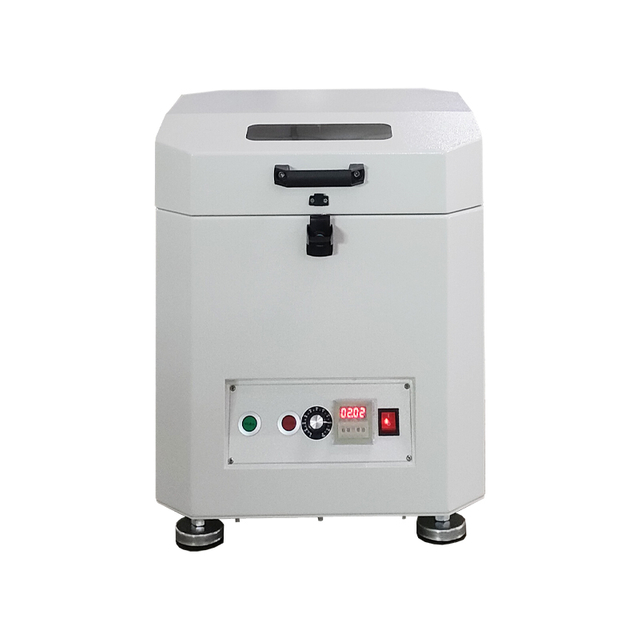

Brief:The speed-adjustable solder paste mixer is an automated device specifically designed for the electronics manufacturing industry. Its core function is to achieve uniform mixing and bubble elimination of solder paste (a mixture of tin powder and flux paste) by precisely controlling mixing speed and time, ensuring its stability and reliability in the SMT printing process.
Adjustable Speed Function
Utilising stepless speed control technology, the mixing speed can be flexibly adjusted according to the physical properties of the solder paste, such as viscosity and density. High-viscosity solder paste typically requires higher speeds to achieve thorough mixing. Supports precise parameter settings (e.g., speed, time) to accommodate the mixing requirements of different brands or models of solder paste.
Efficient mixing and degassing
Utilising a composite centrifugal mixing principle combining orbital and rotational motion (simulating planetary motion), the machine achieves uniform dispersion of solder paste particles in a sealed environment while effectively eliminating bubbles, thereby avoiding the risks of oxidation or moisture absorption associated with manual mixing. Some models support vacuum degassing functionality to further enhance mixing quality.

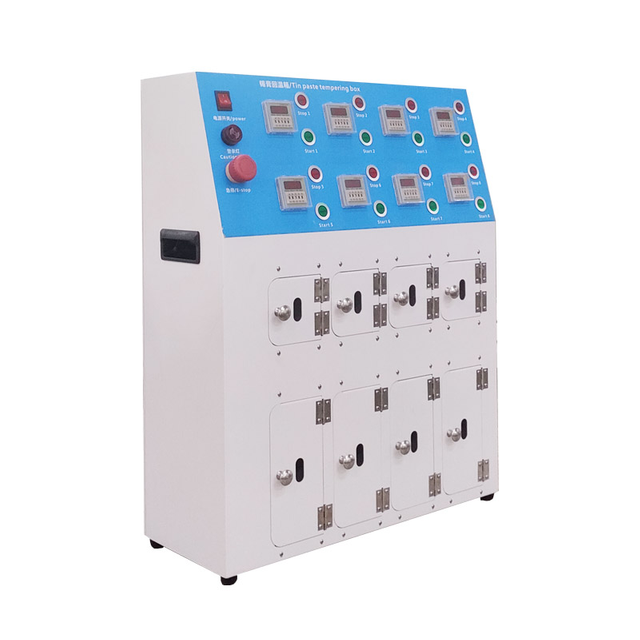

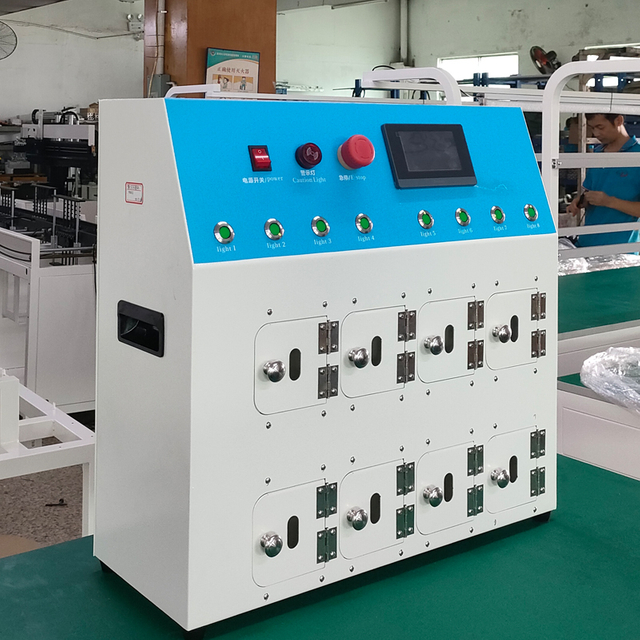

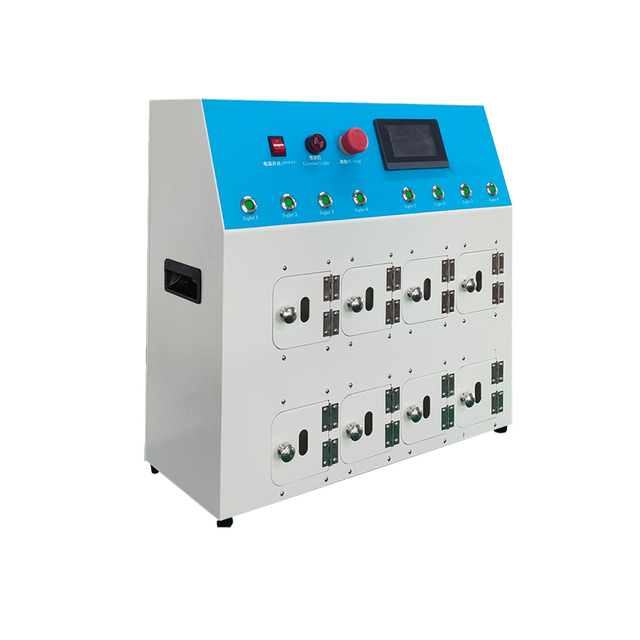

Brief:Machine Function1.The temperature return time can be set to 8 stations to effectively control the return time of tin paste to ensure the activity of tin paste.2.The machine is assembled by well-known brand electrical appliances.3.The working external power supply is 220V, and the internal temperature return operating voltage is 24V.4.When working, set the time, the cabinet door will automatically lock, before the time, the door can not open, the time comes, the timing alarm will alarm, the door can be opened.5.This machine does not have the time memory function, in the case of sudden power failure, the time has not arrived, the warehouse door lock will automatically open. To return the temperature, another time.

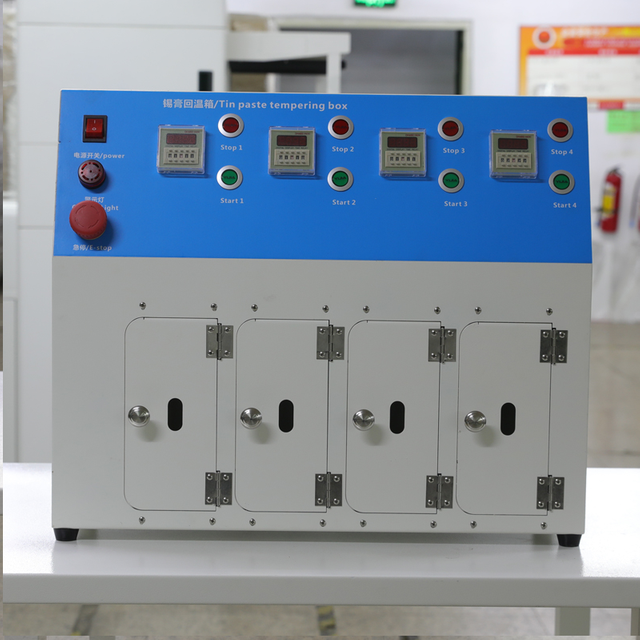

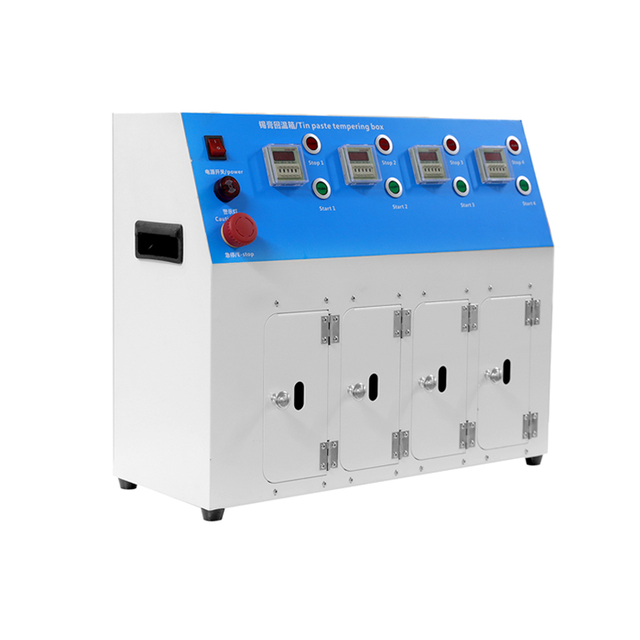

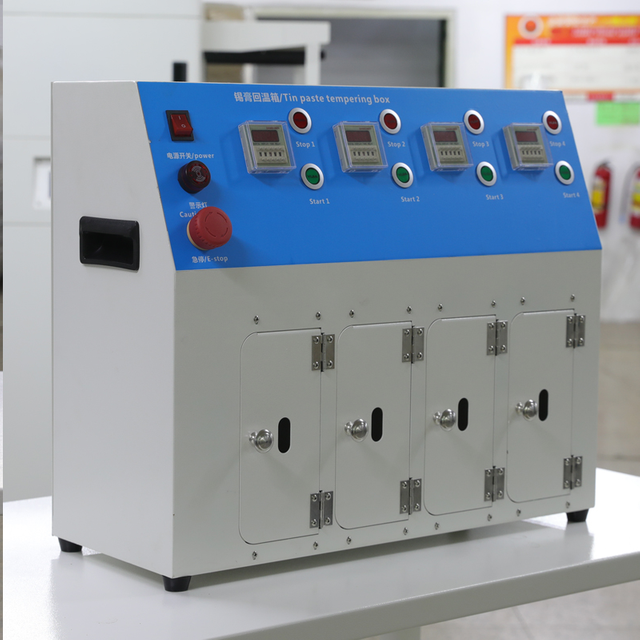

Brief:Machine Function1.The temperature return time can be set to 4 stations to effectively control the return time of tin paste to ensure the activity of tin paste.2.The machine is assembled by well-known brand electrical appliances.3.The working external power supply is 220V, and the internal temperature return operating voltage is 24V.4.When working, set the time, the cabinet door will automatically lock, before the time, the door can not open, the time comes, the timing alarm will alarm, the door can be opened.5.This machine does not have the time memory function, in the case of sudden power failure, the time has not arrived, the warehouse door lock will automatically open. To return the temperature, another time.
