Brief:Aviation Aluminum Magazine Loader Equipment Features: Used at the end of semiconductor packaging, testing, and cleaning production lines, BGA boards are stored using a magazine (magazine) storage method and feature automatic board retrieval functionality. Touchscreen human-machine interface for convenient and easy operation. Programmable controller for stable and reliable operation, with easy expansion and replacement. The board-pushing mechanism uses a servo motor for pushing, with adjustable pushing force to ensure no damage to the product. Multi-frame storage configuration on the platform, supporting single-frame and multi-frame material collection functions. International SMEMA standard connection interface for direct integration with other equipment. Options: Automatic width adjustment & TCP network module system.

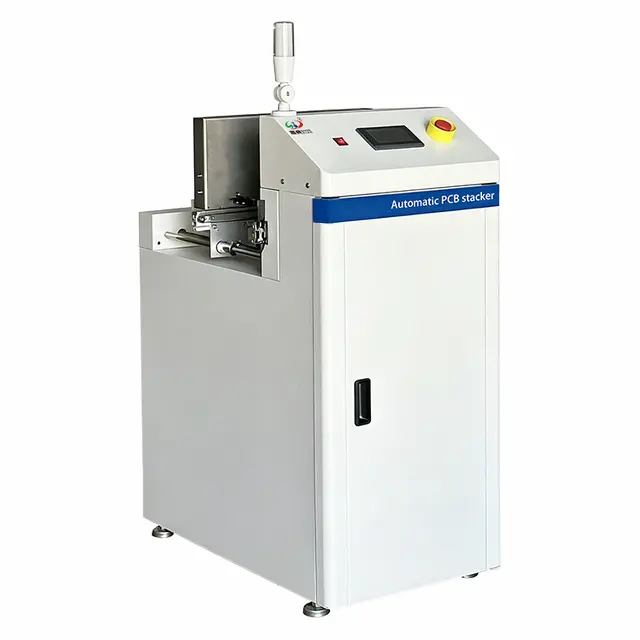

Brief:SMT Automatic Destacker Loader Machine (also known as a layer-stacking board feeder or automatic board feeder) is a core automated device primarily used for front-end board feeding operations in SMT (Surface Mount Technology) production lines, enabling efficient automatic transmission and stacking of bare PCBs. Its primary function is to replace manual labour with automated mechanisms, feeding stacked PCB blanks one by one into the production line track to ensure smooth production workflow. Specifically, after receiving signals from downstream equipment (such as pick-and-place machines or printers), it uses push plate cylinders or conveyor belt mechanisms to precisely drop or push PCB boards onto the transmission track, eliminating the cumbersome manual stacking process.
Brief:The SMT dual-track board loader is a highly efficient automated feeding device designed specifically for surface mount technology (SMT) production lines. Its core feature is a dual-track structure that can simultaneously process two PCB boards or FPC flexible boards, significantly improving production line efficiency. The following is a detailed description of its key features and working principles: Dual-track parallel design The equipment is equipped with two independent tracks, supporting simultaneous processing of two circuit boards to achieve continuous feeding. Compared to single-track equipment, production capacity can be increased by 40-60%, making it particularly suitable for large-scale batch production scenarios. Automated Board Feeding System Automatic Tray Switching: Through a lifting platform and pusher system, PCB boards stored in trays are sequentially pushed out; empty trays automatically sink, while full trays automatically reposition, enabling unmanned continuous feeding. Adaptive Adjustment: Track width can be manually or automatically adjusted according to PCB board dimensions, compatible with various specifications of circuit boards (e.g., bare boards, semi-finished products). Intelligent Control System Utilises microcomputer PLC control with a touchscreen human-machine interface for operation, allowing settings for material rack lifting step distance, conveying speed, and other parameters. Equipped with fault self-diagnosis, audio-visual alarms, and SMEMA standard signal interfaces, enabling seamless integration and collaboration with downstream equipment such as printers and pick-and-place machines.

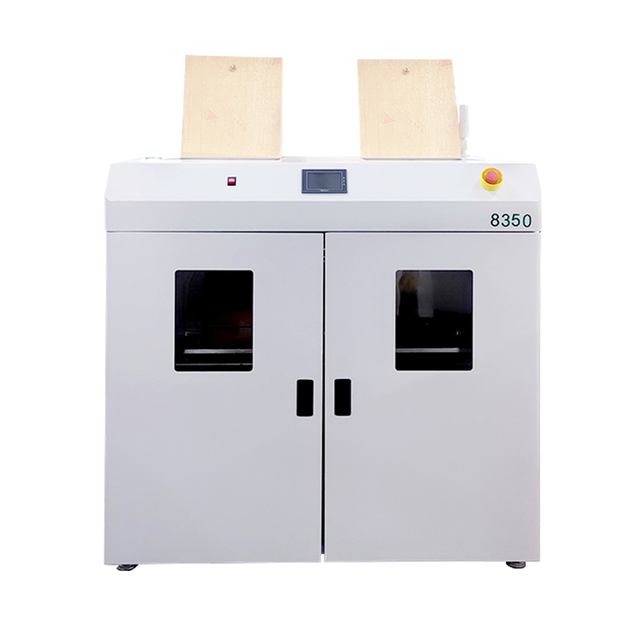

Brief:The SMT vacuum suction board Loader machine is a key automated device in SMT (surface mount technology) production lines, primarily used for the automatic feeding and transfer of PCBs (printed circuit boards). Its core function is to use vacuum suction technology to precisely pick up and transfer bare boards, replacing manual operations to improve production efficiency and accuracy. Functional Automatic feeding: As the first process in the SMT production line, it sequentially sucks and transfers stacked bare boards to the transfer station or printer. High Compatibility: Supports PCBs of various sizes (50×50mm to 250×400mm) and thicknesses (1-30mm). Some models can handle aluminium substrates or double-sided PCBs with components. Interoperability: Communicates with upstream/downstream equipment such as board loaders and transfer stations to achieve fully automated production lines. Technical Principles Vacuum Suction System: Generates negative pressure via a vacuum generator or vacuum pump, with suction cups adhering to the PCB surface. Suction force is adjustable (e.g., high-pressure suction cup design). Suction cup layout is flexible, supporting position adjustment to accommodate different board types. Control and Drive System: PLC (Programmable Logic Controller) + touchscreen HMI for automatic/manual mode switching and parameter settings. A translational mechanism (e.g., ball screw) ensures precise positioning of the PCB board (accuracy ±0.05mm). The SMT vacuum PCB handling machine is a critical automated device in SMT (Surface Mount Technology) production lines, primarily used for the automatic feeding and transportation of PCBs (Printed Circuit Boards). Its core function is to achieve precise gripping and transportation of bare boards using vacuum suction technology, replacing manual operations to enhance production efficiency and precision.
Brief:Vacuum Suction Board Loading Machine Bare Board Suction Unit: Vacuum suction cup assembly paired with a lifting platform, transferring stacked bare boards through negative pressure suction (air pressure 4-6 kg/cm²). Suction cup spacing is adjustable (compatible with PCBs ranging from 50×50 mm to 510×460 mm). Intelligent Control: PLC + touchscreen interface, integrated with SMEMA signal interface for production line interconnection Workflow Adhesion Mode: Bare board lifting and feeding → Vacuum suction cup board pickup → Translation to track → Release and convey.
Brief:The SMT Board Loading and Unloading Machine is an automated device that integrates PCB board automatic feeding (loading) and collection (unloading) functions. It is widely used at the beginning and end of SMT production lines to achieve closed-loop PCB board transmission. Its core advantages include space savings, reduced manual intervention, and improved production line continuity. The following analysis covers structural design, operating modes, technical parameters, and selection criteria: Modular Design
Board Feeding Unit: Utilises vacuum suction cups (for bare boards) or a board pusher mechanism (for boards with components), feeding boards layer by layer via a lifting platform. The suction cup assembly supports lateral adjustment to accommodate different board widths14. Board Collection Unit: Equipped with a ball screw lifting mechanism and a material tray positioning system, it sorts PCBs based on NG/OK signals. The automatic material tray replacement time is approximately 30 seconds34. Central Control: PLC + touchscreen human-machine interface, integrated with SMEMA signal interface to achieve full-line interconnection. Dual-Mode Operation Single-Board Mode: Vacuum suction cups directly attach to bare boards and transport them to the track (suitable for bare boards). Dual-Board Mode: The pusher device in the turnover box pushes PCBs with components into the track (component height must be ≤10mm).

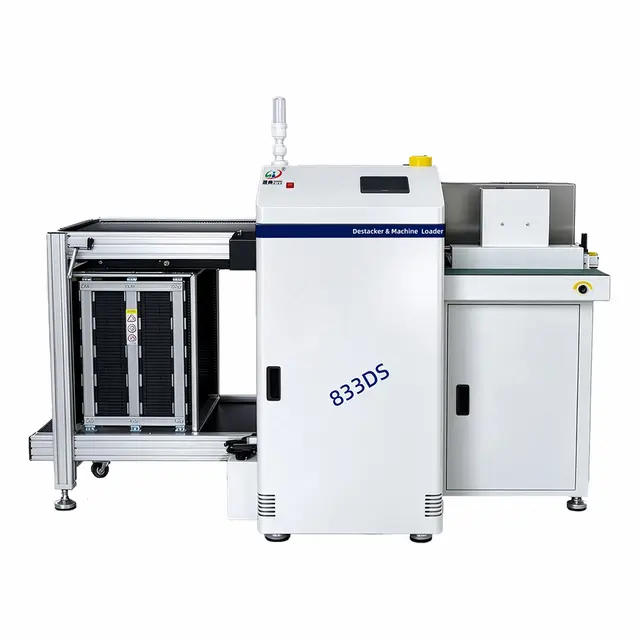

Brief:The SMT Destacker and Loading Machine is an integrated feeding device developed specifically for SMT production lines, combining the dual functions of a stacking machine and a turnover box feeding machine to achieve automated feeding in two modes: bare boards and turnover box-loaded boards. Its core features and operating principles are as follows: Dual-mode parallel operation Destacker Mode: For single-sided boards or bare boards, the entire stack can be directly placed into the storage area above the track (capacity: 50–300 pieces), and the boards are pushed one by one to the conveyor track via the board-pushing system. Load Mode: Suitable for double-sided boards or PCBs with components, the turntable automatically switches between lifting and lowering. When the empty turntable descends, the full turntable takes its place, enabling continuous feeding. The two modes can be flexibly switched to accommodate different production process requirements. Intelligent Control System Features a PLC + touchscreen human-machine interface, allowing settings for push plate speed, lifting step distance, and mode switching; Includes an SMEMA standard interface for seamless integration with printers/pick-and-place machines, responding to downstream equipment demand signals.
Brief:The SD-825L/833L/839L SMT board PCB loader is mainly used in the front part of the SMT production line, which can transport the PCB board to the following automatic solder paste printing machine, SMT pick and place machine and some other equipment sets. It has the function of automatic board loading which can save labor cost, improve production efficiency and increase yield of products.
Brief:The SD-825/833/839 SMT board PCB loader is mainly used in the front part of the SMT production line, which can transport the PCB board to the following automatic solder paste printing machine, SMT pick and place machine and some other equipment sets. It has the function of automatic board loading which can save labor cost, improve production efficiency and increase yield of products.
