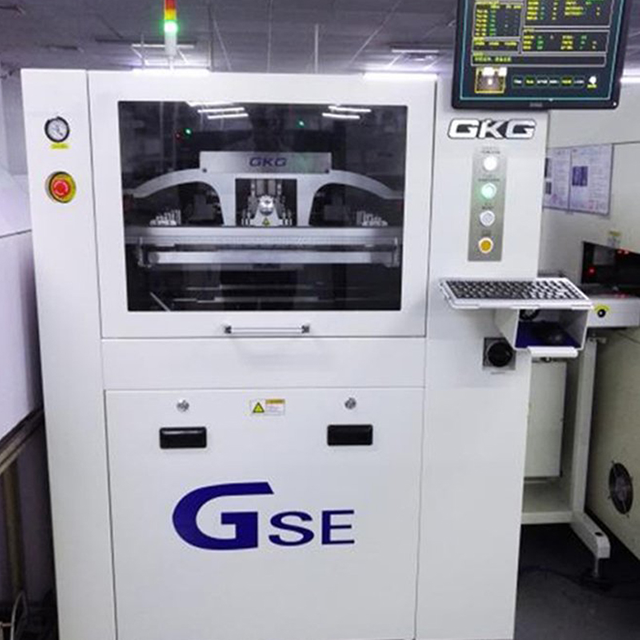

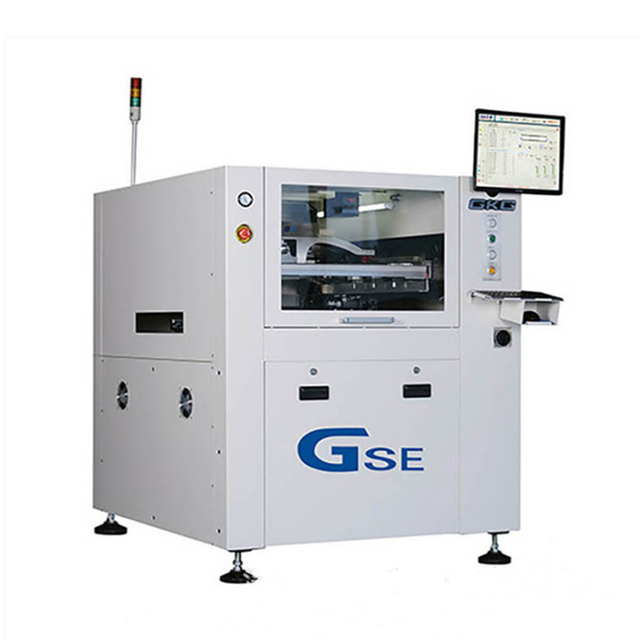

Brief:1. The GKG GSE fully automatic solder paste printer is equipped with a dedicated manual adjustment lifting platform, which features a simple and reliable structure, low cost, and convenient manual adjustment. It enables quick adjustment of the lifting height of the PIN pins for PCBs of different thicknesses. 2. Image and optical system: A new optical system featuring uniform ring-shaped light and high-brightness coaxial light, combined with infinitely adjustable brightness functionality, ensures excellent recognition of various types of mark points (including uneven mark points), and is compatible with PCB types such as tin-plated, copper-plated, gold-plated, sprayed tin, and FPC, regardless of colour. 3. Scraper System: A sliding track-type scraper system enhances operational stability and extends service life. 4. Cleaning System: A new type of wiping rubber strip ensures full contact with the steel mesh, while enhanced vacuum suction power effectively removes residual solder paste from mesh pores, truly achieving effective automatic cleaning functionality: three cleaning modes (dry, wet, and vacuum) with software-configurable cleaning mode and cleaning paper length settings. 5. Robust Steel Mesh Fixing Structure 6. Comprehensive 2D Inspection System

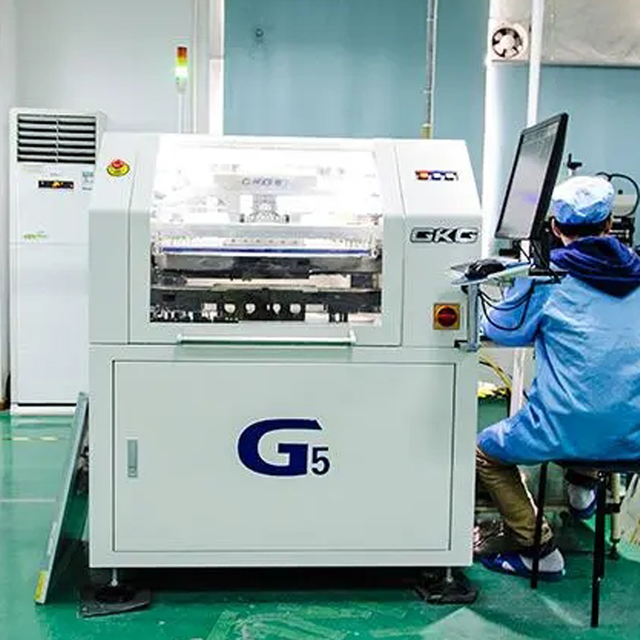

Brief:GKG G5 Fully automatic solder paste printer-specific adjustable lifting platform, featuring a reliable structure and convenient adjustment, enabling quick adjustment of the lifting height of PIN pins for PCB boards of different thicknesses. A new optical system featuring uniform ring-shaped light and high-brightness coaxial light, combined with infinitely adjustable brightness functionality, ensures that various types of Mark points can be clearly identified, accommodating PCB types such as tin-plated, copper-plated, gold-plated, sprayed tin, and FPC with different colours. GKG's patented mathematical calculation mode ensures the machine achieves high-precision alignment. Features a Windows XP/Win7 operating interface with excellent human-machine interaction functionality: particularly effective for navigating program files, enabling operators to quickly become familiar with the system; menu-based Chinese/English language switching, operation logs, fault records/self-diagnosis/fault analysis prompts/light alarms, etc., making operation simple and convenient. Three cleaning methods: dry cleaning, wet cleaning, and vacuum cleaning. These three methods can be freely combined, and when automatic cleaning is not required, manual cleaning can be performed in the production interface to manual cleaning can be performed under the production interface, thereby reducing cleaning time and improving production efficiency. The high-adaptability steel mesh frame clamping system enables printing on mesh frames of various sizes and allows for quick machine type changes during production. Image guide rail system: removable, programmable flexible side clamping devices are designed for flexible boards and warped PCBs, providing unique top flattening. Through software programming, they can automatically extend or retract without affecting solder thickness.

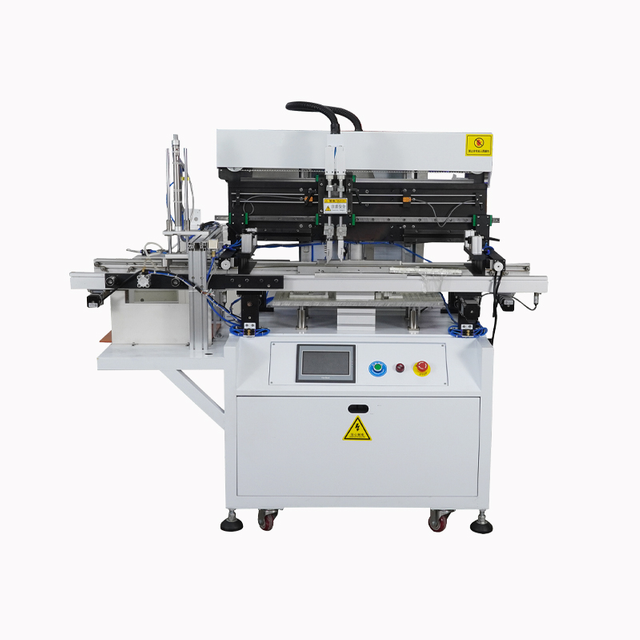

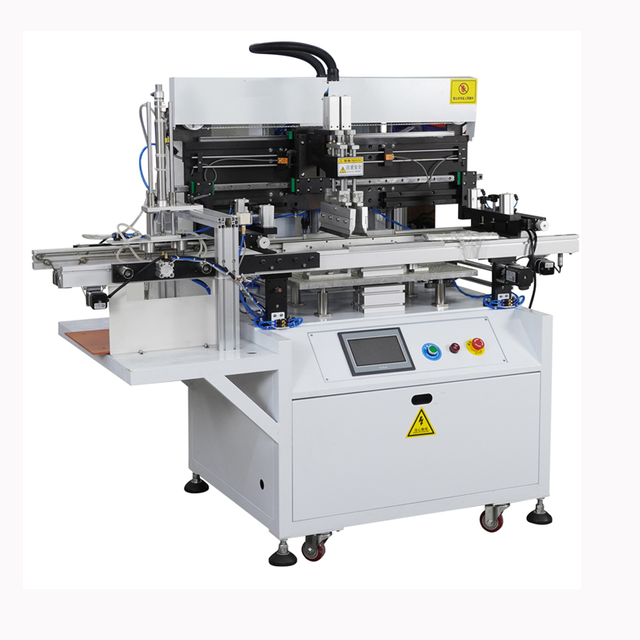

Brief:The online solder paste printer is a core piece of equipment in SMT (surface mount technology) production lines, used to precisely print solder paste onto PCB pads, providing the foundation for subsequent component mounting. Its core feature is its seamless integration with upstream and downstream equipment (such as pick-and-place machines and reflow ovens) through an automated transfer system, enabling efficient continuous production. Modular design
Stencil system: Made of stainless steel or nickel alloy, with aperture designs customised according to pad dimensions, typically 0.1–0.15 mm thick. Squeegee unit: Made of metal or polyurethane, with an angle of 45°–60°, pressure range of 3–15 N/cm², and speed of 20–80 mm/s, ensuring uniform solder paste filling. Conveyor Track: Automatic board loading/unloading design, compatible with direct integration with pick-and-place machines, minimising manual intervention.

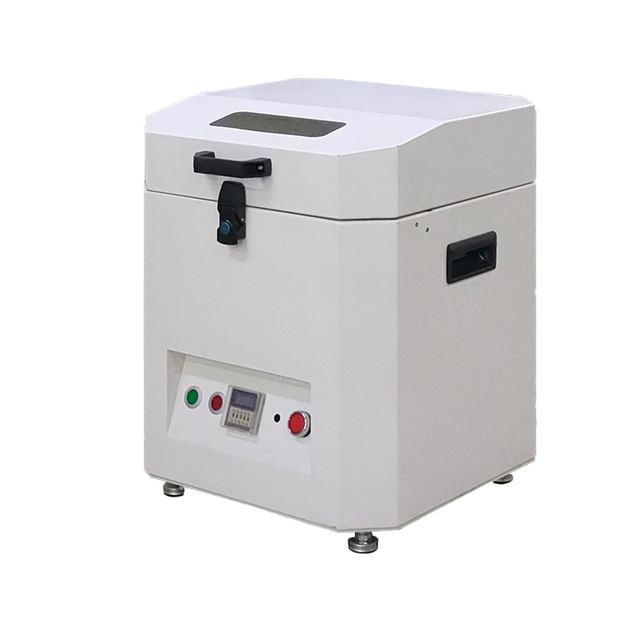

Brief:1、Solder paste is placed at 45 degrees and rotates along the axis, so that the paste nolonger adheres to the can lid. 2、Double safety device to ensure personal safety. 3、Stirring at the same time has the effect of removing air bubbles. 4、Special control circuit, fully consider the process control of stirring solder paste. 5、Proven speed ratio, to avoid the impact of the impact of tin powder and temperatur rise too large on the quality of the solder paste.

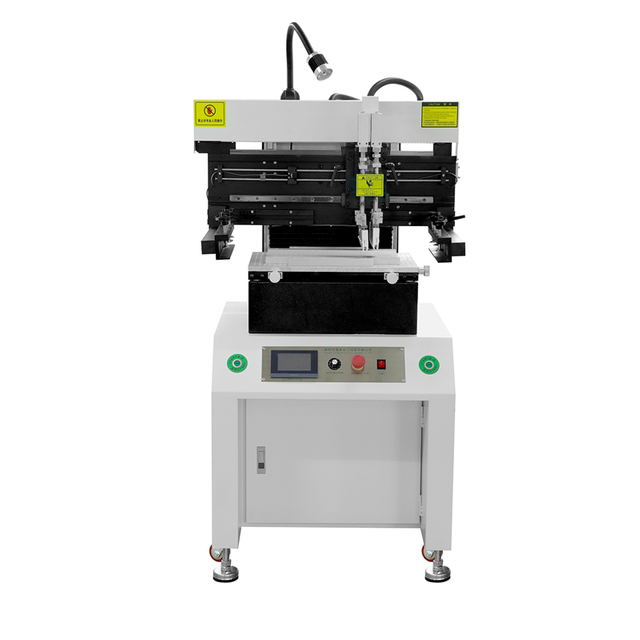

Brief:1.Microcomputer control, touch screen display, menu operation interface;2.Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);3.The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);4.Equipped with frequency converter speed regulation system, scraper running speed is stable;

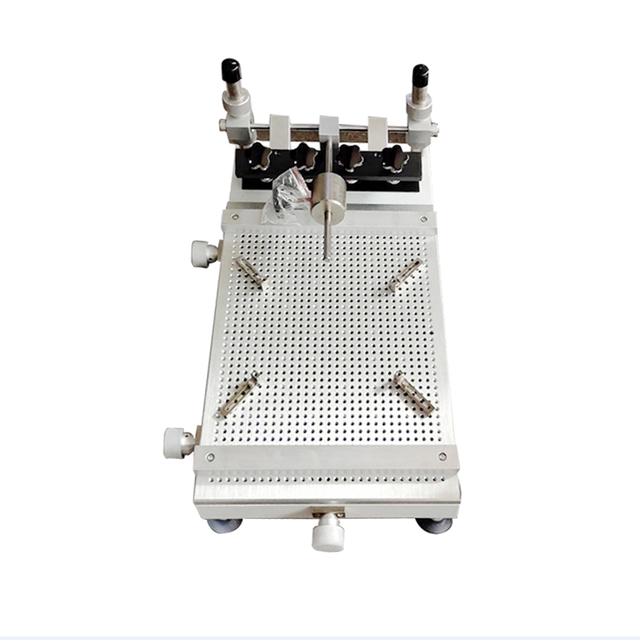

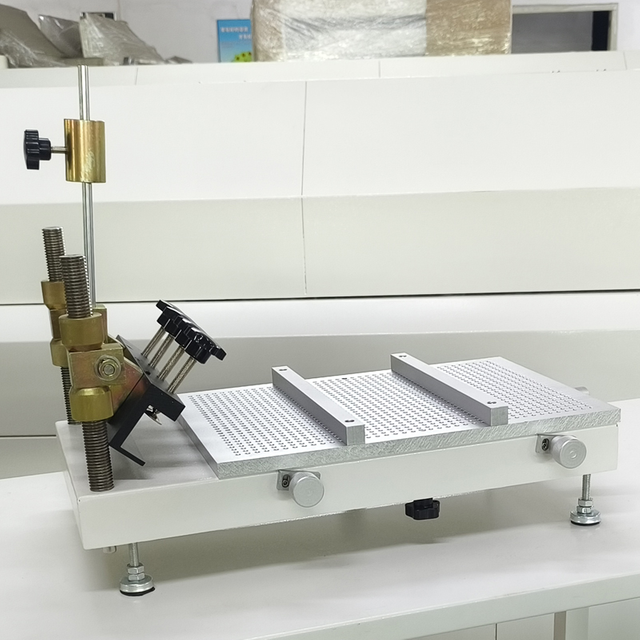

Brief:Product Introduction:High precision manual printing table is mainly designed for single and double-sided circuit board solder paste or red glue printing requirements, the work platform selection of high-quality aluminum honeycomb positioning hole processing, the base using thickened steel plate welding molding, strong and stable, durable. Its features are as follows：（1）The line plate is positioned by positioning pins, fixed rods and fixed plate blocks, which is convenient for positioning and ensures repeatable operation accuracy.（2）The calibration method is easy and fast by moving the stencil and combining with the X and Y axis fine adjustment correction of the printing platform.（3）The stencil holder adopts a spiral screw, which can adjust the height up and down, so it is convenient to control the PCB thickness and the amount of printing solder paste.（4）Printing stencil is fixed by 4 knobs with pressure plate, fast and firm.

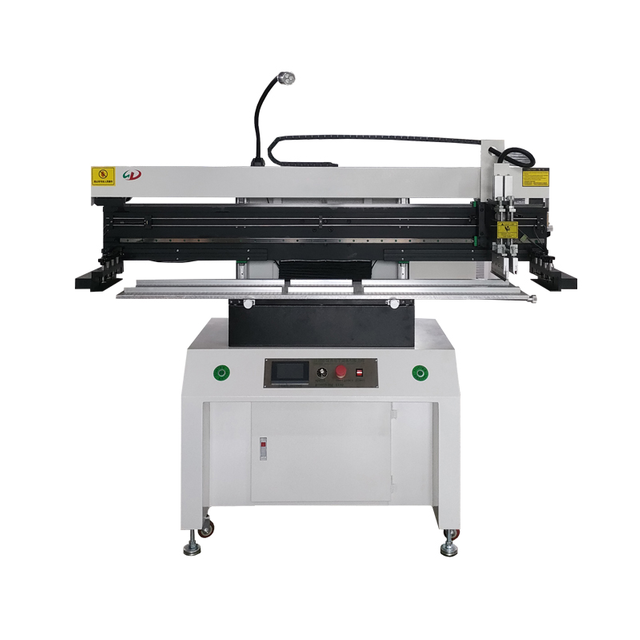

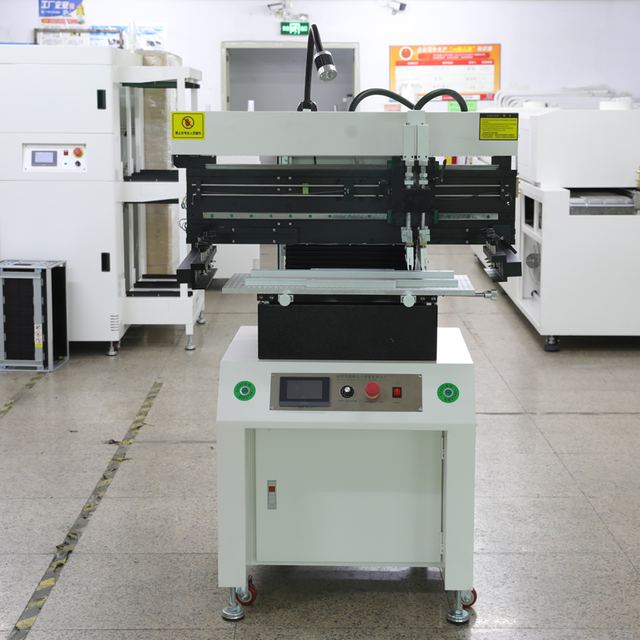

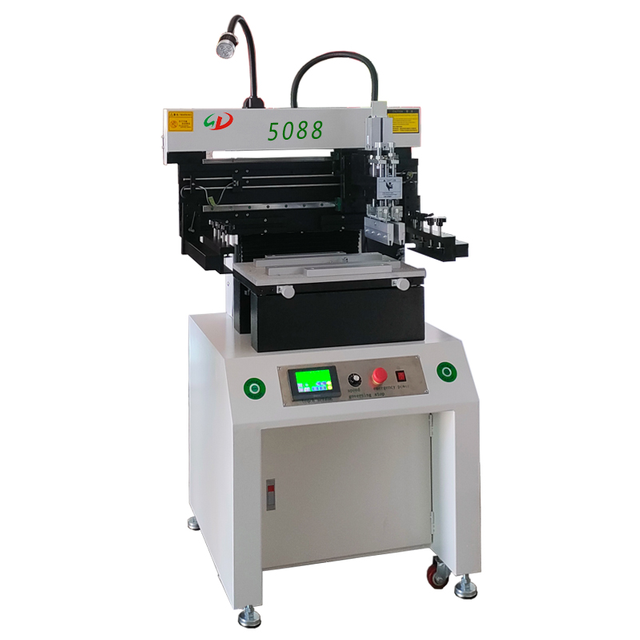

Brief:Features:1.Microcomputer control, touch screen display, menu operation interface;2.Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);3.The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);4.Equipped with frequency converter speed regulation system, scraper running speed is stable;5.Operation with two-hand button switch, safe and reliable;6.The pause time of the entire stencil can be independently set in the touch screen menu;7.Positioning and fixing methods of PCB board include positioning of reference hole, positioning of reference edge, simultaneous positioning of reference edge of reference hole and template, etc.;8.The touch screen is equipped with time display function, automatic counting function of printing times and screen protection function;9.Equipped with scraper speed adjustable function and emergency stop safety function;10.Printing mode: single, double and secondary startup (menu setting is optional);11.Printing working state: automatic/semi-automatic/inching three printing states (menu setting is optional);
Brief:Features:1.Microcomputer control, touch screen display, menu operation interface;2.Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);3.The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);4.Equipped with frequency converter speed regulation system, scraper running speed is stable;5.Operation with two-hand button switch, safe and reliable;6.The pause time of the entire stencil can be independently set in the touch screen menu;7.Positioning and fixing methods of PCB board include positioning of reference hole, positioning of reference edge, simultaneous positioning of reference edge of reference hole and template, etc.;8.The touch screen is equipped with time display function, automatic counting function of printing times and screen protection function;9.Equipped with scraper speed adjustable function and emergency stop safety function;10.Printing mode: single, double and secondary startup (menu setting is optional);Printing working state: automatic/semi-automatic/inching three printing states (menu setting is optional)
