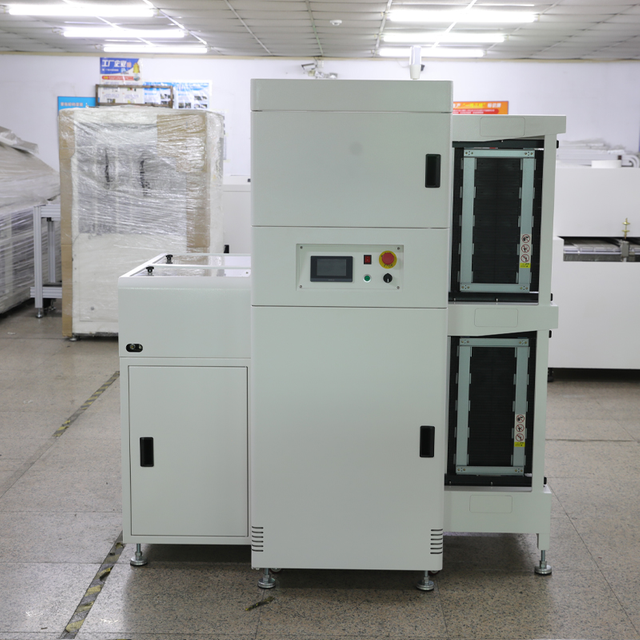

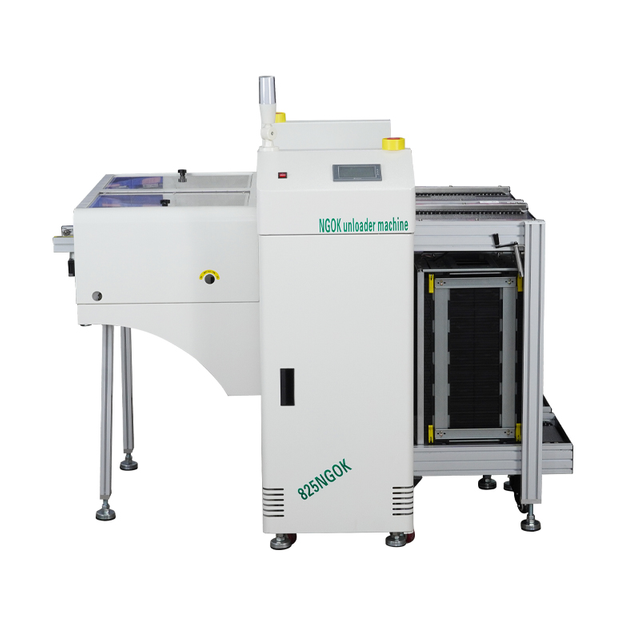

Brief:Features: 1. Outer structure: sheet metal structure and aluminum profile in the frame, surface spray treatment; the color is corrugated white. 2. Microcomputer Panasonic PLC control system, stable and reliable. 3. Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue. 4. Multiple sound, light, and alarm functions on the touch screen. 5. The rack lifting step can be set according to the thickness of the PCB. 6. With an automatic counting function, it is convenient for production statistics. 7. User-friendly design ensures that the PCB board is not broken and improves output capacity 8. The lower connection PCB board adopts a motor to send the board to the magazine. 9. Adopting a stepper motor push plate, the intensity can be adjusted, and the speed can be set on the touch screen. 10. The push plate device uses two heads to limit the movement to protect the PCB board. 11. The OK board is loaded into the front magazine, and the NG board is transferred into the fabric magazine. 12. Dual signal distinguishes NG\OK.

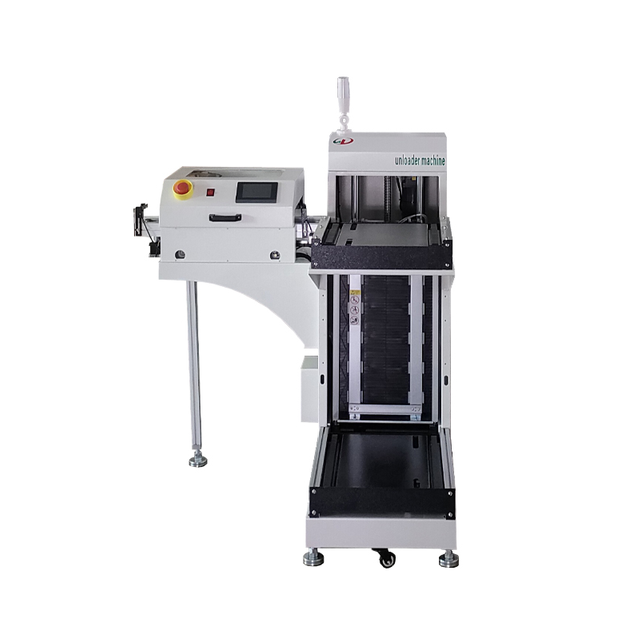

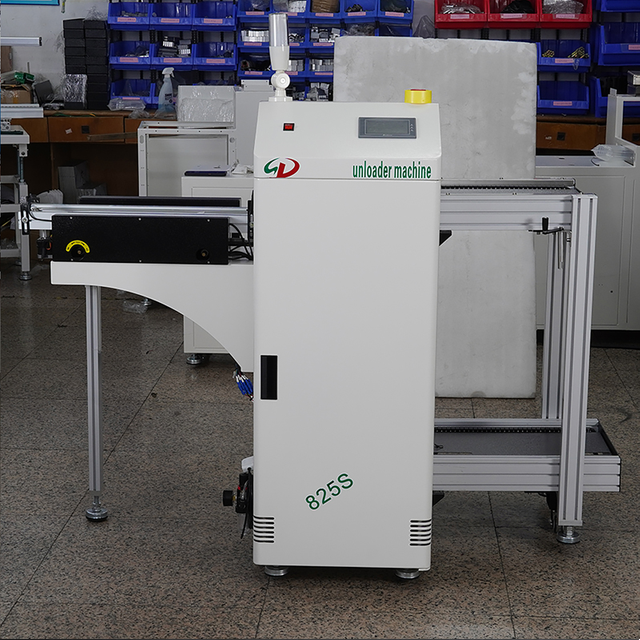

Brief:SD-825S/833S/839S SMT board Automatic PCB Unloader is mainly used at the back of the SMT production line to retrieve PCB boards from the automatic solder printing machine, SMT pick-and-place machine, and other equipment groups into the Magazine. It has the function of automatic board retrieval, which can save labor costs, improve production efficiency, and increase product output.
Brief:SD-825S/833S/839S SMT board Automatic PCB Unloader is mainly used at the back of the SMT production line to retrieve PCB boards from the automatic solder printing machine, SMT pick-and-place machine, and other equipment groups into the Magazine. It has the function of automatic board retrieval, which can save labor costs, improve production efficiency, and increase product output.

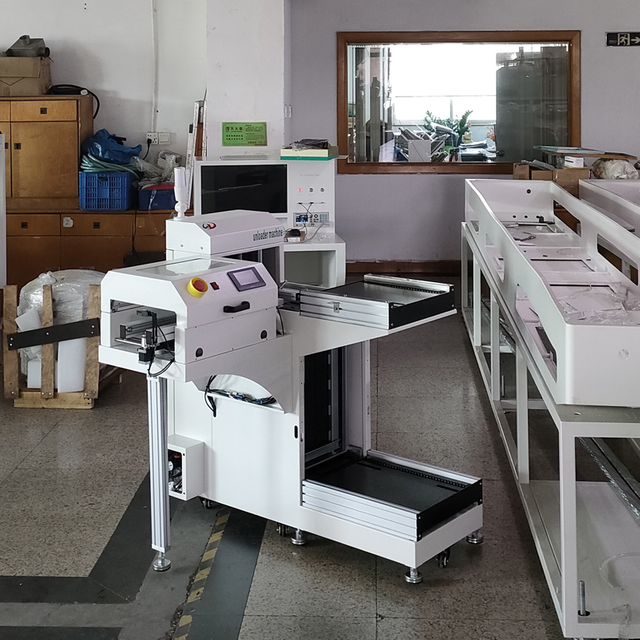

Brief:SD-825L/833L/839L SMT board Automatic PCB Unloader is mainly used at the back of the SMT production line to retrieve PCB boards from the automatic solder printing machine, SMT pick-and-place machine, and other equipment groups into the Magazine. It has the function of automatic board retrieval, which can save labor cost, improve production efficiency and increase product output.

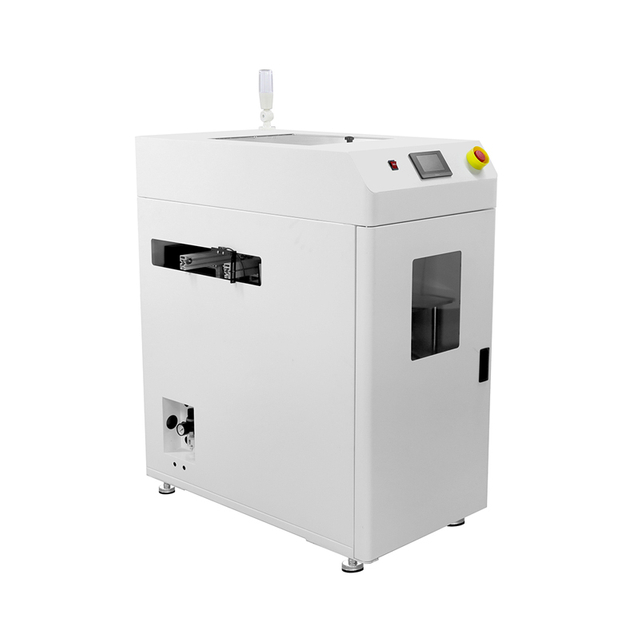

Brief:Automatic Destacker Loader And Unloader Machine (also known as the stacking and feeding integrated machine) is an automated integrated device in the SMT production line that combines the functions of feeding (stacking) and collecting boards. Its core function is to achieve the automatic supply of bare PCBs and the efficient collection of finished boards through intelligent mechanical structures. Core Functions Automated Stacking (Board Feeding) Raw Board Supply: Stacked PCB blanks are precisely fed into the production line track one by one via push plate cylinders or conveyor belts, responding to board request signals from downstream equipment (such as printers), thereby replacing manual board placement operations. Dual-mode switching: Supports stacking mode (entire stack of bare boards) and loading mode (automatic board supply from turnover boxes), enabling flexible switching between single- and double-sided mounting processes. Intelligent board retrieval (unloading) Finished board recovery: After receiving the signal indicating completion of component placement, the system automatically places the PCB boards with components into material trays, achieving end-of-line board retrieval functionality and preventing oxidation of pads caused by manual contact.
Brief:1. The Aviation Aluminum Magazine Unloader is used at the end of the SMT production line to collect finished PCBs at set intervals and place them in magazines. Once a magazine is full, it automatically switches to a pre-positioned empty magazine, enabling automated production, reducing the need for fixed personnel, and lowering labour costs. 2. Dual-track magazines for independent collection, 3. Pushing force can be adjusted via the human-machine interface to prevent damage to the boards. 4. Equipped with AGV automatic docking functionality. 5. Standard Ethernet port for integration into the workshop network to enable IoT connectivity. 6. Compatible with standard dual-track SMEMA, suitable for both single- and dual-track production lines. 7. Automatic opening and closing of the magazine door for convenient AGV docking.

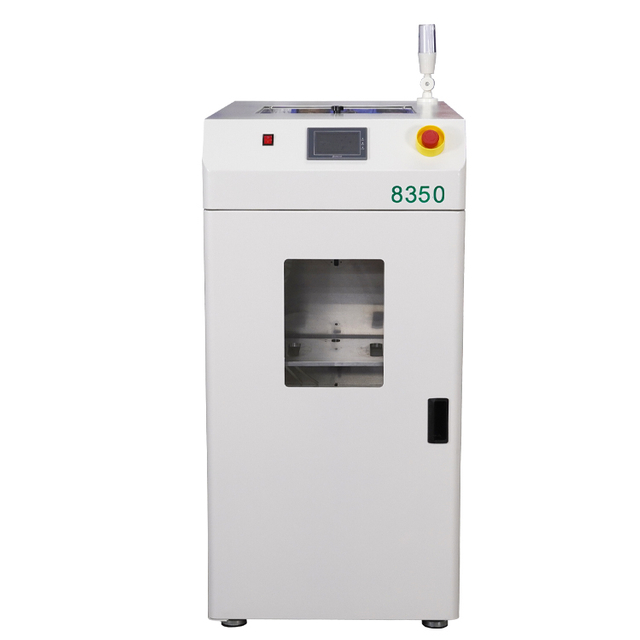

Brief:Features: 1. Used at the beginning of SMT production, after receiving the signal from the lower machine, the stack of PCB boards will be sucked up, sent to the rail guide, and then sent to the downstream machine. 2. The enclosed design ensures the highest level of safety protection. 3. The top safety cover can be opened to facilitate the processing of machine hardware during maintenance. 4. The suction nozzle is fixed with a large, strong magnet. 5. Adjustable nozzle position to ensure that the circuit board falls steadily. 6. The position of the nozzle can be moved at will 7. Stable and balanced width adjustment device (hand-controlled screw adjustment) 8. When the machine is operated, the PCB board is put into the front side. There is an opening on the door and transparent acrylic board is installed to monitor the working condition inside without opening the door.
