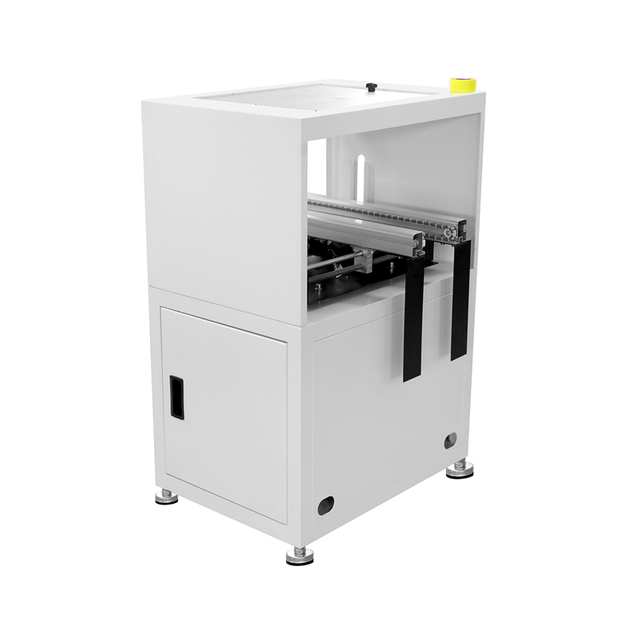

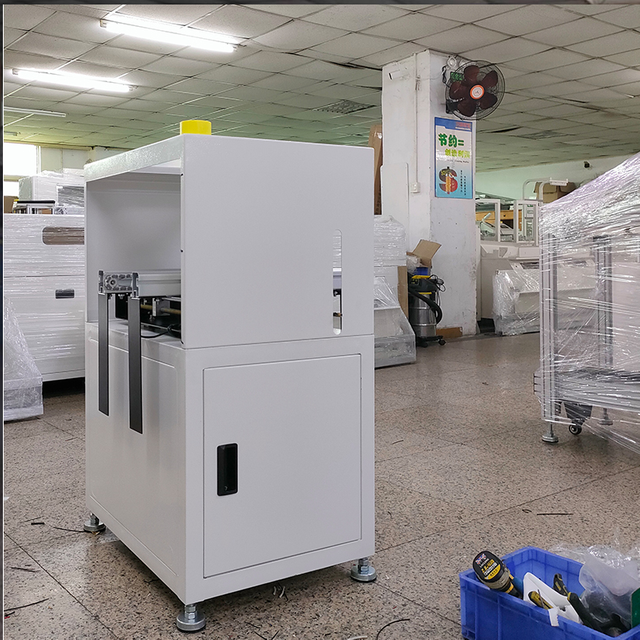

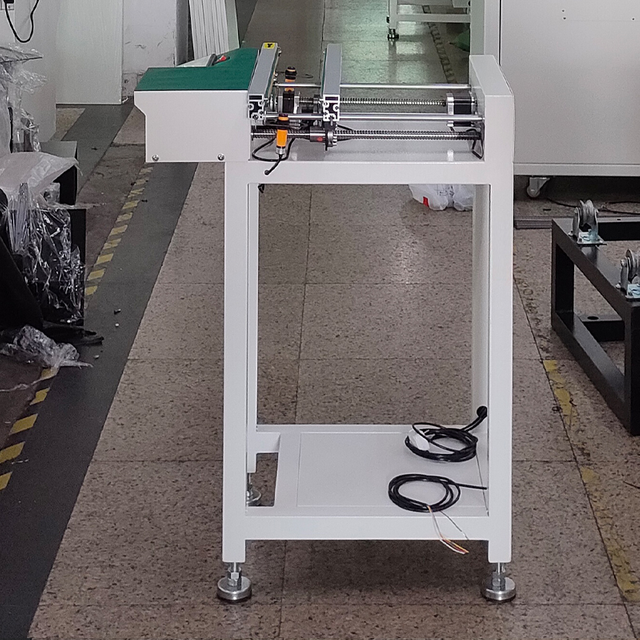

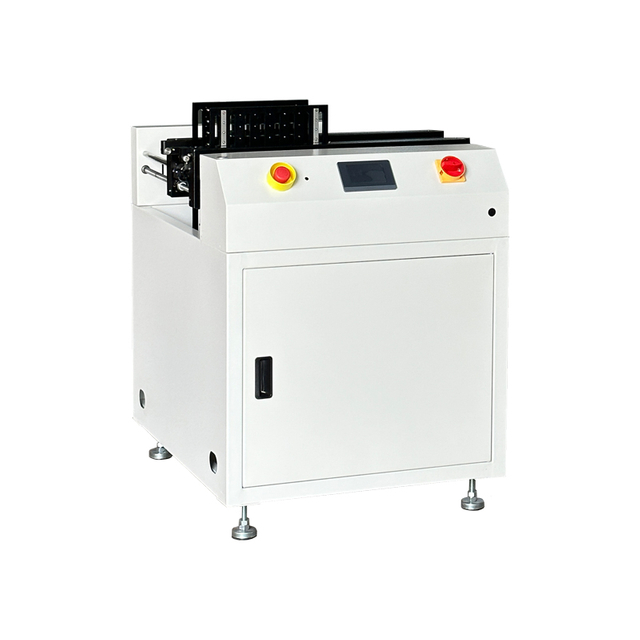

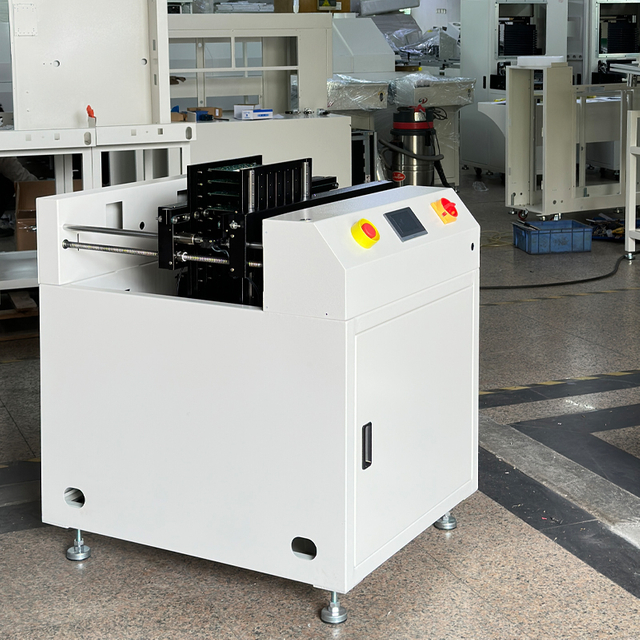

Brief:SMT Lifting Machine Features 1. Enclosed design ensures the highest safety protection level 2. The top safety cover can be opened for convenient maintenance of machine hardware 3. Micro-adjustable feed and exit heights ensure accurate alignment and conveyance of PCB boards 4. Stable and balanced width adjustment mechanism (manually controlled screw rod adjustment) 5. Compact machine footprint 6. Compatible SMEMA interface

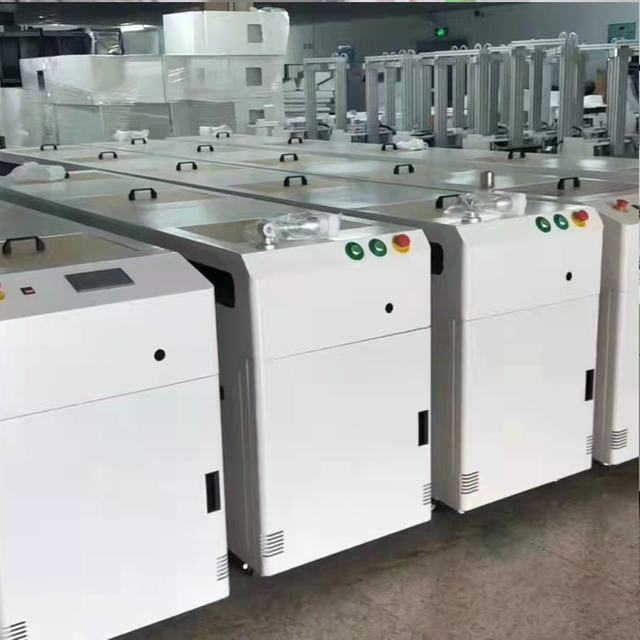

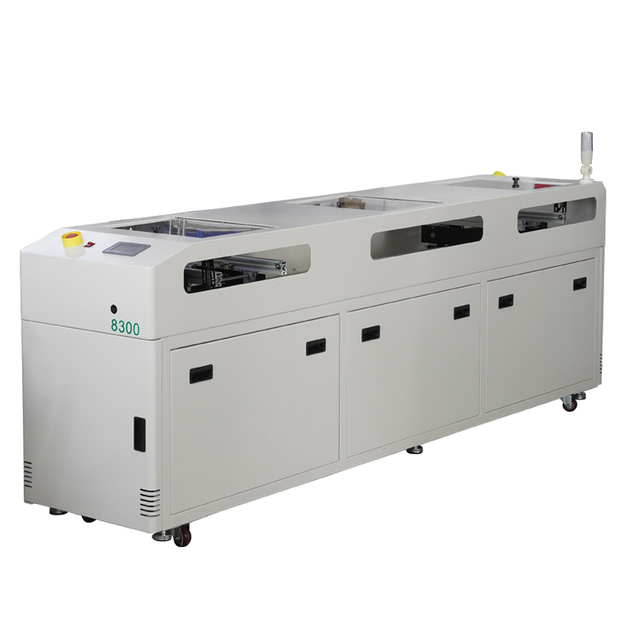

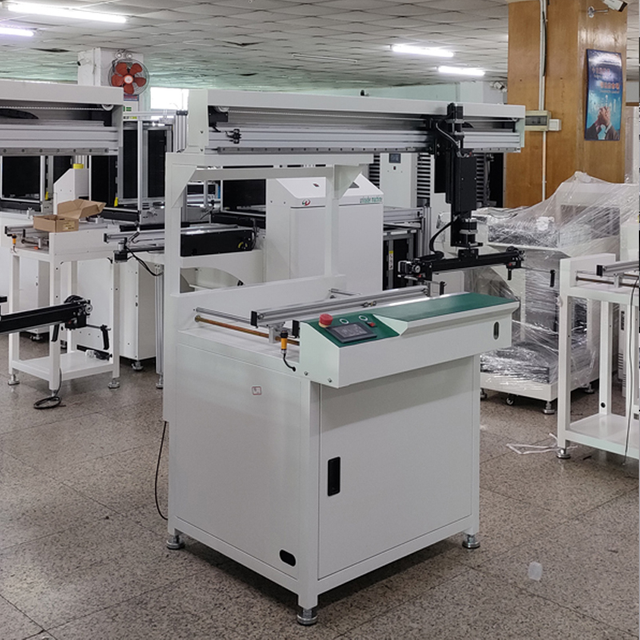

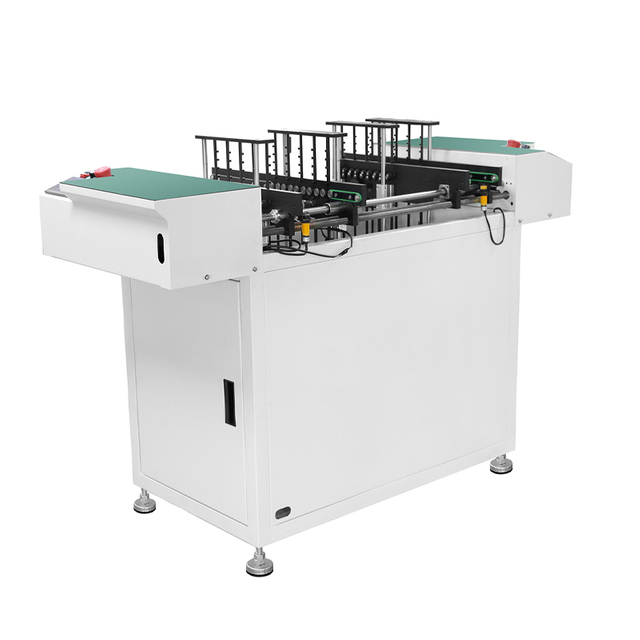

Brief:SMT Shuttle Conveyor with Double Cart (also known as translational machines) are core equipment in SMT production lines for achieving track misalignment translational transfer and connection. They are primarily used to optimise production line layout, improve equipment utilisation, and reduce operating costs. Dynamic integration of production line tracks Single-track and dual-track equipment integration Resolves track misalignment issues between single-track pick-and-place machines and dual-track reflow/wave soldering machines by precisely translating PCBs to achieve seamless equipment integration, thereby avoiding efficiency losses and quality risks caused by manual handling. Production Line Splitting and Merging Supports modes such as ‘one-in-two-out’ (single-track splitting into dual-track) and ‘two-in-one-out’ (dual-track merging into single-track), flexibly adapting to production needs for merging multiple lines or expanding a single line, such as two placement lines sharing a single reflow oven.

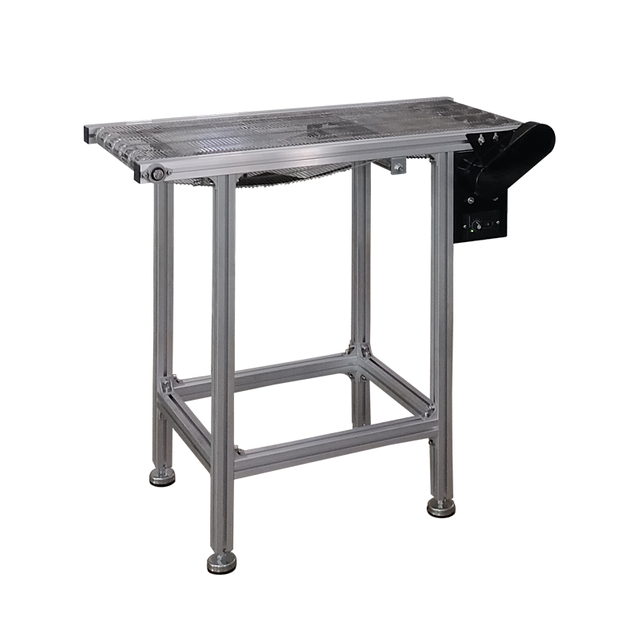

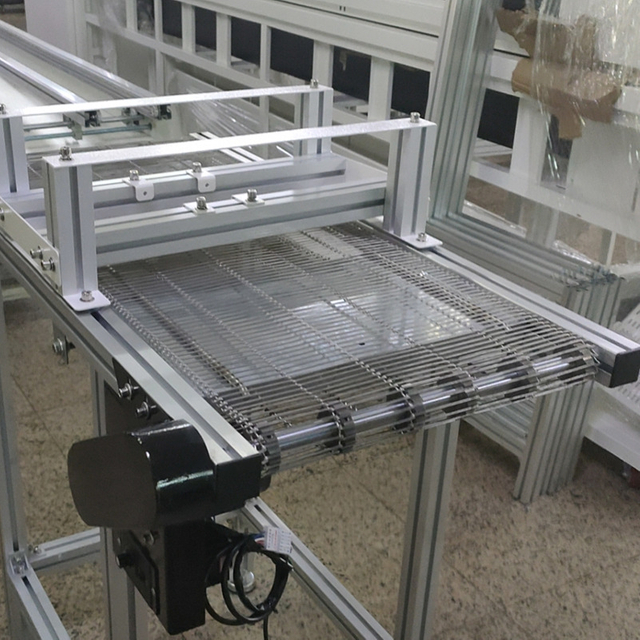

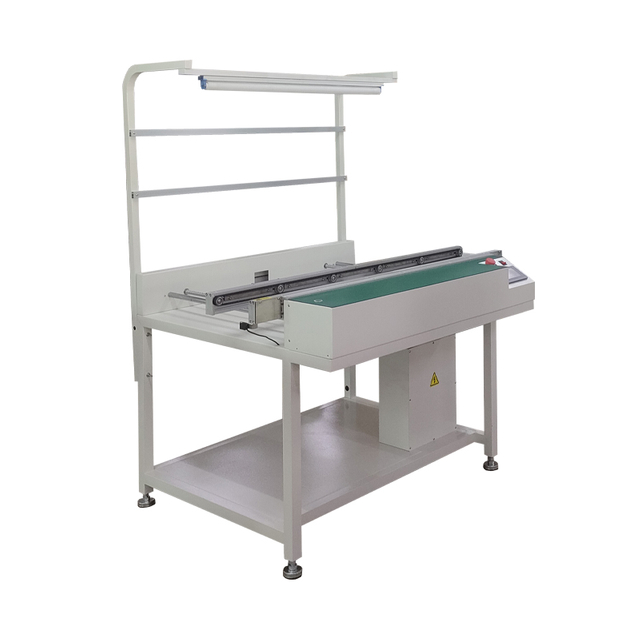

Brief:A belt conveyor is a material handling device that uses a continuously moving belt as its load-bearing component. Its core function is to achieve efficient, continuous material transport and can be integrated with specific process handling. 1. Core Material Conveying Function Continuous Spatial Transfer Enables horizontal, inclined, or vertical material transport along a fixed route, supports the formation of complex spatial conveying routes, replaces manual handling, and significantly improves production line efficiency. Adaptability to Various Material Forms It can transport bulk particles (such as grains, chemical raw materials) as well as individual items (such as packaged boxes, bagged goods), with an application range spanning from dry materials to components requiring cleaning. 2. Production Process Integration Process Integration Simultaneously performs cooling, cleaning, and draining operations during transportation. For example, trough-type mesh belt conveyors use water trough designs to directly cool or clean high-temperature workpieces with water; oil treatment processes achieve automatic oil separation. Harsh Environment Adaptation Stainless steel mesh belts meet hygiene standards for industries such as food and pharmaceuticals, support quick disassembly and cleaning, and prevent cross-contamination.

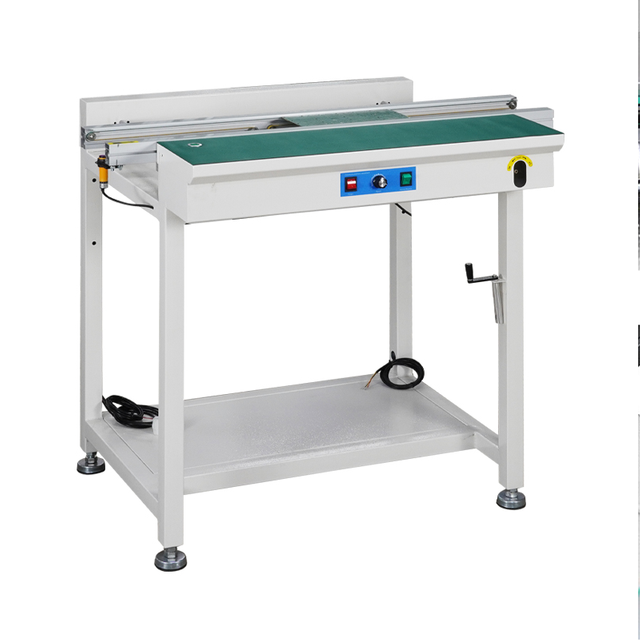

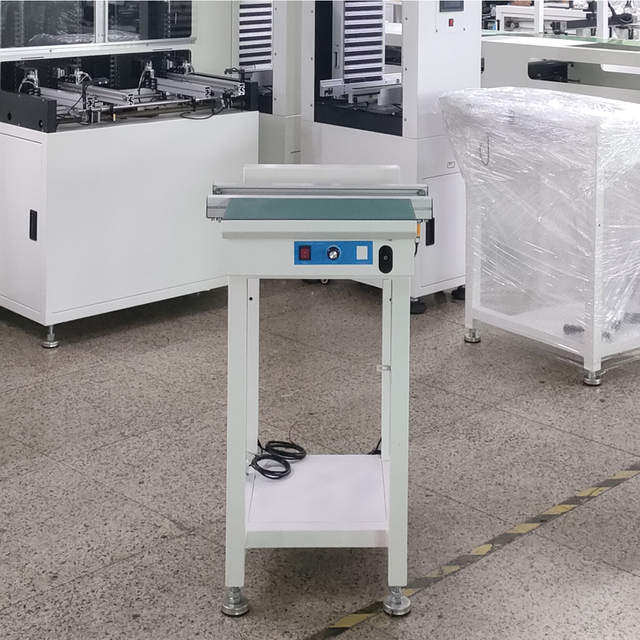

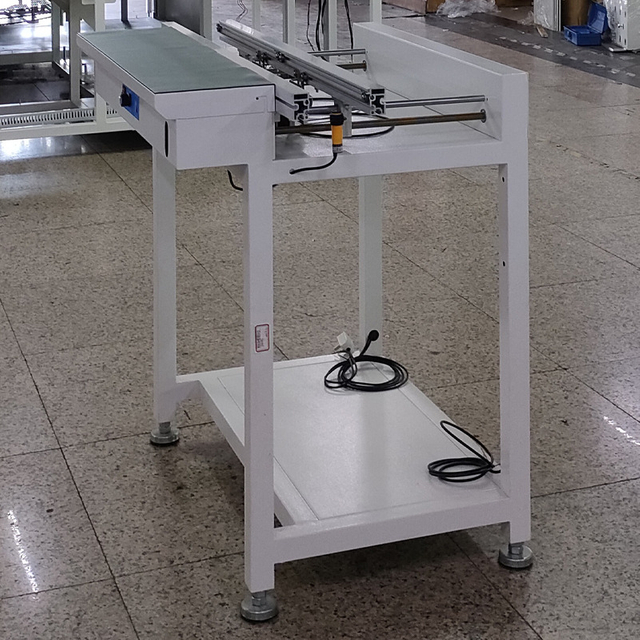

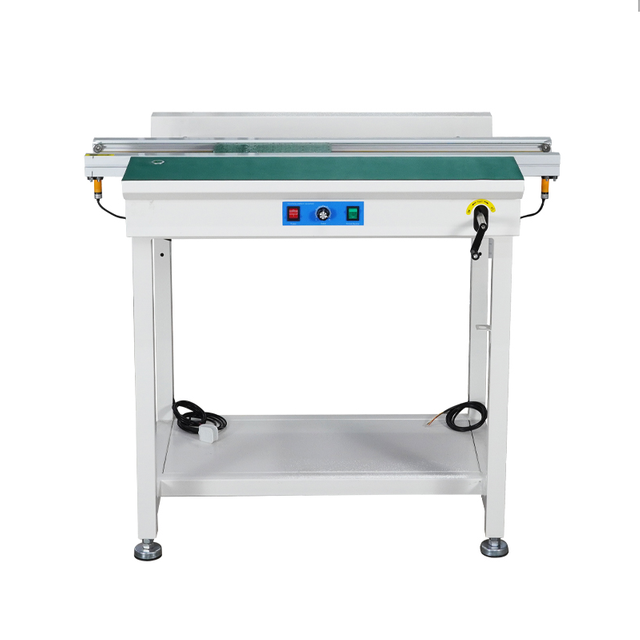

Brief:The SMT Synchronous Belt PCB Conveyor plays a core role in transmission and coordination in electronic manufacturing production lines. Core transmission functions: 1. High-precision synchronous transmission Utilising a synchronous belt design with tooth-tooth engagement, precise alignment between the belt teeth and gears ensures zero slip transmission, maintaining PCB transmission position deviation within ±0.1mm and preventing component misalignment during the placement process. Compared to friction-driven flat belts, synchronous belts can withstand heavier loads (e.g., 10kg fixtures) and exhibit a 40% improvement in resistance to tensile deformation. 2. Stepless speed adjustment to match production line cycle time Stepper motor-driven synchronous belts allow precise speed adjustment within the range of 0.5–12 metres per minute, flexibly matching the speed differences between pick-and-place machines and reflow soldering machines to resolve production rhythm mismatches between equipment.

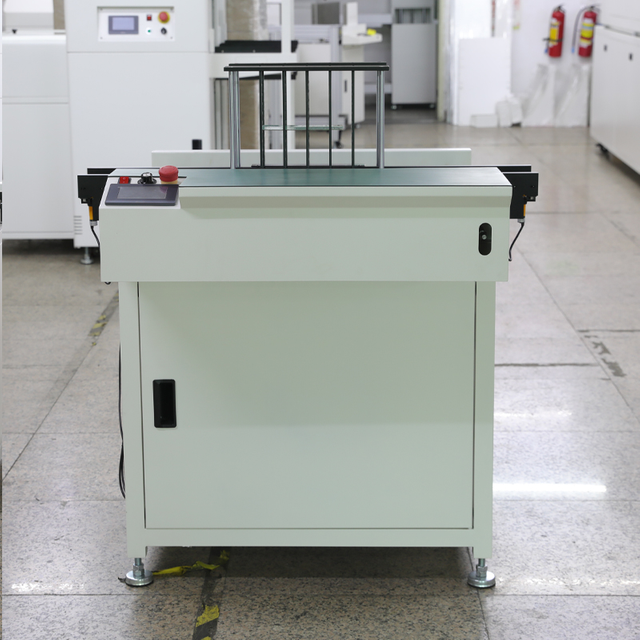

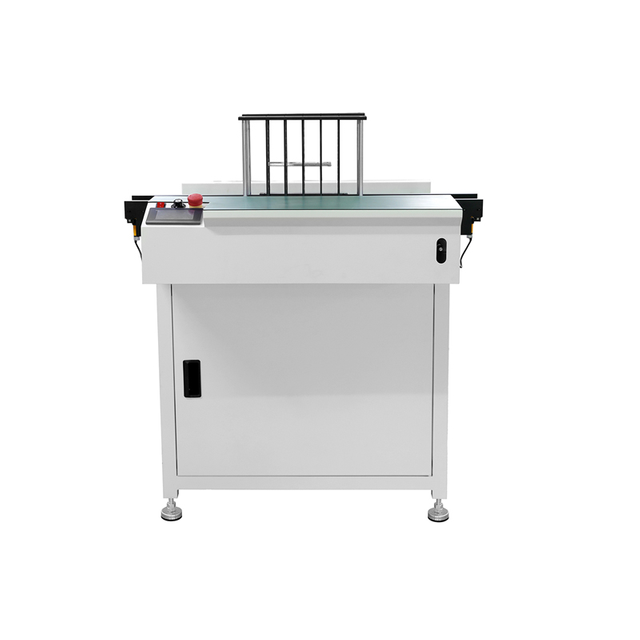

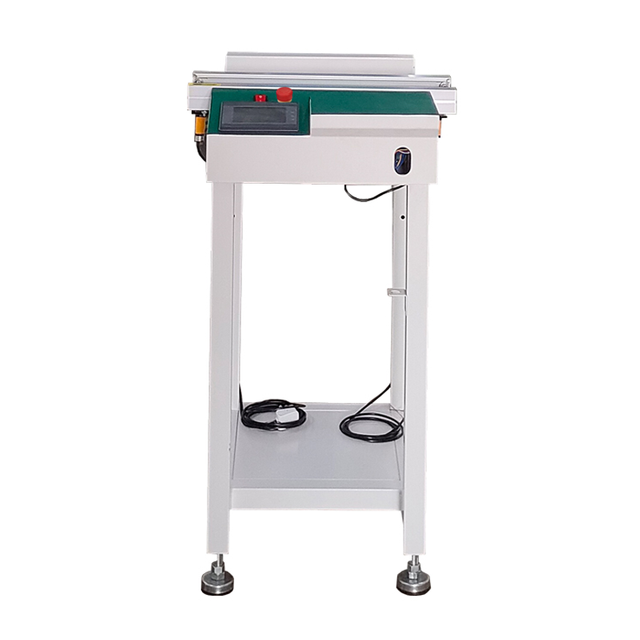

Brief:The SMT Reject Conveyor significantly improves the efficiency and quality control capabilities of electronic manufacturing lines by integrating intelligent sorting and buffering functions. Its core advantages are as follows: Core functional advantages: 1. Intelligent Sorting and Quality Isolation By receiving NG signals from AOI/SPI inspection equipment via photoelectric sensors, the system automatically switches defective PCBs to the auxiliary track for transportation to the repair area, preventing defective products from entering critical processes such as reflow soldering. The interception rate can reach 99%23. Qualified products are directly transported to the next process via the main track, achieving fully automated quality diversion. 2. Efficient Dual-Track Parallel Caching The dual-track design supports simultaneous caching of multiple PCBs (typical capacity of 20 pieces). The main track is used for normal production flow, while the auxiliary track serves as an emergency caching zone. When the pick-and-place machine is at full capacity or downstream equipment malfunctions, the auxiliary track continues to receive PCBs, maintaining 50% production capacity and minimising downtime losses.

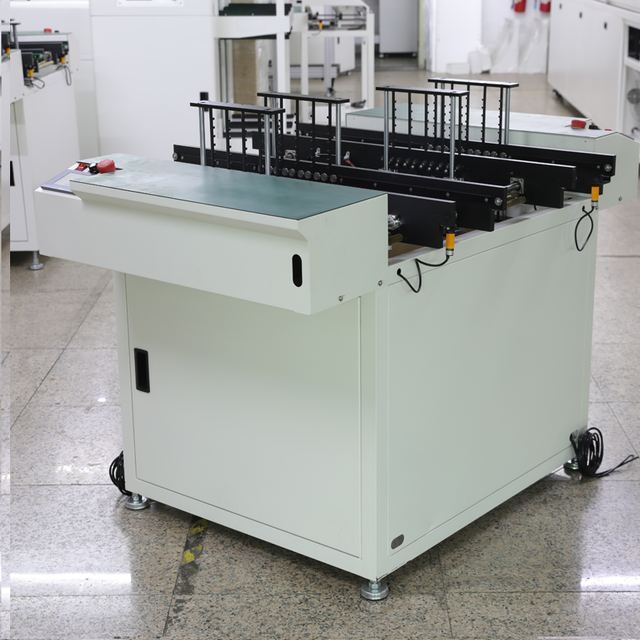

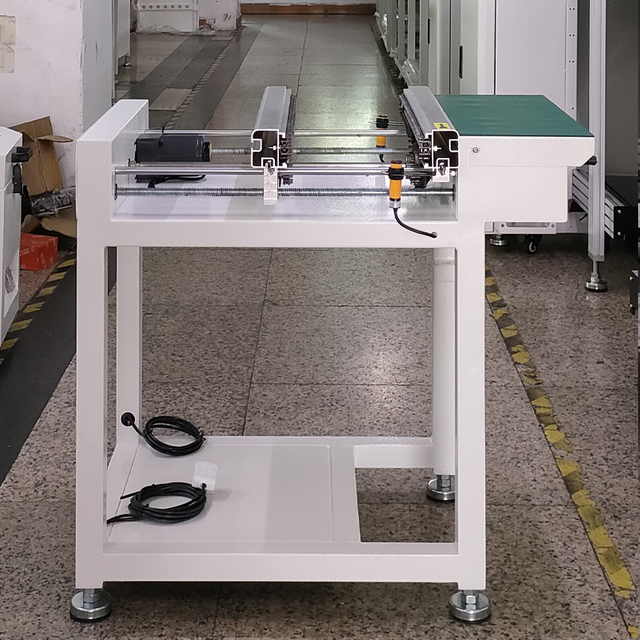

Brief:The SMT Dual Rail PCB Reject Conveyor is a critical connecting device in electronic manufacturing production lines. It achieves efficient production scheduling and quality control through a dual-track parallel design and intelligent screening functions. Core Functions: Parallel Processing and Screening Diversion 1. Dual-Track Synchronous Operation Featuring an independently controlled dual-track structure, it can simultaneously transport two PCB boards, doubling production line efficiency. When the main track equipment (e.g., pick-and-place machine) is at full capacity, the backup track automatically activates diversion to prevent production interruptions. 2. Intelligent Screening Mechanism Integrated with photoelectric sensors and a software control system, it automatically diverts defective products based on inspection results (e.g., AOI/SPI data): Passed Products: Proceed along the main track to the next process (e.g., reflow soldering) Defective Products: Switch to the auxiliary track and transport to the repair station or re-inspection area Screening Logic: Receives instructions from upstream and downstream equipment via the SMEMA signal interface, and combines with the PASS button to switch between manual and automatic release modes.

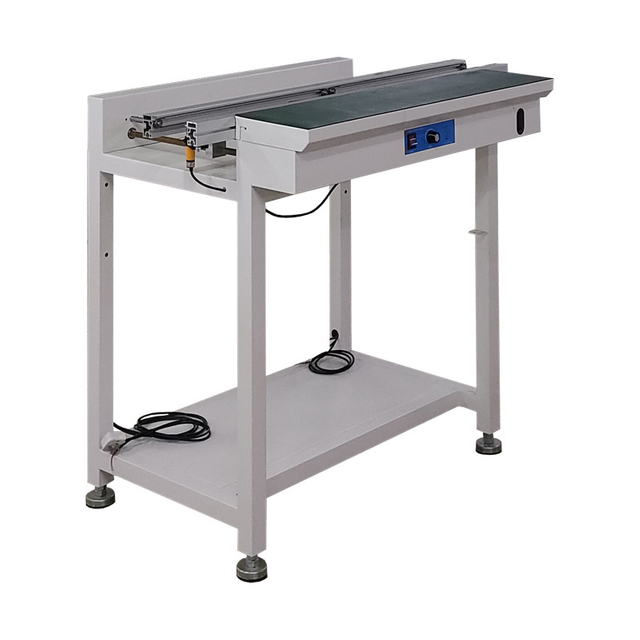

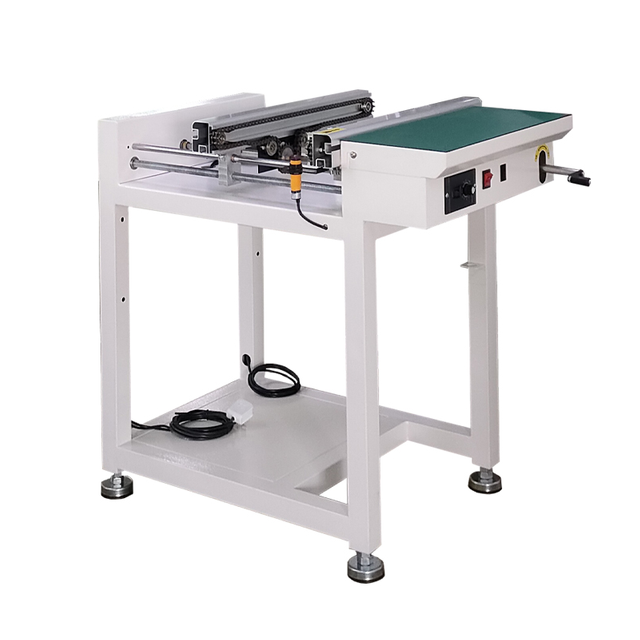

Brief:The SMT Sectional PCB Conveyor(multi-segment transfer table) is a critical connection device in electronic manufacturing production lines, enabling efficient production scheduling through segmented design and intelligent control. Its primary functions and technical value are as follows: Core Function: Production Line Collaboration and Buffer Management 1. Intelligent Interconnection Between Devices The segmented transfer table uses standard SMEMA signal interfaces (such as 24V PLC communication) to seamlessly integrate with upstream and downstream equipment (such as pick-and-place machines, reflow ovens, and AOI inspection machines), automatically coordinating the rhythm of board input/output to prevent equipment idling or bottlenecks. 810 2. Multi-board Caching and Dynamic Scheduling Each segment is independently equipped with sensors and motors, capable of holding multiple PCB boards simultaneously (e.g., three boards), supporting ‘single-board stop’ or ‘multi-board stop’ modes. If a segment experiences equipment failure, other segments can continue operation, significantly reducing the risk of full-line shutdown.

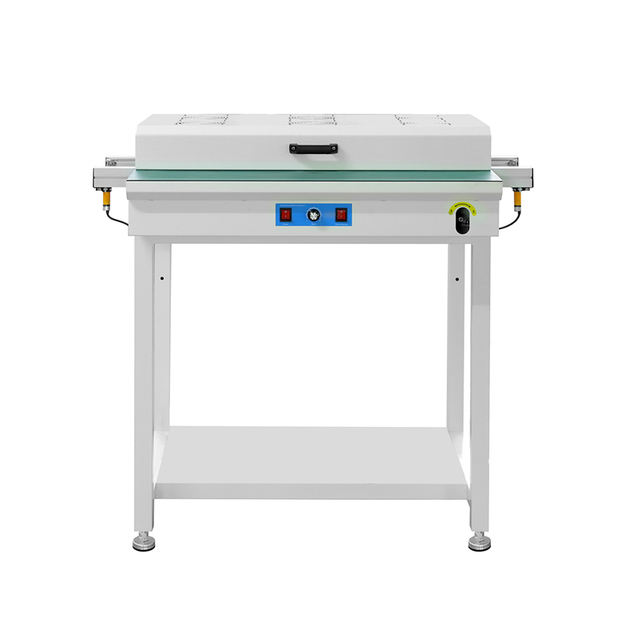

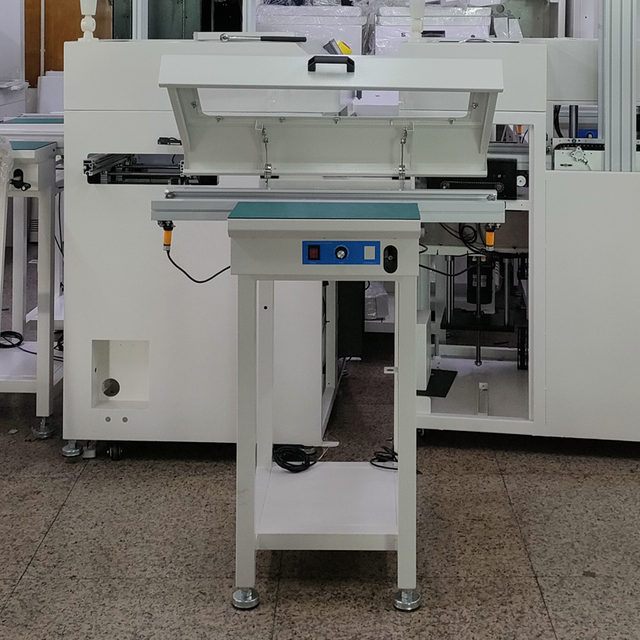

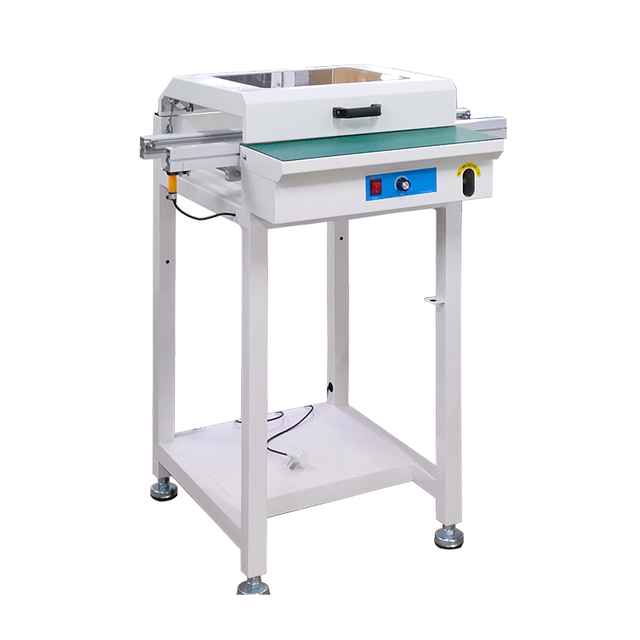

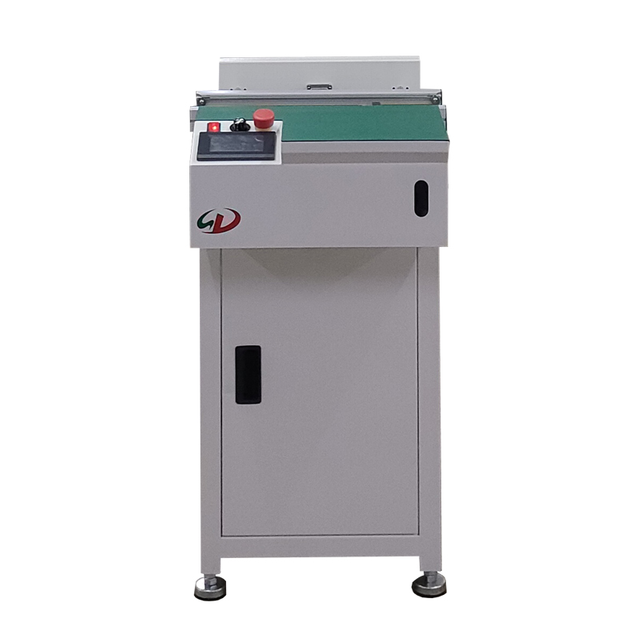

Brief:Conveyor with Dust Cover is an important accessory in electronic manufacturing production lines. Its core function is to isolate external contaminants and ensure the cleanliness of PCBs (printed circuit boards) during the transfer process. Based on industry applications, its specific functions and value are mainly reflected in the following aspects: Core Function: Blocking Environmental Contaminants 1. Dust and Impurity Prevention The transfer area of the transfer station is covered with acrylic panels or other transparent materials, effectively blocking dust, fibres, hair, and other microscopic particles in the air from entering the equipment interior, preventing contaminants from adhering to the PCB surface or pads. In environments where cleanroom conditions are inadequate or when equipment operates continuously, dust covers significantly reduce the risk of external environmental contamination to high-precision components. 2. Static Electricity Protection Some dust covers are equipped with anti-static table mats or aluminium profile tracks to minimise the risk of static electricity damage to sensitive electronic components.

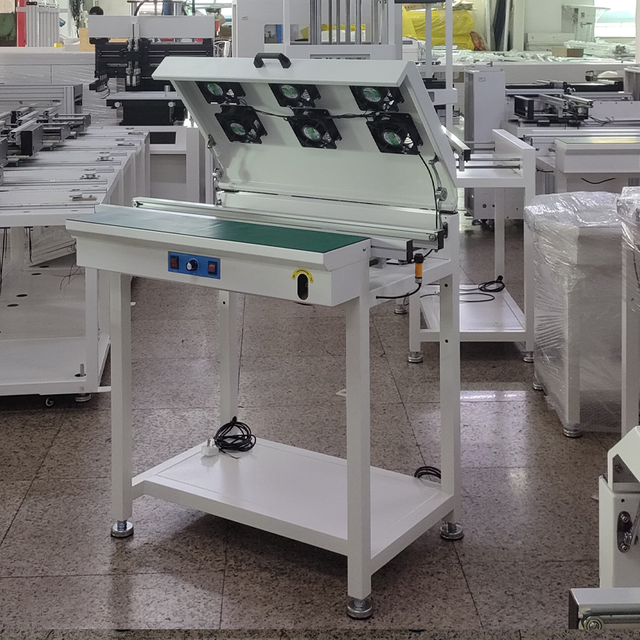

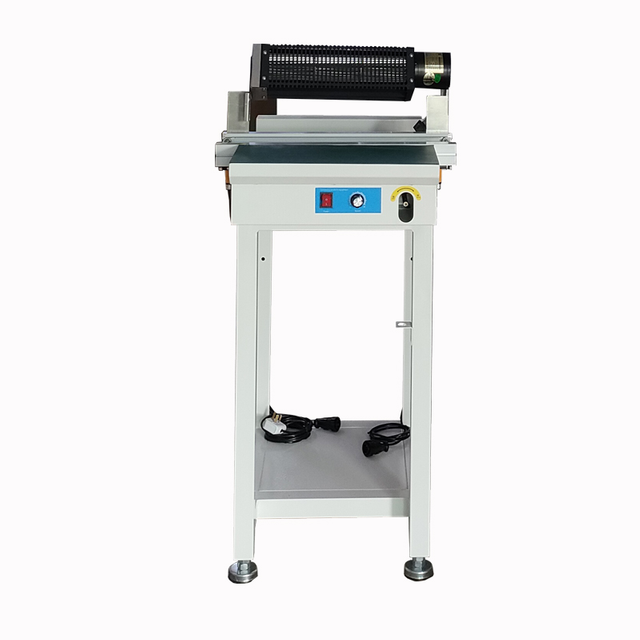

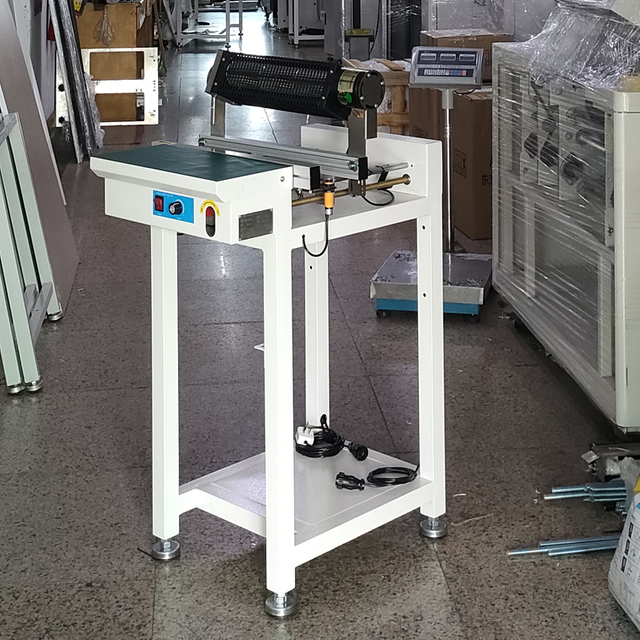

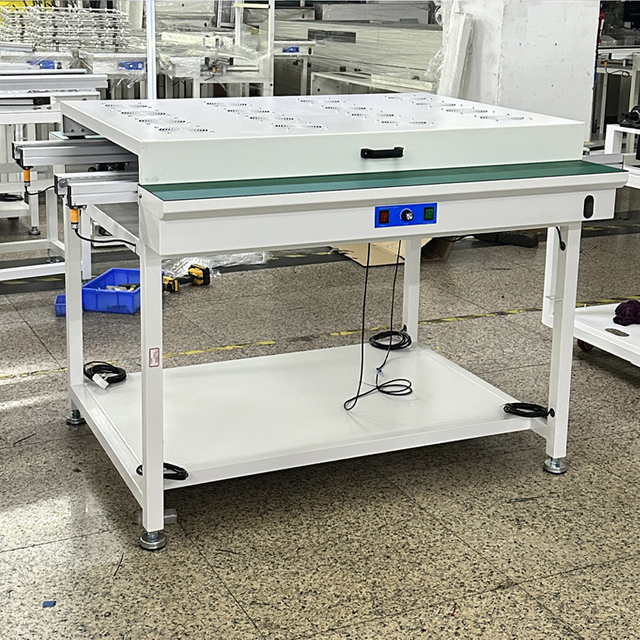

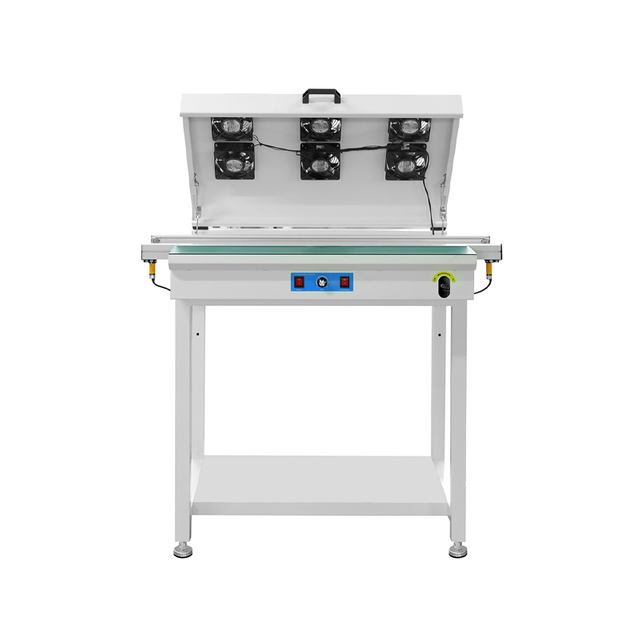

Brief:The SMT Conveyor with cold air hood is a critical temperature control device in electronic manufacturing production lines, primarily used to rapidly reduce PCB board temperature and stabilise the transfer environment. Its core functions and value are as follows: Core functions: active heat dissipation and temperature control 1. Forced air cooling Equipped with a high-efficiency fan system, it rapidly removes residual heat from PCB boards after reflow soldering through forced convection. Typically, it reduces board temperature from above 200°C to the safe range of 40-60°C within 1-2 minutes, preventing high temperatures from affecting subsequent processes (such as AOI inspection and component insertion). Compared to natural cooling, efficiency is improved by over 50%, significantly reducing production cycle times and meeting the demands of high-speed production lines.
2. Temperature Uniformity Assurance A multi-fan matrix layout combined with airflow channel design (such as the 90° directed airflow structure mentioned in the patent) ensures uniform heating of the PCB surface, preventing component damage caused by local temperature differences.
