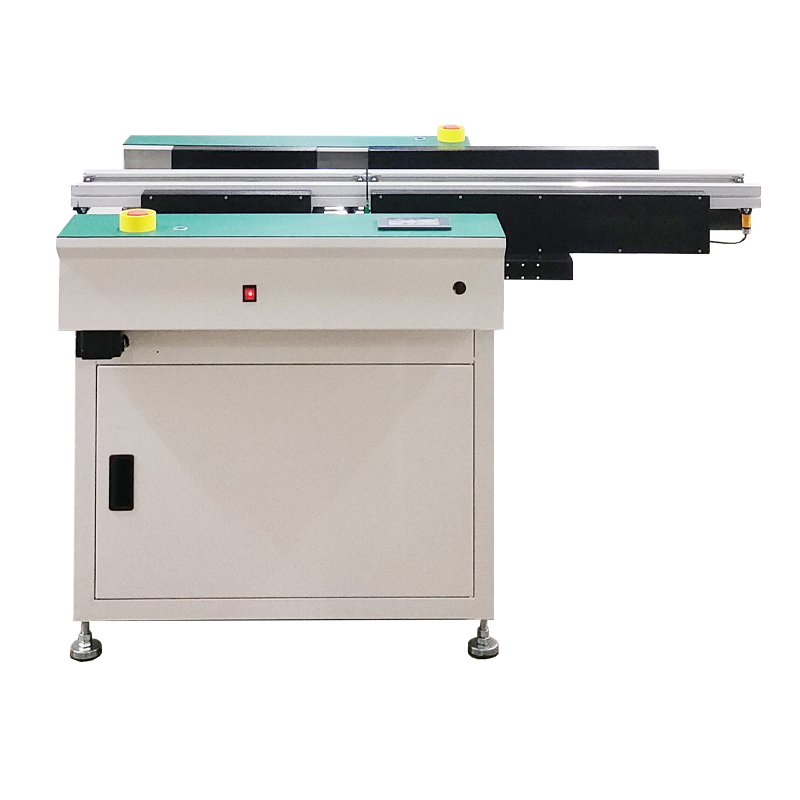

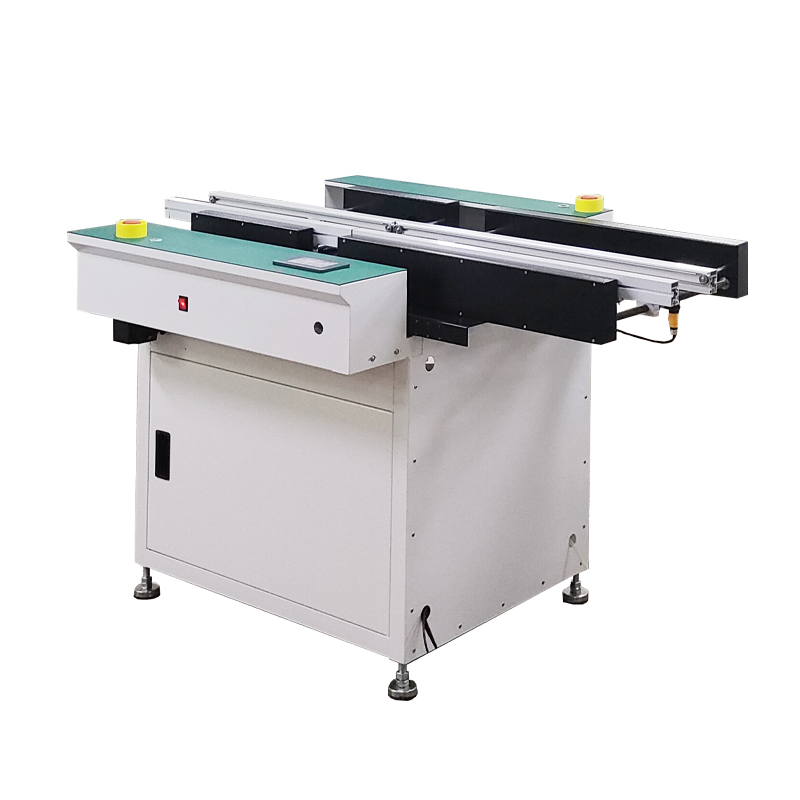

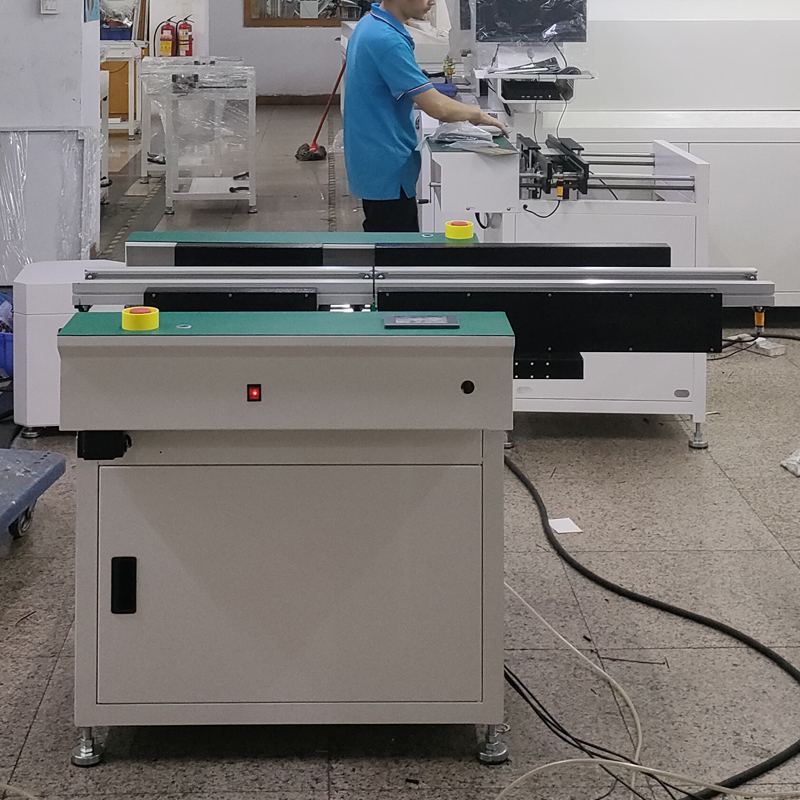

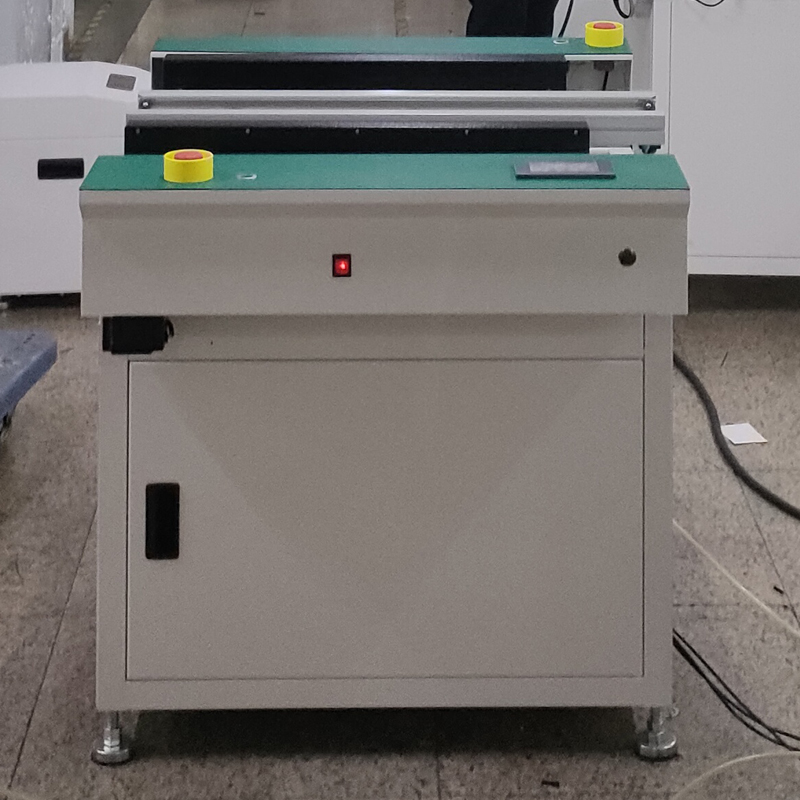

Telescopic Lifting PCB Conveyor


Size:	SD-1500
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-1500TC
Brand:
SHENGDIAN

Telescopic Lifting PCB Conveyor (also known as a walkway machine) is a critical transitional device in SMT production lines that addresses physical space conflicts and facilitates automated coordination. Its core function lies in dynamically adjusting track layouts to ensure both production efficiency and smooth workflow. Based on technical documentation and industry practices, its functional system can be systematically summarised as follows:
Core Function: Intelligent Physical Space Scheduling

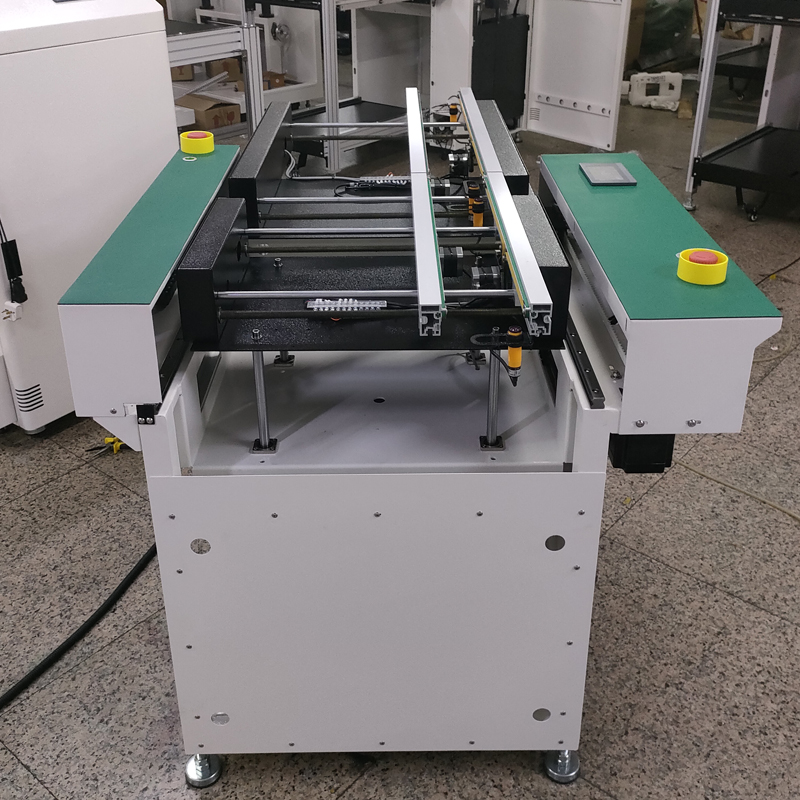

1. Track Extension and Retraction
Driven by servo motors and precision linear guides (with a travel range of 600mm), the transfer track can be horizontally retracted to 60% of its original width, creating a safe passageway for personnel and material carts while avoiding production line interruptions for maintenance.
Typical Case: After an operator triggers the passage button, the track completes the retraction/reset action within 5 seconds, synchronously pausing PCB transmission via linked equipment signals.
2. Precision Alignment Across Equipment
A lifting system combining YADEKA cylinders and guide columns (lifting range: 920±20mm) eliminates height differences between tracks of equipment such as reflow soldering machines and pick-and-place machines, ensuring seamless PCB transmission.

Conveyor PCB Conveyor SMT Rejection Conveyor NG Conveyor

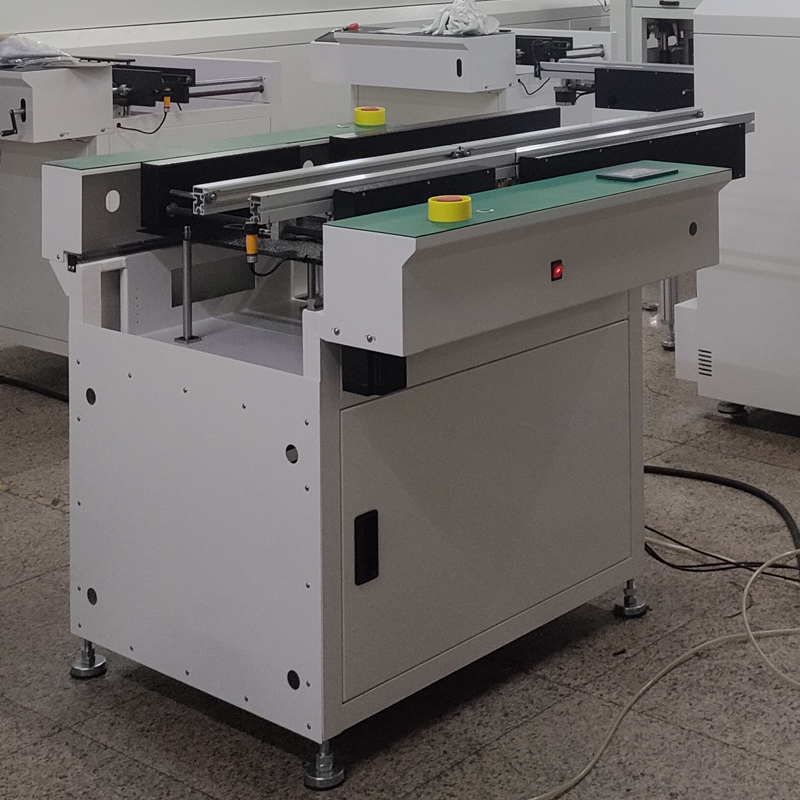

Product Description

Product Features

1、Adopt standard ball screw , manually adjust the width, to ensure that the adjustment of the width is smooth and accurate.

2、Adopting professional wear-resistant anti-static flat belt and special aluminum guide rail to ensure smooth connection and transportation.

3、Standardly equipped with SMEMA signal cable for in-line connection with other equipment.

4、Customized conveyor with different rail lengths are available upon request.

5、The working surface is equipped with anti-static rubber to better prevent static electricity.

6、Transmission motor adopts two 42*48 stepper motors

7、Telescopic linear slide rail 20*20 accurate and durable, wear-resistant

8、Cylinder lifting part does not jitter, up and down smoothly.

9、Telescopic part is controlled by 86 stepper motor

Technical parameters

Model	SD-1500TC
Machine Size	1500850900mm
Applicable PCB Width	50-350mm
Conveyor Height	900±20mm
Conveyor Direction	Left to Right (Right to Left Optional)
Conveyor Speed	0~3000mm
Fixed Rail	Front Rail Fixed (Rear Rail Fixed Optional)
Telescoping Length	580mm
Telescoping Power	Stepper Motors and Stepper Drivers
Telescoping Method	Dual push-button switches with touch-screen control
Power supply	AC220V1P 50/60Hz
Electricity Consumption	Approx.350W
Track Length	Liftable Rail Length: 600mm Retractable Rail Length: 800mm
Control Method	PLC+Touch Screen
Weight	About 150KG
Communication Interface	Use of two-wire cable SMEMA signal cable
