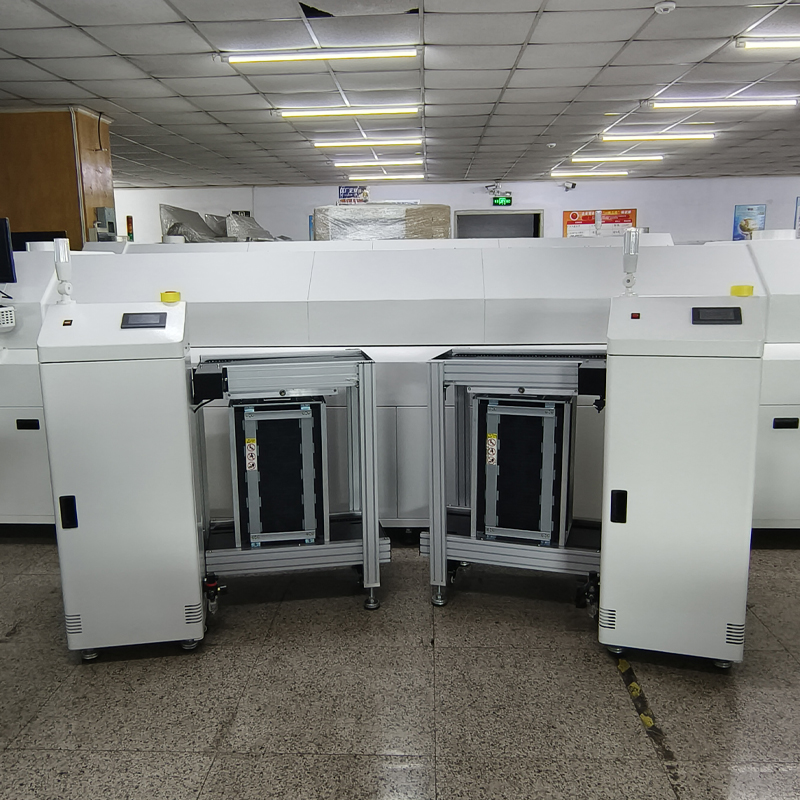

Automatic Loader Machine with Magazine Operation Procedure

Automatic Loader Machine with Magazine Operation Procedure

I. Preparation.

1. Turn on the power gas source. Turn on the power switch.

2. Adjust the width of the guide rail until it is consistent with the width of the PCB board to be produced.

Second, the number of steps to send the board and the location of the board out of the point set (need to be in a manual state and the elevator is in the lower limit position).

1. Step setting

2.Adjustment of board out.

3. Manually adjust the pusher in the middle of the PCB to be produced.

4. Adjust the parameters and then switch to automatic

5.Reset before starting

6.Automatic state

Third, Automatic Loader Machine with Magazine feeding

1, the anti-static material rack adjusted to the same width as the PCB board to be produced, loaded with PCB boards and put into the board machine on the bearing table

2、Press the automatic key in the operation panel of the board loading machine.

Operation Requirements

1. Please pay attention to whether the working voltage and air pressure are correct when starting the machine.

2. When the machine is running automatically, the rest of the buttons should not be used unless the emergency button is pressed in case of emergency.

3. Prohibit staff to lean or rely on the machine.

4. When lifting and lowering the trolley, do not put your hands around the material frame.

5. Pay attention to adjusting the spacing of the boards on the shelves, wide is easy to lead to drop boards, tight is easy to lead to card boards.

6. Pay attention to adjust the width of the conveyor belt, wide easy to lead to fall boards, tight easy to lead to cardboard.

V. Automatic Loader Machine with Magazine operation precautions:

(a) Prohibit people leaning on the machine, lift the frame, prohibit hands placed around the frame.

(B) when adjusting the distance between the feeding frame, the distance is too wide, easy to fall off the board, the distance is too narrow, easy to jam the board.

(C) The edge of the PCB board loaded into the frame must not exceed the outer edge of the frame.

(D) When the equipment is running abnormally, press the emergency stop button or the stop button on the operation panel.
