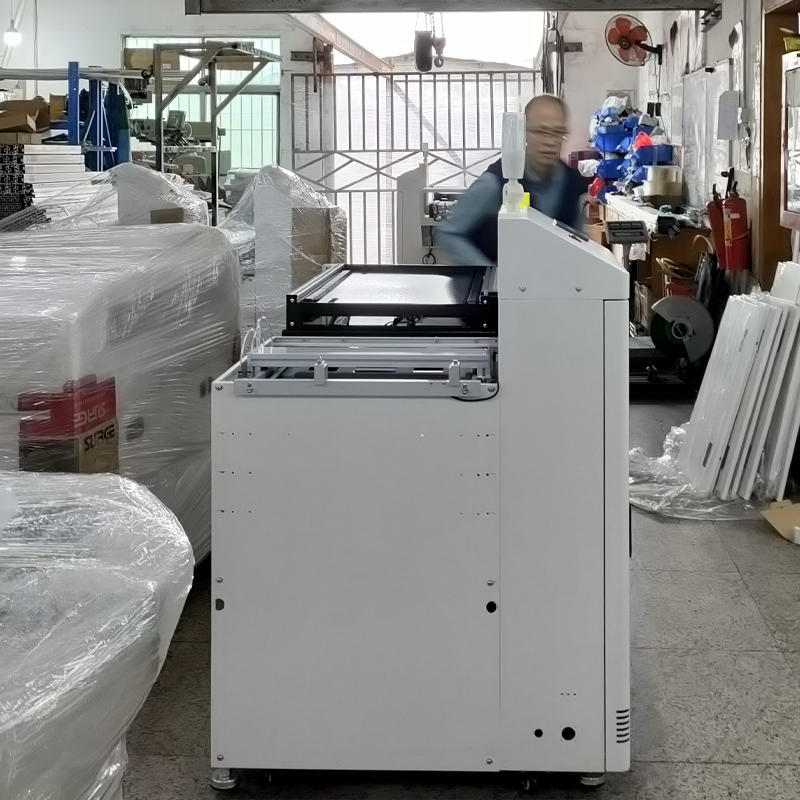

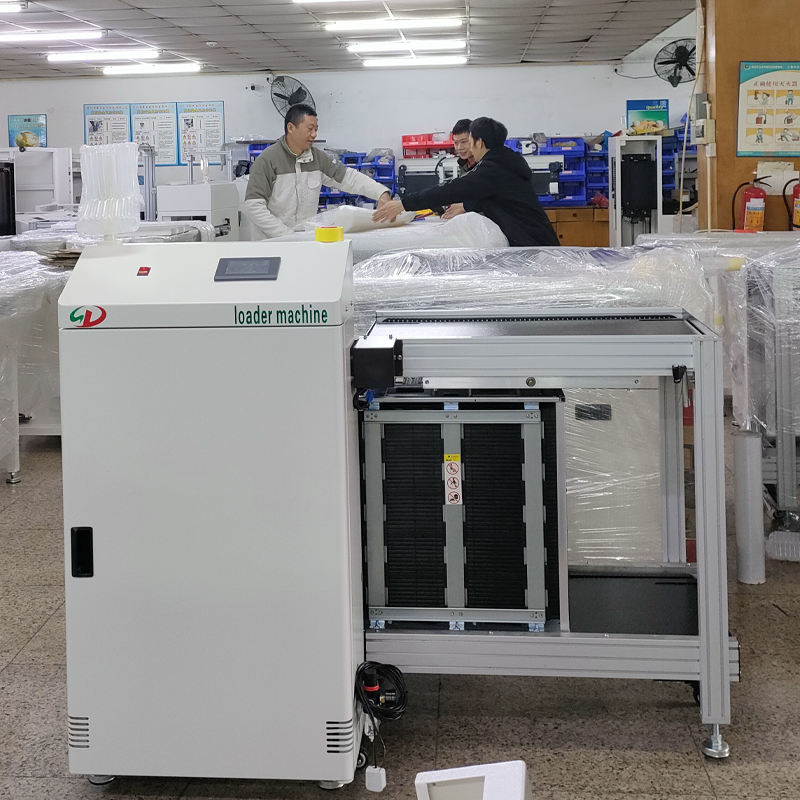

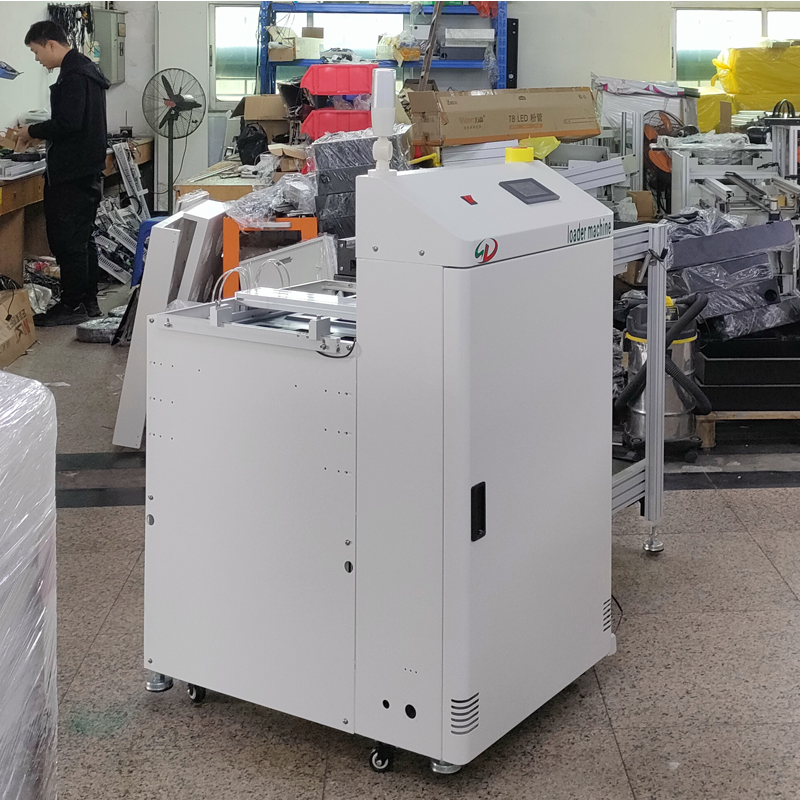

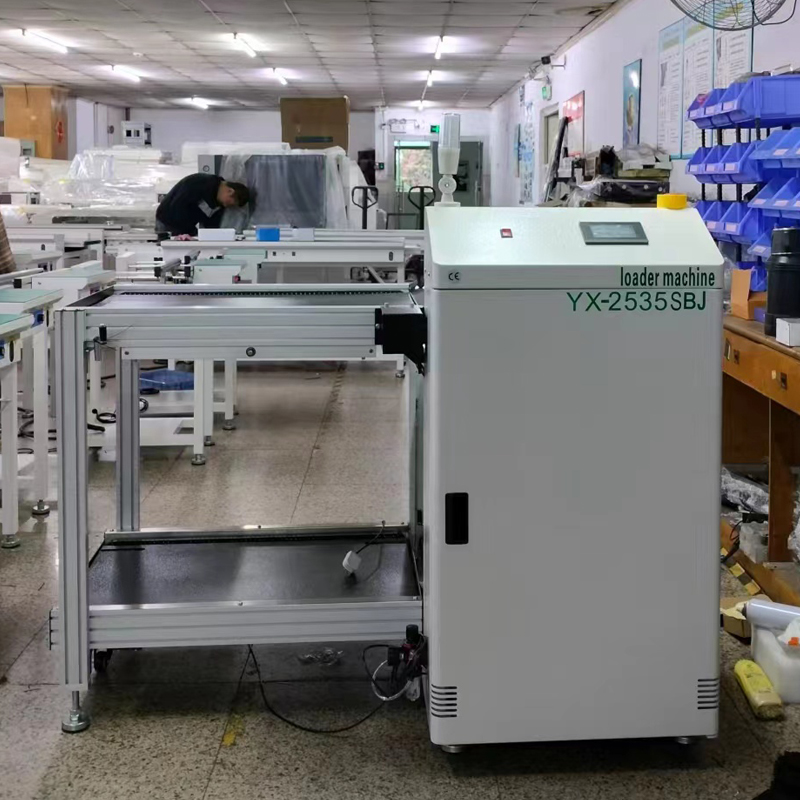

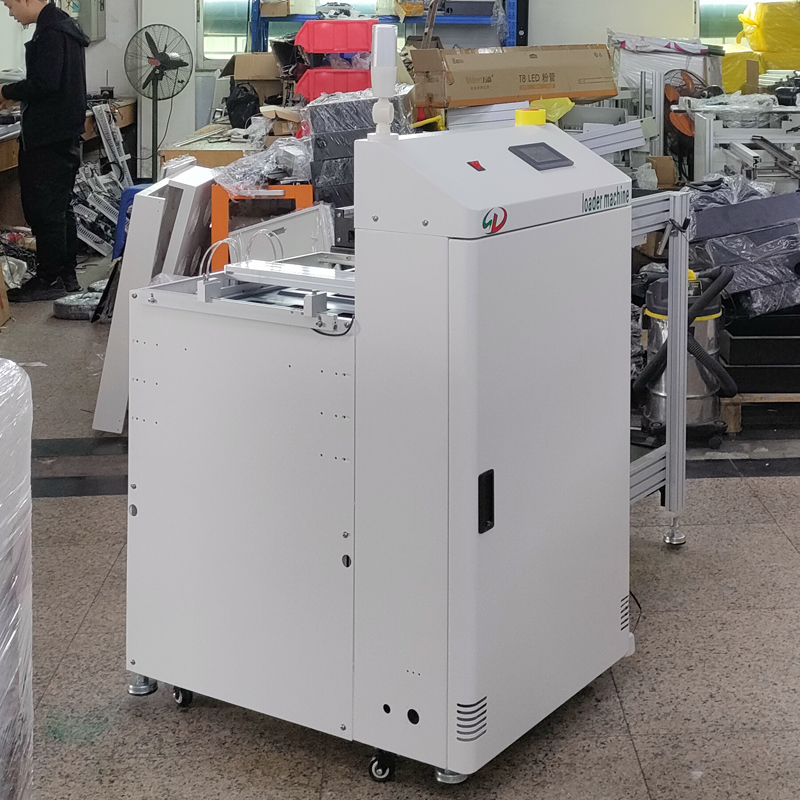

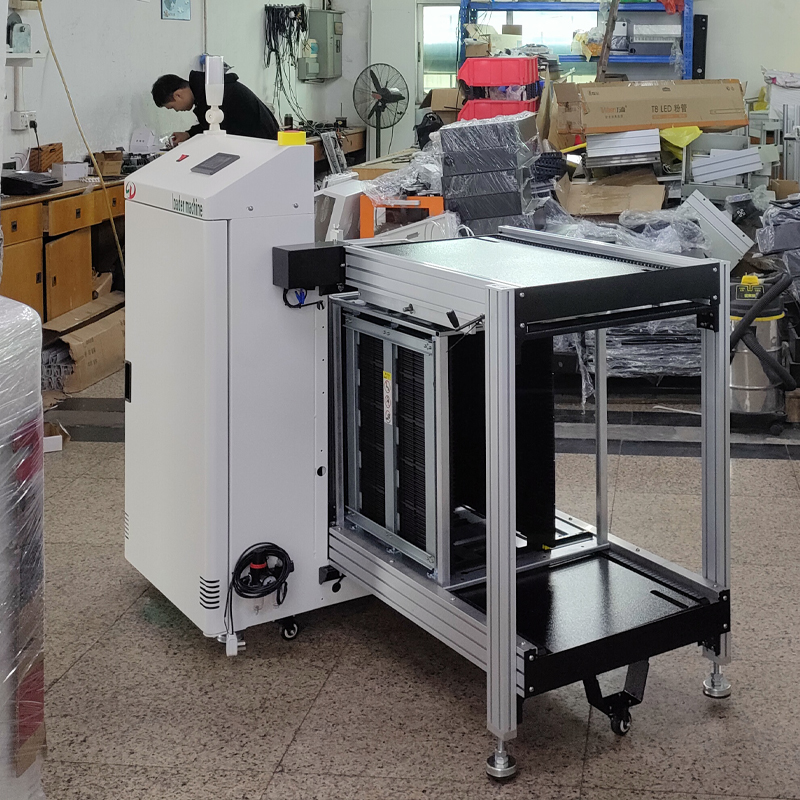

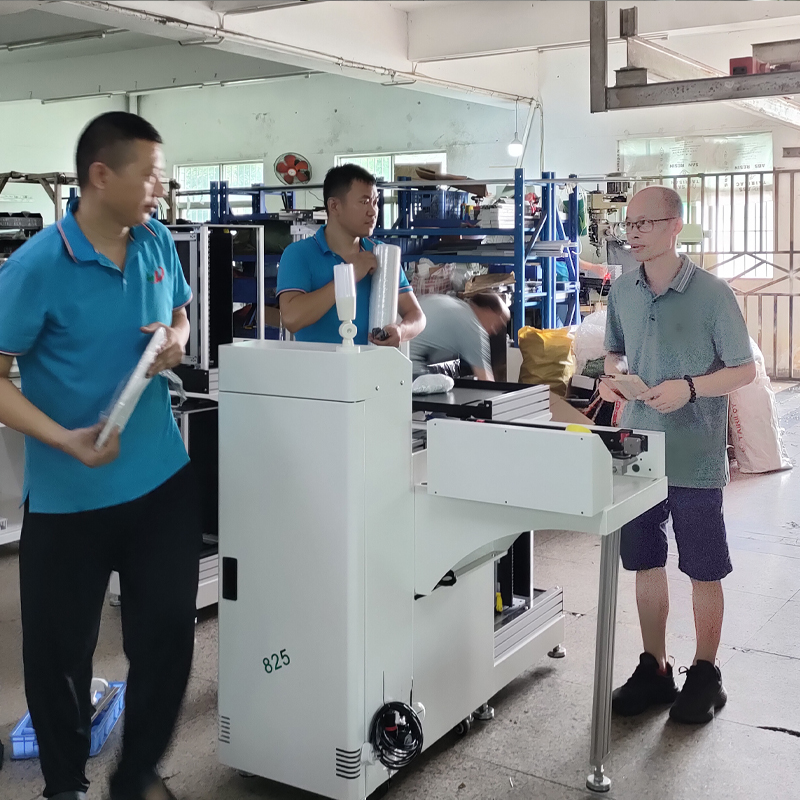

Product Parameters:

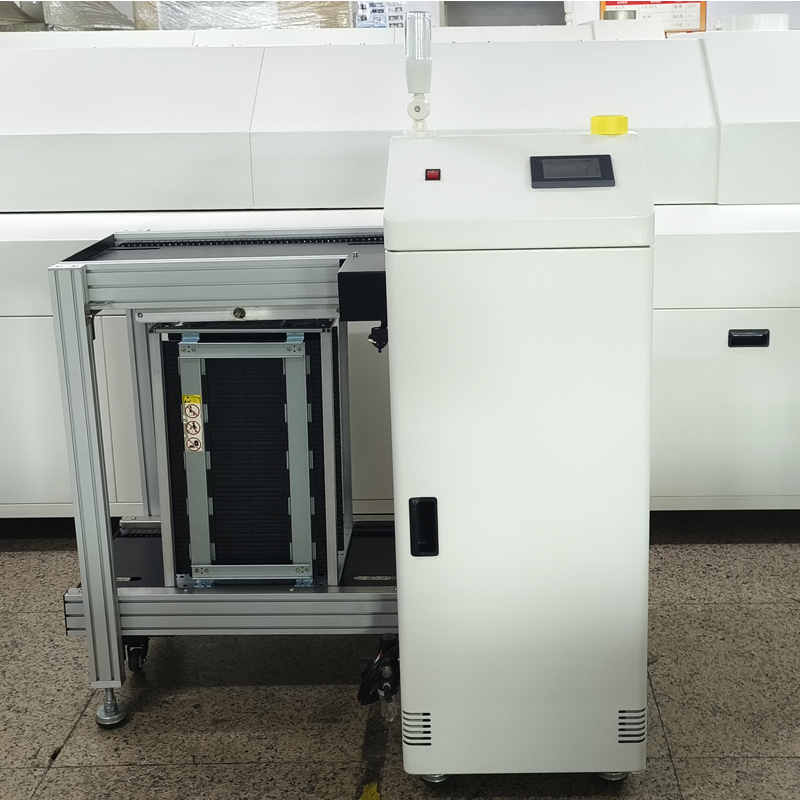

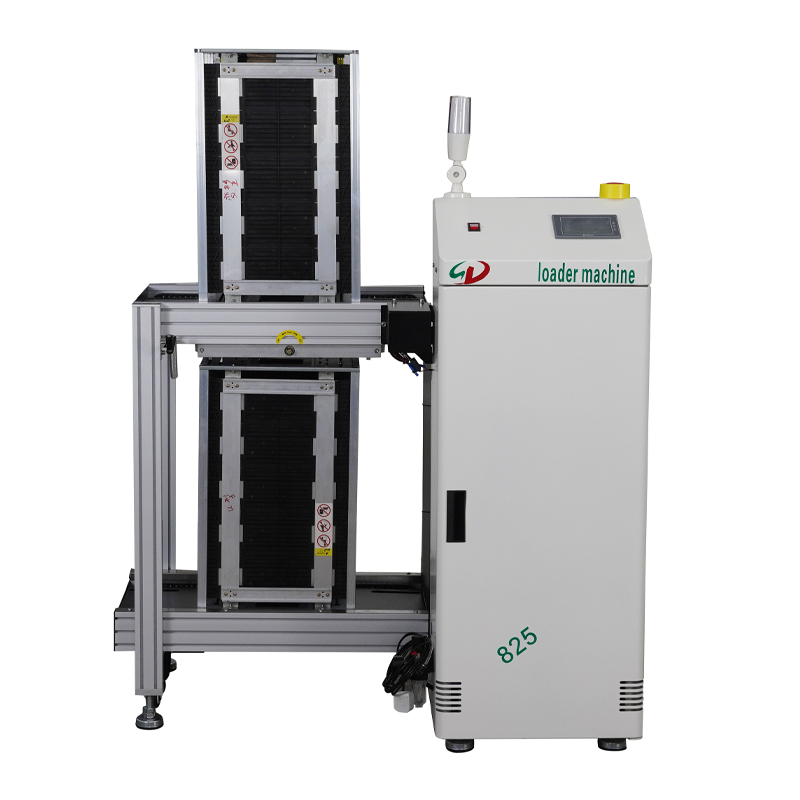

Model | SD-825S | SD-833S | SD-839S |
Applicable magazine size | 355*320*563mm | 460*400*563mm | 535*460*570mm |
PCB Size | 350*(50-250)mm | 460*(50-330)mm | 535*(50-390)mm |
Weight | 200KG | 230KG | 250KG |
Dimension | 1550 * 720*1250 mm | 1800*810*1250 | 2000*880*1250 |
Power supply | Single phase 220V 50/60Hz | ||
Start up power/no-load power | 105 W | ||
PCB Thickness | 0.6-3.0mm | ||
Lifting step distance | 10, 20, 30, 40, 50 (mm) can be set freely | ||
Air Supply | 5-6KG | ||
Fixed edge | Front edge fixed (back edge fixed can be customized) | ||
Transport direction | L→R (R→L can be customized) | ||
Transport height | 900 ± 20mm | ||
Optional step distance | 1~5 steps (10mm step distance) | ||
Voltage resistance | AC terminal to ground 1500VAC, 1 minute | ||
Application environment | Environment without corrosive gas and dust | ||
Anti-interference | Voltage noise: 1000Vp-p, pulse width 1us, 1 minute | ||
PLC | Siemens (specified control device) | ||
Touch screen | Samkoon 4.3# intelligent touch screen | ||
Elevator motor | 90W Enhanced LINGYI with brake motor | ||
Sensor | Japanese Omron D61 | ||
U photoelectric | Japanese Omron 671\670 | ||
Ball screw rod | Taiwan silver | ||
Features:
1. Appearance structure: plate gold structure + aluminum profile in and out of the frame, the surface spraying treatment, the color is white.
2. Microcomputer PLC control system, with stable and reliable work
3. Operation of sensitive touch screen display operation, with the function of automatic fault diagnosis, convenient man-machine dialogue
4. Multiple sound and light and touch screen prompt alarm function
5. The lifting distance of the material rack can be set according to the height of the PCB components.
6. With the automatic counting function, convenient for production statistics.
7. Special air path, humanized design to ensure that the PCB board is not pushed broken, improve production efficiency.
8. Compatible with the standard SMEMA interface
9. The feeder device pushes the PCB board with a stepper motor
10. The speed, distance and strength of the stepper motor can be adjusted
11. The conveyor belt speed is adjustable
