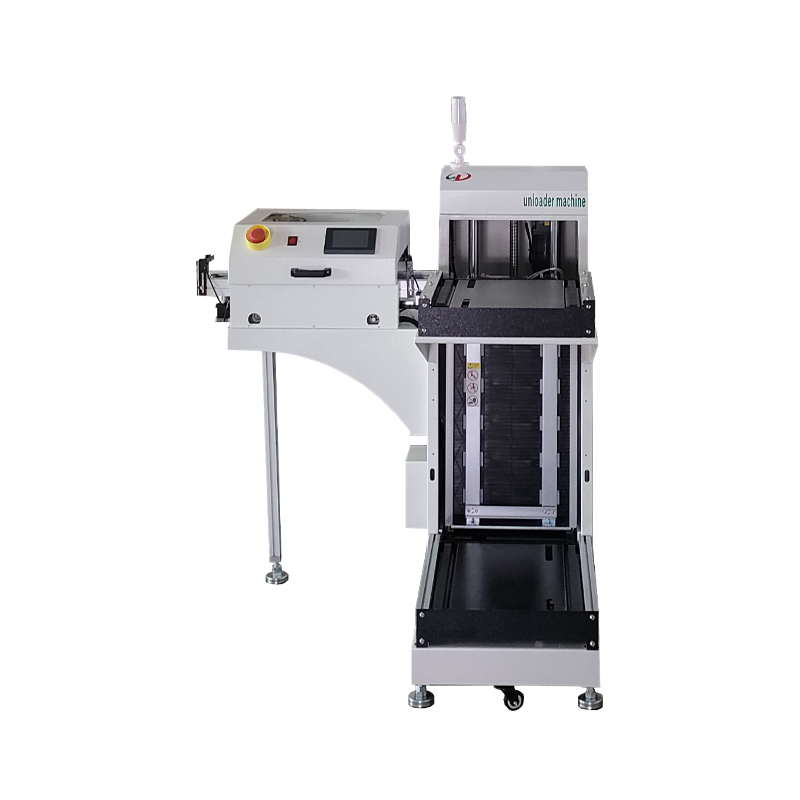

L-type Automatic Magazine Unloader Machine

L-Type Automatic Unloader Machine is a key equipment in the SMT (Surface Mount Technology) production line, mainly used to receive and unload the circuit boards that have completed the placement process.

Equipment Features.

The design of L-Type Automatic Unloader Machine allows them to provide efficient and stable take-up of boards while taking up less space. They are usually characterized by a front exit, which avoids interfering with each other when entering and exiting the frame. In addition, L-Type Automatic Unloader Machine are typically less than one meter in length, making them ideal for a variety of SMD production sites.

Technical Parameters

The technical parameters of the L-type Automatic Magazine Unloader Machine can vary depending on the model. For example, the control module can be a PLC industrial control, and the external dimensions and the height of the track can vary depending on the model. The sensors usually use photoelectric sensing, while the adjustment track usually uses ball screws. The L-type Automatic Magazine Unloader Machine produced by Shengdian Electronics are characterized by motorized plate pushing, automatic Magazine changing and front exit Magazines. These machines are capable of realizing board closing work with a small footprint and high working efficiency.

Application Scenario:

L-type Automatic Magazine Unloader Machines are usually applied in the downstream of the SMT production line, that is, behind the Reflow Soldering Oven or Wave Soldering Machine, and after all kinds of mounters. Here, they are responsible for automatically changing the frame for board acceptance, thus reducing the workload of personnel.
