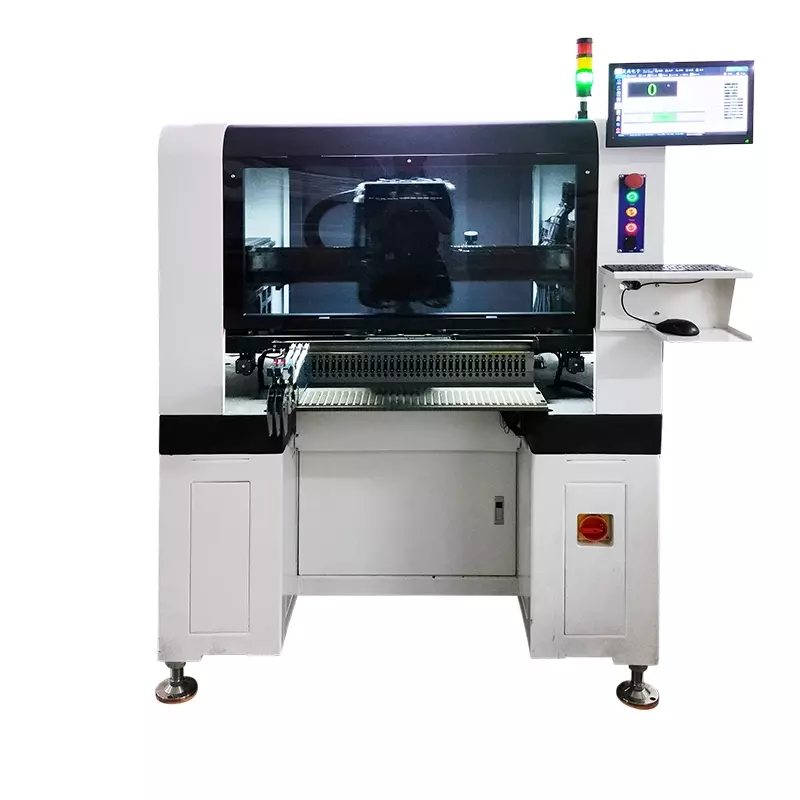

Manufacture Shengfeng SMT Pick and Place Machine Automatic High Speed for PCB Assembly Line Component Mounting


Availability:

Quantity:

Inquire Add to Basket

Model:
SD--FMS12

SMT Pick and Place Machine Automatic High Speed for PCB Assembly Line Componen SMT machine High Speed SMT Machine SMT manufacture Flexible SMT Machine LED SMT Machine Automatic SMT Machine

Product Description

Product Description

Model	Category	SD-FMS12
Specifications	Placement Head Module	Single Arm
	Rail Module	Single Lane
	Number of Nozzles	High-speed Placement Head (12 Nozzles)
Machine Dimensions	L × W × H	134013401600mm
Weight	Machine Weight	Approx. 1260KG
Electrical Specifications	Air Supply	0.5MPa，140L/min
Electrical Specifications	Power Supply / Consumption	AC220V, 2KW
Supported PCB	PCB Single	Single line： Min :5050mm， Max: 500450mm
	PCB Thickness	0.5-6.0mm
	PCB Clamping Method	Pneumatic lifting platform with upper and lower clamping
Placement Performance	Optimal Placement Speed	45,000 CPH (with optimal feeder configuration)
	Placement Accuracy (CPK)	± 0,035mm(XYZ),CPK ≥ 1.0
	Applicable Component Range	On-the-fly camera: min 1.0 × 0.5 mm (0402); max L12 × W12 × H6.5 mm (optional) Fixed camera: min 1.0 × 0.5 mm (0402); max L40 × W40 × H13 mm
Vision Recognition System	MARK Camera Field of View	L20mm*w20mm
	MARK Camera Type	2-megapixel area-scan camera
	Component Camera Type	On-the-fly camera (optional)
	Component Camera Type	Fixed camera
Feeding System	Feeder Type	Electric feeder
	Feeder Type	36 stations on one side (8 mm); 72 stations on both sides (8 mm, optional)
		Customizable flexible vibratory bulk feeder with 1/9/12/16/20 compartments
		Custom short-tape feeder tray / loose-chip feeding device
		Flexible configuration according to customer process requirements
	Tape Feeder	Tape:8/12/16/24/32/44/56mm
	管装物料供料器	Capacity per vibratory feeder:
	管装物料供料器	4–20 mm × 3 tubes; 30–40 mm × 2 tubes; 40–50 mm × 1 tube
	Tray Feeder	Customizable
	Nozzle Changer	36 positions
Control System	X-axis	High-precision linear motor + linear encoder
	Y-axis	Dual-drive linear motors + linear encoders, fully closed-loop control
	Z-axis	High-precision linear motor
	R-axis	High-precision servo motor
MES Interface	MES Data Acquisition	Supports TCP/IP communication protocol
MES Interface	MES Data Upload	Supports QR code/barcode recognition, binding, and upload to MES

The SHENGDIAN SD-FMS12 SMT Pick and Place Machine is designed for high-speed, high-precision electronics manufacturing across various industrial sectors:

Consumer Electronics Assembly: Ideal for high-density SMT lines producing smartphones, tablets, smart home devices, and wearables, handling ultra-small 0402 components with $\pm 0.035\text{ mm}$ high placement accuracy.
LED Lighting & Display Manufacturing: Perfect for mass production of LED light strips, bulb drivers, commercial lighting, and display modules utilizing high-speed 45,000 CPH placement capacity and large PCB support up to 500*450 mm.
Automotive Electronics & Industrial Control: Suited for manufacturing complex automotive control modules, power electronics, power supplies, and industrial PCBA boards requiring reliable closed-loop motor control and strict MES data traceability.
Multi-Component Prototyping & Flexible Production: Capable of handling diverse component packages—from 0402 chips to 40 *40ICs—with up to 72 feeder stations, flexible tube/vibratory feeders, short-tape trays, and a 36-position automatic nozzle changer.
