Operating guidelines for PCBA Vacuum Suction Board Loading machines

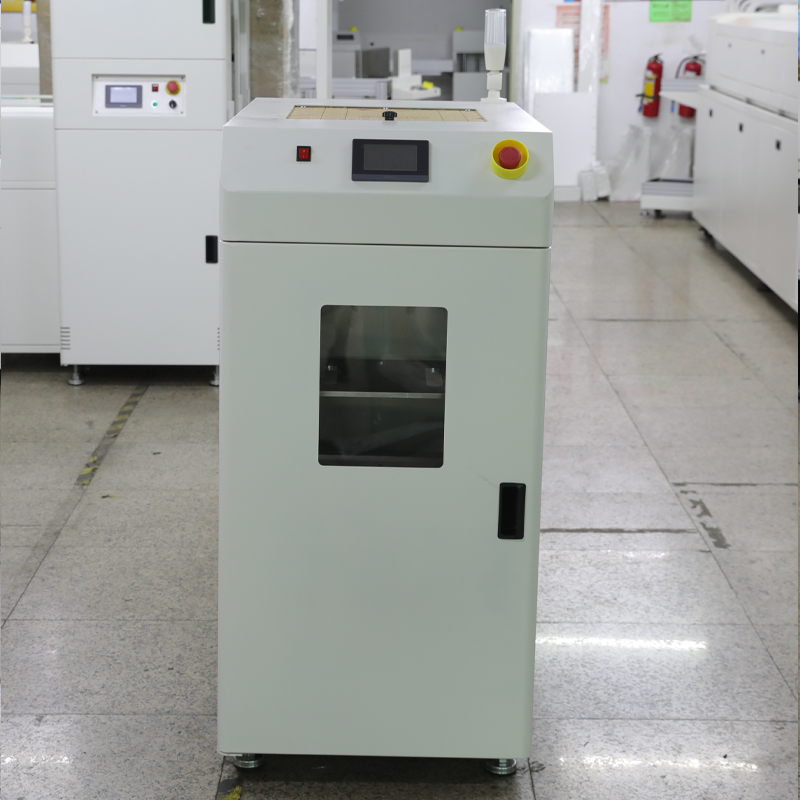

PCBA Vacuum Suction Board Loading Machine Operating guidelines:

Before using this SMT device, please ensure that the device is in a proper working environment. The work area should be dry, clean and well ventilated. Do not use the device in an environment with large dust or moisture. Otherwise, the vacuum adsorption effect and device stability may be affected.

When installing the machine, ensure that the equipment is on a smooth countertop or workbench. Ensure that the bottom of the device is in close contact with the table surface, and there is no shaking or instability.

Next, connect the device to the power supply and turn on the power switch. Ensure that the power supply voltage of the device is consistent with the voltage of the working environment to prevent voltage fluctuations or excessive voltage from damaging the device. At the same time, use the appropriate power cord and plug that matches the specifications of the device.

Ensure that the vacuum pump switch on the machine is turned off before starting the operation. Turn on the vacuum pump by pressing or rotating the switch. In daily use, you can adjust the vacuum degree according to the need to adapt to the required task.

Prepare the correct vacuum cups as required and install them on the device. Make sure that the suction cup is tightly fastened and that there are no foreign objects on its surface to avoid affecting the adsorption effect. After the suction cup is installed, place the PCB or sheet material on the suction cup and adjust its position to the desired position. Shengdian SMT equipment factory

When ready, you can start the SMT device and start working. When the vacuum adsorption switch is turned on, the device generates negative pressure adsorption materials. Ensure that the material is placed at the correct position and Angle before adsorption for good adsorption effect.

During the working process, make sure to monitor the adsorption effect and the operation of the equipment. If the suction cup is loose, the adsorption is not firm, or the device is faulty, stop the device in time to check and repair the problem to ensure operation safety and work quality.

Finally, after use, please turn off the power switch of Vacuum Suction Board Loading Machine and unplug the power plug. When cleaning and maintaining the device, follow the operation manual and maintenance guide of the device, and check and maintain the device regularly to maintain the operating status and prolong the service life of the device. Shengdian SMT equipment factory

In short, the correct use of PCB Vacuum Suction Board Loading Machine can improve work efficiency and quality, and ensure the stability and safety of the equipment. Regular maintenance and repair of equipment by following operating manuals and maintenance guidelines can extend the service life of equipment and ensure efficient operation.
