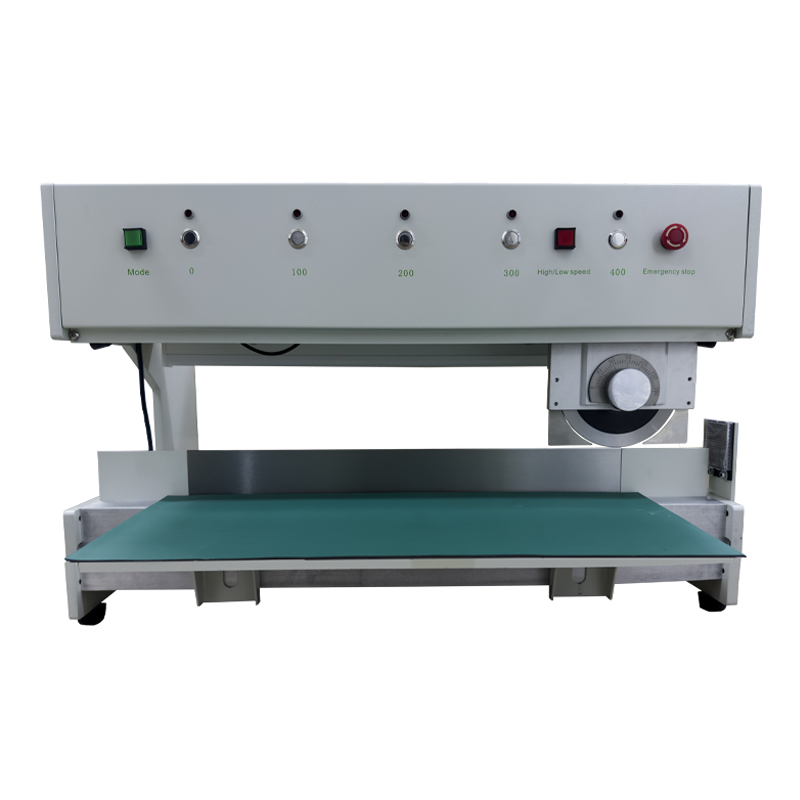

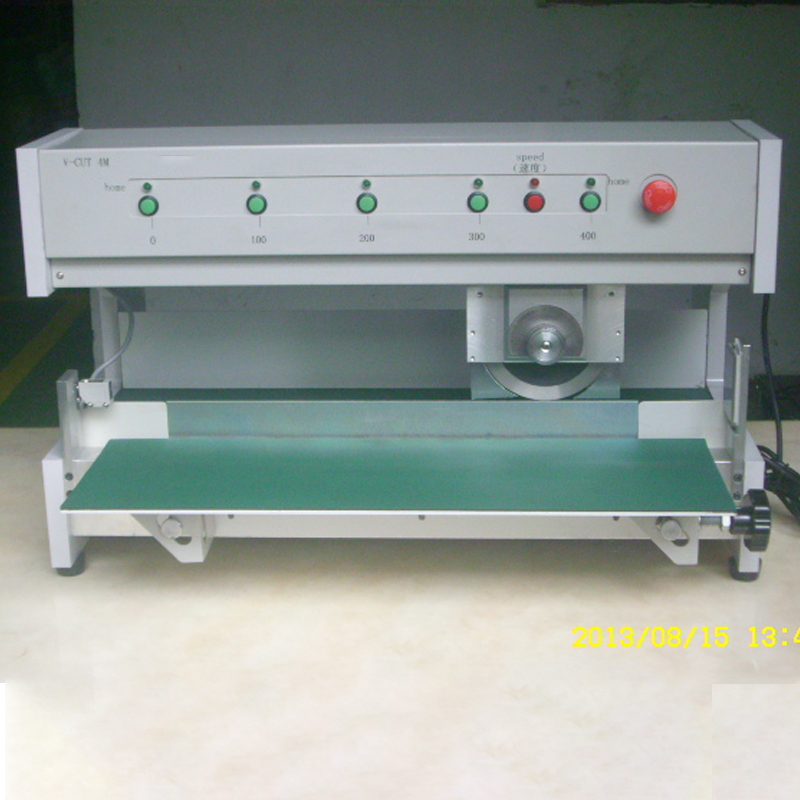

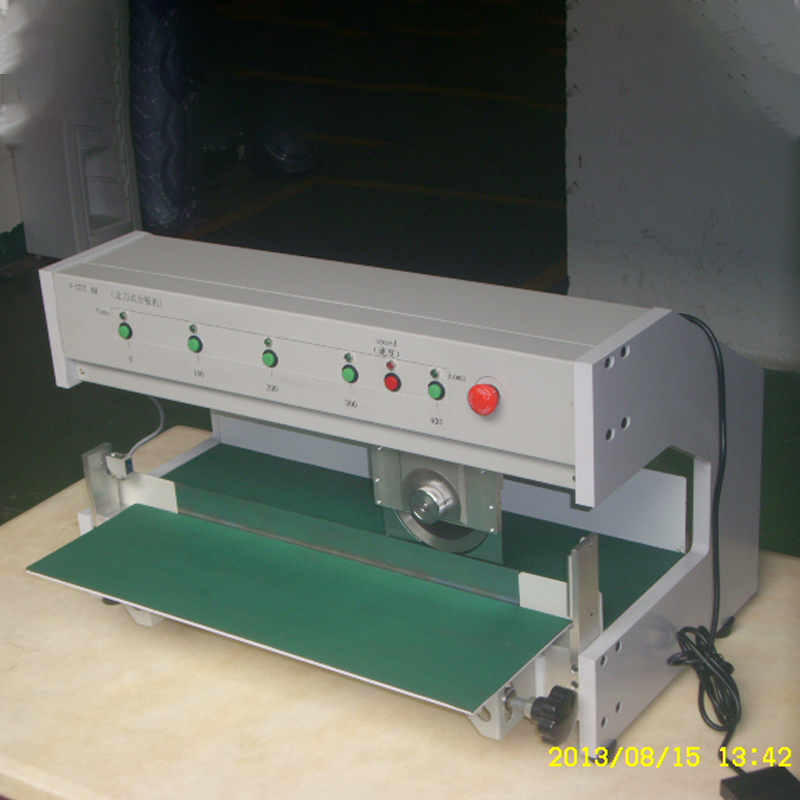

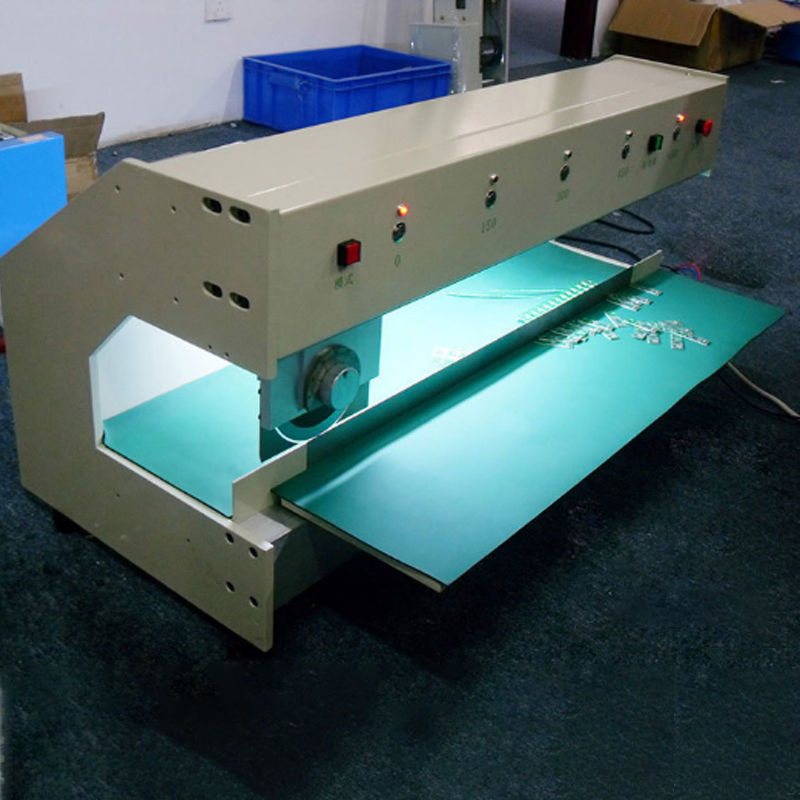

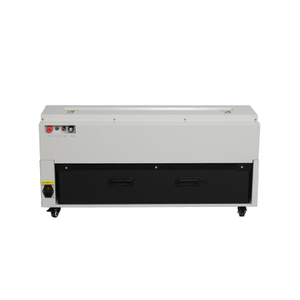

PCB Cutting Machine


Size:	SD-400 SD-600
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-400
Brand:
SHENGDIAN

Features:1. Special v-cut PCB board, stable operation mechanism, prevent improper external forces caused by PCB tin surface, electronic parts welding spot, and other electrical circuit due to the process of folding plate damage.2. Special round cutter material design ensures the smoothness of PCB surface.3. Fine adjustment of cutter wheel :0-2mm, lower plate knife can be adjusted :0-50mm4. Controllable five-stage adjustment of cutting travel distance, 0/100/200/300/400, quick
switching between different PCB sizes.5. The height of upper knife can be adjusted according to plate and plate thickness to make more accurate cutting. The cutting thickness can be 0.6-3.0mm, and the remaining 1/3 of the thickness of standard V groove6. High-frequency eye protection lighting device to improve the operation quality of operators.

Conveyor Loader and Unloader Pick and Place Machine Reflow Oven Wave Soldering Machine PCB Printer

Product Description

Technical parameters

1. Maximum plate length:400mm

2. Thickness of plate: 0.3-3.5mm

3. Plate feeding speed: 300-500mm/second (speed adjustable)

4. Blade material:SKH7 HSS

5. Operating temperature: 10-35 ℃

6. Storage temperature: -20-50 ℃

7. Power supply: 220V/110V

8. Cutter brand: Germany cab

9. Cutter material: imported high-speed steel HKD11

10. Safety light curtain: Omron

11. Weight: 63KG

12. Size: L700mm*W550mm*H460mm

Standard safety device:

1. The upper knife is equipped with a hand guard knife holder hand can not touch the upper knife.

2. Installed photoelectric switch (safety light curtain) in the operation of the hand or foreign objects exceed the safety area away from the machine immediately stop processing, if the start before the hand exceeds the safety area distance machine can not start.

Application purpose: multi-piece connected pcb board after soldering if the hand breaks will damage the line sub-port burr uneven condition using this machine can solve the above problems.
