PCB Magazine Size and Function

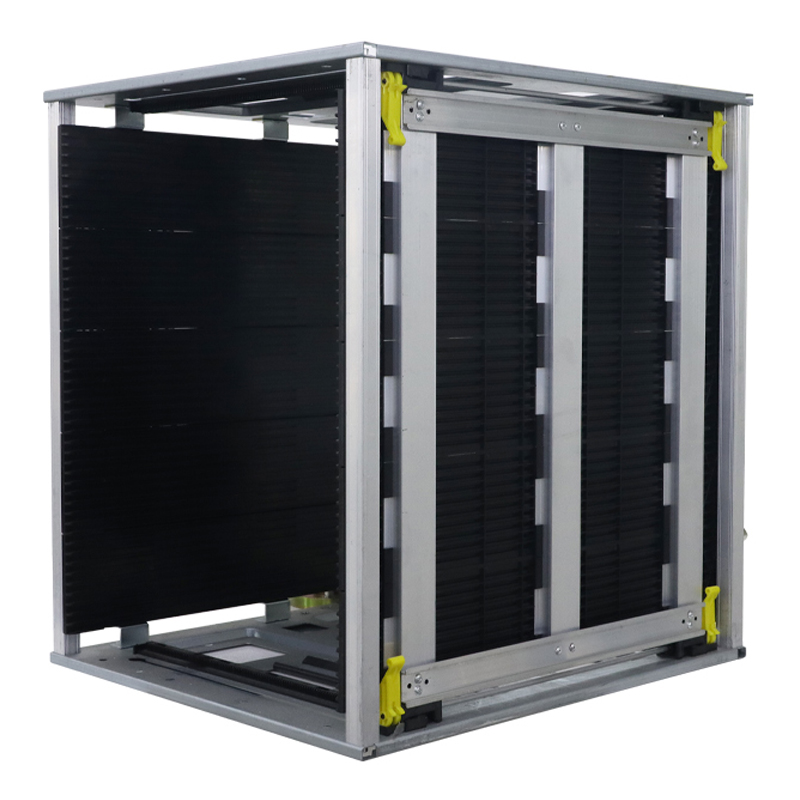

PCB Magazine is an industrial item used to carry circuit boards. It is usually made of metal or plastic and has a fixed shape and size to accommodate different types and sizes of circuit boards.

PCB Magazine plays a vital role in the circuit board manufacturing process. Firstly, it can protect the circuit board from damage and deformation. Secondly, it can improve production efficiency and quality, making the production of circuit boards more standardized and regulated. In addition, if the production of multi-layer circuit boards is required, PCB Magazine can also make the alignment between different layers more precise and accurate.

The choice of PCB Magazine should be based on the type, size and weight of the board. For small boards, plastic frames are often used, while for large boards, metal frames are required to ensure adequate support and stability.

In addition to material and size, PCB Magazine should be easy to clean and maintain. This is because during the circuit board manufacturing process, a lot of waste and dirt can be generated, and if this waste is left in the frame, it will seriously affect the quality and efficiency of production.
