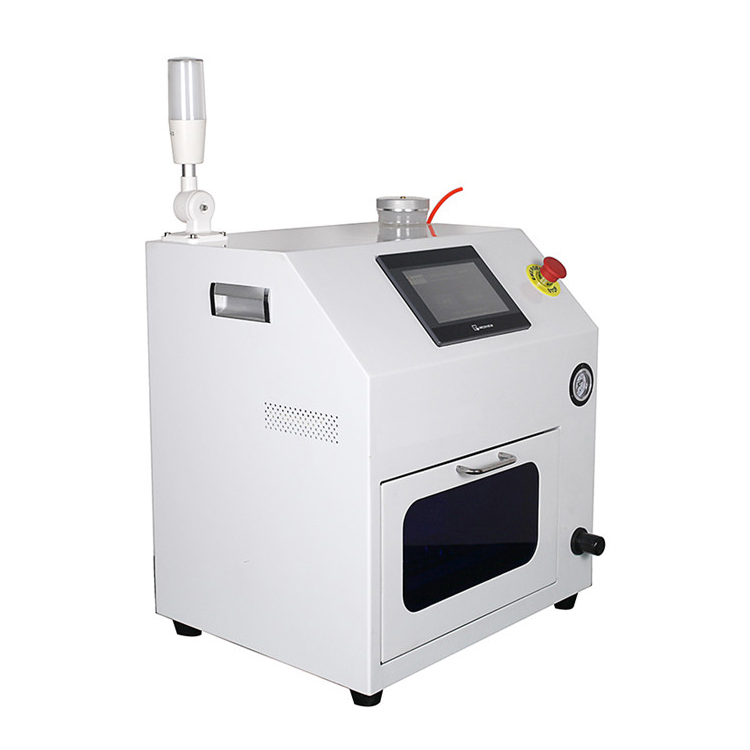

Operation Procedure of PCB Nozzle Cleaning Machine

Before using PCB Nozzle Cleaning Machine, we must make sure that the preparation work is sufficient. First of all, the environment where the Nozzle Cleaning Machine is used must be kept neat and clean so as not to contaminate the PCB board. At the same time, to ensure the safety of the area where the cleaning machine is located to avoid accidents.

Check the SMT equipment Nozzle Cleaning Machine: Make sure the machine is running normally:

Conduct a comprehensive inspection of the entire equipment to ensure its normal operation. First, check whether the power cord of the cleaning machine is firmly connected, and check whether the power switch is off. Second, check the fluid level of the washer to make sure that it is in the proper range. In addition, it is also necessary to check the condition of the filter and suction nozzle of the cleaning machine to ensure that they are clean and intact.

Setting parameters: Adjust the parameters of the Nozzle Cleaning Machine according to the needs:

Before formally using the Nozzle Cleaning Machine, we need to set the parameters of the cleaning machine reasonably according to the characteristics and needs of the cleaning task. First, adjust the temperature of the cleaning fluid, usually, a lower temperature can better protect the PCB board. Second, adjust the cleaning time and cycle times of the cleaning machine to ensure that the surface of the suction nozzle is thoroughly cleaned.SMT equipment factory

Placement of PCB board: accurately place and fix the PCB board:

Place the PCB to be cleaned on the working table of the cleaning machine. In order to ensure the cleaning effect and safety, we must accurately place and fix the PCB to avoid it moving or falling during the cleaning process. It is recommended to use appropriate clamps or magnetic devices to ensure that the PCB is firmly fixed on the working table.

Starting the Nozzle Cleaning Machine: Start the machine according to the specified procedure:

After everything is ready, Shenzhen Shengdian Electronic Equipment reminds you: Start the Nozzle Cleaning Machine according to its prescribed procedure. First of all, open the power switch of the cleaning machine, and follow the instructions on the operating panel. Usually, we need to select the appropriate cleaning mode and parameters, and then press the start button, the cleaning machine can start working.

Wait for the cleaning to complete: patiently wait for the cleaning process to end:

During the working period of Nozzle Cleaning Machine, we need to wait patiently for the completion of the cleaning process. Depending on the cleaning task, the cleaning time may vary greatly. At this time, we can use this time to carry out other work or make preparations for subsequent processing.

Remove the PCB: Remove the finished cleaning PCB carefully:

Once the Nozzle Cleaning Machine has completed its task, we need to carefully remove the cleaned PCB. First, turn off the power switch of the cleaner and wait for it to stop running completely. Then, carefully remove the PCB board from the worktable to avoid any collision or damage.SMT Equipment Factory

Nozzle Cleaning Machine Cleanup: Clean and maintain the cleaning machine in a timely manner:

Finally, after each use of Nozzle Cleaning Machine, we should carry out timely cleaning and maintenance work. First, remove the residue and dirt in the cleaning machine to keep it clean and tidy. Secondly, check the parts and pipes of the equipment to ensure their normal operation, and make necessary replacements and repairs.

By strictly following the above operation procedures, we can operate the PCB Nozzle Cleaning Machine efficiently and safely, which will help to maintain the quality and reliability of PCB boards, improve productivity and outperform other SMT equipment manufacturers.
