Pick and Place Machine

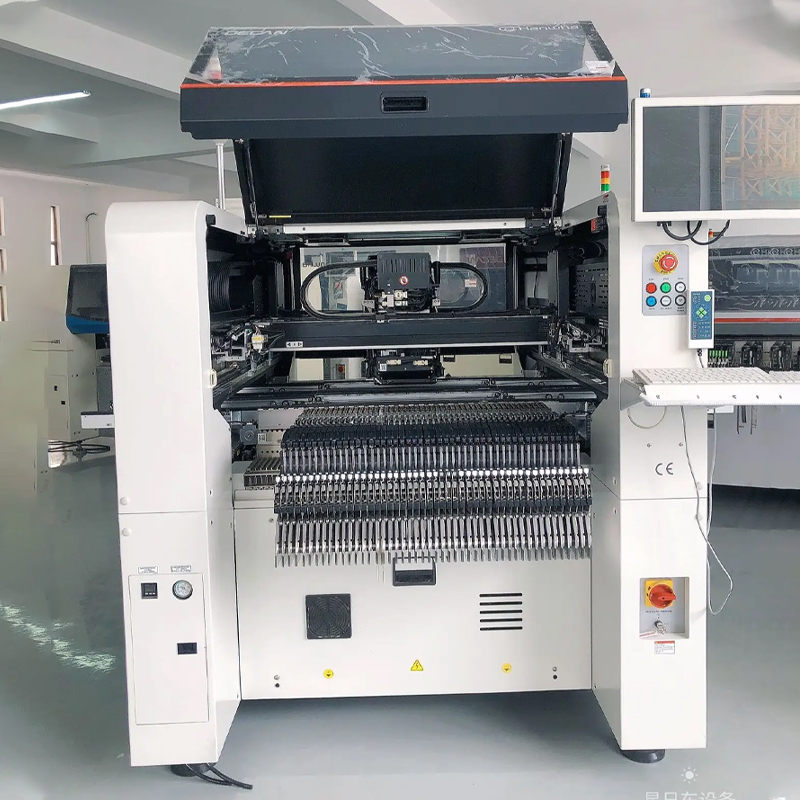

Pick and Place Machine, also known as “mounting machine”, “surface mount system”, it is configured in the dispensing machine or screen printing machine, is through the movement of the mounting head to accurately place the surface mounted components on the PCB pads. It is a device to accurately place surface mounted components on PCB pads by moving the mounting head. It is used to realize high-speed, high-precision placement of components of the equipment, is the entire SMI, the production of the most critical and complex equipment. Mainly divided into manual and fully automatic two kinds.

Pick and Place Machine by the frame, PCB transmission and bearing organization, drive system, positioning and alignment system, mounting head, feeder, optical identification system, sensors and computer control system, the following we briefly introduce its function:.

Rack ---- is the foundation of the machine, all the transmission, positioning organizations and feeder are solidly fixed on it, so it is necessary to have enough mechanical strength and rigidity.

PCB transmission and carrying organization ---- transmission organization is placed on the guide rail of the ultra-thin belt conveyor system, its role is to send the PCB to the pre-determined position, patch and then send it to the next process.

Drive system ---- It is the key organization of Pick and Place Machine and the primary index for evaluating the precision of mounter, it includes XYZ drive layout and servo system, its function includes supporting the movement of mounting head and supporting the PCB load level.
