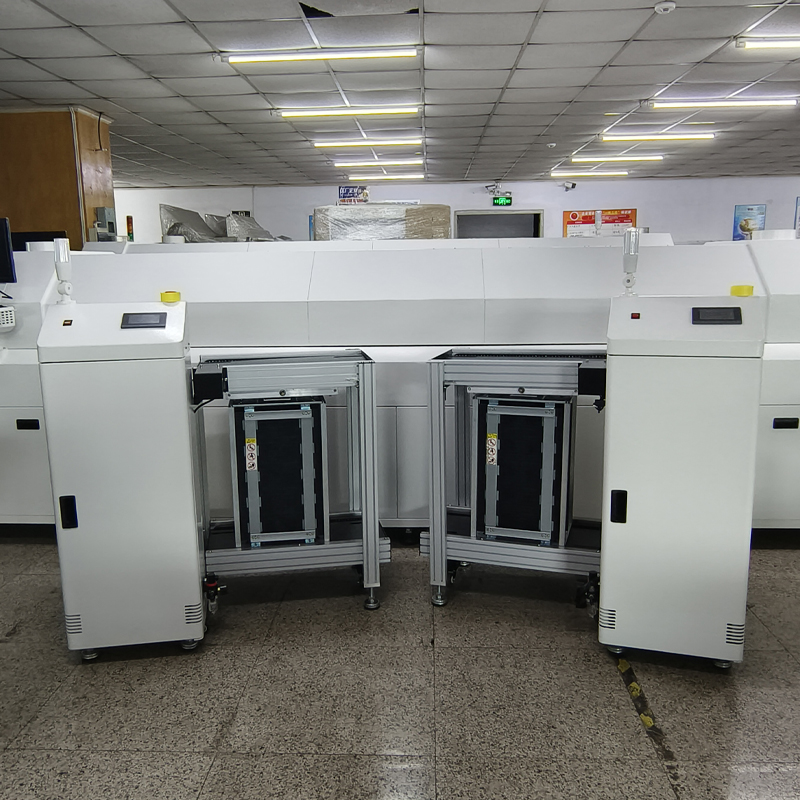

SMT Automatic Loader Machine

SMT Automatic Loader Machine is a kind of equipment widely used in electronic manufacturing industry, which is mainly used as the starting point of SMT (Surface Mount Technology) production line, and it can realize the function of automatic board loading by receiving the signal of board demand from the lower machine and feeding the PCB into the back-end equipments, so as to save the manpower effectively.

Functional Characteristics

1. Automation Function: SMT Automatic Loader Machine can realize the SMT process automation fine art production, and adapt to other similar PCB board products before and after the mechanical loading and unloading. It adopts imported PLC control with high degree of automation, which provides a guarantee for the stable work of the machinery.

2. Reduce Manual Error: the use of automatic board loading machine can reduce the pad oxidation caused by manual board loading, a large number of human resources, improve production efficiency and product quality.

3. Push force can be set according to the thickness of PCB: The motor push plate of the automatic PCB loading machine can be set according to the thickness of PCB, to prevent the deformation of the basket from jamming the PCB, which reflects its humanized design.

4. Precision lifting mechanism: SMT Automatic Loader Machine adopts precision ball screw for lifting, featuring high speed, low noise and high precision.

5. Fault retrieval and safety detection: The equipment has a built-in fault retrieval function and safety detection system, which will issue sound and light alarms when abnormal, helping to find and solve problems in time.

6. Signal communication structure: SMT Automatic Loader Machine is equipped with standard SMEMA signal line, which can be connected with other equipment for online automation.

7. Customizable protective cover: according to the customer's needs, the SMT Automatic Loader Machine can be equipped with a protective cover, which has the functions of anti-dust, anti-static and safety.

Usage and precautions

When using the SMT Automatic Loader Machine, certain operation steps and precautions should be followed. The operating procedures include cleaning and checking the machine, initializing the power supply, and adjusting the width of the shelves and the exit bridge. Precautions include prohibiting personnel from leaning against the machine, avoiding placing hands around the Magazine when lifting and lowering the Magazine, and taking care to prevent boards from falling or jamming when adjusting the spacing.
