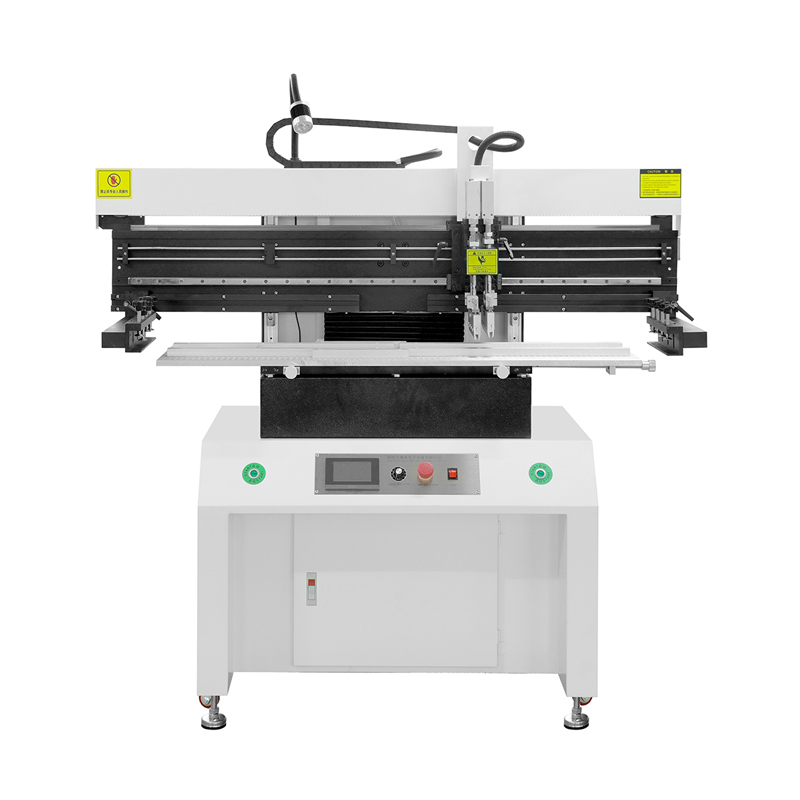

SMT Semi-Automatic Printing Machine

Overview of SMT Semi-Automatic Printing Machine

An SMT Semi-Automatic Printing Machine is a commonly used piece of equipment in surface mount technology (SMT) that is used to accurately print assembled electronic components onto printed circuit boards (PCBs). This type of equipment plays an important role in the electronics manufacturing industry because it increases productivity, reduces labor input, and provides higher quality products.

Key Features of SMT Semi-Automatic Printer

SMT Semi-Automatic Printer usually has the following characteristics:

1. High precision: Precision guide rails and Panasonic speed motors are used to drive squeegee holders to ensure printing accuracy.

2. Flexibility: uni-directional and bi-directional can be set, a variety of printing methods to adapt to different production needs.

3. Automation function: with automatic counting function, convenient for production output statistics.

4. User-friendly: PLC and touch screen control, easy and convenient operation, more suitable for man-machine dialog.

5. Durability: touch screen with screen saver function, time can be adjusted arbitrarily to protect the service life of the touch screen.

6. Quality control: with screen wiping alarm function, easy to scrub the stencil on time to ensure the printing quality.

Specification Parameters of SMT Semi-Automatic Printing Machine

The specifications of SMT semi-automatic printing machines may vary depending on the manufacturer and model.

The specification parameters of Shengdian SMT semi-automatic printing machine include:

- Printing Table Size: 700 x 320mm

- Stencil size: 370×470mm~750×850mm

- Squeegee speed: 0-100mm/sec

- Power supply: 220V single phase 50/60Hz

- Power consumption: 100W - Printing position: Fixed, external datum pin

- Tablet fine-tuning: Front/back±10mmRight/Left±10mm

- Printing accuracy: ± 0.02mm

- Machine repeatability: ±0.02mm

- Machine size: L880 × W700 × H1650mm
