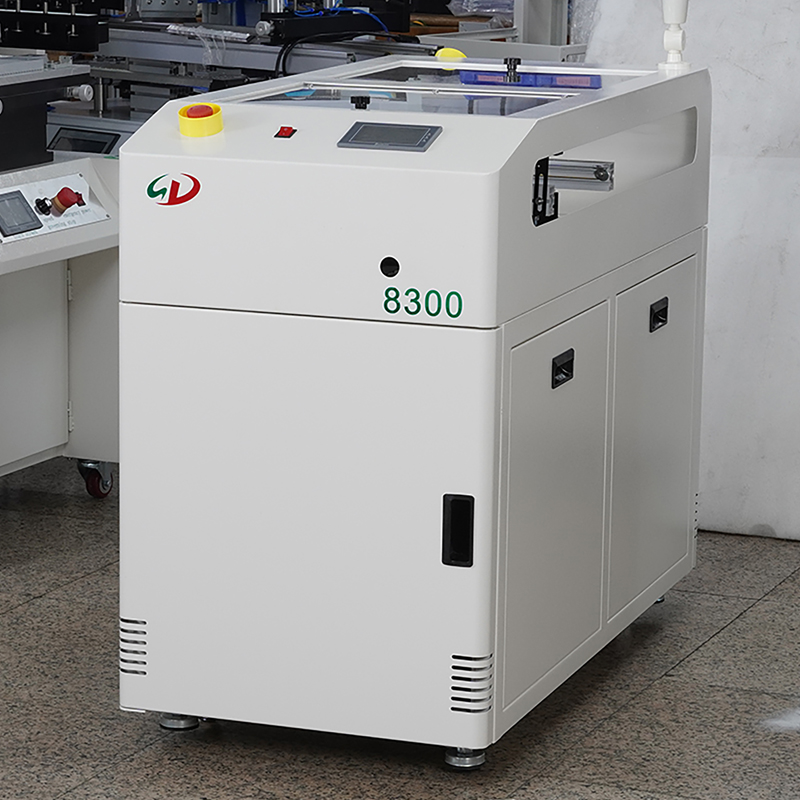

SMT Shuttle Conveying Machine

SMT Parallel Shuttle Conveying Machine is a common automation equipment, mainly used in the SMT (Surface Mount Technology) production line for PCB board parallel transfer, in order to realize the misalignment between the multiple lines of translation connection.

Below are some detailed information about SMT Automatic SMT Shuttle Conveyor:

1.Equipment Characteristics

- Stable control system: SMT automatic parallel transfer machine usually adopts Siemens PLC and EFL relay control system, which ensures the smoothness and reliability of the equipment.

- Humanized operation interface: SMT Shuttle Conveying Machine is equipped with touch screen display operation, with fault sound and light alarm, automatic diagnostic function and man-machine dialogue function, making the operation simple and convenient.

- Precise positioning ability: Parallel Shuttle Conveying Machine usually adopts stepping motor control, which can realize adjustable speed and distance, and is equipped with imported precision synchronous belt, which ensures the accuracy of positioning and smoothness of operation.

- Strong adaptability: SMT Parallel Shuttle Conveying Machines can be adapted to a variety of production processes, supporting a variety of modes of choice, such as mixed mode and standard mode.

SMT Shuttle Conveyor Technical Parameters

- Dimensions: The external dimensions of SMT automatic parallel transfer machine are usually L2000*W500*H900mm.

- PCB board specifications: the equipment is suitable for PCB width between 50-300mm.

- Conveying height: the conveying height is usually 900±20mm(SMT Line) or 750±20mm(DIP Line).

SMT automatic parallel transfer machine equipment application scenarios

- Production line connection: SMT Shuttle Conveying Machine is often used to adjust the running direction of the circuit boards on the production line to different paths, or between the two SMT production lines for the convergence of PCB boards.

- Production line layout optimization: through the use of SMT Shuttle Conveying Machine, you can realize the effect of single track into double track or double track into single track, so as to optimize the layout of the production line.
