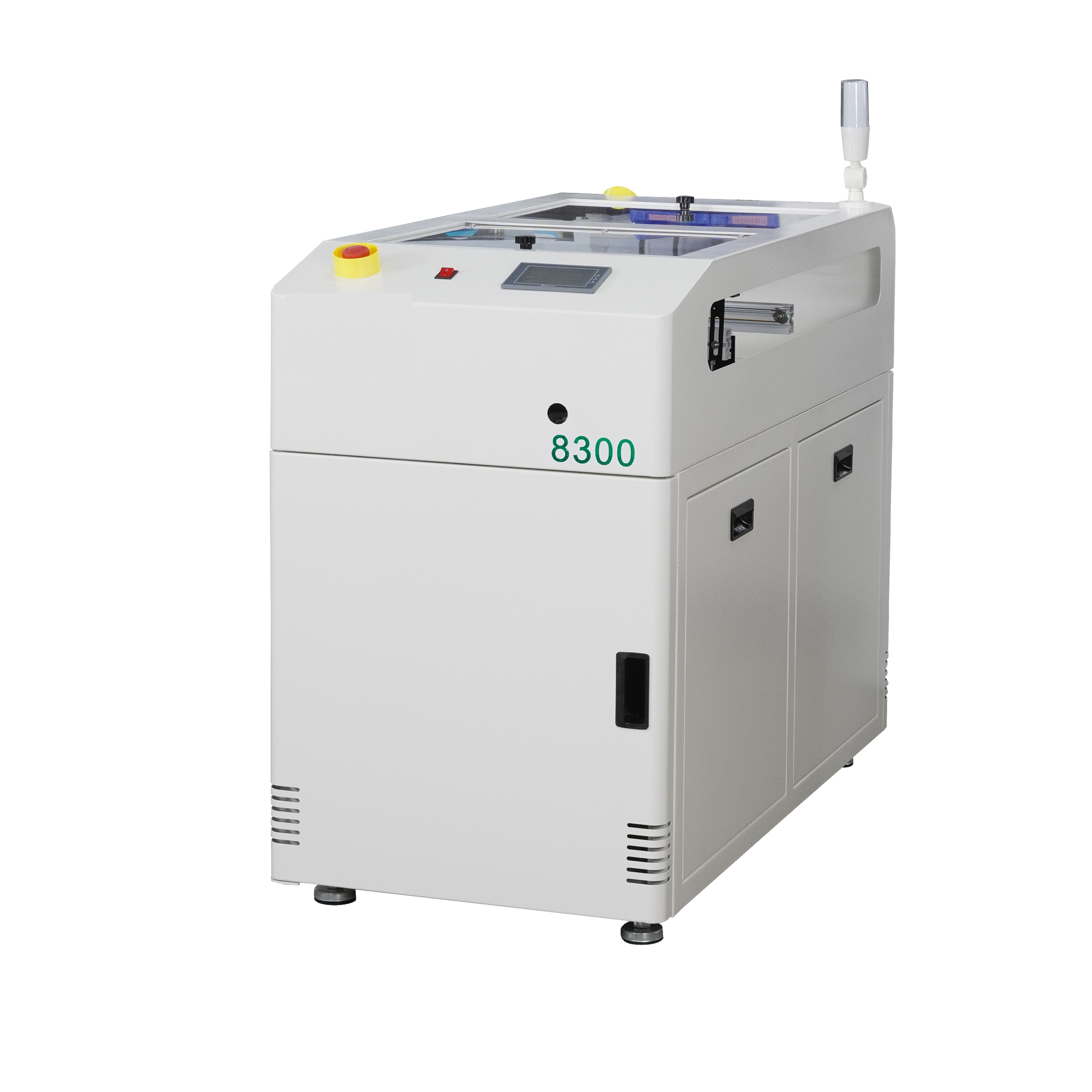

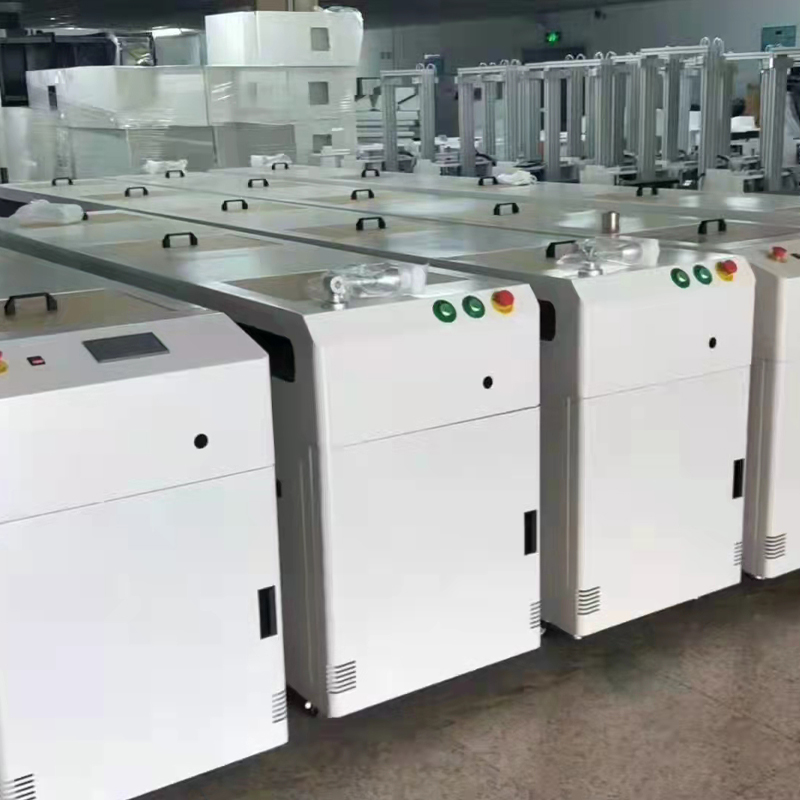

SMT Shuttle Conveyor is a kind of parallel transition conveying equipment applied between the two ends of the automated production line or between two conveying lines with deviation from the center line. It is mainly composed of several parts, such as frame assembly, transfer trolley, conveyor rail, electrical control and so on.

SMT Parallel Shuttle Conveying Machine is especially for the mounting or insertion assembly line supporting the parallel transfer mechanism of the horizontal connection, used for PCB board sub-panel transfer conveyor. Can meet the width of 50 ~ 300mm, the appropriate length of the paste or short insertion components PCB board transfer needs. It is suitable for staggered parallel transfer transferring between SMT production lines or DIP production lines or other logistics system multiple lines, and transferring the workpieces (PCB or sheet materials) to the next specific equipment production mode automatically. It can be used with 2 to 4 patch lines only need to use to 1 reflow soldering or 2 plug-in lines only need a wave soldering.

The operation of the SMT Parallel Shuttle Conveying Machine double track setup mainly involves the installation, commissioning and operation of the equipment. It contains the following steps:

1. Equipment Installation:

First, make sure that the SMT Shuttle Conveying Machine and the dual rail system are mounted on a solid and reliable foundation. Then, install the SMT Shuttle Conveying Machine and the dual rail system in a suitable position according to the instructions provided by the manufacturer. Make sure that all connections are tight and the equipment runs smoothly.

2. Rail Adjustment:

Adjust the double track system to ensure that the two tracks are parallel and of equal height. This can be done by adjusting the support feet or shims at the bottom of the tracks. At the same time, check whether the distance between the tracks meets the requirements of the SMT Shuttle Conveying Machine.

3. Equipment Connection:

Connection of the SMT Shuttle Conveying Machine to the double track system. Typically, this involves mounting the drive wheels of the transfer machine on the rail and connecting the power source of the SMT Shuttle Conveying Machine (e.g. motor, cylinder, etc.) to the rail system.

4. Control System Setup:

Set up the control system of the Parallel Shuttle Conveying Machine according to the actual requirements. This may include parameters such as speed, acceleration, travel and so on. At the same time, make sure that the control system and the safety interlocking device of the double track system work properly.

5.Equipment Commissioning:

After ensuring that all connections and settings are correct, carry out equipment commissioning. First, carry out no-load running to observe whether the equipment runs smoothly and whether the noise is normal. Then, carry out load operation to test the carrying capacity and stability of the equipment.

6. Safety Inspection:

Conduct a safety check after the commissioning of the equipment is complete. Ensure that all safety guards work properly and the operator can operate the equipment safely.

7. Equipment use and Maintenance:

After the equipment is put into use, carry out regular maintenance and inspection according to the manufacturer's recommendations to ensure the normal operation and service life of the equipment.
