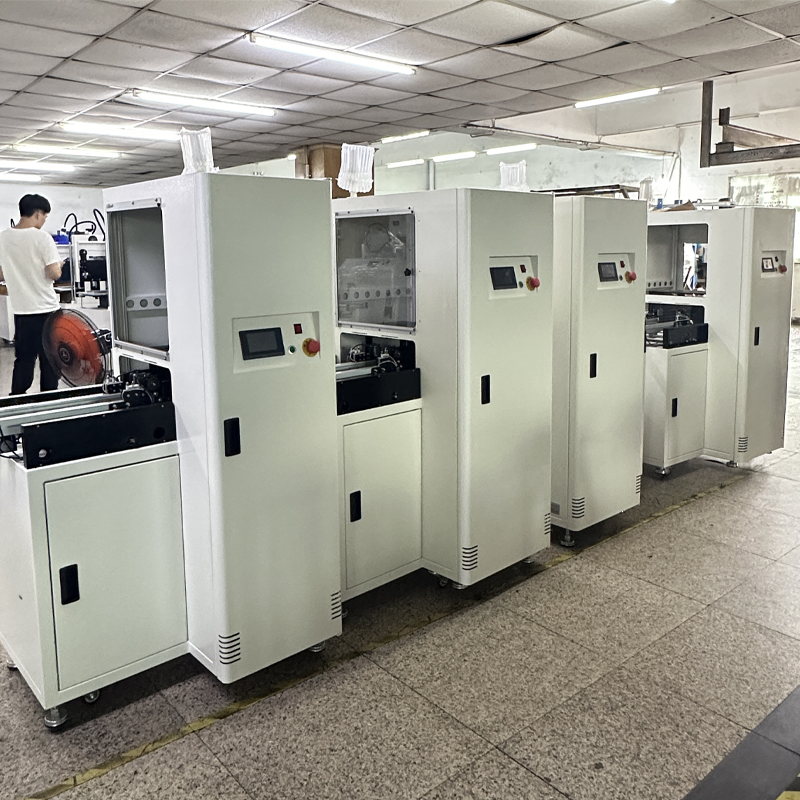

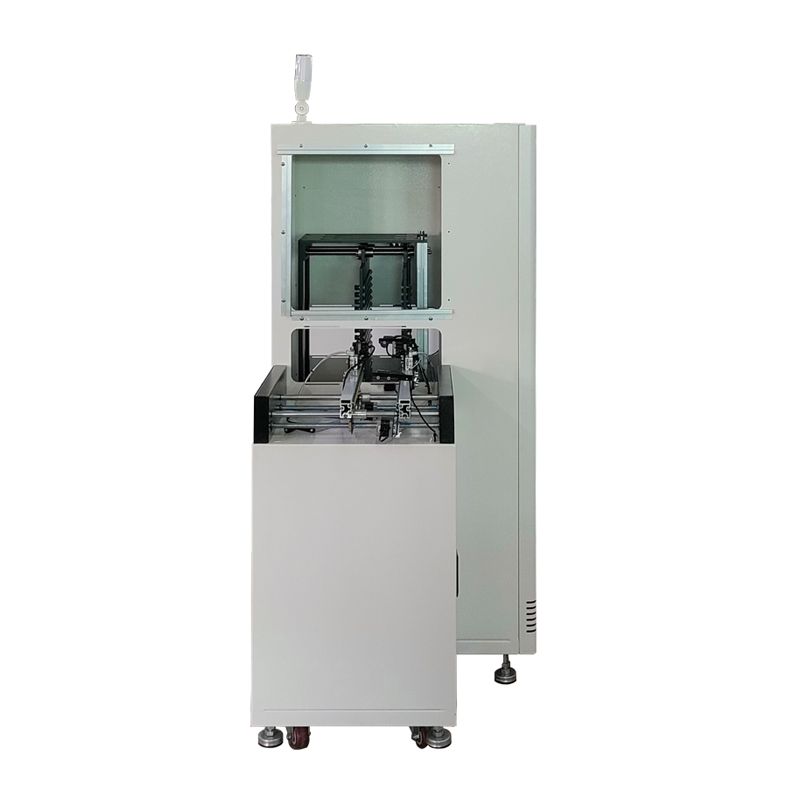

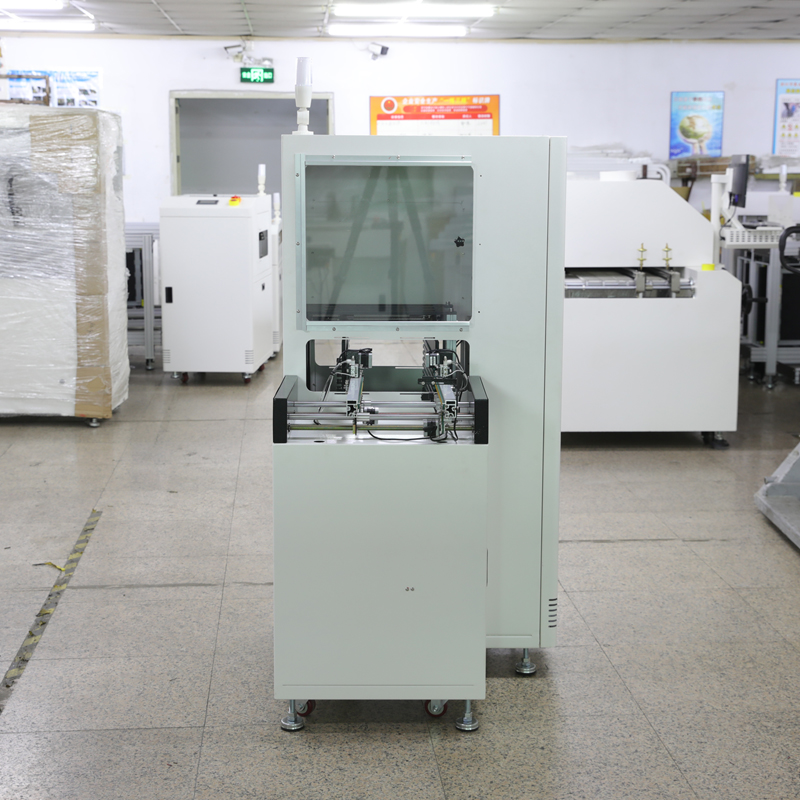

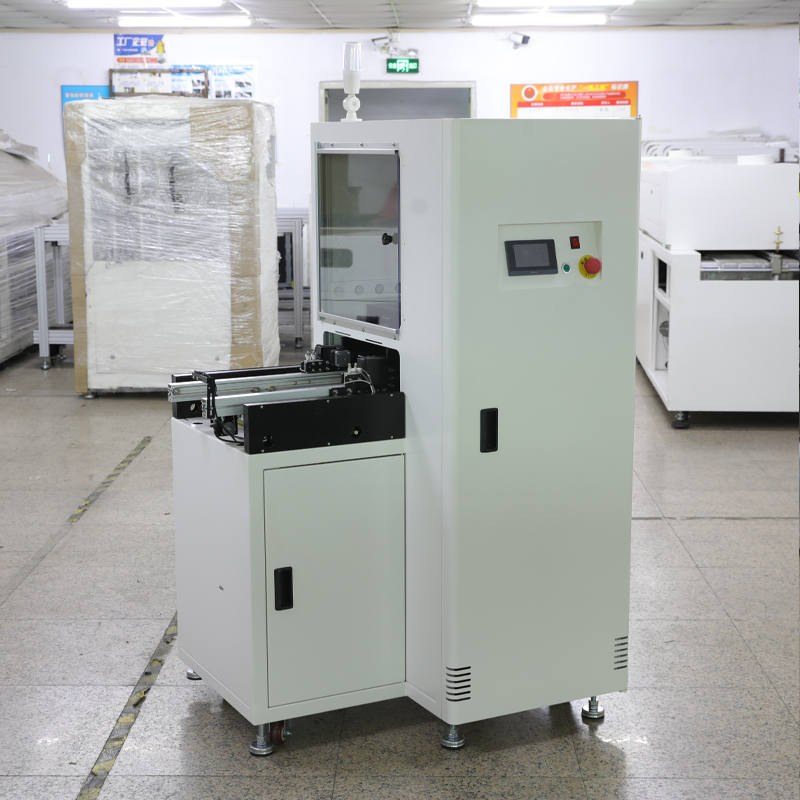

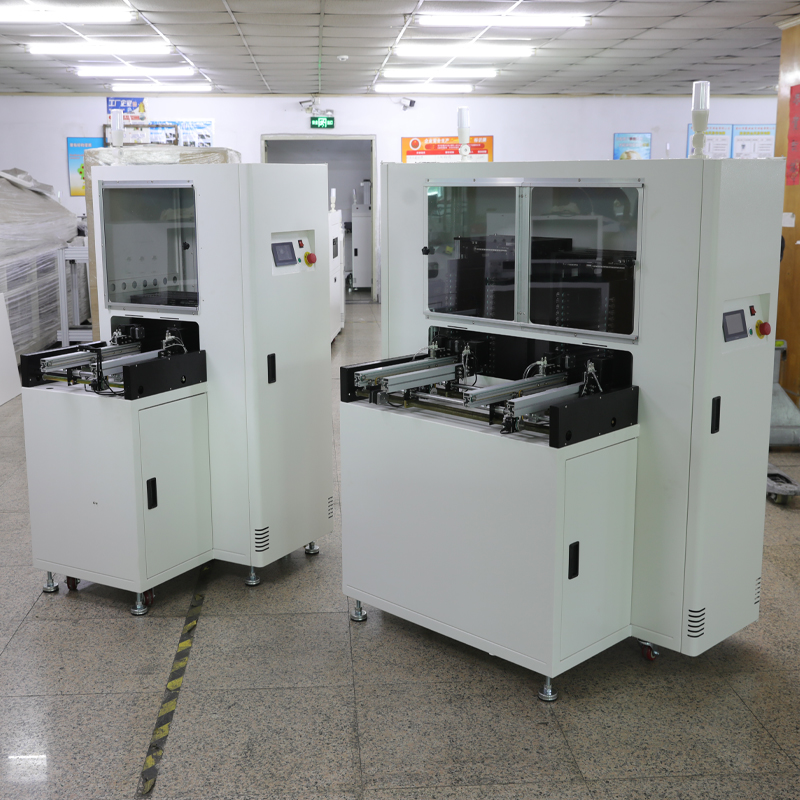

Automatic Buffer Machine


Availability:

Quantity:

Inquire Add to Basket

Model:
SD-350
Brand:
SHENGDIAN

Product Feature：External structure: thickened sheet metal structure and hardened aluminum plate frame, surface spraying treatment and surface blackening treatment. Microcomputer Panasonic PLC control system, stable and reliable work. Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue. The lifting mechanism adopts high performance fixed speed brake servo motor drive to lift Magazine. Storage quantity 20PCS, storage distance 20mm Any layer can be shielded. Touch screen can monitor the status of cache quantity and cache time. Automatic width adjustment in the cache magazine. Multiple alarms with sound and light and touch panel. The step of lifting the magazine can be set according to the PCB thickness. Set a variety of functions, PCB board can be first in first out, first in last out, and with straight-through function.

Conveyor Loader and Unloader Pick and Place Machine Reflow Oven Wave Soldering Machine PCB Printer

Product Description

Serial Number		Scope of Application
1		control system		Japanese Panasonic PLC control
2		Touch screen		Display control EA43 full color touch screen
3		PCB board size (MM)		535*（50-390）mm
4		PCB thickness		0.6-3.0mm
Body
1		Body size LWH（MM）		10008501750
2		Body weight		300KG
Control system
1	Power supply		Single-phase 220V
2	Starting power/no-load power		1250W/200W
3	Cache layer to layer distance		20mm
4	Number of caches		20PCS
6	Lifting Device		Xinjie large inertia 750W servo system
7	Lifting screw rod		Taiwan Silver Slide (durable and wearable)
8	Compressed air		5-6KG
9	clamped edge		Front fixed (can be customized after fixed)
10	direction of transfer		Left to right (can be customized right to left)
11	Send highly		900±20mm
12	Interval choice		Any layer can be shielded
12	Withstanding voltage		AC terminal to ground 1500VAC,1 min
14	Using the environment		Environment without corrosive gas and dust
15	Anti-interference		Voltage noise: 1000VP-P, wave width 1us, 1 min
16	Fixed guide rail		1 guide rail is fixed, 2 guide rail is movable adjustment
17	Transfer motor		Stepper motor transmission
18	Lifting motor		Xinjie large inertia 750W servo motor
19	Lifting driver		Xinjie 750W high precision driver
19	Communication Method		With Standard SMEMA Interface
20	Controller		Japanese Panasonic PLC control
21	Photoelectric switch		Japanese Panasonic or German SICK sensor
22	Trough inductor		Omron
