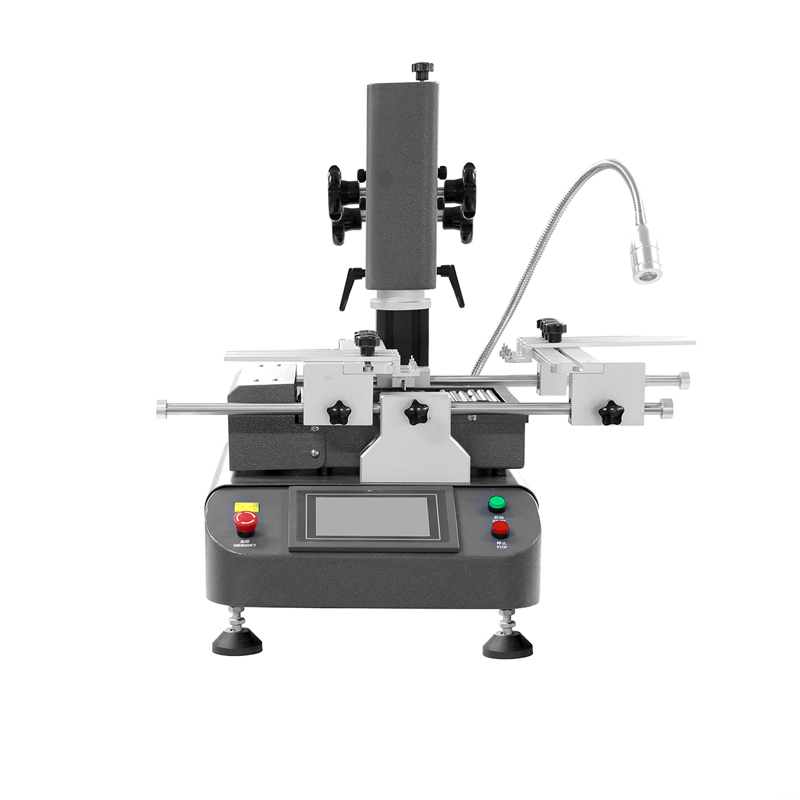

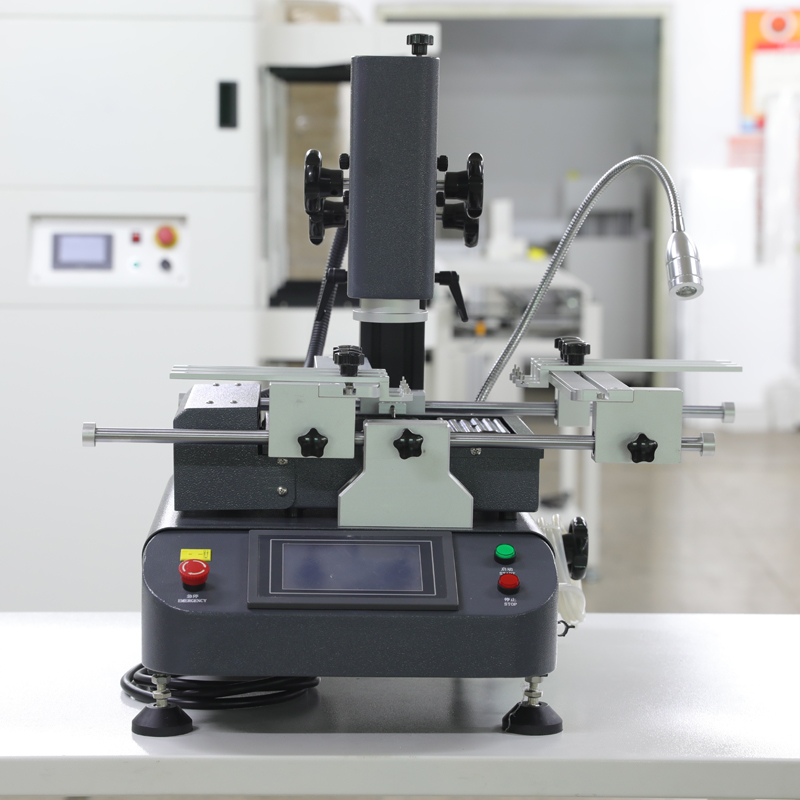

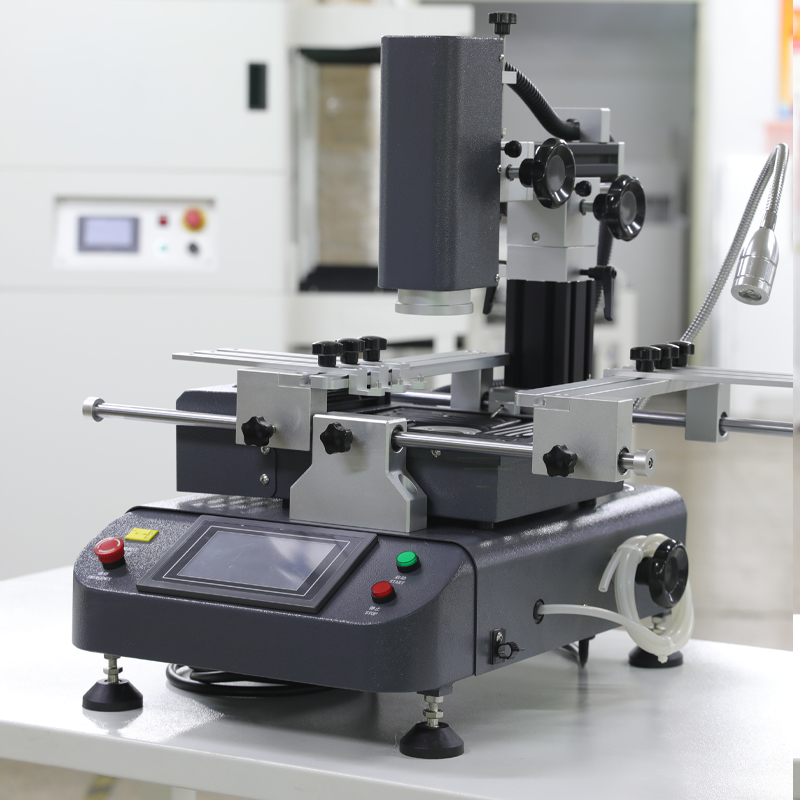

Main Features of SD-350 Touch Screen BGA Rework Station:Self-developed upper and lower heating air volume adjustment function, large chip or small chip, large air volume or small air volume, to ensure the welding effect!

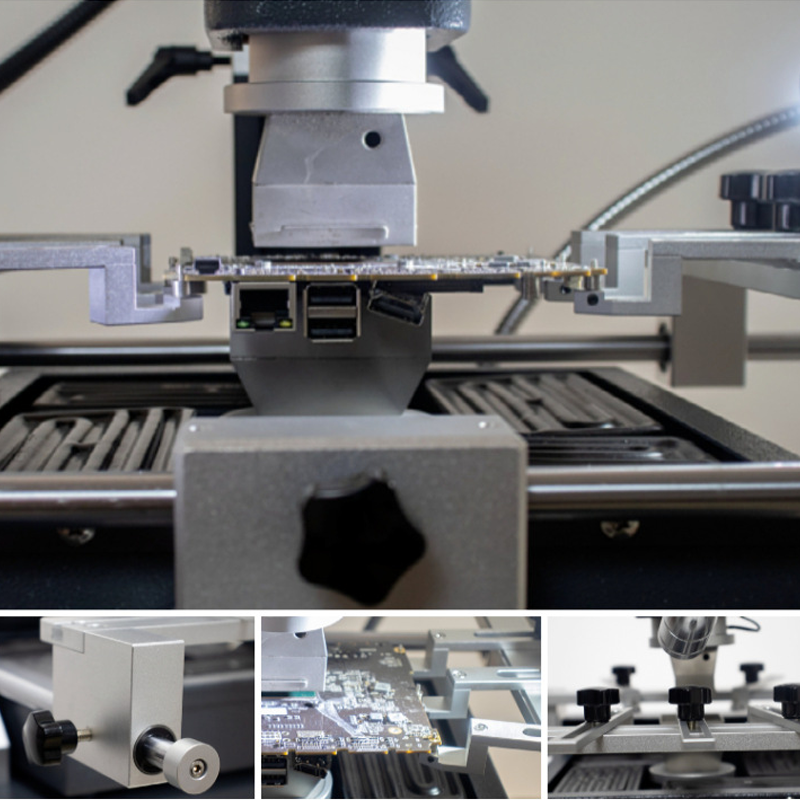

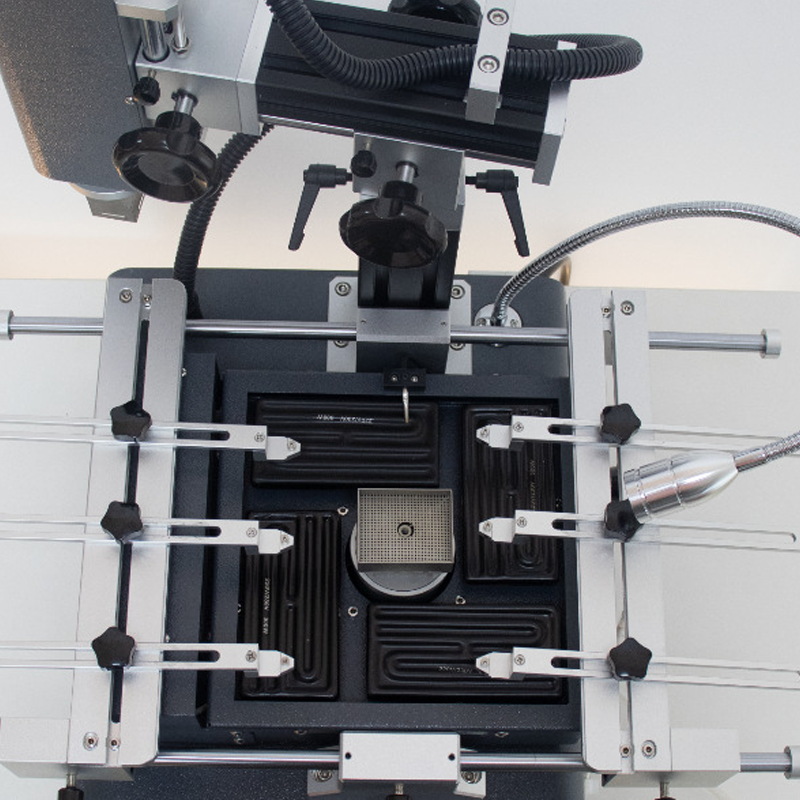

Unique infrared fixed point function, more convenient and quick positioning BGA chip.Adopt independently developed man-machine interface, the function can be seen, simple operation interface can be seen clearly at a glance.Unique one-key curve generation function, more convenient, easier to operate.Adopt each temperature zone separate heating function. The upper and lower heaters and the bottom heaters display three real-time temperature curves in the screen over time. The temperature is accurately controlled within ±0.1 degrees (the actual control is within ±3 degrees, the accuracy is affected by the environment). The upper and lower heaters can be controlled in up to 9 stages.The hot air nozzle can rotate 360°; The bottom infrared heating plate can make the PCB board heat evenly.The machine adopts high precision K-type thermocouple closed-loop control, external temperature measuring interface to realize the precise temperature detection.PCB board positioning using infrared plus V-shaped slot, portable flexible universal pin fixture to protect PCB board.High power cross flow fan is used to cool PCB board quickly and improve working efficiency.The machine has the function of alarm after welding work is finished, and the function of "alarm in advance" is specially added for the convenience of users.Intelligent temperature sensing system, prevent temperature overtemperature, with temperature limit function, better protection of work.

Conveyor Loader and Unloader Pick and Place Machine Reflow Oven Wave Soldering Machine PCB Printer

Product Description

Product Specifications and Technical Parameters

1、Power Supply: AC220V±10％ 50/60Hz

2、Total Power: 5200W

3、Heater power: upper hot air heater 1200W, lower hot air heater 1200W, bottom infrared heater 2700W, other power: 100W

4、Electrical material selection: PLC programmable controller + large screen true color touch screen + high-precision intelligent temperature control module.

5、Temperature control: K-type high thermocouple closed-loop control: independent temperature measurement up and down, temperature control precision 0.1 degrees, real temperature control +-3 degrees (related to the use environment).

6、Positioning: V - type card slot PCB positioning, pin - type card foot, etc.

7、PCB Size: Max 450×500mm Min 20×20 mm

8、Dimensions: Length 650mm, Width 520mm (including bracket and handle width 660mm), Height 720mm

9、Weight:38KG

10、Appearance Color: Black

Superior security protection system

1、The welding work has the function of ending the program alarm, and has the function of automatic sleep。

2、This machine through CE certification, abnormal accident automatic power off protection device. In the case of temperature control, the circuit can automatically power off, equipped with emergency stop switch. It has double overtemperature protection function.
