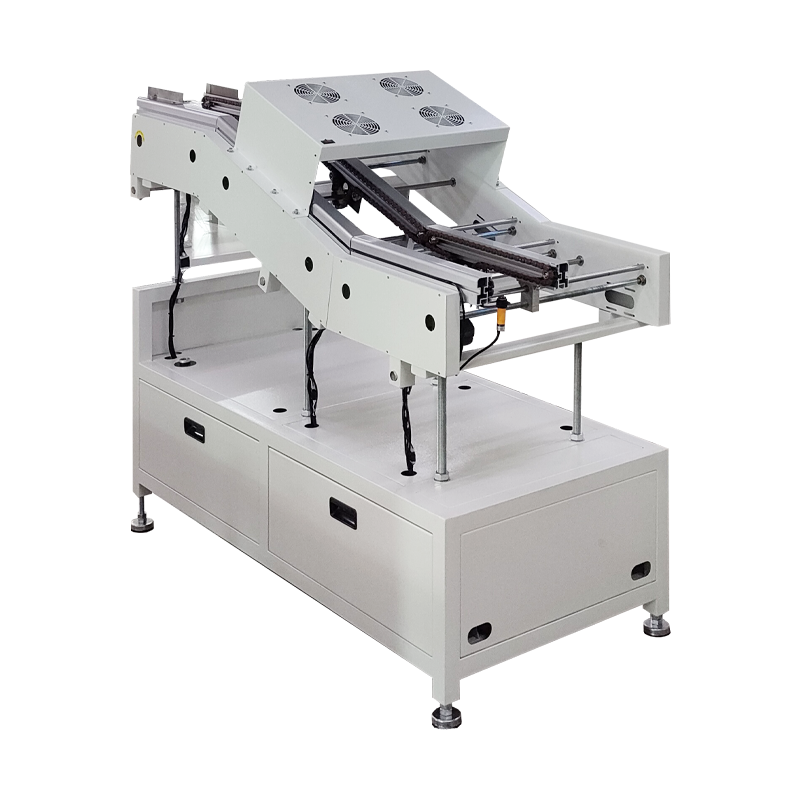

Features and Advantages of the Three-Stage Wave Soldering Board Discharger

The three-stage wave soldering board discharger is a critical piece of equipment in the wave soldering process. Its core features and advantages can be summarised as follows:

I. Core Features

‌Three-stage independent control‌：Features a three-stage track design, with each section capable of independent speed and start/stop adjustment. Supports simultaneous buffering of three circuit boards, enabling flexible control over production rhythm.

Manual Track Width Adjustment：Track width is manually adjustable to accommodate PCBs of varying dimensions, enhancing equipment compatibility.

Efficient Integration with Wave Soldering Process：As post-soldering equipment, the board discharge unit closely coordinates with the soldering process, ensuring rapid and orderly output of post-soldered circuit boards while minimising manual intervention.

II. Technical Advantages

‌Enhanced Production Efficiency‌：The three-stage buffering design prevents board accumulation, shortening production cycles. It is particularly suited for high-density, high-volume manufacturing scenarios.

‌Stability and Reliability‌：Independent control modules minimise mechanical impact, reducing the risk of board damage. This complements the high-precision welding characteristics of wave soldering (such as melt temperature control in lead-free processes), creating synergistic effects.

High Compatibility：Adaptable to both conventional wave soldering and selective wave soldering (e.g., complex requirements like double-sided soldering and irregular component handling), meeting production demands for mixed-technology circuit boards.
