Compact Reflow Soldering for R&D and Prototyping
During new product development, engineers often need to evaluate PCB assembly processes, solder paste behavior, component compatibility, and thermal profiles before moving into mass production.
A mini reflow soldering machine provides an efficient platform for these early-stage trials. Engineers can use the equipment to validate soldering processes on prototype PCBs and adjust process parameters without running a full production reflow oven.
It is particularly useful for:
New PCB prototype validation
SMT process development
Lead-free solder experiments
Thermal profile testing
Component soldering evaluation
Process parameter optimization
Engineering sample production
This approach can help reduce the cost and production disruption associated with using large industrial reflow systems for small-scale development work.
Small-Batch PCB Production
For startups, laboratories, electronics workshops, and manufacturers handling limited production volumes, a large multi-zone reflow oven may not always be practical.

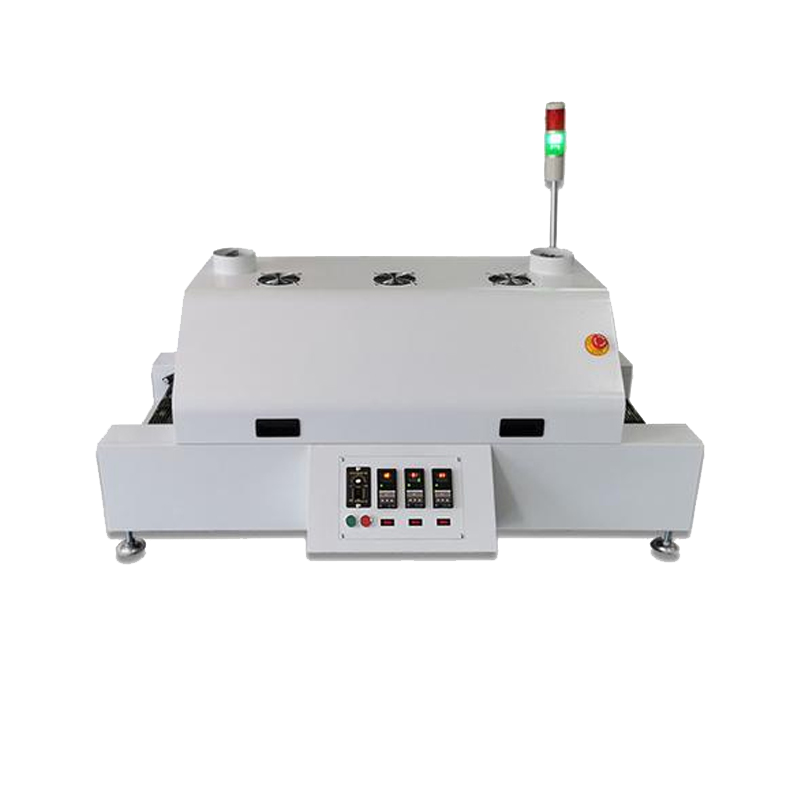

The desktop configuration of this mini reflow soldering machine provides a compact alternative for selected small-batch applications. It allows users to perform PCB reflow soldering directly within an R&D workspace, engineering department, laboratory, or small production environment.
The machine is particularly suitable when production flexibility is more important than high-volume throughput.
PCB Repair and Rework Applications
The mini reflow soldering machine can also support selected PCB repair and rework applications where localized process control is required.
Instead of repeatedly processing an entire PCB through a large production reflow system, technicians can use compact reflow equipment for specific repair or rework tasks according to the PCB and component requirements.
Potential applications include:
For BGA and other sensitive component rework, the appropriate process parameters and equipment configuration should always be determined according to the component, PCB design, soldering material, and manufacturer's process requirements.
Desktop Reflow Soldering for Education and Training
The desktop reflow soldering machine is also an effective teaching and demonstration tool for electronics schools, technical institutes, laboratories, and vocational training centers.
Students can observe and study the basic stages of the SMT reflow process:
Preheating → Reflow → Cooling
This provides a practical way to demonstrate how solder paste transitions through different thermal stages and forms solder joints during PCB assembly.
Compared with relying solely on theoretical instruction, compact reflow equipment can give students a more direct understanding of SMT manufacturing processes and thermal soldering principles.
Flexible Alternative to Large Reflow Systems
Large production reflow ovens are optimized for high-throughput SMT manufacturing. However, not every application requires the capacity, footprint, or investment associated with a full production line.
The mini reflow soldering machine is positioned as a complementary solution for applications where compact equipment, flexible operation, and lower entry cost are priorities.
It can work alongside existing SMT equipment by handling prototype validation, engineering trials, small production runs, and selected rework tasks while larger reflow systems remain dedicated to mass production.
