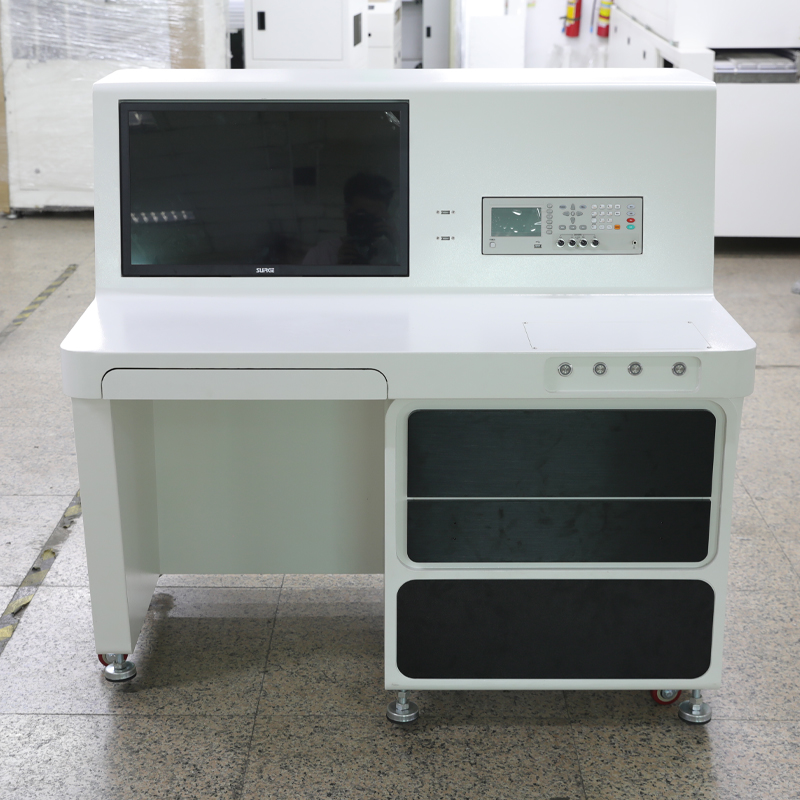

PCB First Article Tester with Scanning

PCB First Article Inspection Machine is a specialized first piece inspection equipment for SMT production process, it has scanning function, which can greatly improve the inspection efficiency and accuracy.

Functions and Features of PCB First Article Tester with Scanning.

1. High degree of automation Modern PCB First Article Tester with Scanning function can automatically generate inspection program by integrating the BOM table, coordinates and high-definition scanning of the first piece image. This not only can quickly and accurately test the components, but also automatically determine the results and generate the first piece of report, thus greatly improving production efficiency and accuracy.

2. Can cover a wide range of anomalies These testers can inspect solder paste boards, adhesive paper boards, red adhesive boards and other types of first piece boards, and can cover a wide range of anomalies, such as multi-paste, missing parts, wrong parts, reverse, sideways, offset, rotation and other process problems. In addition, they can measure the electrical performance of components such as resistors, capacitors, inductors and diodes.

3. Provide high-definition scanning and intelligent matching function, some PCB First Article Tester with Scanning function products with high-definition PCBA scanner and intelligent matching function. These devices can realize intelligent matching of BOM, CAD, and Image, and complete PCB scanning operation and image reading with one click, which significantly improves the inspection efficiency.

4. Support double-sided coordinate import Some testers support double-sided coordinate import, which means they can select only one side for inspection when not needed, thus saving time and resources.

5. With a powerful software system The core of these devices include branded all-in-one machine with stable performance, high-definition PCBA scanner, accurate LCR bridge, and advanced software system. The software system has a powerful and flexible BOM table analysis function, you can define different analysis rules for different customers' BOM table.

6.Traceability and quality management Using PCB First Article Tester with scanning function can effectively improve the traceability of quality management. The system will automatically generate the first piece test report and can restore the test scene, thus ensuring the authenticity and reliability of the data.

7. Save labor and time Compared with traditional manual inspection, these testers can significantly save labor cost and inspection time. They usually require only one person to operate and can achieve the efficiency of two people needed for traditional SMT first article inspection.
