As the electronics manufacturing industry continues to evolve, SMT production lines require higher levels of automation, efficiency, and process consistency. From PCB handling and transfer to subsequent production processes, every stage plays an important role in the overall performance of the production line.
In traditional manufacturing environments, PCB sorting, stacking, and handling often rely on manual labor. These repetitive tasks increase operators' workloads and may affect production efficiency and handling consistency.

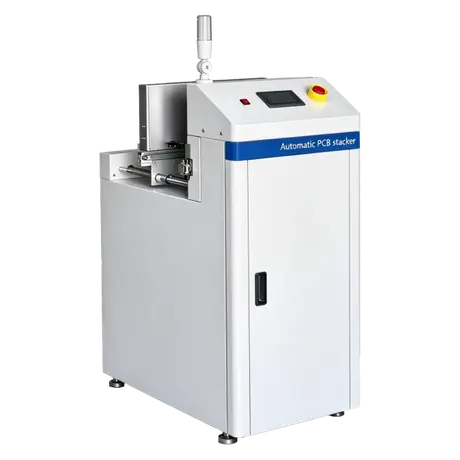

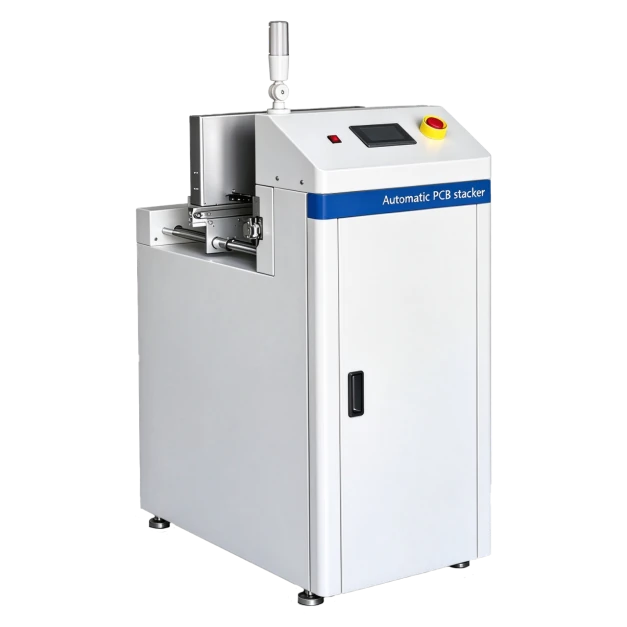

An automatic PCB stacking machine helps reduce repetitive manual operations and streamline PCB handling. Designed for SMT production environments, Shengdian's Automatic PCB Stacking Machine provides a practical solution for improving PCB stacking processes and supporting production line automation.
In electronics manufacturing, PCB boards frequently need to be collected, organized, and transferred between different production stages. When these tasks are performed manually, they require additional labor and may be affected by operator availability and working pace.
Shengdian's automatic PCB stacking machine integrates a conveyor system, sensors, and a board-pushing mechanism to perform PCB handling operations according to preset control sequences.
With a cycle time of approximately 10 seconds, the machine helps reduce repetitive manual handling and improve automation in the PCB stacking process. Actual throughput depends on PCB dimensions, machine settings, and the operating speed of connected equipment.
Proper positioning and clearance are important when handling and stacking PCB boards. Incorrect handling may cause scratches, collisions, or misalignment.
Shengdian's PCB stacking machine features specially designed aluminum alloy guide rails with hardened, precision-machined surfaces, combining structural stability, durability, and a clean industrial appearance.
The machine also features an adjustable magazine slot height to accommodate different PCB thicknesses. Its dedicated board-pushing mechanism is designed to support smooth PCB movement and help reduce the risk of board damage during operation.
These design features help improve handling consistency and support reliable operation in daily production environments.
The machine is equipped with a dedicated PLC control system and a full-color touchscreen, allowing operators to control the machine and monitor its operating status through an intuitive human-machine interface.
The control system provides automatic fault diagnosis, audible and visual alarms, and on-screen notifications to help operators identify abnormal conditions and respond promptly.
A three-color indicator light provides a clear visual indication of machine status:
Green: Normal operation.
Yellow: Standby mode.
Red: Fault alarm or waiting for PCB boards.
The machine also provides an alarm when no PCB boards are detected in the magazine, helping operators identify material shortages and maintain smoother production operations.
A typical SMT production line may include PCB loaders, solder paste printers, pick-and-place machines, reflow ovens, AOI inspection systems, and PCB conveyor equipment. Proper coordination between these machines is essential for efficient production.
Shengdian's PCB stacking machine supports both automatic bare-board feeding and PASS-through operation, providing flexibility for different production requirements. An automatic PCB loader can also be installed upstream, subject to the actual line configuration.
The machine comes with a standard SMEMA interface for signal communication with compatible SMT equipment. Connection arrangements and interlocking logic should be confirmed according to the interfaces and control requirements of the connected machines.
With appropriate line planning, manufacturers can reduce manual board transfers and improve the automation of PCB handling operations.
Factory floor space is an important consideration when planning or upgrading an SMT production line. Bulky equipment can limit layout flexibility and make future expansion more challenging.
Shengdian's PCB stacking machine features a compact structure that helps manufacturers make efficient use of available production space.
The conveyor direction can be configured from left to right or right to left to suit different factory layouts. This flexibility makes the machine a practical option for both new production lines and existing line upgrades.
Reliable machine operation depends on the coordination of its mechanical, electrical, pneumatic, and sensing components.
Shengdian's PCB stacking machine incorporates components from established suppliers, including Omron diffuse-reflective sensors, Airtac thin-type cylinders, Xinyu stepper motors, and digital stepper motor drivers.
Working together with the dedicated PLC control system, these components support coordinated conveyor movement, board detection, and pushing operations.
The machine also uses an anti-static conveyor belt, helping address electrostatic control requirements in electronics manufacturing environments. The machine's suitability for a particular ESD-controlled production area should be confirmed against the factory's grounding and electrostatic protection requirements.
Automation in SMT manufacturing extends beyond core processes such as component placement, soldering, and optical inspection. Efficient PCB handling, stacking, and transfer also contribute to a well-organized production workflow.
By reducing repetitive manual handling, supporting consistent PCB stacking, providing clear alarm indications, and enabling signal communication with compatible SMT equipment, Shengdian's automatic PCB stacking machine helps manufacturers optimize PCB handling processes and improve production line automation.
Shenzhen Shengdian Machinery Equipment Co., Ltd. specializes in SMT equipment manufacturing and provides practical equipment solutions for electronics manufacturers worldwide.
Looking for an automatic PCB stacking solution for your SMT production line? Contact Shengdian to discuss your PCB handling requirements and find a suitable solution for your factory.
