SMT equipment PCB Conveyor assembly line style and role

SMT equipment PCB Conveyor is mainly used for the automatic placement and retrieval of circuit boards, realizing the fast and accurate pasting of electronic components. It is an important part of electronic manufacturing production line.

Shengdian PCB Conveyor has various styles, which can be categorized into the following types according to different needs and application scenarios:

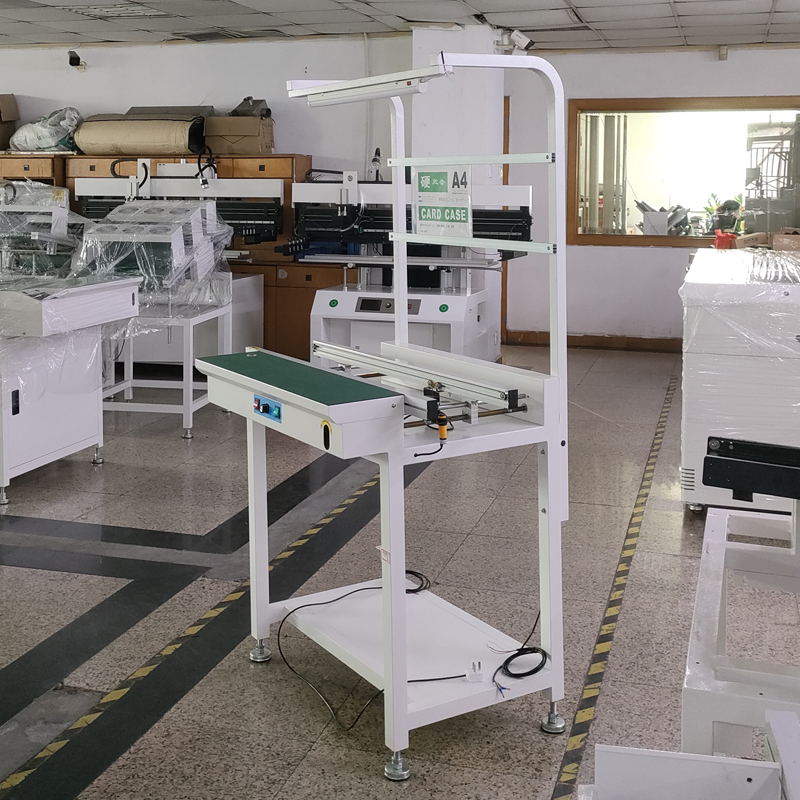

1. Platform type: this is a common style with a simple and practical design. It consists of a platform architecture that provides a stable base support for small-scale production and maintenance environments, and is easy to operate and maintain.

2. Conveyor Belt Type: Combining a conveyor belt system with a splice table to move boards smoothly through the production line, it is suitable for high-speed production environments and enables continuous board transportation and fast placement operations.

3. Curve Type: Transferring circuit boards from one direction to another through curved turns. This design reduces space occupation and increases production efficiency. It is suitable for production lines with limited space and is able to flexibly adjust the orientation of circuit boards.

4. Multi-station type: It has multiple workstations that can handle multiple circuit boards at the same time. Each workstation can perform different operations, making the production process more efficient and flexible. It is suitable for mass production environments and can increase production capacity and productivity.

Regardless of the style and model of the SMT Conveyor, it should have the following features:

1. accurate positioning: should be able to accurately locate the circuit board, and maintain a stable position to ensure the accuracy and consistency of the patch operation.

2. high speed and accuracy: should have the ability of fast transportation and accurate placement to improve production efficiency.

3. automation control: should have automation control system, can realize the automatic placement and retrieval of circuit boards, reduce manual operation and improve production efficiency.

4. Adjustability: It should have the functions of adjustable height, angle and transfer speed to adapt to circuit boards of different sizes and shapes.

Shengdian SMT Conveyor is one of the indispensable equipments in the electronic manufacturing industry, and its styles are rich and varied, so you can choose the suitable type according to the actual demand. Whether it is platform type, conveyor belt type, bend type or multi-station PCB Conveyor, it should be characterized by precise positioning, high speed and accuracy, automatic control and adjustability to improve production efficiency and product quality.
