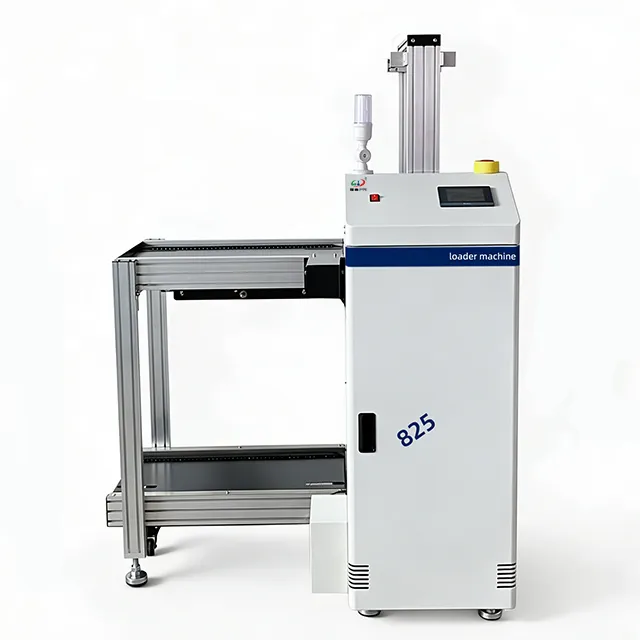

Why ShenDian Board Loaders & Unloaders Feature Electric Pushers for SMT Lines

In the field of SMT (Surface Mount Technology) and electronics manufacturing, board loaders and unloaders serve as the "first and last line of defense" for automated PCB conveyance. The smoothness and safety of the pushing process directly determine the overall line yield and return on investment (ROI).

Compared to traditional equipment that commonly uses pneumatic pushers, ShenDian fully adopts electric pushing technology in its board loaders and unloaders. This core process upgrade is specifically designed to address the key pain points of traditional pneumatic systems when handling high-precision PCB manufacturing.

1. Why Switch from Pneumatic to ShenDian’s Electric Pusher?

Traditional pneumatic pushers rely on cylinder drives, which are heavily affected by factory air pressure fluctuations. They operate rigidly and lack real-time position and torque feedback. In the event of a jammed board or misaligned PCB, the cylinder tends to "force-push," leading to board bending, ejection, or even damage to expensive carriers/fixtures.

ShenDian utilizes an electric pusher system powered by servo/stepper motors paired with precision transmission, completely reconstructing the power source and control logic:

Intelligent Torque Monitoring & Anti-Jam Protection

ShenDian’s electric pusher features real-time torque monitoring. If abnormal resistance is detected during pushing (such as a tilted PCB or a misaligned magazine slot), the system automatically stops and alerts within milliseconds. This achieves true "flexible pushing," fundamentally eliminating the risk of dropped, bent, or scratched boards.

Acceleration/Deceleration Curves & Smooth Constant-Speed Pushing

By combining motor control algorithms for "soft start, multi-stage constant-speed travel, and soft stop," the entire movement remains smooth and vibration-free. Maintaining a constant speed during each travel phase ensures consistent inertial forces, preventing the displacement of uncured or miniature components post-placement or post-reflow—making it extremely friendly for high-density PCBs.

Digital Multi-Speed & Stroke Control

Eliminating tedious manual mechanical limit adjustments, users can precisely configure pushing strokes and multi-stage speed values (e.g., slow board engagement, high-speed transfer, and gentle stopping) directly via the touch panel. This offers flexible adaptation to PCBs of different sizes and thicknesses, significantly cutting down line-changeover setup times.

Independent of Compressed Air & Low-Maintenance

By removing dependency on factory air supplies, it eliminates maintenance hassles caused by air line condensation, leakage, and cylinder seal aging. This not only lowers overall factory energy consumption but also guarantees long-term repeatable positioning accuracy.

2. A Procurement Perspective: Core Value of ShenDian Loaders/Unloaders

From the perspective of factory equipment procurement and production management, choosing ShenDian board loaders/unloaders equipped with dedicated electric pushers brings deep optimization of both comprehensive costs and operational benefits:

Protecting High-Value PCBs: Specially suited for high-unit-value products like smartphone boards, substrates, and multi-layer High-Density Interconnect (HDI) PCBs, significantly reducing defect rates and scrap costs.

Enabling Smart Factory & MES Integration: The electric pusher can upload operating status, real-time resistance data, and error codes directly to the MES system, enabling process traceability and predictive maintenance.

A High-ROI Long-Term Investment: While the initial manufacturing cost of an electric pusher is higher than that of conventional pneumatic equipment, its near-zero board loss rate, minimal pneumatic maintenance expense, and longer service life allow for quick cost recovery and a significantly higher overall line ROI.

Summary

ShenDian’s integration of the electric pusher as a standard core feature in its board loaders and unloaders is not merely a drive-type upgrade, but a "flexible safeguard" reshaped for high-precision PCB manufacturing. For electronics manufacturing enterprises striving for high quality, high stability, and smart upgrades, ShenDian board loaders and unloaders featuring electric pushers are undeniably the ideal choice to elevate production line safety and efficiency.
