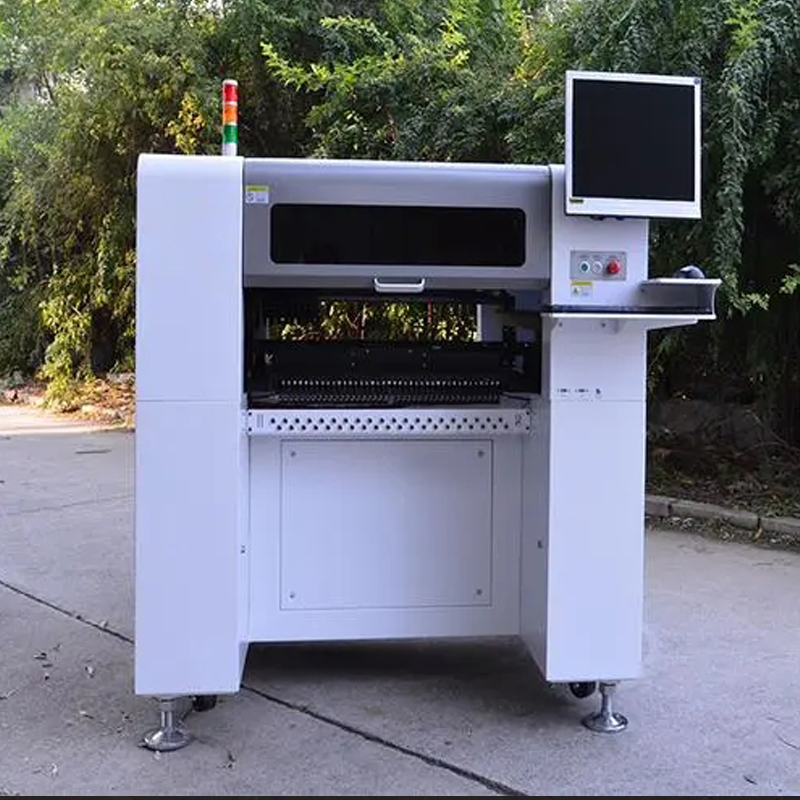

Functional Overview of the Pick-and-Place Machine

The core function of the pick-and-place machine is to precisely position minute electronic components onto designated locations on a PCB (printed circuit board). It serves as the central equipment within surface mount technology (SMT) production lines in the electronics manufacturing industry.

Core Function Breakdown

The operational workflow of the pick-and-place machine revolves around the sequence of ‘precise picking - accurate placement’, comprising three principal core steps:

Component Pick-up: Using mechanical nozzles or grippers, it retrieves components such as resistors, capacitors, and chips from packaging sources like tape reels or trays.

Precision Calibration: Employing a vision recognition system (camera) to scan reference points on both the component and PCB board, correcting positional deviations to ensure placement accuracy (typically achievable to 0.01mm precision).

Precision Placement: Positioning calibrated components accurately onto PCB pads to prepare for subsequent soldering processes.

Key Auxiliary Functions

Beyond core placement operations, placement machines incorporate multiple auxiliary functions to enhance efficiency and yield rates:

Component Inspection: Automatically verifies correct component model, orientation, and dimensions, rejecting reversed, damaged, or misplaced items.

Multi-Specification Compatibility: Adapt to components of varying sizes (from 01005 micro-components to large BGAs) and packaging formats by swapping nozzles and adjusting placement parameters.

Capacity Adaptation: Distinguished into high-speed placement machines (suited for high-volume production, e.g., mobile phone motherboards) and high-precision placement machines (focused on complex boards, e.g., medical device PCBs) to meet diverse production requirements.

Data traceability: Records placement time, component batches, placement coordinates, and other data for each PCB, facilitating subsequent quality issue tracing.
