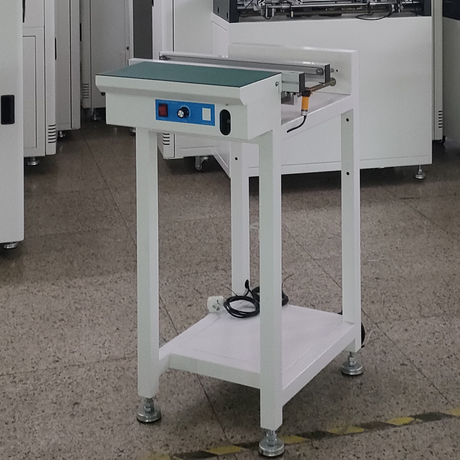

PCB Automatic Conveyor


Size:	SD-600
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-600
Brand:
SHENGDIAN

Features:1. The precision screw rod is widened to ensure that the transport rails are parallel to each other;2. It adopts professional wear-resistant anti-static flat belt and special aluminum profile guide rail to ensure smooth connection and stable transportation;3. Standard with signal connectors for online connection to other devices4. According to customer requirements, we can make conveyor with different lengths of guide rails.5. Equipped with anti-static rubber to better prevent static electricity;6. The transfer motor uses an adjustable 4248 extended stepping motor7.Photoelectric switch using Hufeng round photoelectric, durable8. The flat belt transmission wheel is driven by double bearings and is stable without harming the belt,9. The two ends of the conveyor guide rail are processed into eight characters into the PCB, and the PCB is sent in and out of the conveyor smoothly without shaking

Conveyor Loader and Unloader Pick and Place Machine Reflow Oven Wave Soldering Machine PCB Printer SMT Conveyor

Product Description

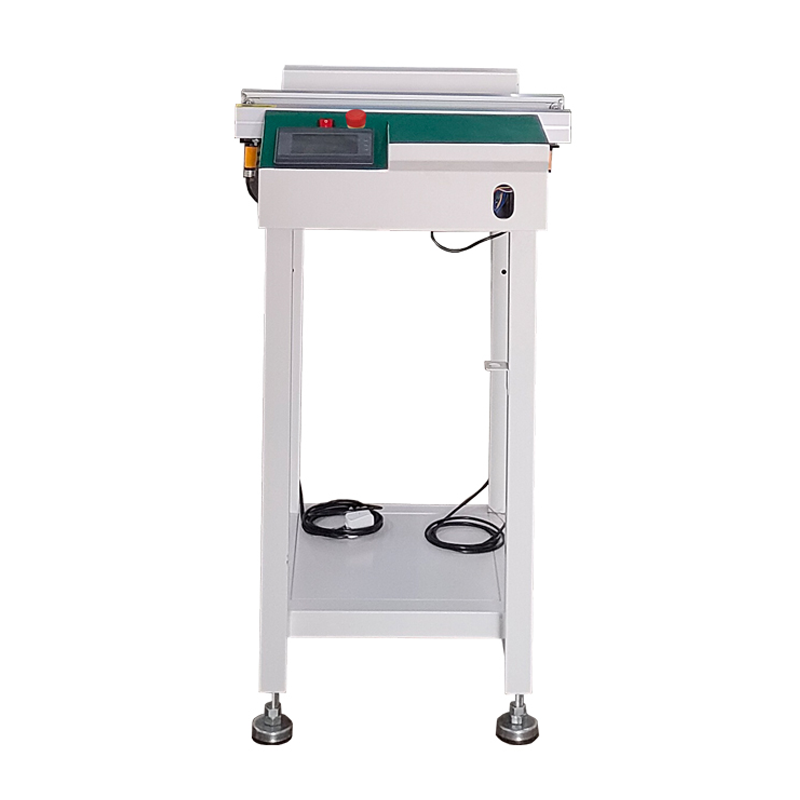

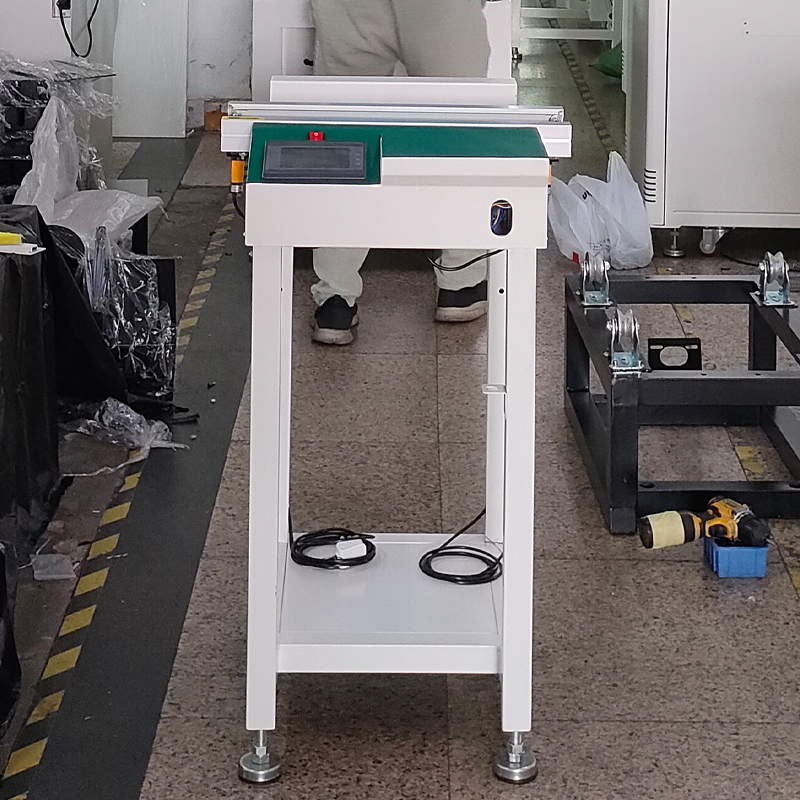

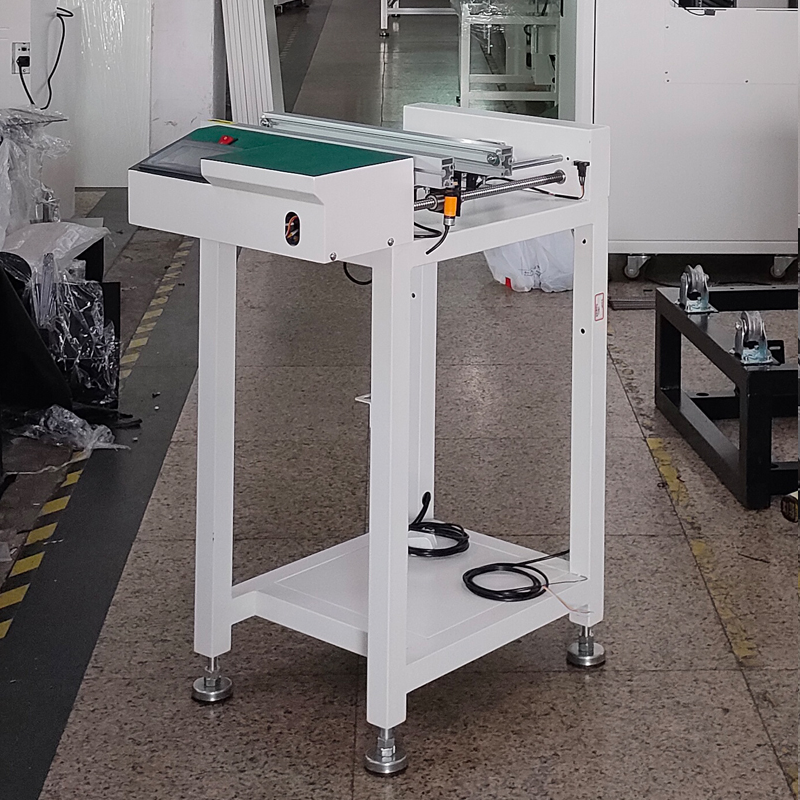

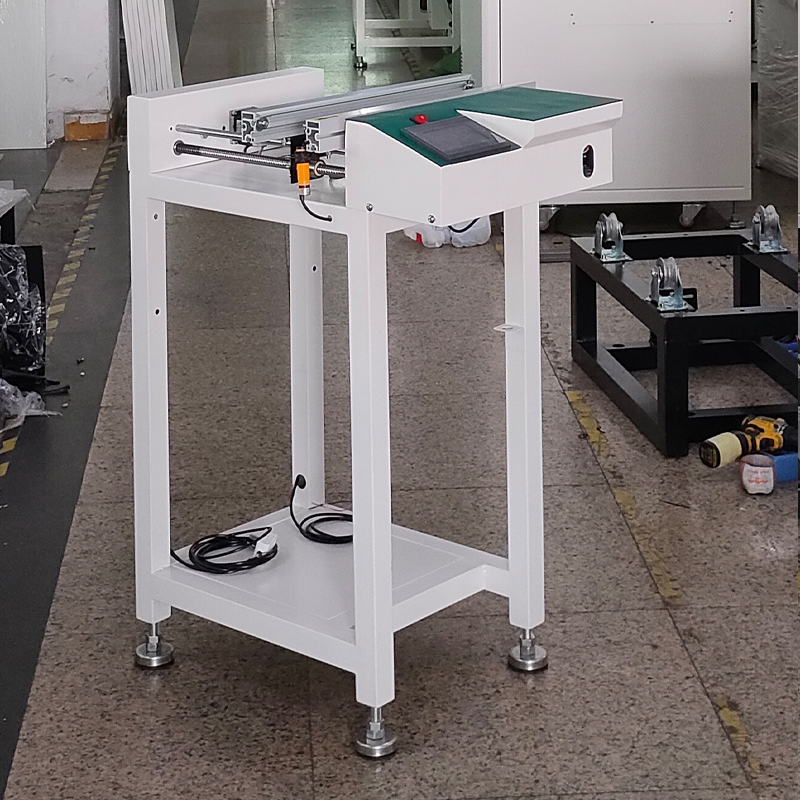

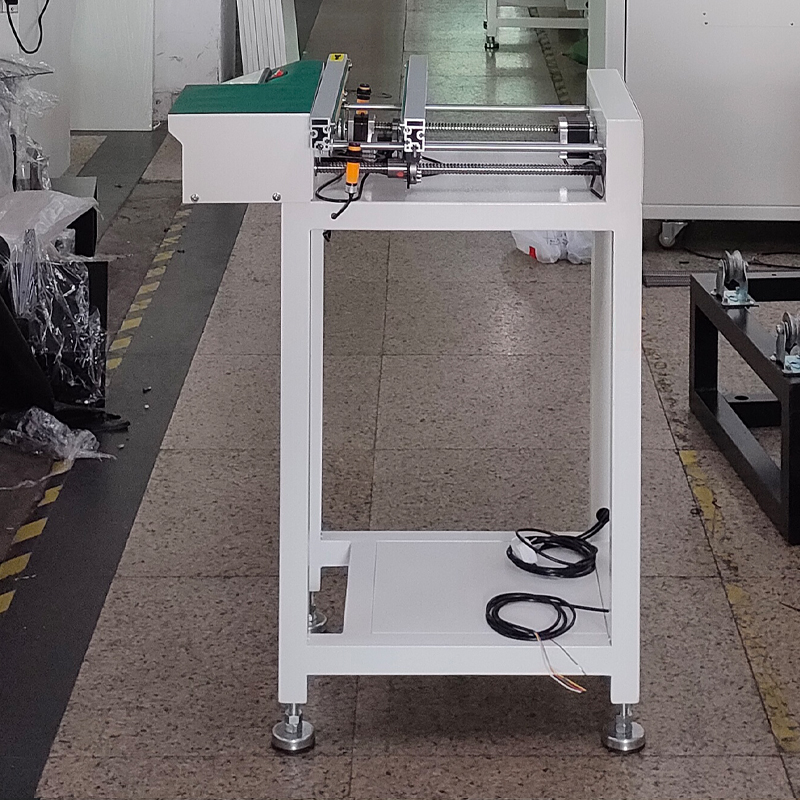

PCB Conveyor (3) PCB Conveyor (4)

Technical Parameters

Model	SD series connected to Taiwan
Outline Dimensions	6001150900mm
PCB width	The width of 1,2,4 and 3 rails is 50-310 mm (50-600 mm)
Transport height	900±20mm
PCB transport direction	L-R(R-L)
PCB transport velocity	Transfer speed adjustable 0 ~ 2000mm
Power supply	AC220V1P 50/60Hz
Height distance between belt and adjusting seat	80mm
Power consumption	Approx.50W
Track length	600mm
Control mode	PLC Board control + step-by-step drive
Weight	About 100 kg
Communication interface	Use Cable
Double track	1,4 are fixed edges; 2,3 are movable edges
Mode of transmission	Step-motor aluminum pulley direct drive belt
