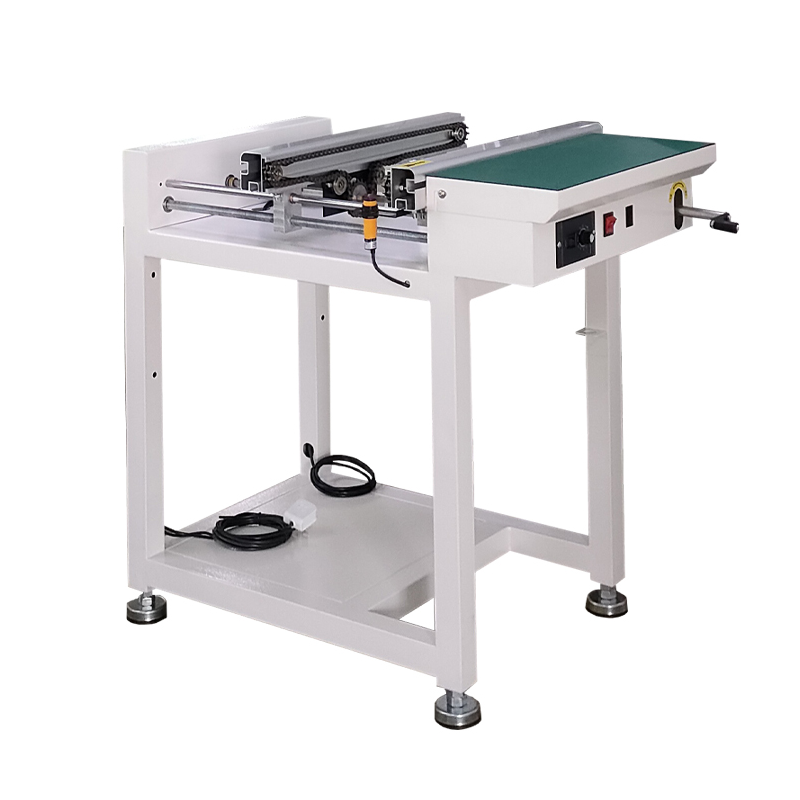

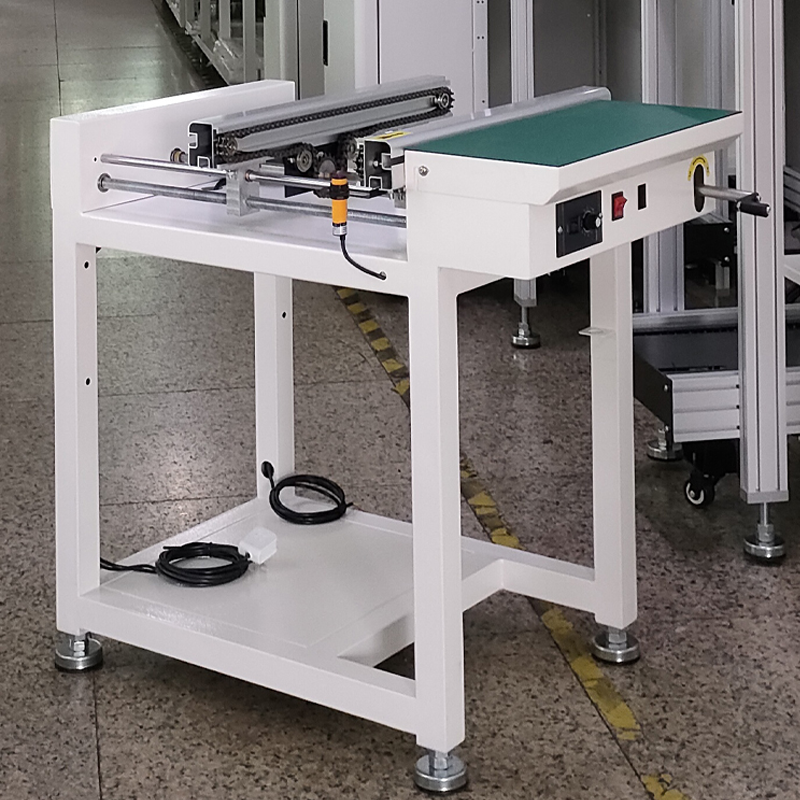

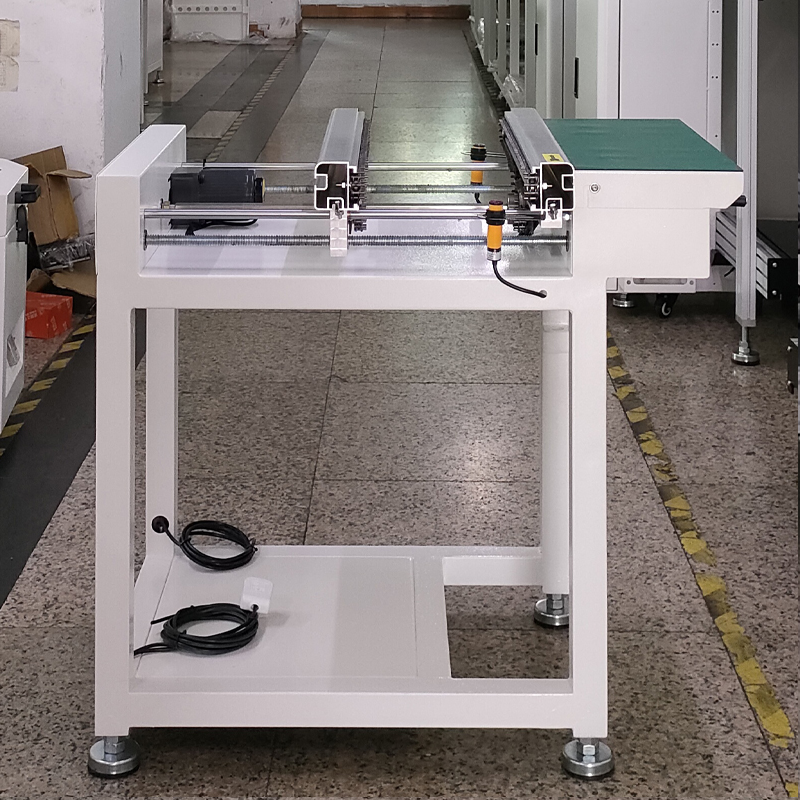

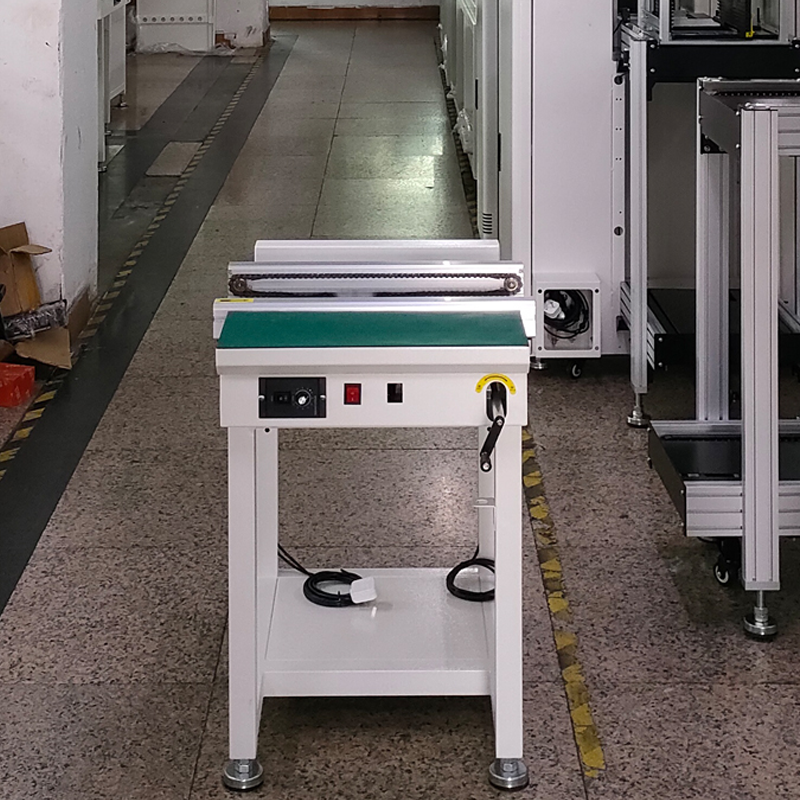

SMT/PCB Conveyor with Chain Transportation


Model:	SD-500LT SD-1000LT SD-1200LT
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-1000LT
Brand:
SHENGDIAN

Features

1. Design of sheet metal dusting structure

2. Increase the design to improve stability

3. In line with the ergonomic design concept, so that the operator's arm is not easy to fatigue

4. High-precision screw adjustment wide and narrow, to ensure that the transport rails are parallel

5. According to customer requirements to customize the length of the machine

6. According to customer requirements, the number of stop plates

7. The transmission speed can be adjusted

8. Using professional wear-resistant anti-static flat belt,

9. Special electrophoresis aluminum profile rail

10. Work surface anti-static rubber to better prevent static electricity

11. Transfer motor is a 15W speed controlled motor.

12. Compatible with standard SMEMA interface

Conveyor SMT Conveyor Loader and Unloader Pick and Place Machine Reflow Oven Wave Soldering Machine PCB Printer

Product Description

Technical Parameters

Model	SD-500LT	SD-1000LT		SD-1200LT
Outline dimensions（mm）	500670900	1000670900		1200670900
Worktable size（mm）	400*200mm	800*200mm		800*200mm
PCB width	50-300mm (Can be customized)
Transport height	900±20mm
PCB transport direction	L-R (R-L）
PCB transport velocity	0~2000mm
Power supply	AC220V1P 50/60Hz
Power consumption	Approx.30W
Track length (Can be customized)	500mm	1000mm		1200mm
Control mode	PLC Card
Weight	About 50KG		About 80KG
Single rail	Front fixed side, rear active side (optional rear fixed)

Company Information

Delivery and Packing

Shipping

Certification

FAQ

Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training
video and user manual,the user manual will come with the machine together.

Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.

Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.

Q:English version for these machines?
A:Yes
