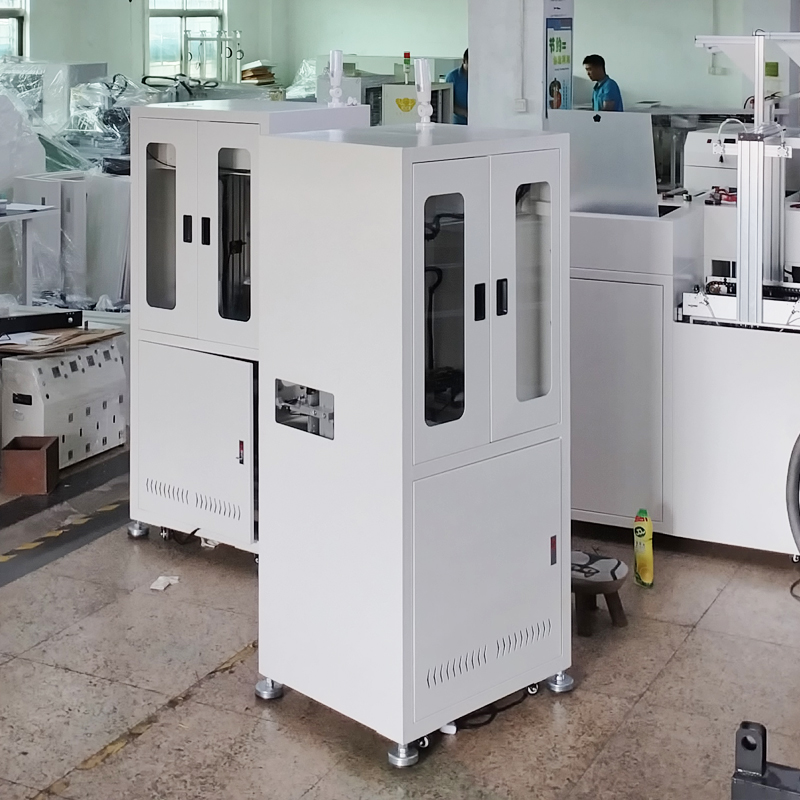

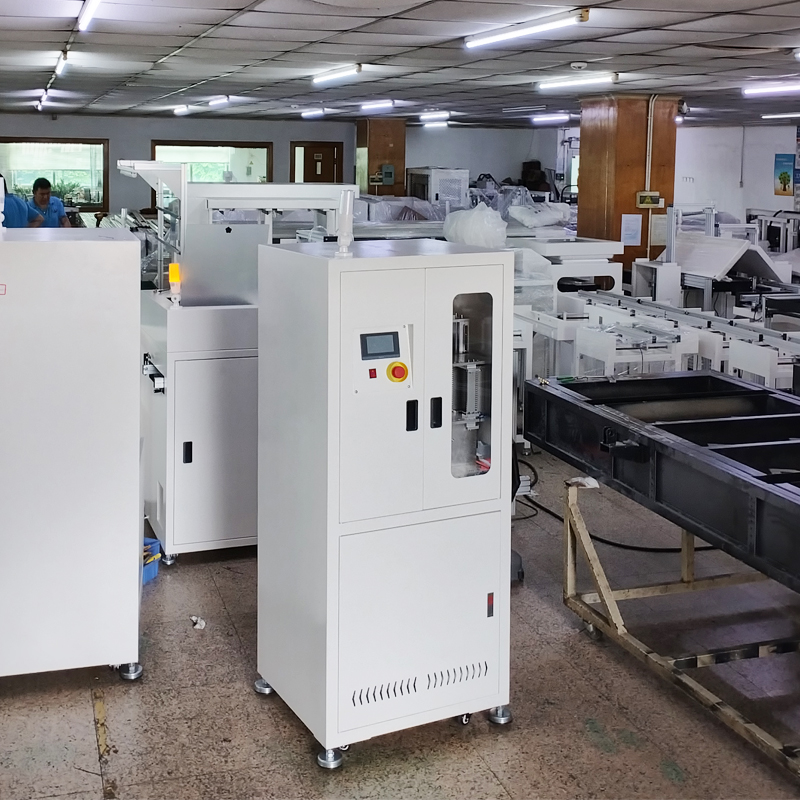

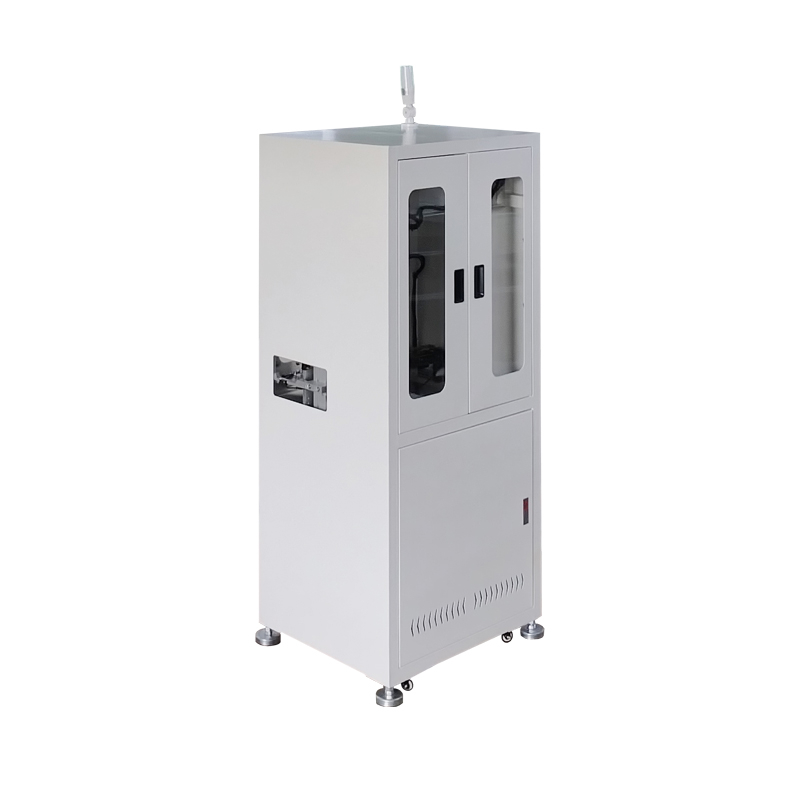

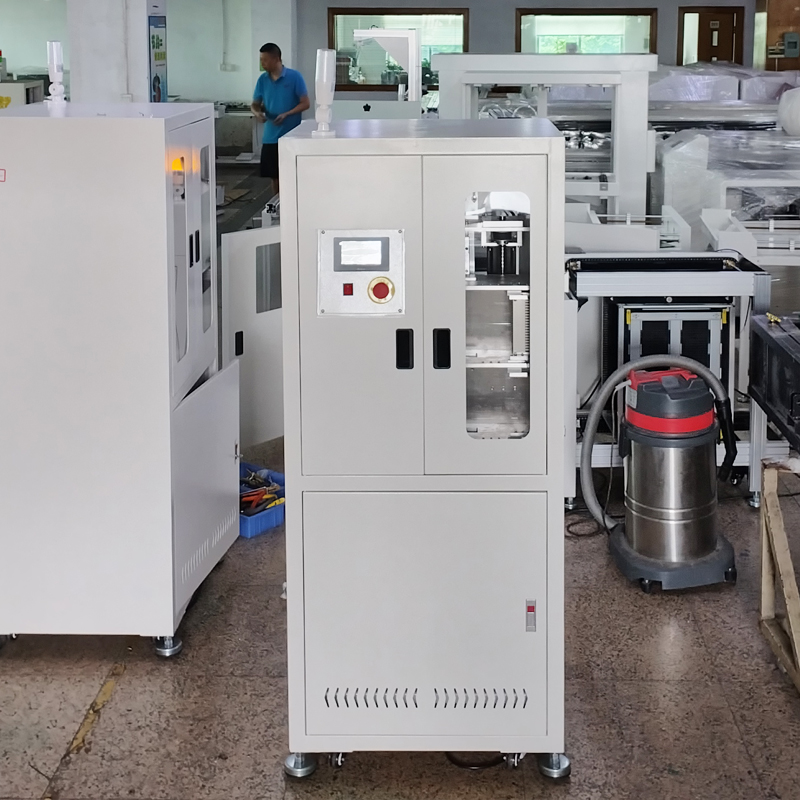

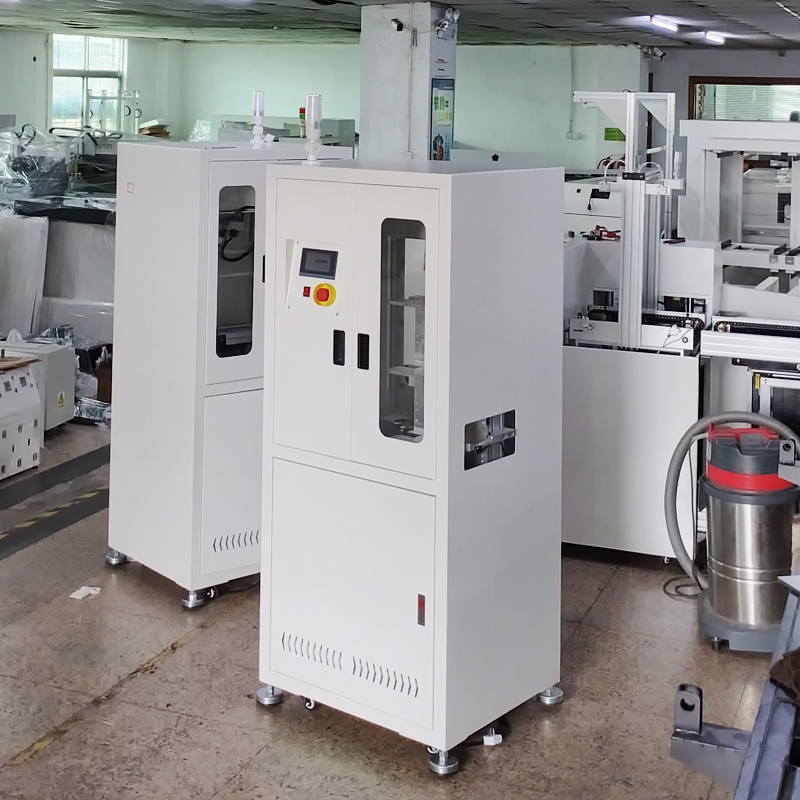

The SHENGDIAN aviation aluminum magazine loader machine is designed to support automated PCB handling in semiconductor packaging, testing, cleaning, and SMT production lines. Its magazine-based storage design helps organize boards and supports automatic board retrieval and transfer operations.
Key Features
1. Aviation Aluminum Construction
The equipment uses an aviation aluminum structure for its machine frame. Buyers can confirm the detailed frame specifications and dimensions with SHENGDIAN when evaluating installation requirements.
2. Servo-Driven Board Handling
A servo motor drives the board-pushing mechanism, with adjustable pushing force to help reduce the risk of board damage during handling. Actual suitability depends on PCB characteristics and operating settings.
3. Touchscreen and Programmable Control
The touchscreen human-machine interface supports convenient operation. A programmable controller manages machine functions and facilitates maintenance, replacement, and system expansion.
4. Multi-Frame Magazine Storage
The platform supports single-frame and multi-frame material collection configurations. This provides flexibility for production setups that use magazine-based PCB storage and handling.
5. SMEMA Interface for Line Integration
The standard SMEMA connection interface supports integration with compatible production equipment. Optional automatic width adjustment and a TCP network module are available for buyers to discuss according to their line requirements.
Product Specifications
| Specification | Details |
| Product Name | Aviation Aluminum Magazine Loader Machine |
| Brand | SHENGDIAN |
| Main Application | PCB handling in SMT and semiconductor-related production lines |
| Machine Structure | Aviation aluminum |
| Operation Interface | Touchscreen HMI |
| Control System | Programmable controller |
| Board-Pushing Mechanism | Servo motor-driven |
| Pushing Force | Adjustable |
| Magazine Configuration | Single-frame and multi-frame support |
| Equipment Interface | Standard SMEMA |
| Optional Functions | Automatic width adjustment, TCP network module |
Applications and B2B Supply
This magazine loader machine is suitable for PCB handling workflows in semiconductor packaging, testing, cleaning, and SMT production environments.
SHENGDIAN works with industrial equipment buyers seeking PCB loading solutions and production line automation equipment. Before ordering, buyers should confirm PCB dimensions, magazine specifications, equipment layout, line communication requirements, and available options with the technical team.
