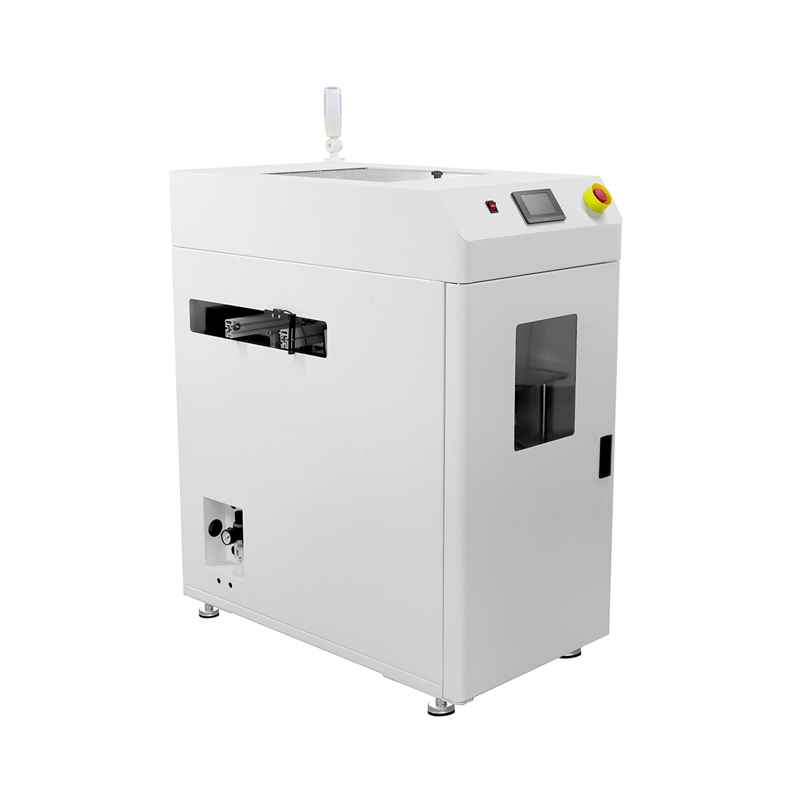

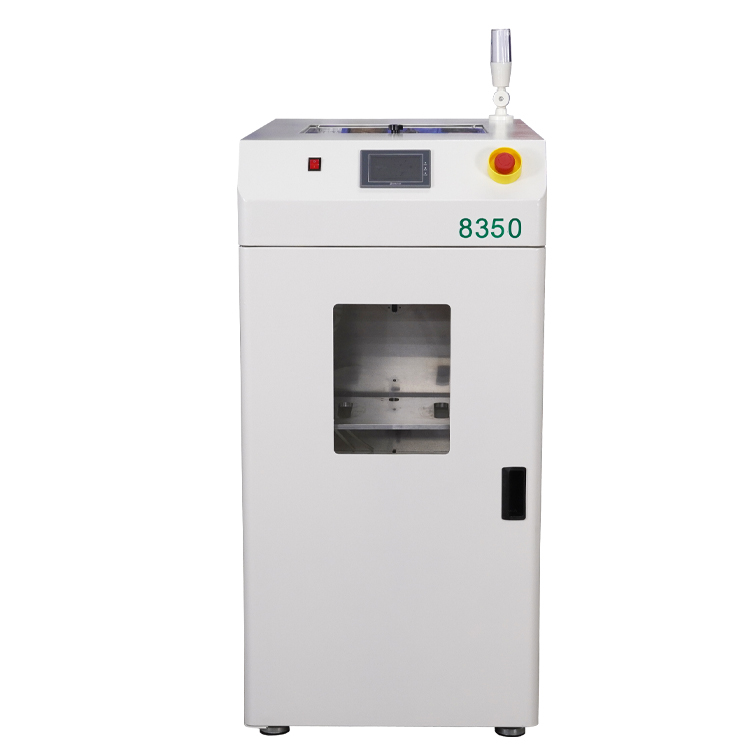

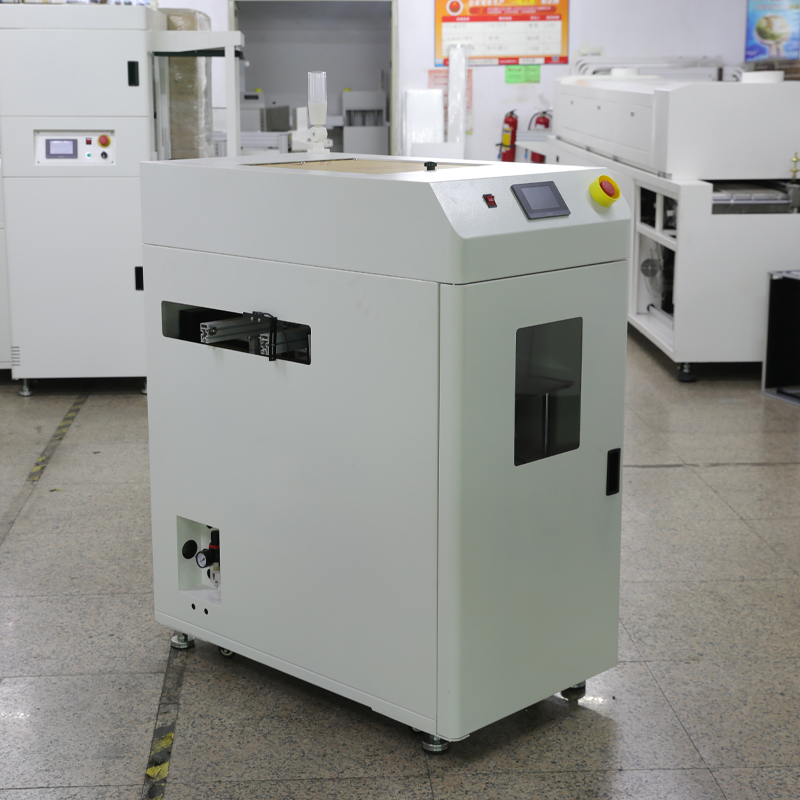

Factory Manufacturing Smt Loader Unloader Translation Vacuum Suction Loader Machine for PCB Production


Model:	SD-8350 SD-8350-1200
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-8350
Brand:
SHENGDIAN

Features:

1. Used at the beginning of SMT production, after receiving the signal of the lower machine, the stack of PCB board will be sucked up and sent to the rail guide and sent to the down machine.

2. Enclosed design ensures the highest level of safety protection.

3. The top safety cover can be opened to facilitate the processing of machine hardware during maintenance.

4. The suction nozzle is fixed with a large strong magnet.

5. Adjustable nozzle position to ensure that the circuit board strong suction steady fall.

6. The position of the nozzle can be moved at will

7. Stable and balanced width adjustment device (hand control screw adjustment)

8. When the machine is operated, PCB board is put into the front side. There is an opening on the door and transparent acrylic board is installed to monitor the working condition inside without opening the door.

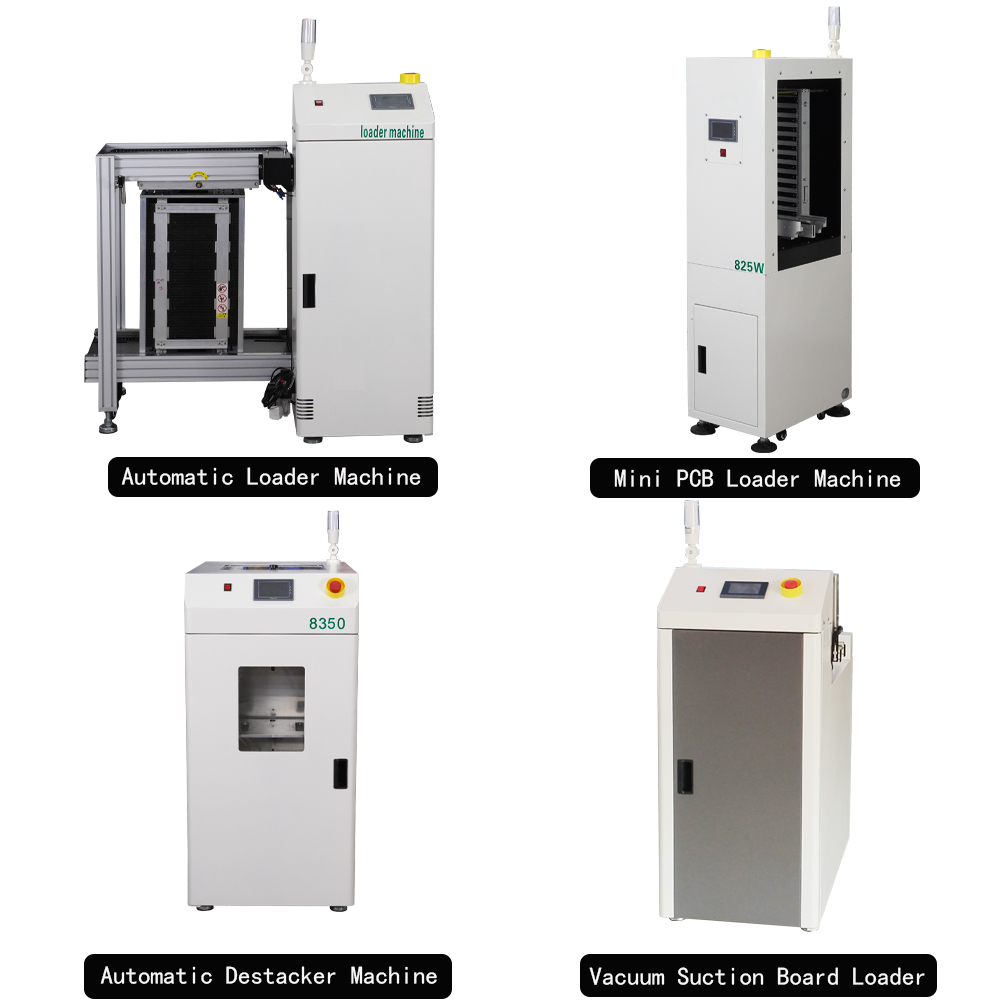

PCB Loader PCB Unloader Loader SMT Loading Machine

Product Description

Product Features

1. Used at the beginning of SMT production, after receiving the signal of the lower machine, the stack of PCB board will be sucked up and sent to the rail guide and sent to the down machine.

2. Enclosed design ensures the highest level of safety protection.

3. The top safety cover can be opened to facilitate the processing of machine hardware during maintenance.

4. The suction nozzle is fixed with a large strong magnet.

5. Adjustable nozzle position to ensure that the circuit board strong suction steady fall.

6. The position of the nozzle can be moved at will

7. Stable and balanced width adjustment device (hand control screw adjustment)

8. When the machine is operated, PCB board is put into the front side. There is an opening on the door and transparent acrylic board is installed to monitor the working condition inside without opening the door.

9. The quantity of PCB board for one-time storage is 220mm. If the thickness of PCB board is 1mm, about 220PCS of PCB board can be stored.

10. Smaller machines take up space

11. The control system adopts Panasonic PLC control, the operation interface adopts touch screen, equipped with automatic alarm system

12. Frame structure adopts sheet metal welding, surface spray painting treatment, color man-machine interface window

13. Lifting mechanism adopts brake motor lifting setting, step distance can be adjusted, effectively shorten the loading time, can stack up to 300 pieces of PCB (0.6 mm thick circuit board)

14. Load shifting structure adopts stepper motor load shifting mode, starting and stopping can be set with acceleration and deceleration, smooth transmission, not easy to punch plate

15. With standard SMEMA signal port, can connect with any other device online

Technical Parameter

Model	SD-8350

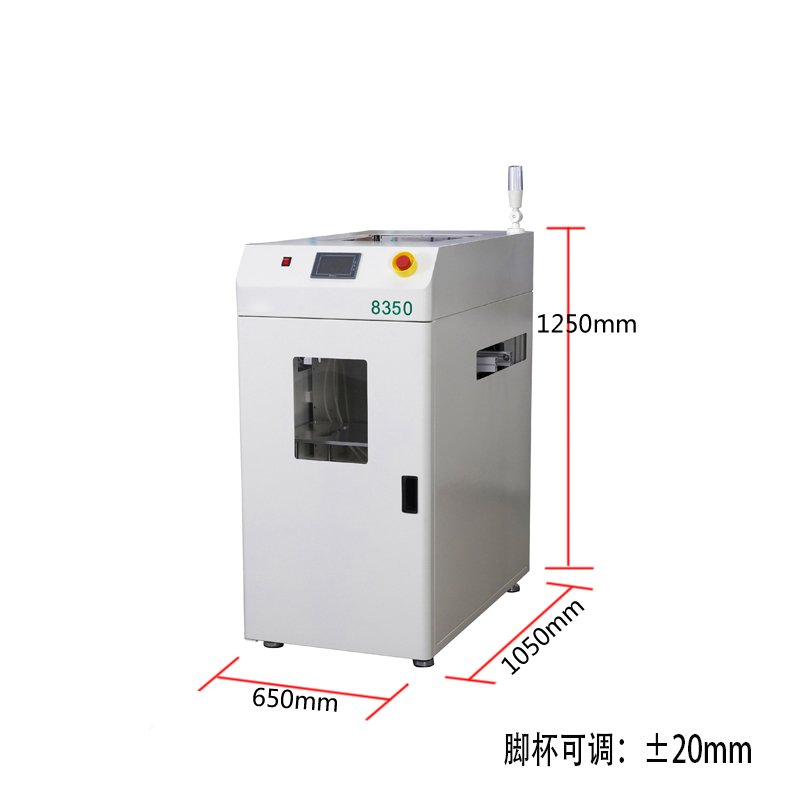

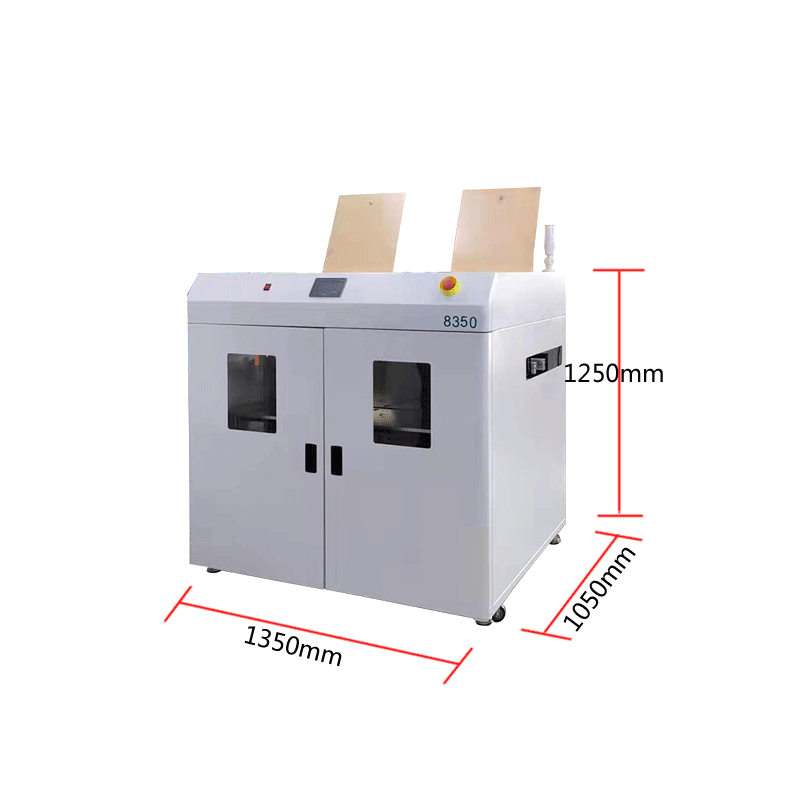

Dimension	65010501250mm
Suitable PCB size	5050-500350mm
Transfer Direction	Orbital pre-fixed, left to right or right to left
PCB board placement position	Front plate PCB (easy operation)
Transfer Height	900mm±20
Power Supply	220V 50/60Hz
Transfer Motor	Stepper motor 42 * 48
Transmission Drive	Step-in drive MT57
Lifting Motor	LINYI45W With the brake function
Control System	Panasonic PLC, microcomputer touch screen
Detection of photoelectric	OMRON or HUAYIFENG
Lifting Screw	Taiwan silver ball screw
Cylinder	Translation lift cylinder Airtatc
Lift-down cylinder magnetic sensors	The CS1-G magnetic switch
The PCB detects the optical fibers	Panasonnic
Translation Device	Stepper motor and guide rail movement
Suction Board Device	Large suction vacuum generator and vacuum suction nozzle (four suction heads can be moved in the suction position)
