Automatic NGOK Unloader Machine


Size:	SD-825NGOK SD-833NGOK SD-839NGOK
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-825NGOK
Brand:
SHENGDIAN

Features:1. Outer structure: sheet metal structure and aluminum profile into the frame, surface spray treatment, the color is corrugated white.2 .Microcomputer Panasonic PLC control system, stable and reliable.3.Touch screen display operation, with automatic fault diagnosis function, convenient man-machine dialogue.4.Multiple sound and light and alarm function in the touch screen.5.The rack lifting step can be set according to the thickness of the PCB.6. With automatic counting function, it is convenient for production statistics.7.User-friendly design ensures that the PCB board is not broken and improves output capacity8.The lower connection PCB board adopts the motor to send the board to the magazine.9.Adopting stepper motor push plate, the intensity can be adjusted, and the speed can be set on the touch screen.10.Push plate device uses two head limit to protect PCB board11.The OK board is loaded into the front magazine, and the NG board is transferred into the fabric magazine.12.Dual signal distinguishes NG\OK.

Conveyor Loader and Unloader Pick and Place Machine Reflow Oven Wave Soldering Machine PCB Printer

Product Description

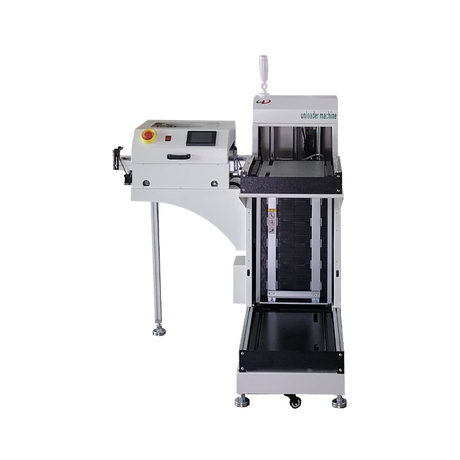

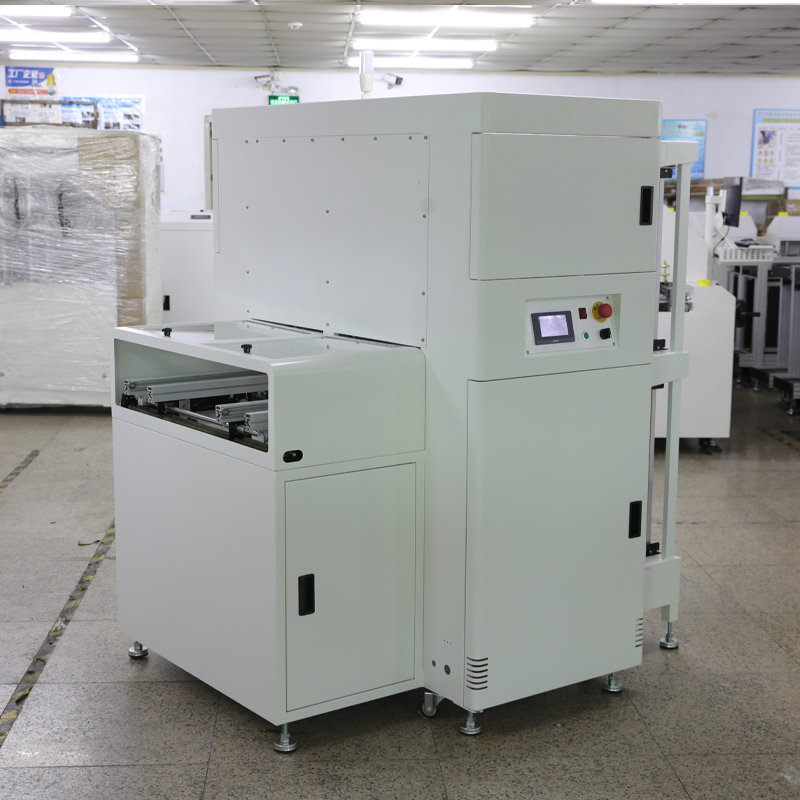

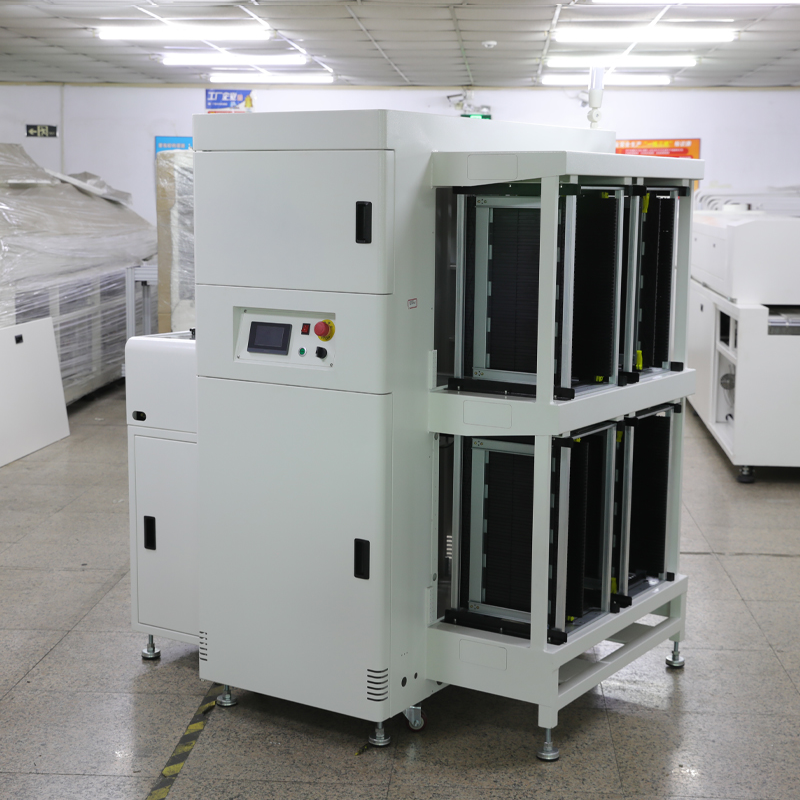

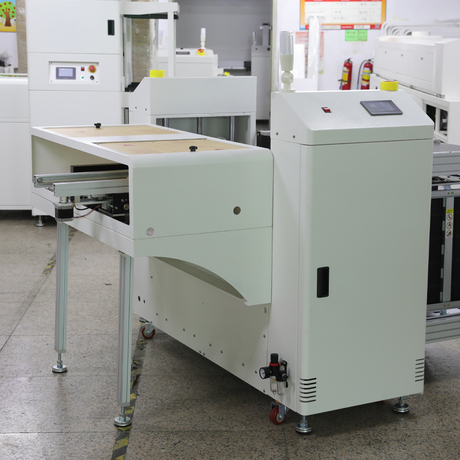

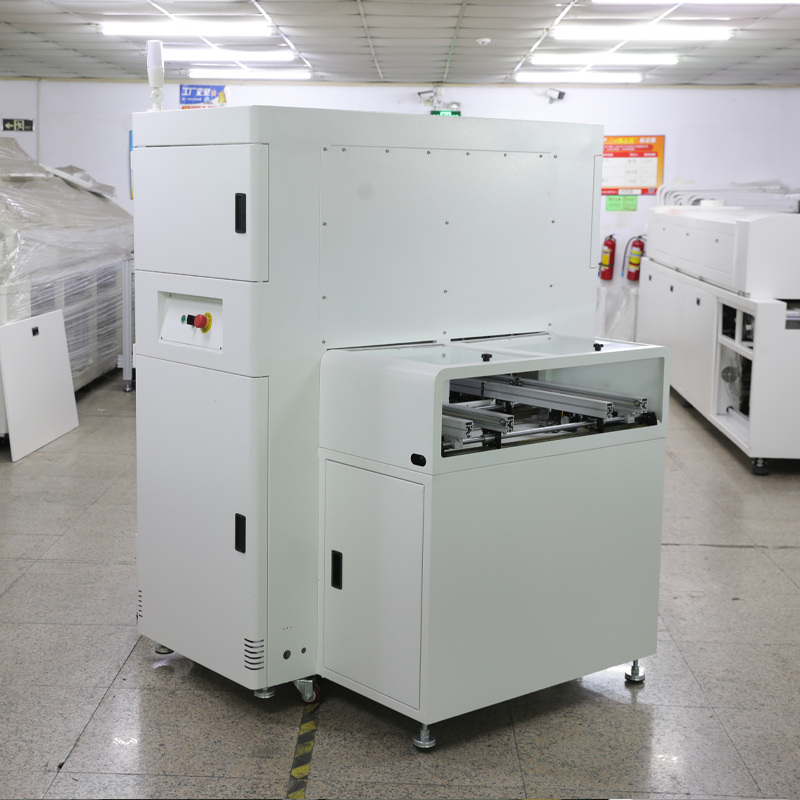

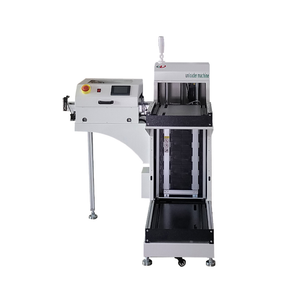

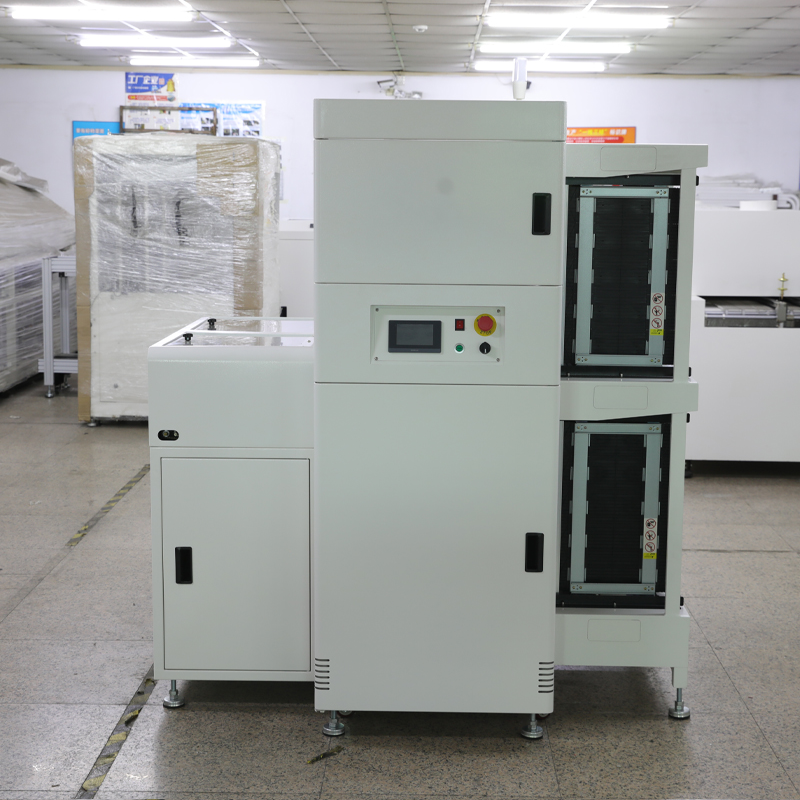

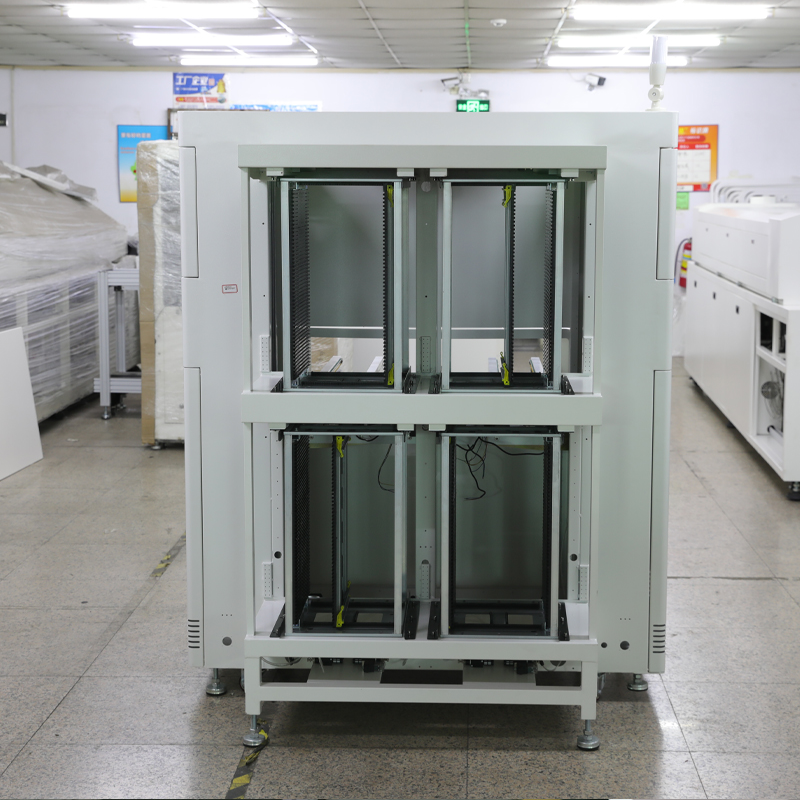

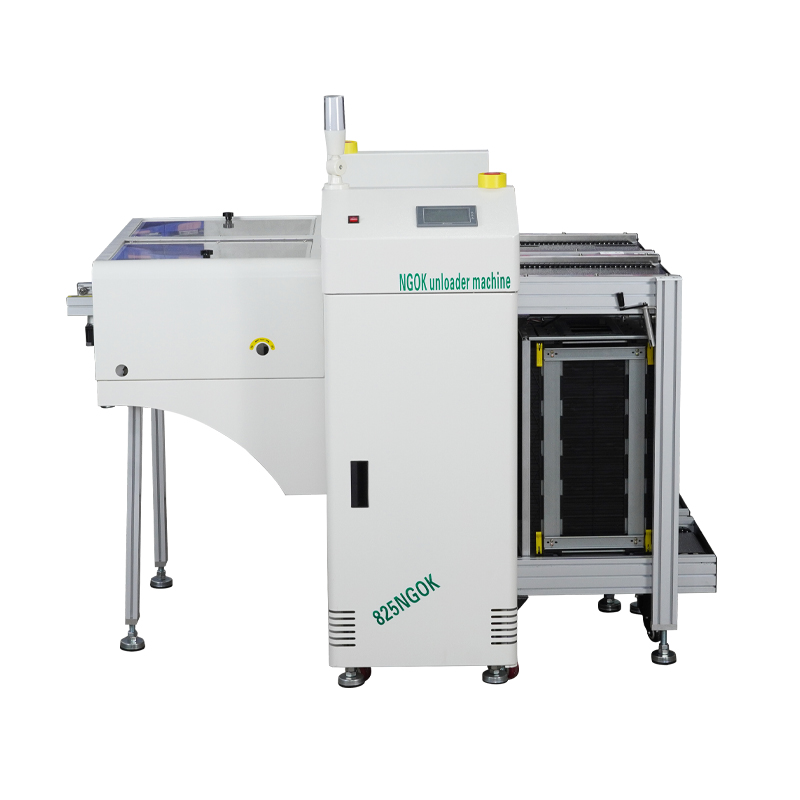

NGOKUnloader with Magazine (5) NGOKUnloader with Magazine (2)

Technical Parameters:

No.	Scope of application
	Model	825NG	833NG		839NG
1	Applicable frame size	355320563mm	460400563mm		535460563mm
2	PCB board size (MM)	350*（50-250）	450*（50-330）		530*（50-390）

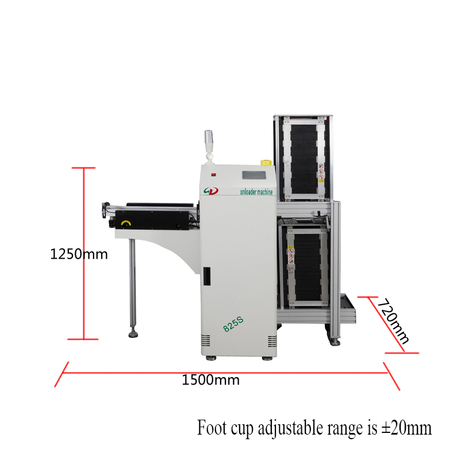

3	Dimensions LWH（MM）	160014501250	190016001250		210017501250
4	Body weight	320KG	380KG		420KG
5	Start Power	200W	250W		300W
6	Power supply	Single phase 220V
7	PCB board thickness	0.6-3.0mm
8	Lifting step	10、20、30、40、（mm）Arbitrarily set
9	Compressed air	5-6KG
10	Fixed edge	Front fixed (can be customized and fixed)
11	Transfer direction	Left to right (can be customized right to left)
12	Transfer height	900±20mm
13	Step selection	1~5 steps (10mm\step)
14	Use environment	Non-corrosive gas and dust environment
15	Anti-interference	Voltage noise: 1000Vp-p, wave width 1us, 1 minute
16	Transfer connection push PCB board	Stepper motor (42*48)		Stepper motor (57*70)		Stepper motor (57*70)
17	Transfer motor	Using 86 high precision stepper motor
18	Translational transmission	Imported wire belt timing belt
19	NG line number	Automatically move to the NG storage box (the storage bin can automatically enter and exit)
20	OK line number	Automatically enter the OK box through the translation stage
