L-Shaped Automatic Unloader Machine with Magazine


Size:	SD-825SL SD-833SL SD-839SL
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-825SL
Brand:
SHENGDIAN

SD-825L/833L/839L SMT board Automatic PCB Unloader is mainly used in the back of SMT production line to retrieve PCB boards from automatic solder printing machine, SMT pick and place machine and other equipment groups into the Magazine. It has the function of automatic board retrieval, which can save labor cost, improve production efficiency and increase product output.

Conveyor Loader and Unloader Pick and Place Machine Reflow Oven Wave Soldering Machine PCB Printer

Product Description

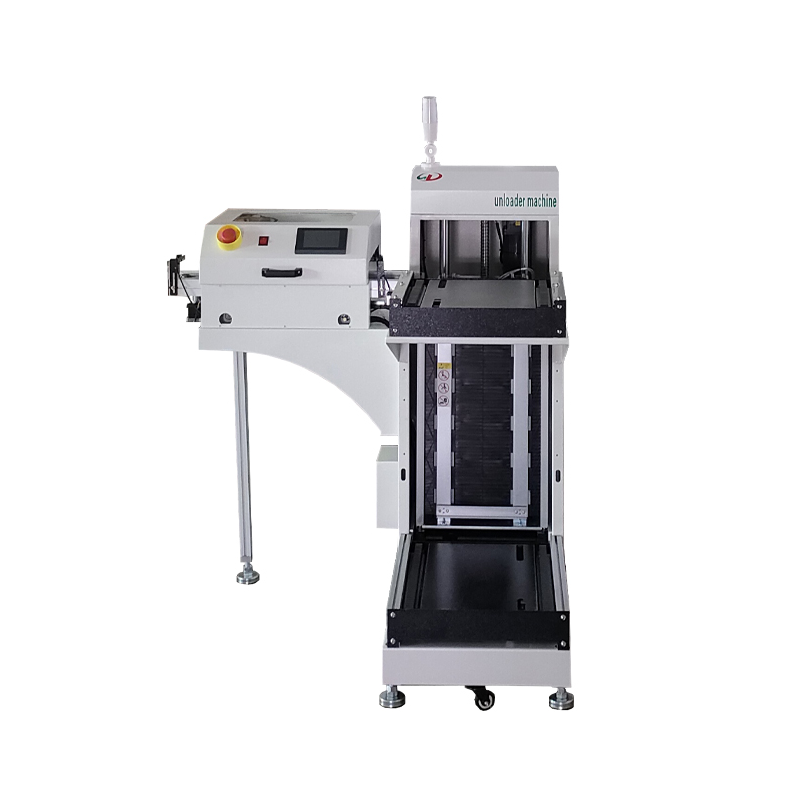

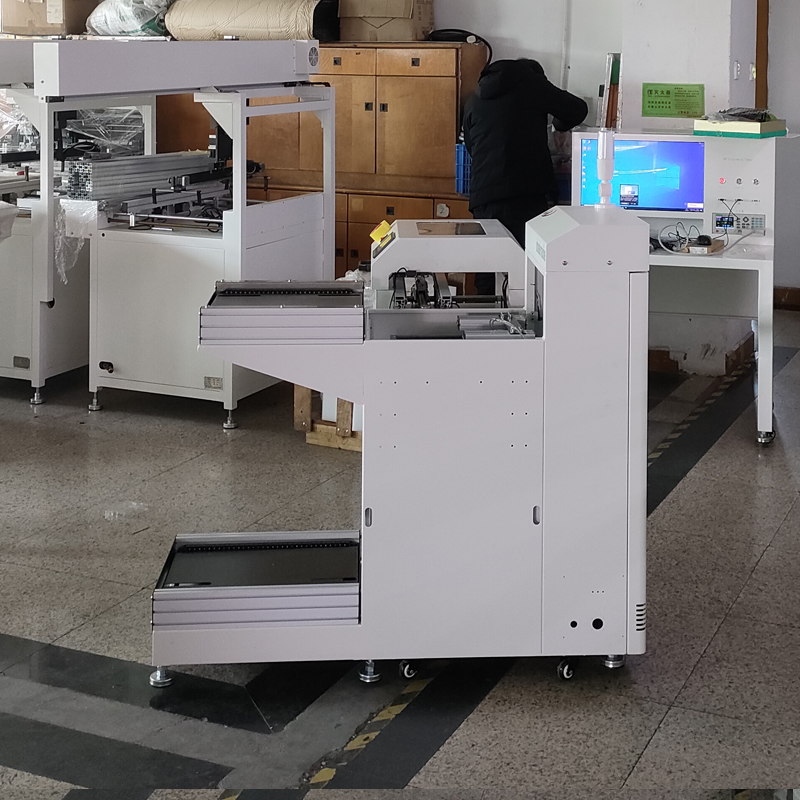

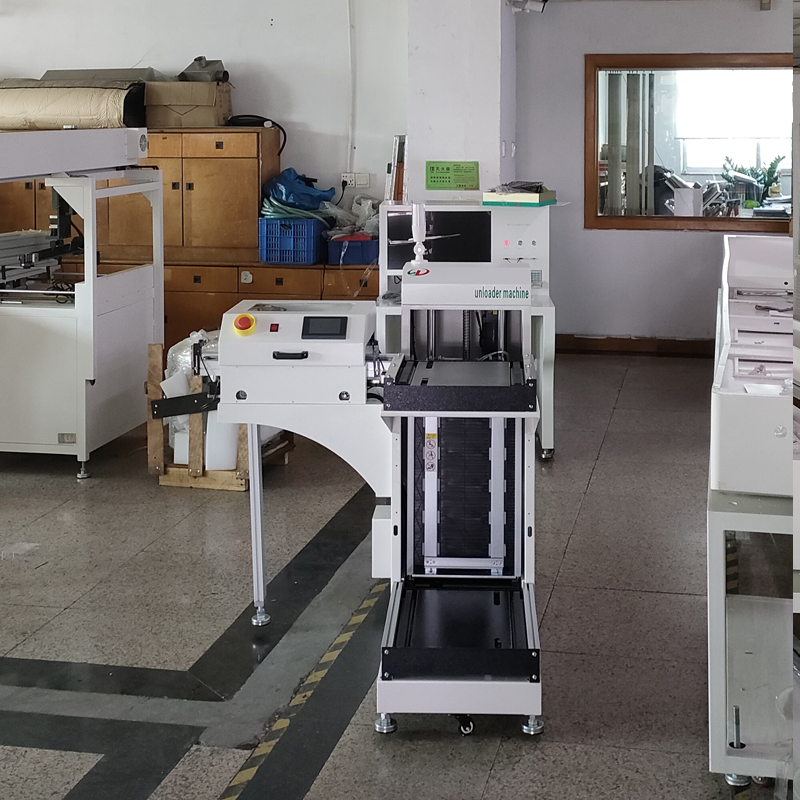

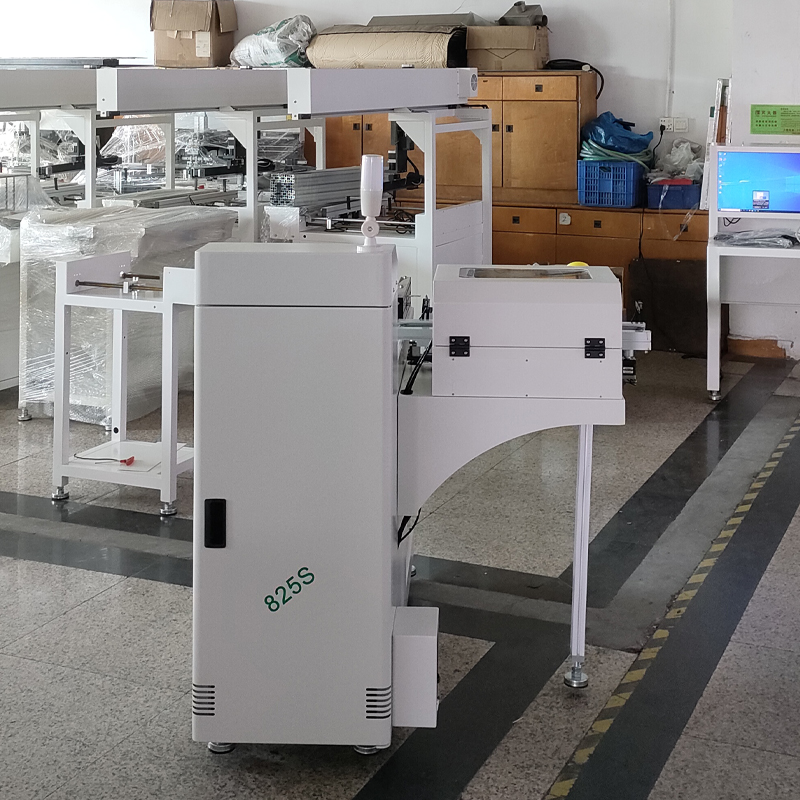

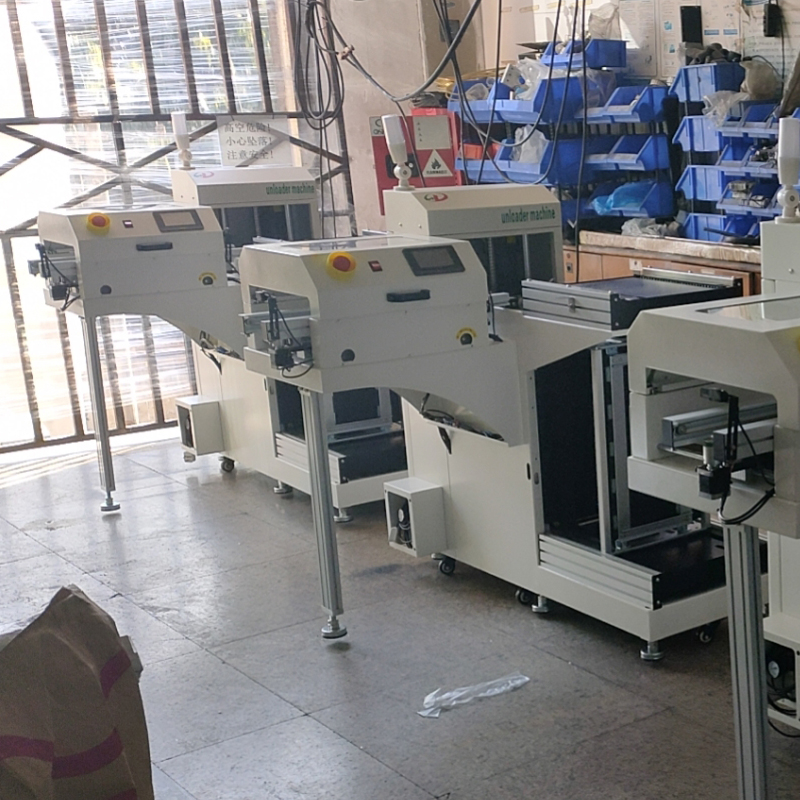

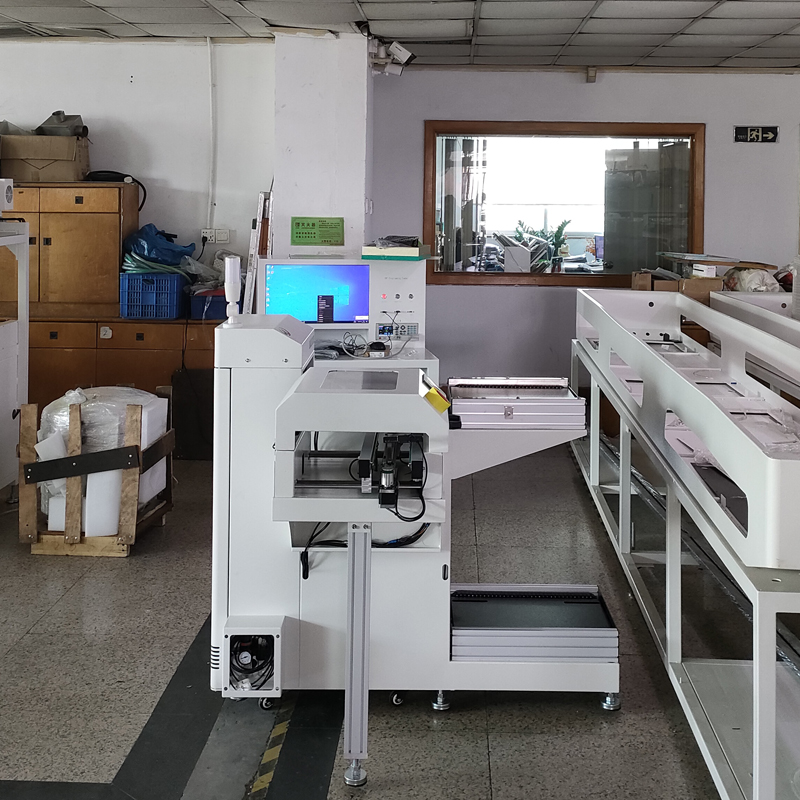

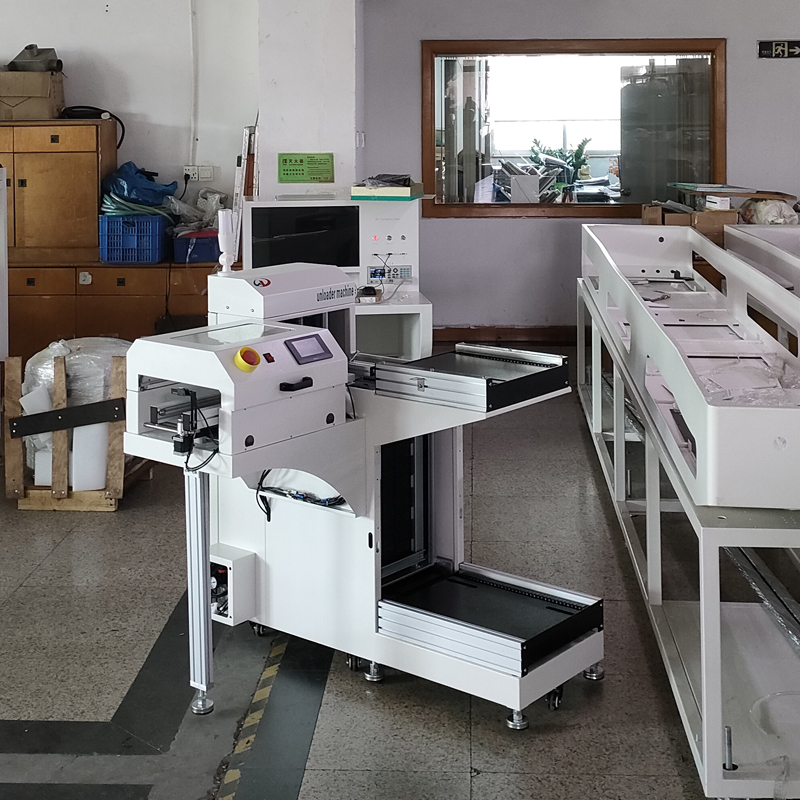

Automatic Unloader with Magazine (6)

Product Parameters:

Model	SD-825S	SD-833S	SD-839S
Applicable magazine size	355320563mm	460400563mm	535460570mm
PCB Size	350*(50-250)mm	460*(50-330)mm	535*(50-390)mm
Weight	200KG	230KG	250KG
Dimension	1550 * 720*1250 mm	18008101250	20008801250
Power supply	Single phase 220V 50/60Hz
Start up power/no-load power	105 W
PCB Thickness	0.6-3.0mm
Lifting step distance	10, 20, 30, 40, 50 (mm) can be set freely
Air Supply	5-6KG
Fixed edge	Front edge fixed (back edge fixed can be customized)
Transport direction	L→R (R→L can be customized)
Transport height	900 ± 20mm
Optional step distance	1~5 steps (10mm step distance)
Voltage resistance	AC terminal to ground 1500VAC, 1 minute
Application environment	Environment without corrosive gas and dust
Anti-interference	Voltage noise: 1000Vp-p, pulse width 1us, 1 minute
PLC	Siemens (specified control device)
Touch screen	Samkoon 4.3# intelligent touch screen
Elevator motor	90W Enhanced LINGYI with brake motor
Sensor	Japanese Omron D61
U photoelectric	Japanese Omron 671\670
Ball screw rod	Taiwan silver

Features:

1. Appearance structure: plate gold structure + aluminum profile in and out of the frame, the surface spraying treatment, the color is white.

2. Microcomputer PLC control system, with stable and reliable work

3. Operation of sensitive touch screen display operation, with the function of automatic fault diagnosis, convenient man-machine dialogue

4. Multiple sound and light and touch screen prompt alarm function

5. The lifting distance of the material rack can be set according to the height of the PCB components.

6. With the automatic counting function, convenient for production statistics.

7. Special air path, humanized design to ensure that the PCB board is not pushed broken, improve production efficiency.

8. Compatible with the standard SMEMA interface

9. The feeder device pushes the PCB board with a stepper motor

10. The speed, distance and strength of the stepper motor can be adjusted

11. The conveyor belt speed is adjustable
