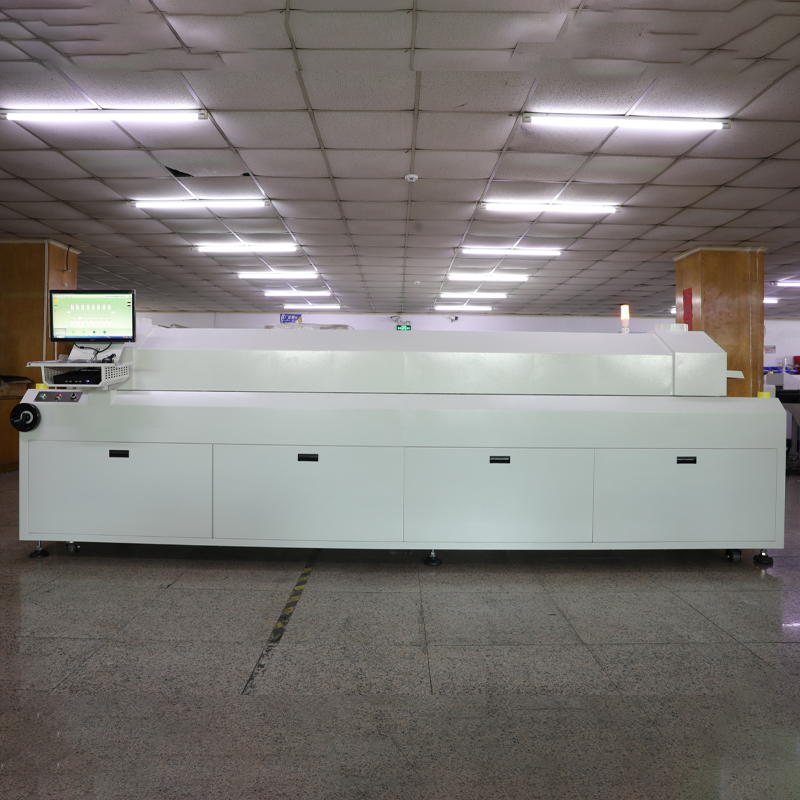

Reflow Soldering Oven with Lead-Free Operation.

  a. Place the PCB board into the preheated reflow oven and set the proper temperature and time according to the soldering specification and solder paste requirement.

  b. Observe the temperature change and soldering quality during the soldering process.

  c. After completing the soldering, remove the PCB from the reflow oven, taking care to avoid burns.

Reflow Soldering Oven with Lead-Free Inspection and Cleaning.

  a. Use a thermometer to check if the temperature of the PCB board after soldering is normal.

  b. Check that the soldering is complete and uniform and remove any soldering defects.

  c. Remove the slag and flux generated during the soldering process and keep the PCB board clean.

Reflow Soldering Oven with Lead-Free Precautions-Shengdian SMT Equipment Factory

1. Operators must have sufficient welding knowledge and skills, and strictly comply with the operating specifications and safety requirements.

2. Ensure that all equipment works properly and is regularly maintained and overhauled. 3.

3. during the operation process, pay attention to prevent the inhalation of welding fumes and harmful gases and ensure good ventilation. 4. try to avoid the welding temperature is too high.

4. avoid excessive welding temperature or time to avoid damage to electronic components or PCB boards.

5. operate in strict accordance with the welding specifications to ensure welding quality and process stability.
