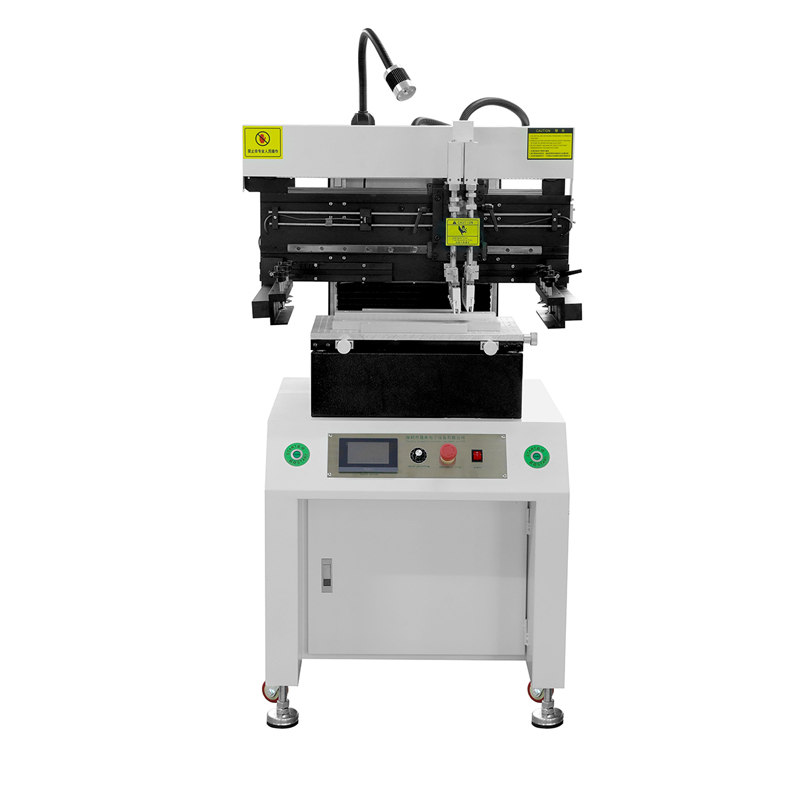

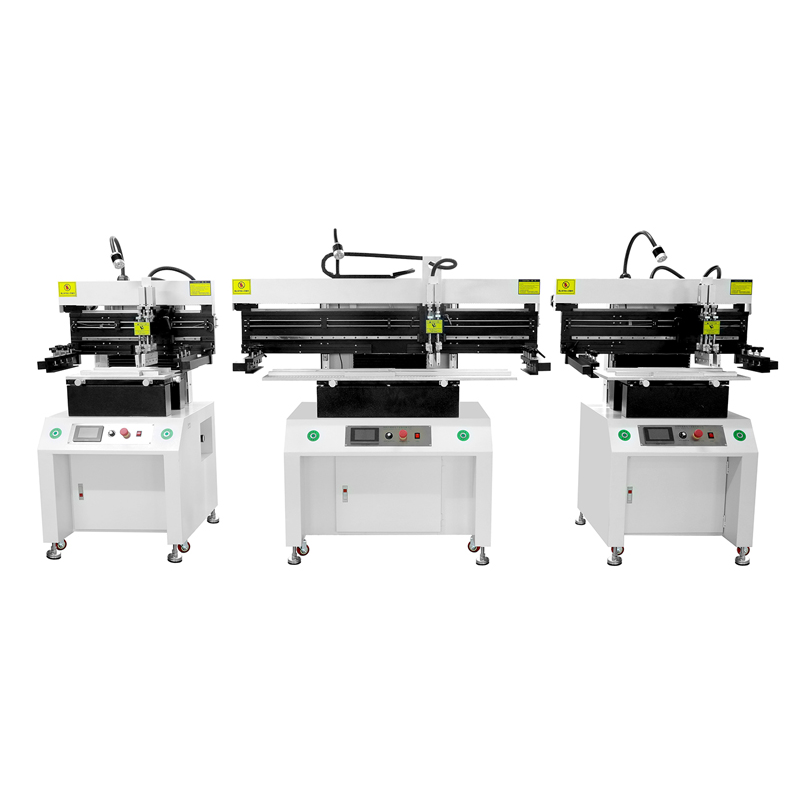

Semi Automatic Solder Paste Printer

Semi-automatic printing machine

Model: SD-5088L

Features:

1. Microcomputer control, touch screen display, menu operation interface;

2. Floating blade.(similar to the automatic MPM printing machine, the scraper can float up and down freely and automatically adjust the level with the stencil);

3. The pressure of the scraper can be adjusted (the pressure of the scraper on the steel mesh can be adjusted according to the length of the scraper of different types);

4. Equipped with a frequency converter speed regulation system, the scraper running speed is stable;

5. Operation with two-hand button switch, safe and reliable;

6. The pause time of the entire stencil can be independently set in the touch screen menu;

7. Positioning and fixing methods of the PCB board include positioning of the reference hole, positioning of the reference edge, simultaneous positioning of the reference edge of the reference hole and the template, etc.;

8. The touch screen is equipped with a time display function, an automatic counting function for printing times, and a screen protection function;

9. Equipped with scraper speed adjustable function and emergency stop safety function;

10. Printing mode: single, double, and secondary startup (menu setting is optional);

11. Printing working state: automatic/semi-automatic/inching three printing states (menu setting is optional);

Technical Parameters:

Associated Accessories

1. 200mm scrapers: 1 pair

2. 250mm scrapers: 1 pair

3. L-shaped positioning base: 4 pieces

4. Brass thimbles: 20 pcs

5. Positioning pins:

¢1.0 positioning pins: 4 pcs

¢1.5 positioning pins  4 pcs

¢2.0 positioning pins  4 pcs

¢2.5 positioning pins  4 pcs

¢3.0 positioning pins  4 pcs
