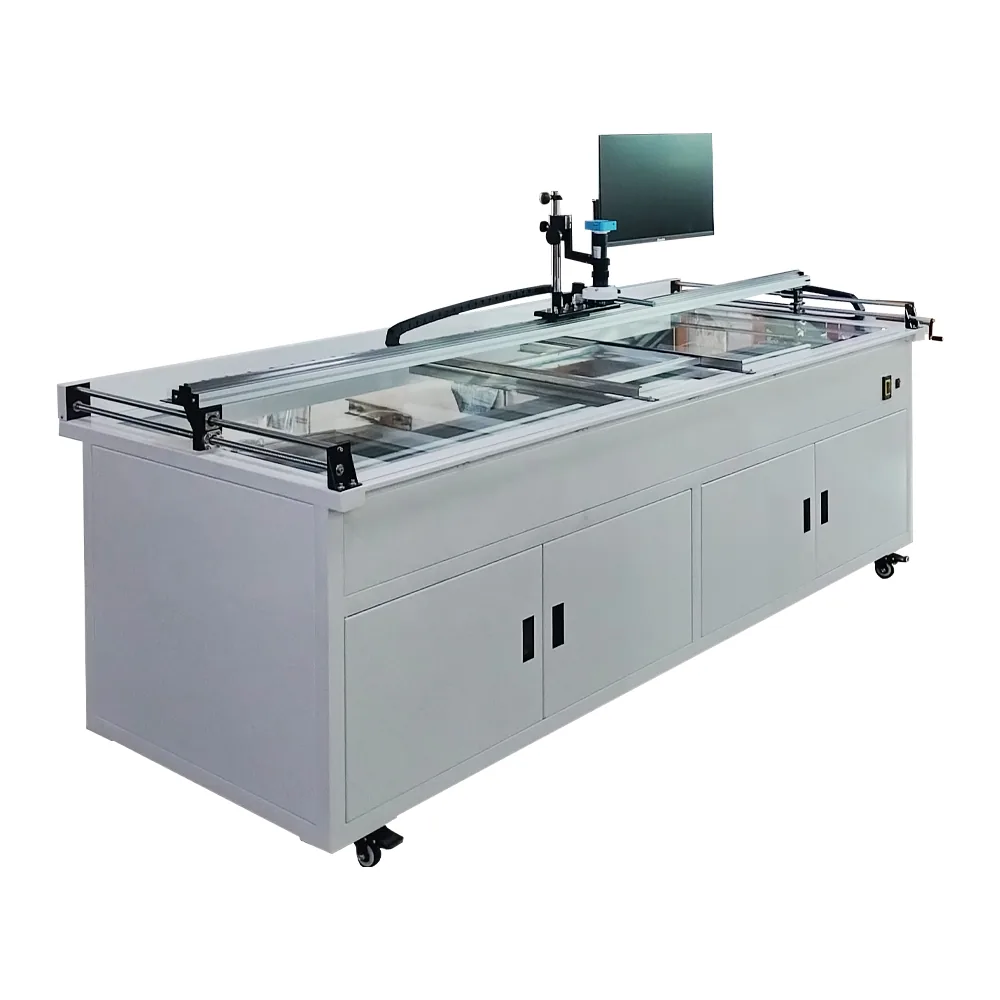

Semi-Automatic SMT Stencil Inspection Station with CCD Magnifier

Precision Stencil Inspection Solution for SMT Solder Paste Printing Quality Control

The SD-2500GW Semi-Automatic SMT Stencil Inspection Station with CCD Magnifier is designed for precise inspection of solder paste stencils used in PCB assembly production.

Equipped with a CCD optical magnification system, LED backlight illumination, and manually adjustable inspection mechanism, it enables SMT operators to clearly inspect stencil conditions and identify defects that may affect solder paste printing quality.

With 30X optical magnification and up to 1776X total magnification, the SD-2500GW helps improve stencil maintenance efficiency, printing consistency, and overall SMT production reliability.

Manual Adjustable Inspection Design

The semi-automatic inspection structure allows operators to manually adjust the magnifier position and inspection distance according to different stencil inspection requirements.

This design provides flexible operation and is suitable for different SMT production environments.

SMT Stencil Defects Inspection Capability

Identify Common Stencil Problems Before Production

The SD-2500GW helps operators inspect various stencil defects, including:

• Contamination

• Damage

• Foreign particles

• Blurred areas

• Ink spots

• Burrs

• Residual solder paste

• Misalignment

• Poor registration

• Adhesive residue

• Folding marks

• Blocked apertures

  Large Inspection Platform for SMT Stencils

  Suitable for Different Stencil Sizes

  The SD-2500GW provides a large inspection platform with an inspection area of:

  737 × 737 mm

  The stable working surface allows convenient placement and inspection of SMT solder paste stencils.

  Technical Specifications

  SD-2500GW Specifications

  Item	Specification
  Model	SD-2500GW
  Equipment Type	Semi-Automatic SMT Stencil Inspection Station
  Inspection Method	Manual Adjustment + CCD Magnification
  Optical Magnification	30X
  Maximum Total Magnification	1776X
  CCD Camera	1/3" CCD Camera
  Working Distance	320 mm
  Field of View Diameter	90 mm
  Inspection Area	737 × 737 mm
  Light Source	Energy-Saving LED Light Source
  Glass Panel	12mm Tempered White Glass + Diffusion Plate
  Dimension	2500 × 1000 × 1440 mm

Why Choose SHENGDIAN SMT Equipment

Professional SMT Equipment Manufacturer

SHENGDIAN provides SMT equipment solutions including:

• PCB Conveyor Systems

• SMT Loading and Unloading Equipment

• Stencil Inspection Equipment

• Customized SMT Automation Solutions

We support global customers with equipment customization, technical support, and factory-direct service.
