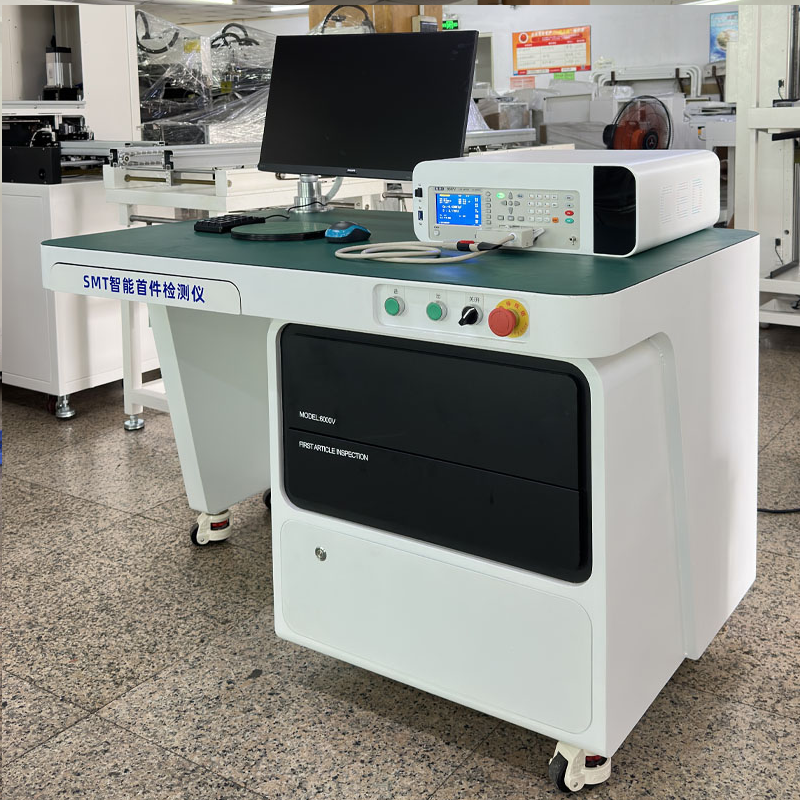

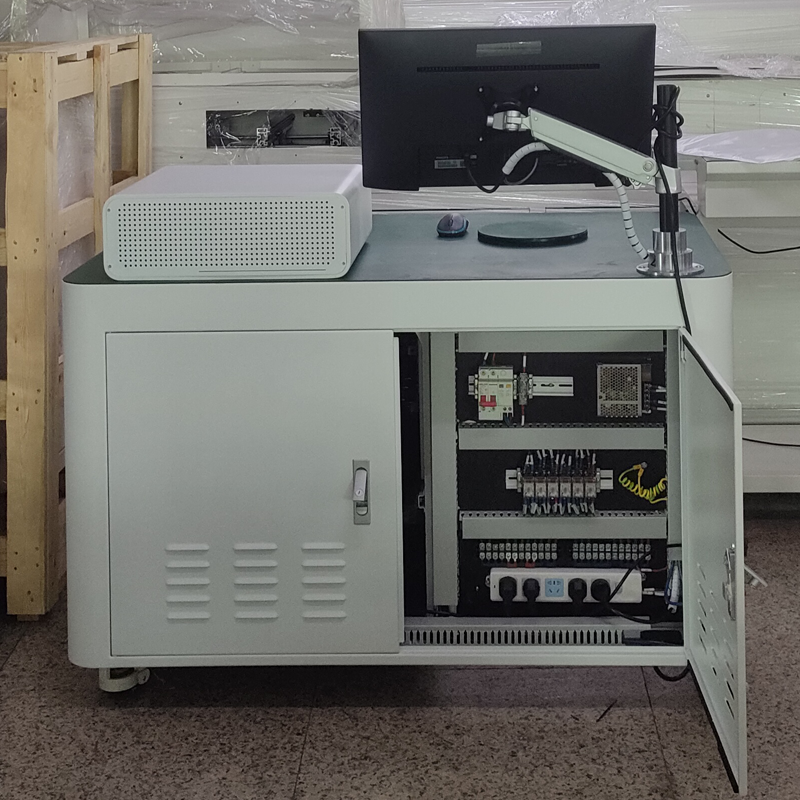

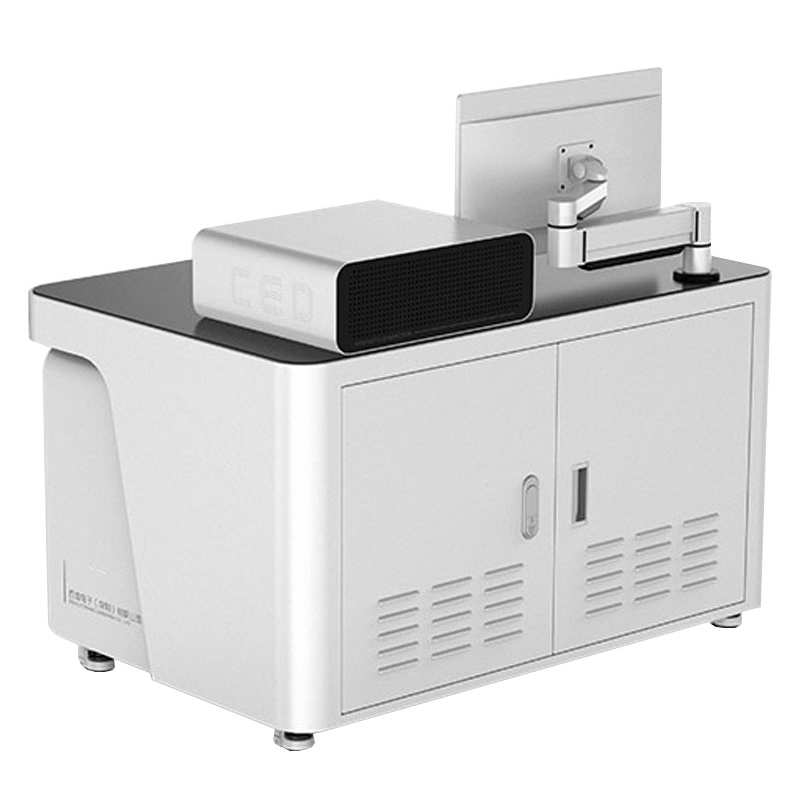

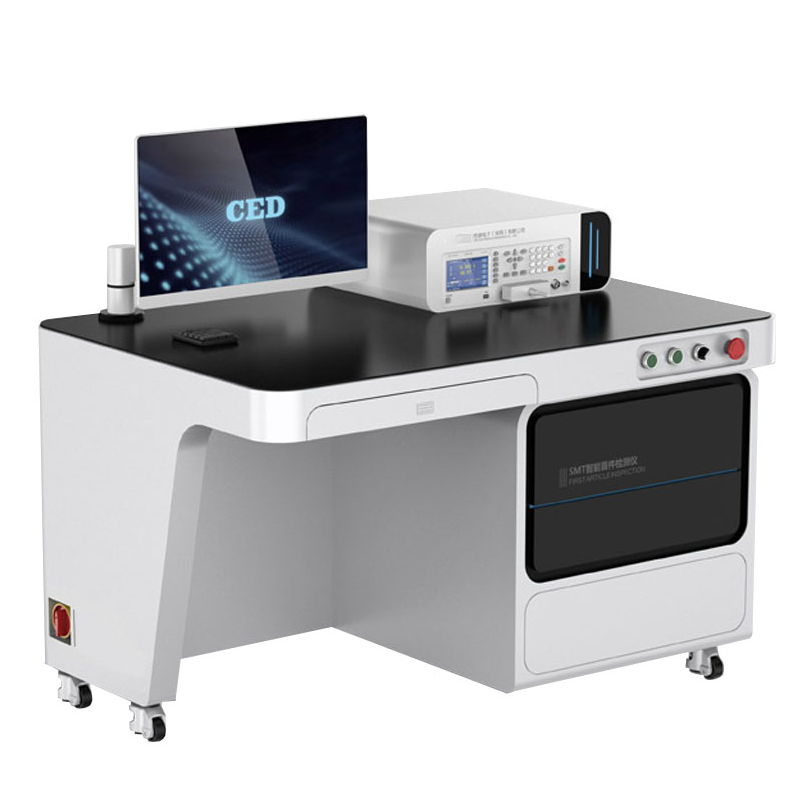

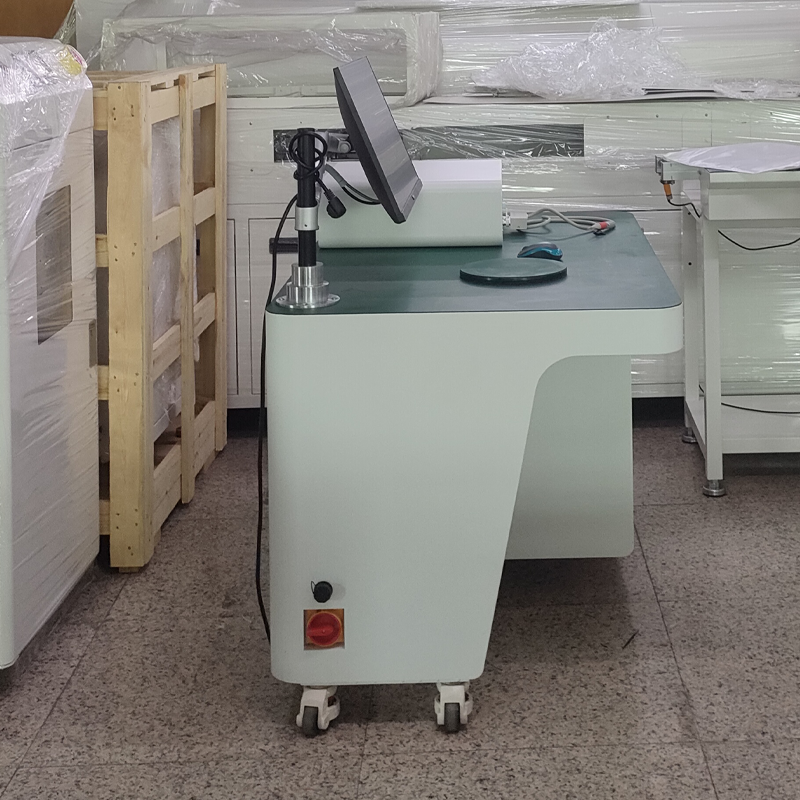

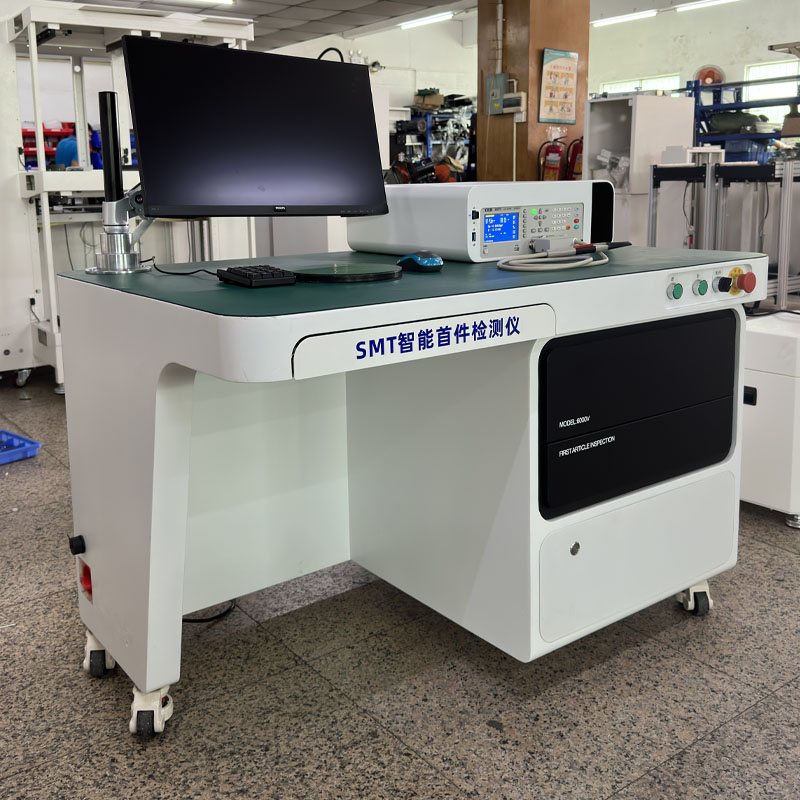

First Article Inspection Machine with Scanning Function 1. Efficient Operation and Cost Savings Efficient single-person operation: Only one person is needed to complete the inspection task (traditional methods require 2-3 people to collaborate), significantly reducing labour costs. Significant increase in inspection speed: Through intelligent navigation and automatic data collection, inspection time is reduced by 50%-80%, effectively shortening the production line waiting cycle. 2. Intelligent Inspection and Error-Proofing Mechanism Automatic Program Generation: After importing the BOM file, CAD coordinates, and PCB scan images, the system automatically generates the inspection path without manual programming (taking only 2-5 minutes). Dynamic Navigation Assistance: Real-time highlighting of the positions of components to be tested, with support for image zoom and rotation, to prevent manual positioning errors. Prevention of missed inspections and misjudgments: Automatically identifies untested components, combines LCR tester automatic readings with standard values, and instantly determines results (PASS/NG), eliminating human error. III. High-Precision Inspection and Data Management Precise measurement tools: Uses a high-precision LCR bridge instead of a multimeter, automatically adjusts the range, and ensures accurate measurement of electrical parameters of components such as resistors, capacitors, and inductors. Optical Automatic Comparison: Visually identifies components with silk screen markings, such as ICs and diodes, and automatically detects defects such as incorrect orientation and misalignment. Traceability Assurance: Automatically records and stores test data, generates Excel reports containing timestamps and measurement values, supports scenario reconstruction and database archiving, and meets ISO quality traceability requirements.
