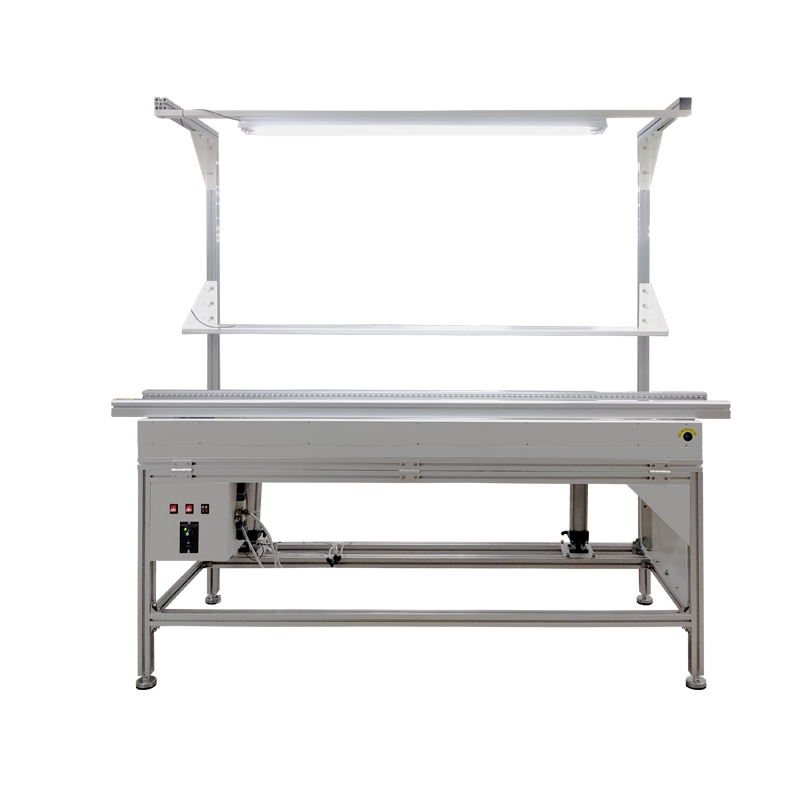

Engineered Superiority: Why the SHENGDIAN DIP Lifting Plug-in Line Drives Production Efficiency
01 / Precision Height Adjustment ($0.8\text{m}\text{--}1.4\text{m}$) & Ergonomic Strain Reduction

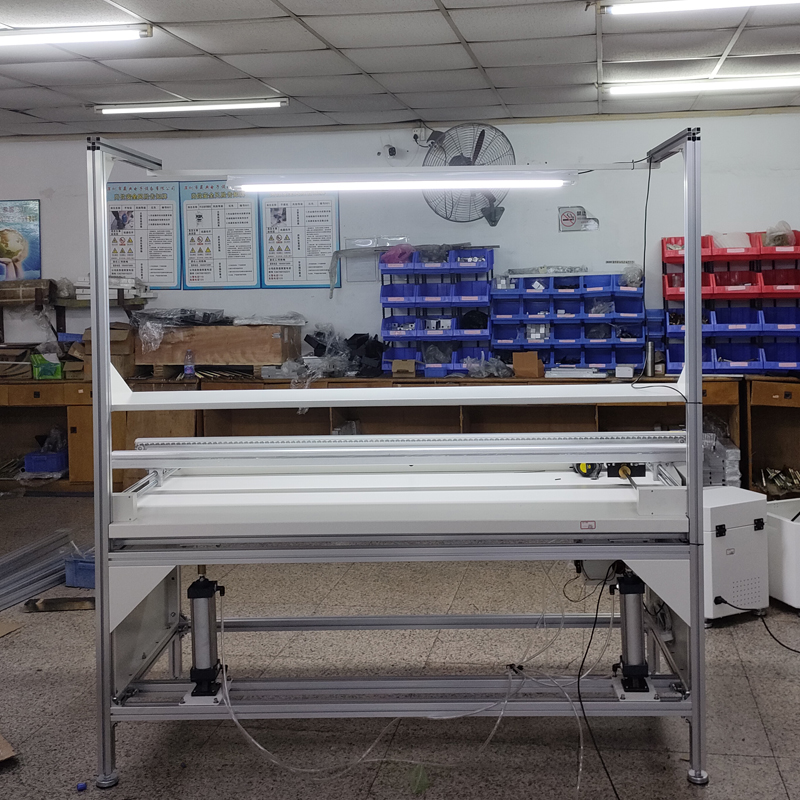

Empower operators with dynamic physical adaptation. Controlled via an intuitive electronic management system, the track height adjusts seamlessly between 0.8m and 1.4m ($\pm 5\text{mm}$ precision). This accommodates operators of varying heights (reducing lower back strain by up to $30\%$) and raises track clearance during large automotive electronics production ($\ge 1.2\text{m}$) to eliminate board-edge collisions.
02 / Automated 0° -- 180° PCB Rotation for Double-Sided Mixed Assembly
Streamline complex PCBA hand-off processes. The integrated lifting and rotation mechanism automatically flips PCBs from 0° to 90° to 180° in under 3 seconds per cycle. Double-sided assembly boards can be transferred continuously without manual disassembly or re-handling, reducing process intervals by $40\%$.
03 / Flexible Modular Integration & Industrial Durability

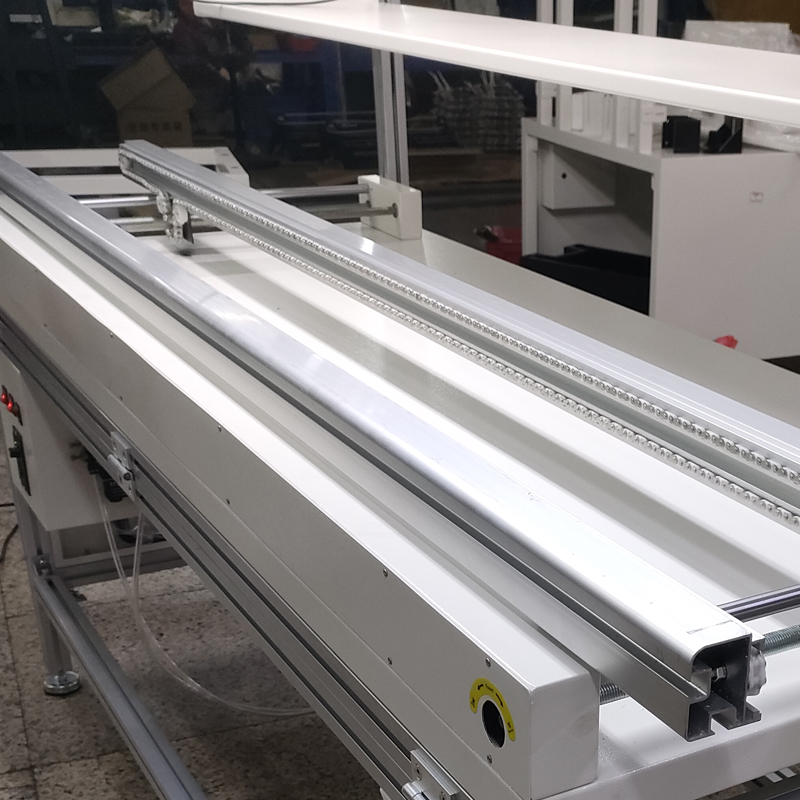

Built to sync effortlessly with upstream SMT line equipment, DIP wave soldering machines, and downstream inspection conveyors. Constructed with heavy-duty aluminum alloy frames and ESD-safe ESD belt conveyors, it provides reliable 24/7 continuous operation in high-volume electronics plants.
04 / Direct Factory Customization & Global Engineering Support
Scale your assembly line capacity with confidence. SHENGDIAN provides end-to-end OEM/ODM customization—including bespoke conveyor lengths, adjustable pitch widths, custom PLC control logic, integrated LED workstation lighting, and multi-language UI screens backed by full CE compliance and international technical support.
