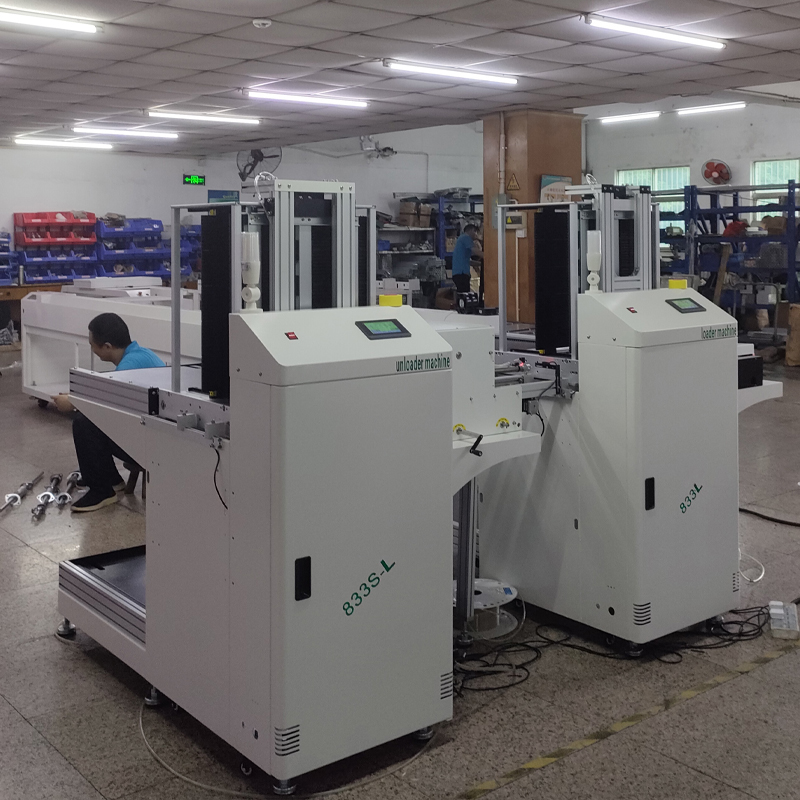

Features of the L-Type Board Loader

The L-Type Board Loader is a compact, stacked feeding device with the following core characteristics:

‌Structural Design‌

Features a sheet metal structure with an aluminium profile frame. The board entry direction is arranged at right angles to the feeding direction, making it suitable for space-constrained environments.

Precise feeding is achieved via a stepper motor-driven board-pushing mechanism. Both pushing force and speed are adjustable, with an auxiliary positioning brake system ensuring positioning accuracy.

Functional Advantages

Reduces production line length while enhancing efficiency, featuring rapid vertical movement and PLC-controlled operation via a colour HMI interface.

Primarily deployed at the front end of assembly lines to convey empty boards to stations such as printers.

Comparison with Standard Models

Standard board loaders operate with board entry and exit aligned in the same direction, whereas the L-type optimises spatial utilisation through its right-angle configuration.
