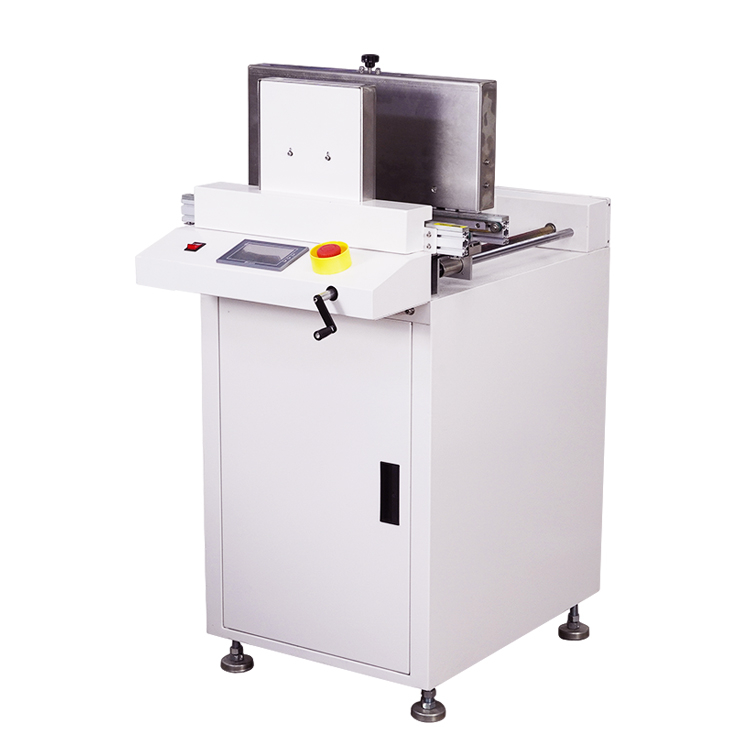

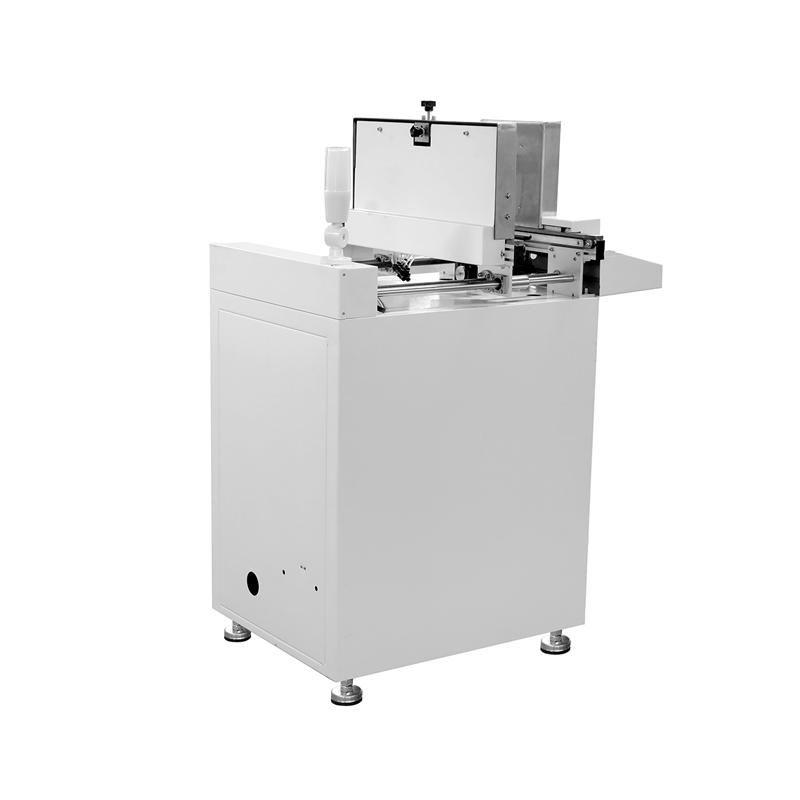

Automatic PCB Destacker Machine
Model: SD-8380
Product features:
● Aluminum alloy guide rail, stable, durable, and beautiful.
● Microcomputer PLC control system, stable and reliable operation.
● Touch screen display operation, with automatic fault diagnosis function and convenient man-machine dialogue.
● Sound, light, and touch screen alarm functions.
● Height of material wall can be adjusted according to PCB thickness.
● Humanized design ensures that PCB boards are not pushed through and improves output capacity
● Dual function of automatic board feeding and PASS for bare boards.
● Automatic board dropping method is adopted, which effectively shortens the boarding time.
● The electrical parts of the equipment adopt famous brands.
● SMEMA signal interface is equipped as standard.
● Smaller machine footprint.
Technical Parameters:
PCB Size | 50*50-500*400mm |
PCB Thickness | 0.8-3.0mm |
Circle Time | 15s |
Transport Height | 900±20mm |
Transport Direction | Left to right（Right to left） |
Power Supply | AC220V,50/60Hz |
Start Power | 105W |
Air Supply | 4-6kgf/cm² |
Machine Size | 600*800*1250mm |
Machine Weight | 130kg |
Rail Fixed Edge | Front Rail |
Control System | PLC+ Touch Screen |
Photoelectric Sensor | Omron |
Conveyor Motor | Dual stepper motor |
