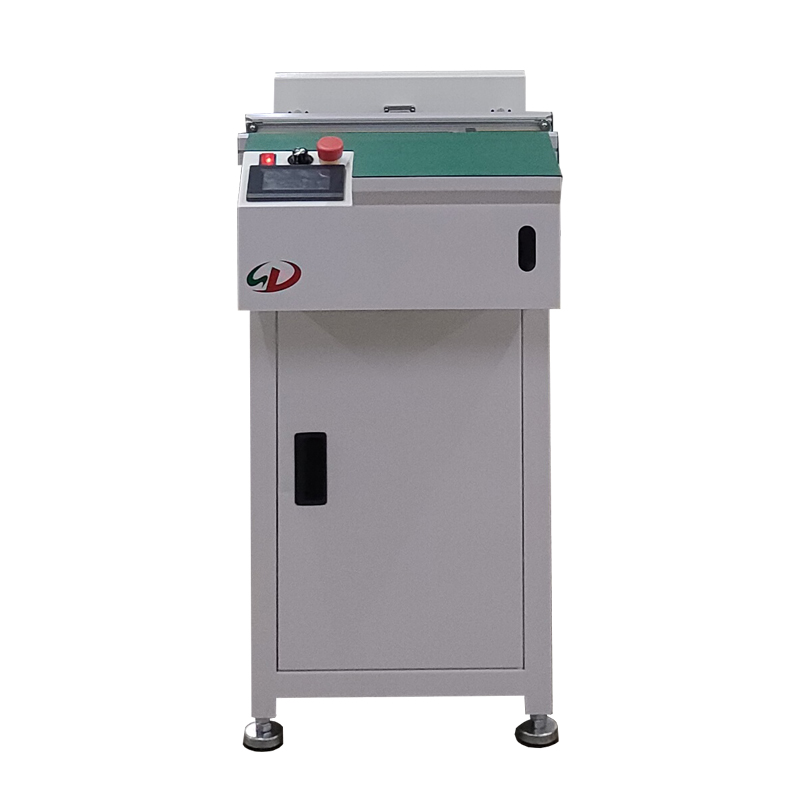

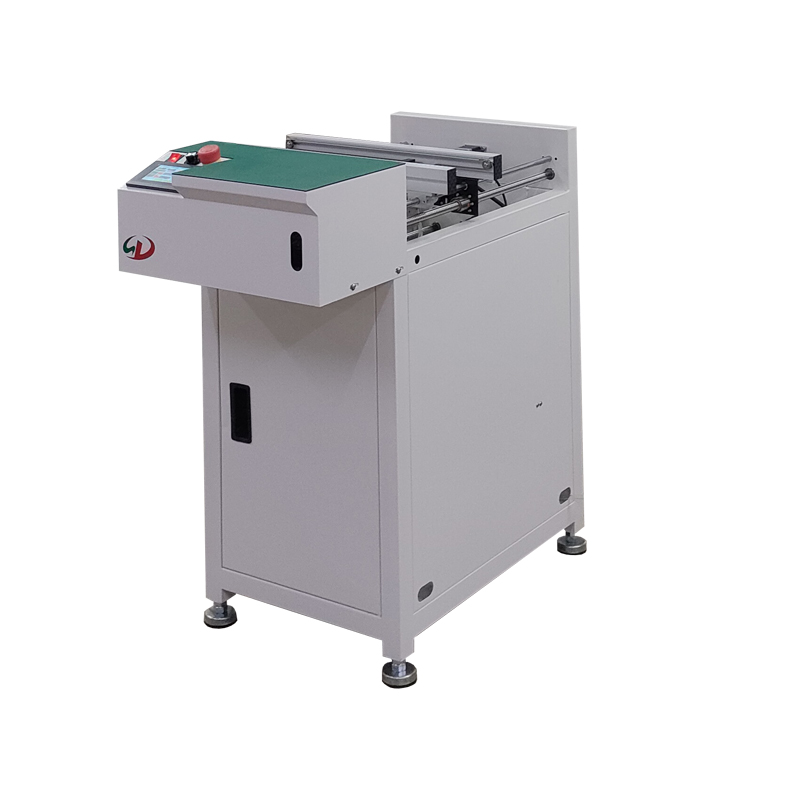

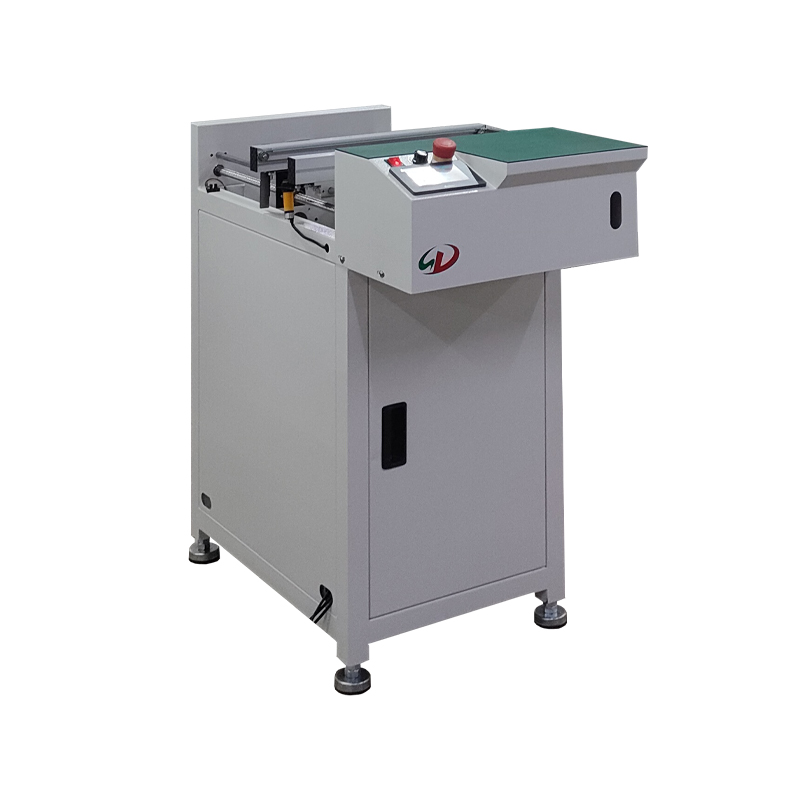

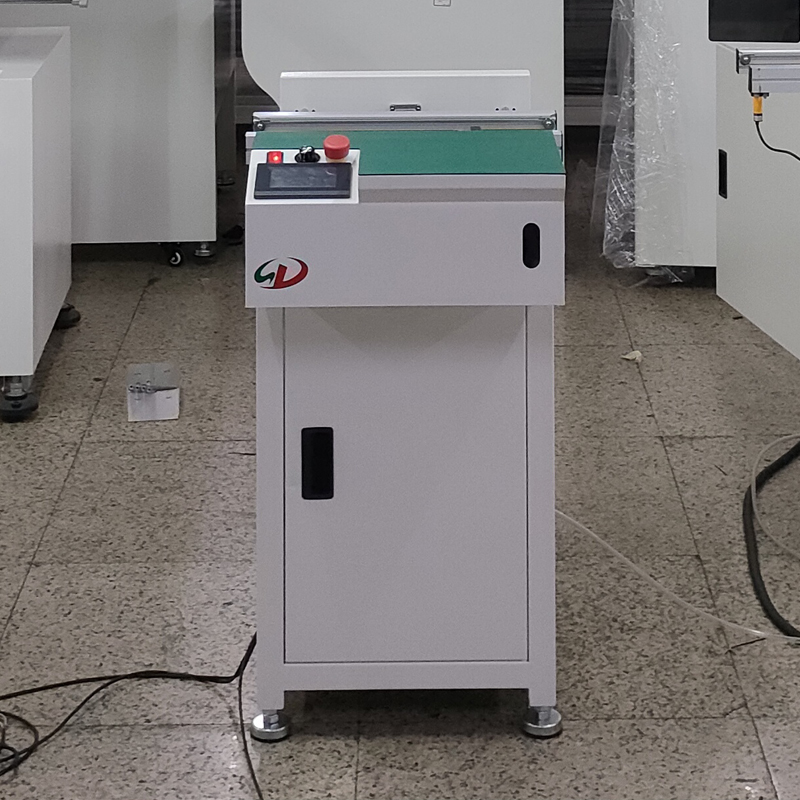

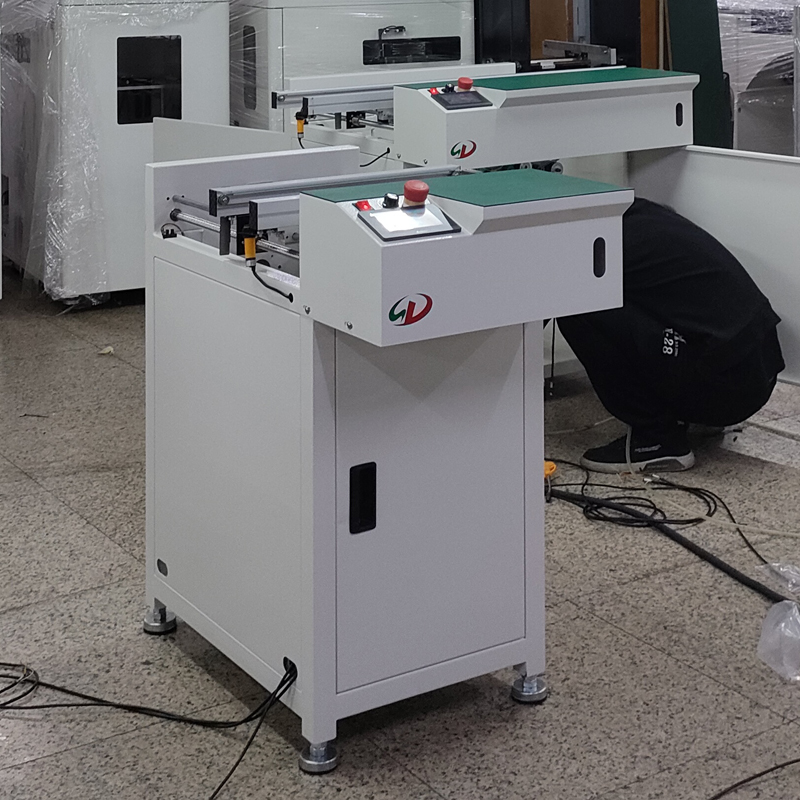

Features:
※ Closed design guarantees the highest level of safety protection.
※ The top safety cover can be opened for easy handling of the machine hardware during maintenance.
※ Adjustable position of the board and the board to ensure accurate alignment of the PCB board.

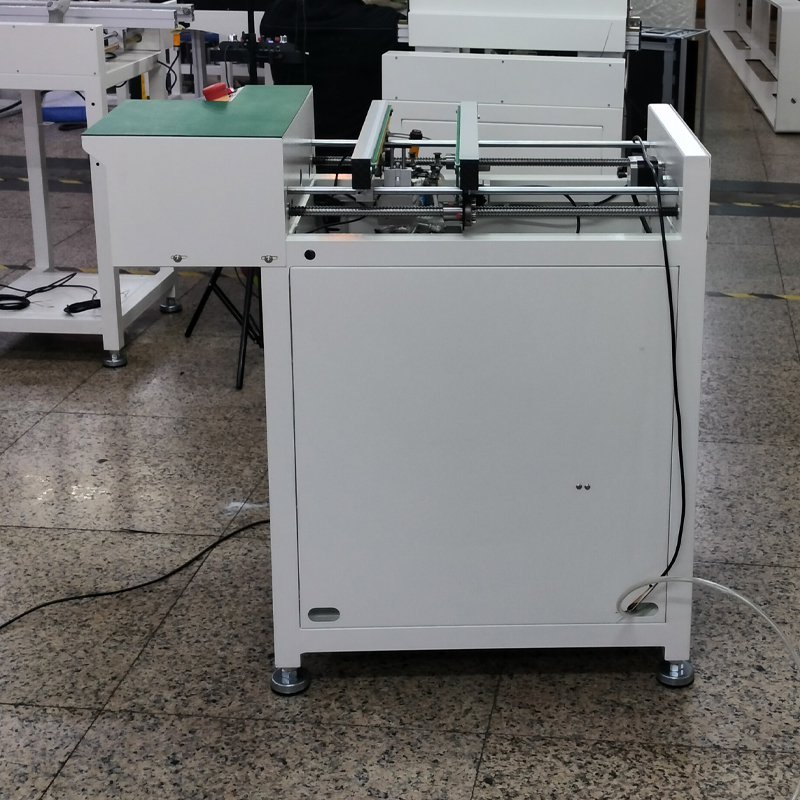

※ Transport rail parts can be lifted up and down.
※ Wide range of adjustment, height of lift can be customized.
※ Stable balance width adjustment device (hand crank control screw adjustment).
※ Smaller machine footprint.
※ Compatible SMEMA interface.
Technical Parameters：
Description | This machine is mainly used to transfer PCBs from one transport height production line to another transport height production line. |
Cycle Time | Approx. 10 seconds |
Power Source | 220-230VAC(specify)，1ph |
Power Consumption | 180VA max |
Air Pressure | 4-6kgf/cm² |
Transport Height （can be customized） | 750±20mm-900mm ±20mm (Or user specified) User can control the height of the lift within the screen according to the actual situation. |
PCB Conveyor Direction | L→R / R→L(Select one of the options) |
Control System | PLC+Touch screen |
Specifications:
Model | SD-300C |
Effective PCB Size
(L×W)～(L×W) |
50*50-500*300mm（Length and width can be customized）
|
Dimension
(L×W×H) |
600*750*1250mm
|
Weight | Approx.120kg |
