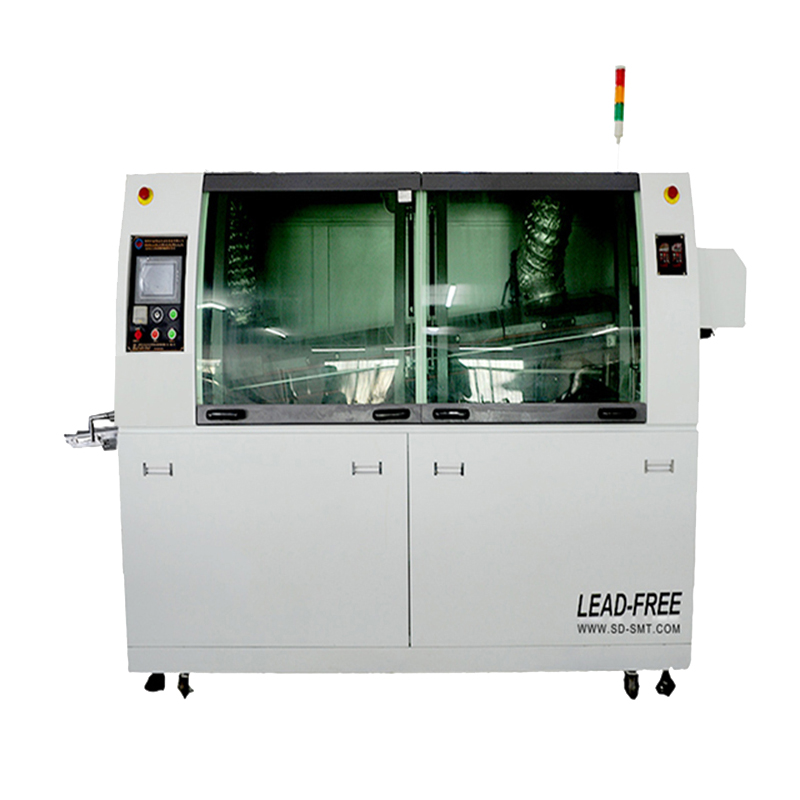

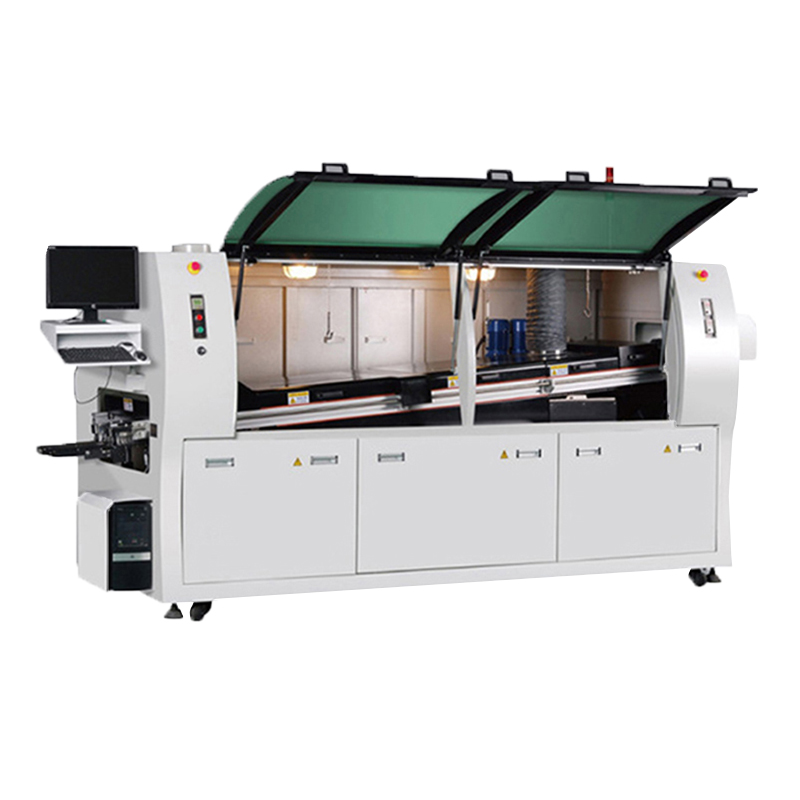

SMT Machine Wave Soldering

Wave soldering Machine is a method of making connections between electronic components by melting the soldering material. It works in the following steps:

Firstly, the soldering material needs to be prepared, usually solder. The solder will be heated above its melting point to ensure that it can be soldered smoothly.Conveyor,Loader and Unloader,Pick and Place Machine,Reflow Oven,Wave Soldering Machine,PCB Printer.

Next, the soldering material is placed in a container called a tin furnace. The furnace is a temperature-controlled container that maintains the proper temperature to maintain the quality of the solder.

When the soldering material enters the furnace, the solder forms a bump on the bath surface known as the solder crest. This crest is formed by a device called a crest guide, which pushes the solder up to a certain height to form a crest shape.

When an electronic component to be soldered comes into contact with a solder crest, the solder melts and coats the component's pads. By means of the melted solder, a reliable solder connection is formed between the electronic component and the pad.

In summary, the working principle of wave soldering can be briefly summarised as the soldering connection of electronic components by melting the wave formed by the solder material (solder). This method of soldering has a certain degree of automation and can be carried out efficiently while ensuring the quality and reliability of the soldering  factory.
