Automatic NGOK Unloader Machine

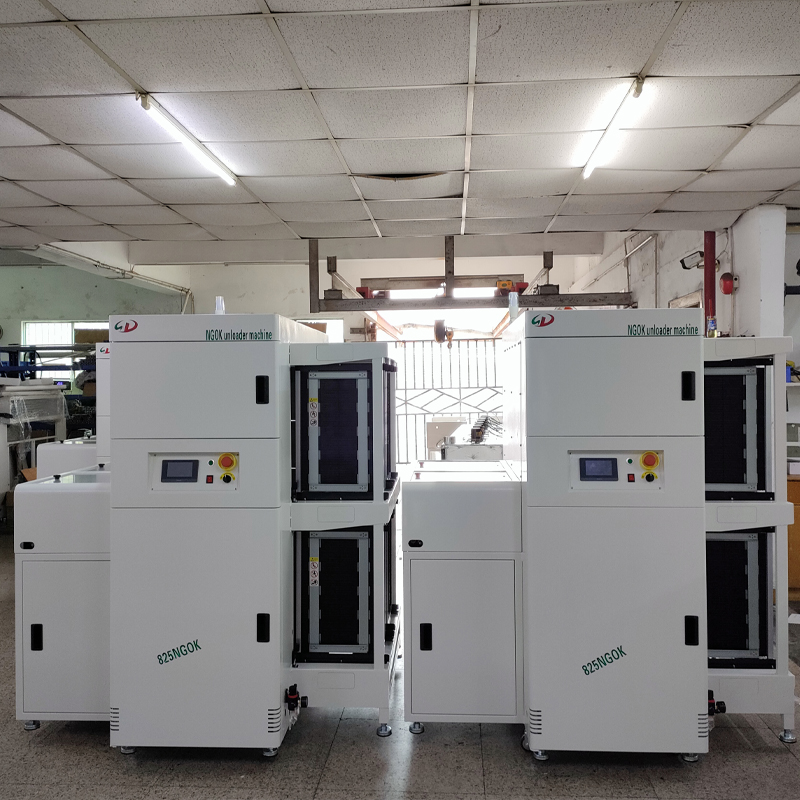

Automatic NGOK Unloader Machine is composed of sheet metal structure + aluminum profile in and out of the frame, the surface is sprayed with corrugated white treatment, generally a single-track NG Unloader Machine standard with four frames, if it is a double-track, it is also equipped with four frames, but the configuration of the single-track and double-track is different, double-track, if it is the front A O I is the case of double-track, and then is used to double-track NG Unloader Machine, it works at the same time with four frames, the motor used is a servo motor. If the standard machine motor is used is a stepper motor. Whether it is a single-rail or dual-rail N G O K Unloader Machine machine is controlled by a microcomputer plc control system, PLC is the use of Panasonic brand, the touch screen display operation, according to the height of the components on the P C B circuit board to set up the material frame lifting step, such as stepping motor pushing the strength of the board, the speed can be set up in the top of the touch screen, the operation is simple, clear, and the work is very stable. The operation is simple and clear, and the work is very stable.

The standard frame type of Automatic Unloader Machine is generally used to collect PCBs and is used at the end of the production line because the boards need to be collected with the material width after processing.

Automatic Unloader Machine can be divided into standard Automatic Unloader Machine and NGOK Automatic Unloader Machine according to its function, and can be divided into standard Automatic Unloader Machine, L-shaped Automatic Unloader Machine and L-shaped Automatic Unloader Machine according to its shape. If you look at the shape of the machine, it can be divided into the standard Automatic Unloader Machine and the L-type Automatic Unloader Machine, and the whole machine consists of three parts: the front connecting part, the center of the whole machine body, and the right side of the inlet and outlet frames. There is mainly sheet metal welding, plus aluminum profile in and out of the frame production. Under the board machine main hardware configuration: transmission chain, frame in and out of the track transmission, using black nylon flat engineering chain. p l c control system, control panel, true color touch screen man-machine control. Motor, through the speed reducer motor internal size of different gear combinations to achieve the effect of moment deceleration. Alloy steel ball lifting screw to reduce resistance. Cylinder crate adopts cylinder multi-angle clamping, stable and reliable and can correct the deformation of the crate. Compatible with SMEMA interface. Motorized push plate, electric push plate device, push plate speed adjustable. Oil-water separator high-strength heat-resistant not easy to aging sealing performance, high clarity and large cup. The surface of the body is sprayed white.

Automatic Unloader Machine is generally standard with two anti-static material frame, suitable for all boards. The entire device is controlled by a microcomputer P L C control system, the operation of a sensitive display screen shows the operation, can be set according to the P C B circuit board above the component height of the material frame lifting step, stable and reliable work, convenient and quick. Splicing device to push the P C B board using stepper motor, stepper motor push plate speed, distance, strength is adjustable, in addition, the transmission of the belt speed can also be adjusted, our P L C, the use of Siemens up and down the board of the machine's special control system, the inductor is OMRON's, the power supply of the Ming Wei, the use of accessories are brand-name accessories, are better down the board of the machine's mode of operation, the splicing part has a Sensor, sensing the board over, the empty frame from above into the elevator, elevator cylinder clamping frame, from the bottom to the top of the board piece by piece, by the motor to push the board device to push the frame, the frame when a frame to go down. Until our frame is loaded with boards after the frame conveyor belt will be full of pcb boards sent out!
