Core Advantages of the SMT Parallel Transfer Machine

‌Flexible Production Line Adaptability‌:

Supports single-track and dual-track equipment integration, enabling PCB board ‘split-and-merge’ or ‘combined-processing’ functionality. Accommodates diverse production line layouts including U-shaped and straight-through configurations.

Customisable structures such as dual-track single-head or single-track dual-head designs meet varied production requirements.

‌High-Efficiency Precision Transfer:

Employing servo motors, HIWIN linear guides and Panasonic PLC control, positioning accuracy reaches ±0.05mm with cycle times of 7–15 seconds per board.

Supports SMEMA signal interfaces for seamless integration with pick-and-place machines, reflow ovens and other equipment.

‌Intelligent Operation and Maintenance:

Touchscreen parameter configuration allows adjustment of transfer speed, distance, and origin calibration frequency (e.g., automatic calibration every 5 cycles).

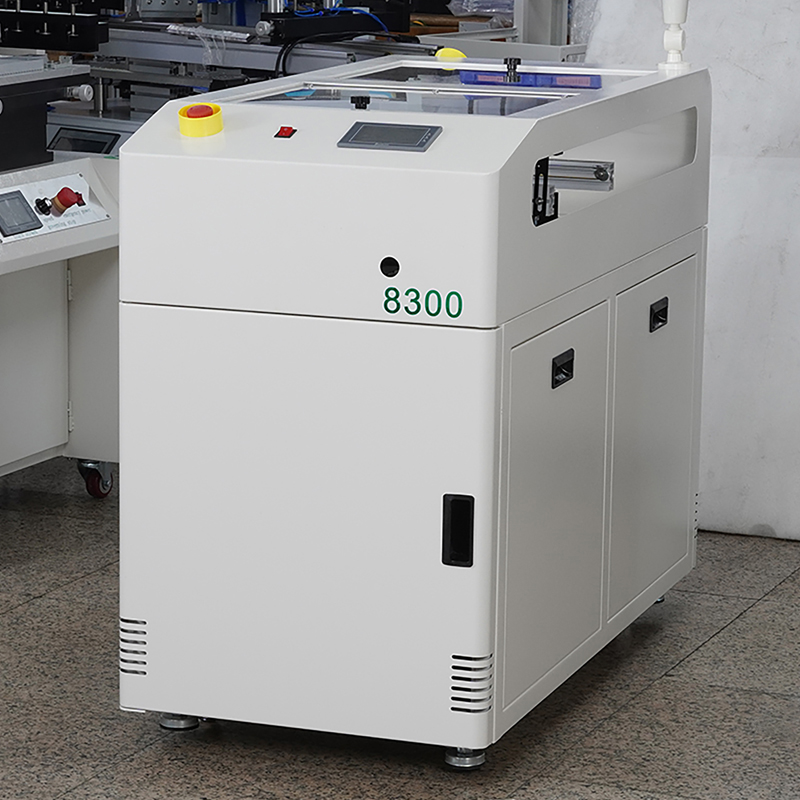

Acrylic transparent cover facilitates real-time observation of trolley operation, while a top-mounted emergency stop switch ensures safety.

Typical Application Scenarios

‌Multi-line Convergence:

Sharing one reflow oven between 2–4 placement lines, or one wave soldering machine between two insertion lines, reducing equipment investment costs.

Direction Adjustment:

Altering PCB conveyance direction within U-shaped production lines to optimise space utilisation.

Buffering and Diversion:

Serving as a temporary holding channel for non-conforming boards after AOI/SPI inspection, preventing defective items from obstructing the main production line.
