Standard Process for PCB Reflow Soldering

Views: 0     Author: SHENGDIAN     Publish Time: 2025-07-22      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
snapchat sharing button
sharethis sharing button

Standard Process and Key Control Points for PCB Reflow Soldering:

I. Pre-soldering Preparation

Solder Paste Printing

Use a steel mesh to precisely print solder paste onto the PCB pads. The openings in the steel mesh must be strictly aligned with the pad positions.

→ Printing quality directly affects soldering yield rate

Component Placement

The pick-and-place machine uses a vision positioning system to precisely place SMD components on the solder paste.

Special components require manual re-inspection of position accuracy

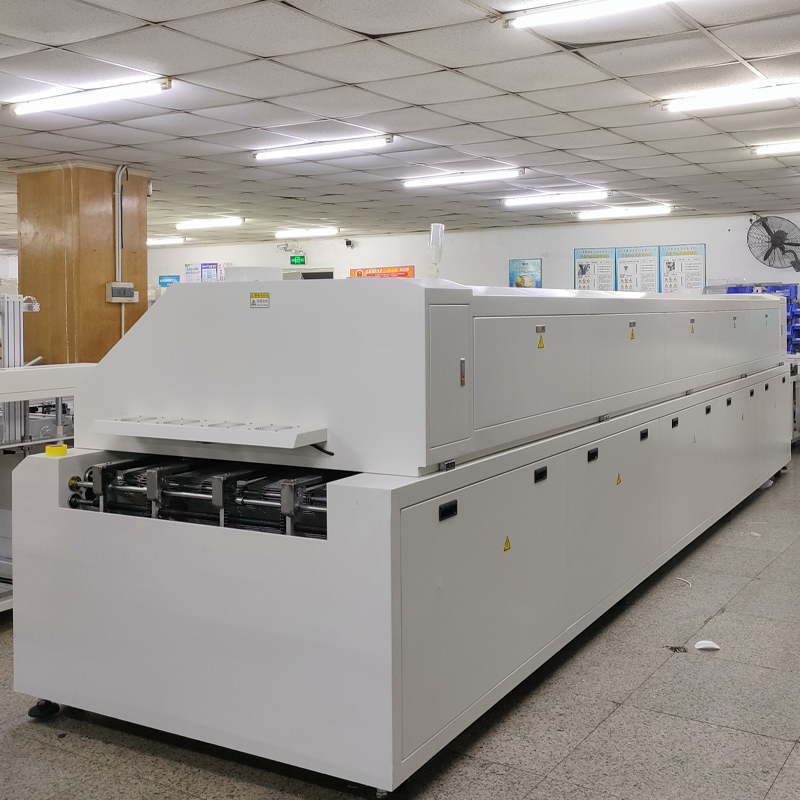

2. Soldering Process (Four-Stage Temperature Control)

Preheating Zone → Holding Zone → Reflow Zone → Cooling Zone

Preheating Zone (60–150°C)

Temperature rise rate: 1–3°C/second

Function: Evaporate solvents, activate flux, prevent thermal shock

PCB heats uniformly until solder paste softens and collapses

Holding Zone (120–165°C)

Constant temperature time: 60–120 seconds

Function: Evaporate residual moisture, remove oxide from pads

Ensure uniform temperature across all PCB areas

Solder paste fully melts, liquid tin wets pads to form alloy solder joints

Peak temperature duration: 30–60 seconds

‌Cooling Zone‌

Forced air cooling rate: 2–4°C/second

Function: Rapidly solidify solder joints to form stable metal connections

III. Special Process Treatment

‌Double-sided PCB Welding‌

Prioritise welding the side with fewer components (red glue process), then use solder paste process for the second side; or adopt layered temperature control (lowering temperature in the lower zone)

‌Nitrogen Protection‌

Inject nitrogen into the furnace to reduce oxidation and enhance solder joint reliability

‌Through-hole components‌

Customised needle tubes and steel screens are required to increase solder paste volume; components must withstand temperatures of 235-250°C‌

4. Post-soldering inspection

‌Cool to room temperature‌ before removing the PCB to avoid burns or thermal deformation‌

Inspect solder joints:

Smooth surface with no voids

Wetting angle ≤90°

No component displacement or cold solder joints
