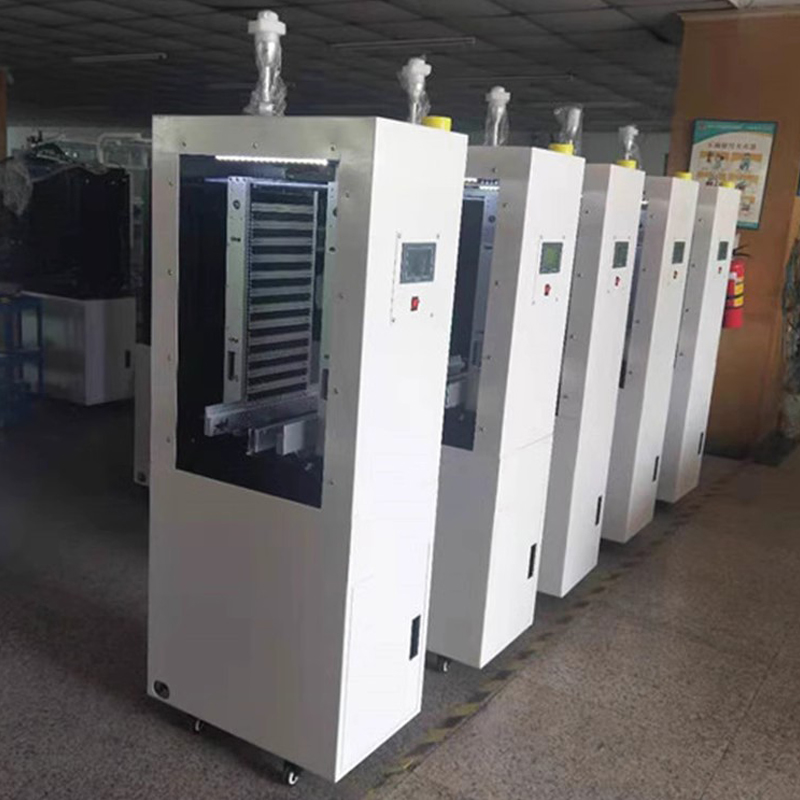

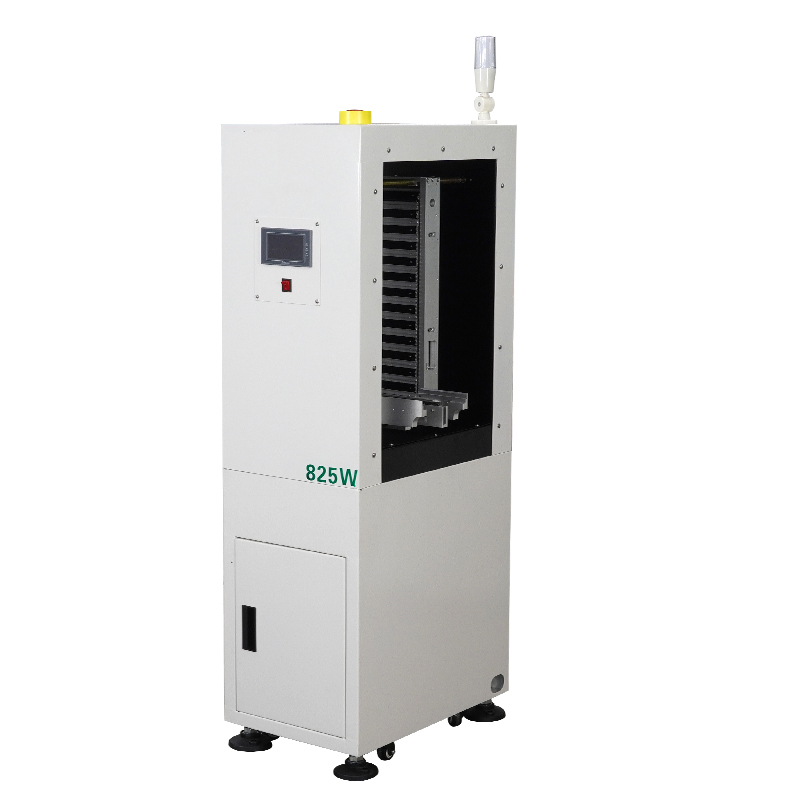

Mini PCB Loader SMT Loader without Magazines for PCB Production Line


Model:	SD-825W
Availability:

Quantity:

Inquire Add to Basket

Model:
SD-825W
Brand:
SHENGDIAN

1.Outer structure: plate gold structure, surface spraying treatment, color white.2.Microcomputer PLC and touch screen control system, stable and reliable work. 3.With automatic fault diagnosis function, man-machine dialogue is convenient.4.Multiple sound and light and touch screen within the prompt alarm function.

Conveyor Loader and Unloader Pick and Place Machine Wave Soldering Machine Reflow Oven PCB Printer

Product Description

Features:

1. Outer structure: plate gold structure, surface spraying treatment, color white.

2. Microcomputer PLC and touch screen control system, stable and reliable work.

3. With automatic fault diagnosis function, man-machine dialogue is convenient.

4. Multiple sound and light and touch screen within the prompt alarm function.

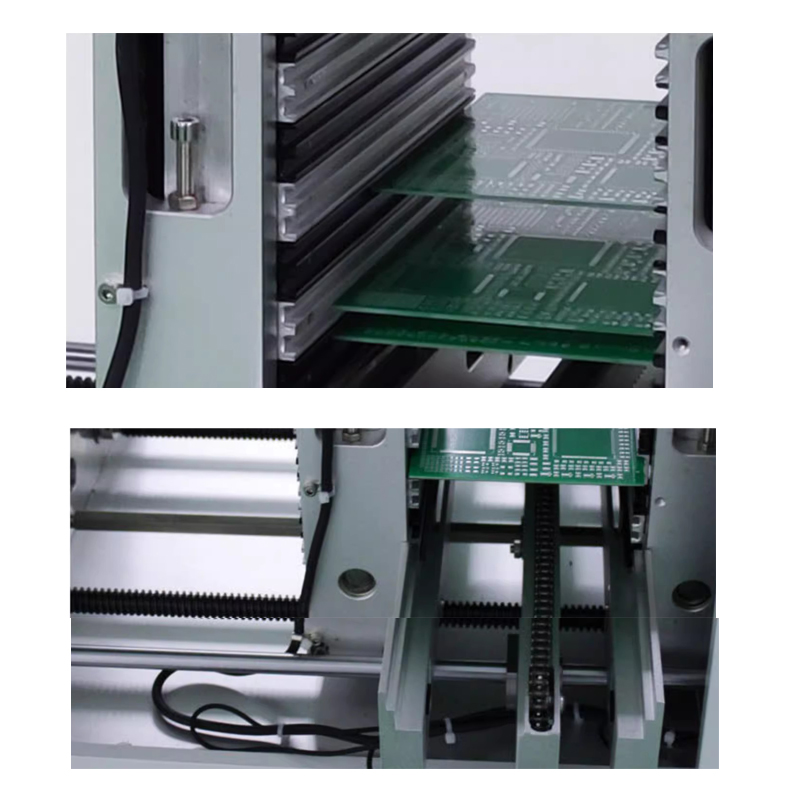

5. Humanized design to ensure that the PCB board is not pushed through, improve output capacity.

6. PCB board can be placed diagonally can automatically go balanced.

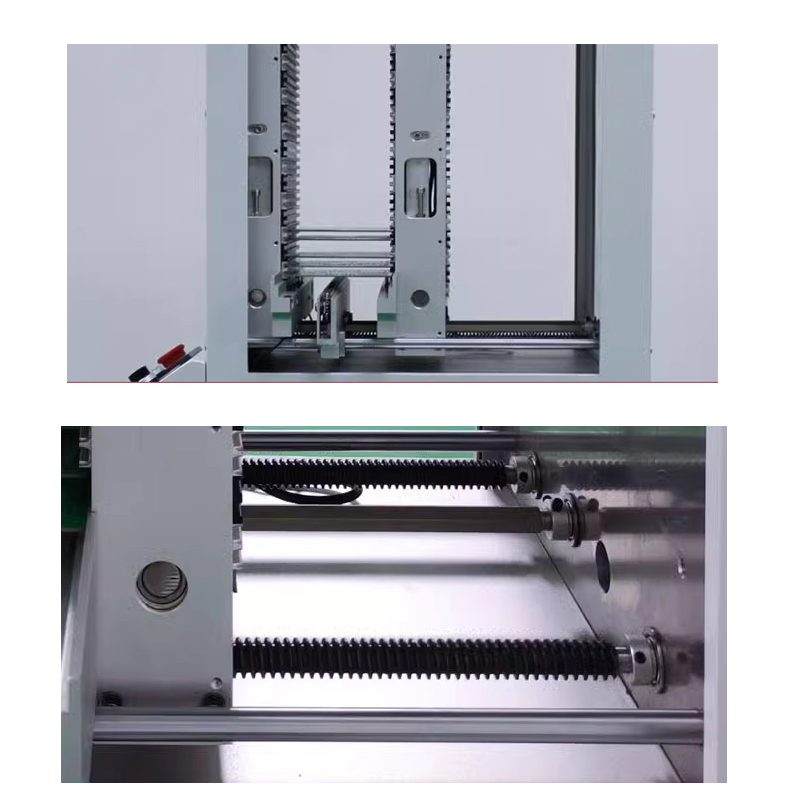

7. Adjust the width of the narrow motorized control.

Technical Parameters:

PCB Size	5050-450250mm
PCB Thickness	0.6-3.0mm
Machine Siz	5006001250mm
Power Supply	Single Phase 220V/110V
Start Power	50W
Fixed Rail	Front fixed(rear fixed option)
Transport Direction	Left to Right (Right to Left option)
Transport Height	900±20mm
Control System	PLC+4.3# Samkoon Touch Screen
Sensor	Omron
Motor	Stepper Motor
