SD-300K
SHENGDIAN

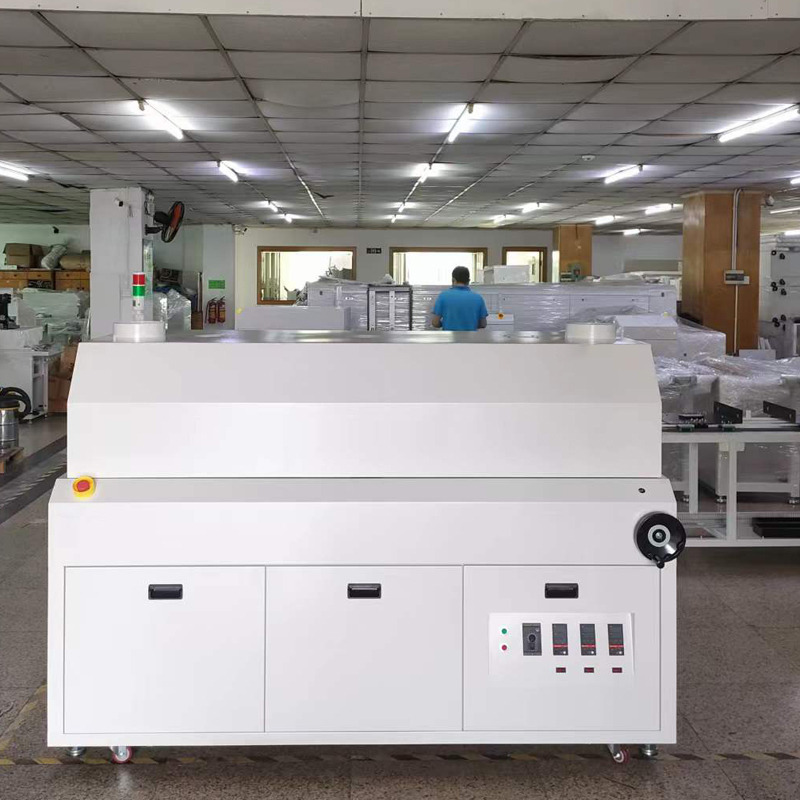

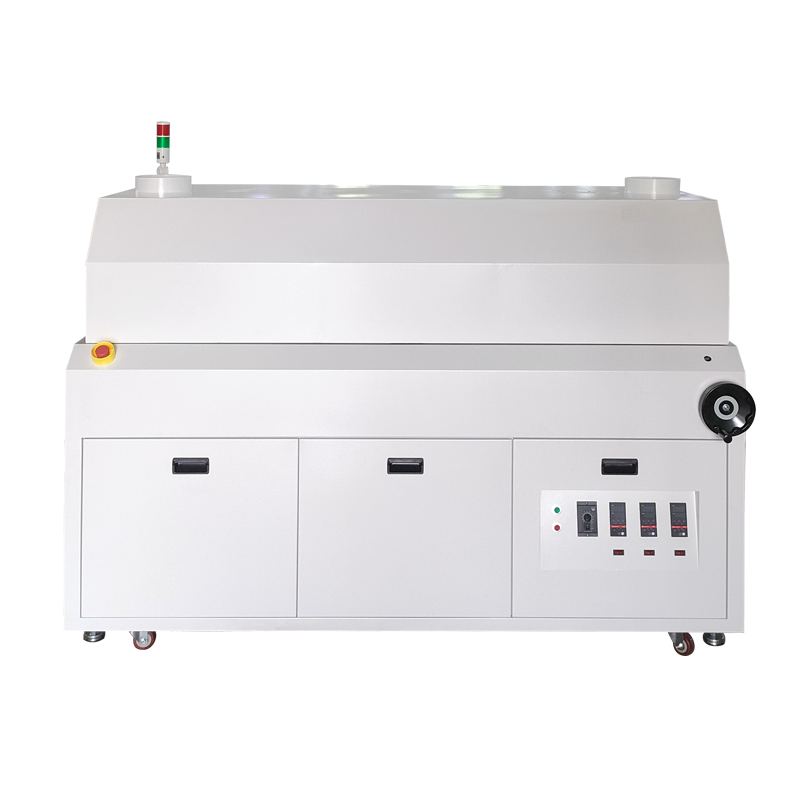

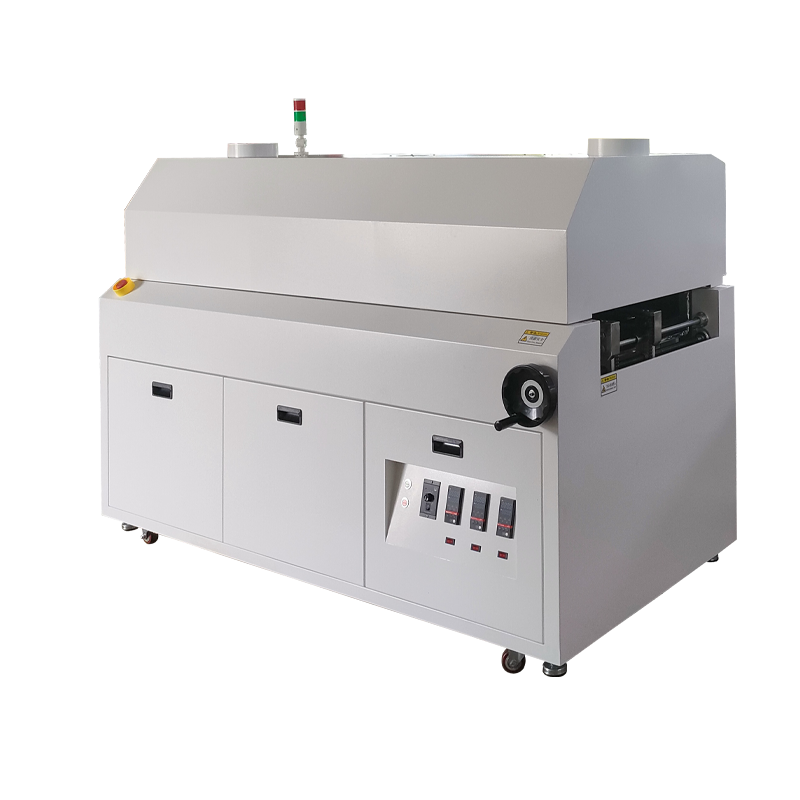

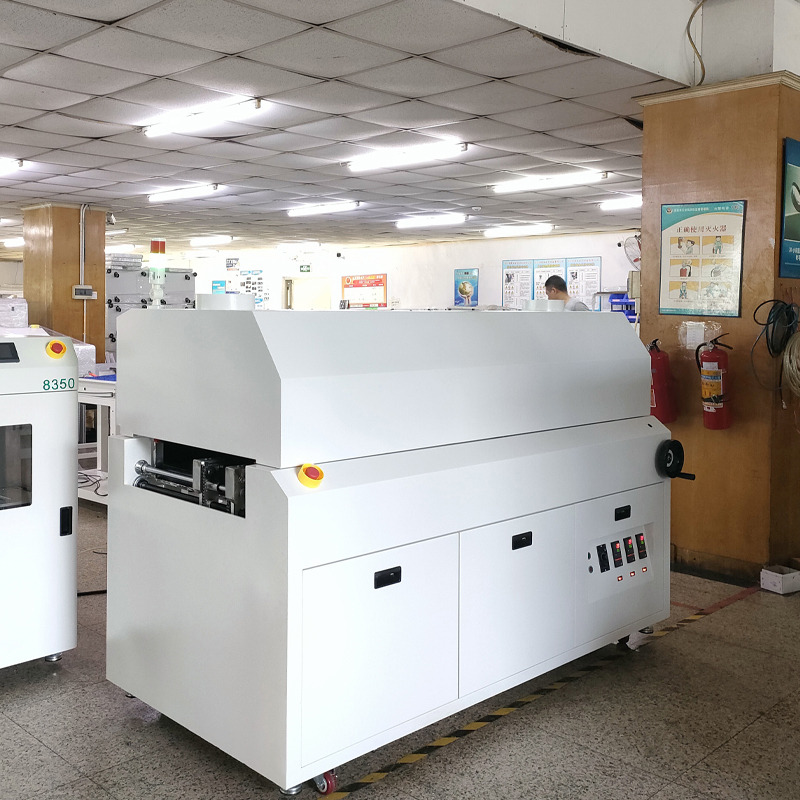

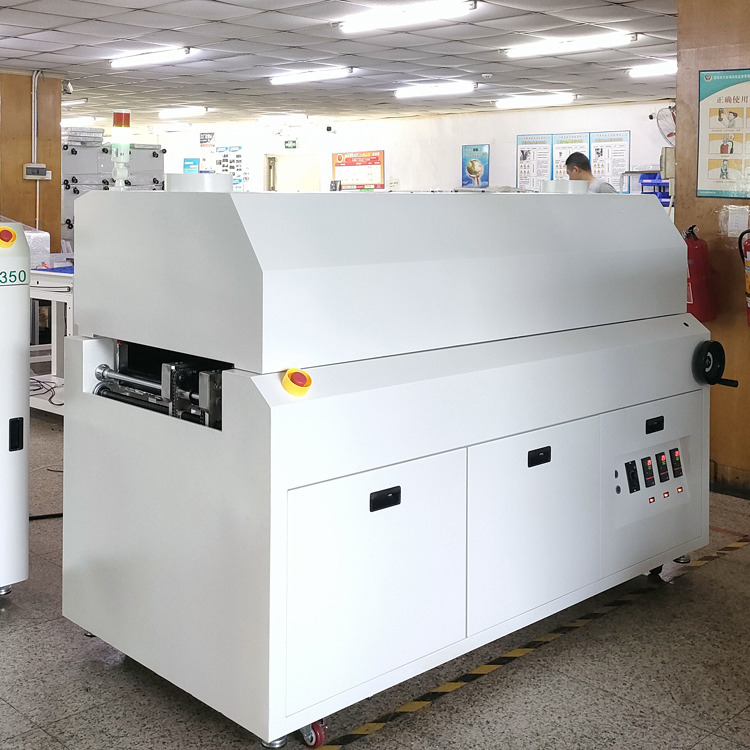

The PCB curing oven with instrument panel is designed for industrial PCB assembly applications involving through-hole components and soldering processes. By processing the PCB and through-hole components in a controlled molten-tin environment, the equipment enables multiple through-hole solder joints to be completed efficiently in a single operation.
This makes the equipment particularly suitable for manufacturers handling through-hole technology (THT) processes, as well as PCB assemblies requiring through-hole soldering combined with SMT red-glue surface mounting.
Unlike manual soldering of individual through-hole components, the equipment enables multiple solder joints across a PCB to be processed simultaneously.
During the soldering process, the PCB with mounted through-hole components is immersed into molten tin at approximately 250–280°C. This batch processing approach can significantly improve production efficiency and reduce the time associated with individual solder joint processing.
For PCB manufacturers handling repetitive through-hole production, this process can help create a more consistent and streamlined soldering workflow.
Solder penetration is critical when manufacturing reliable through-hole PCB assemblies. The equipment is designed to control the immersion depth and soldering angle according to the PCB and component configuration.
A typical immersion depth is approximately 1/2 to 2/3 of the PCB thickness, while the board angle can be controlled within approximately 5–10° based on process requirements.
This controlled immersion helps molten solder fill through-hole structures more effectively, reducing the risk of missed or incompletely filled solder joints. The resulting solder joints can provide strong mechanical connections and improved resistance to vibration and cracking when the process is correctly configured.
Reliable through-hole soldering is particularly important for electronic assemblies used in demanding operating environments. Proper solder penetration and joint formation can improve the mechanical integrity of connections exposed to vibration and repeated operational stress.
The equipment can therefore be considered for PCB manufacturing projects serving applications such as automotive electronics, medical electronics, industrial controls, and other high-reliability electronic assemblies, subject to the specific process and component requirements.
The PCB curing oven can support a range of PCB structures, including single-sided, double-sided, and multilayer circuit boards.
It is particularly useful for assemblies containing densely arranged through-hole components or components with relatively large solder pads. Typical examples include:
Transformers
Connectors
Large through-hole components
High-density THT assemblies
Mixed SMT and through-hole PCB assemblies
This flexibility allows manufacturers to integrate the equipment into different PCB production workflows according to board design and soldering requirements.
The integrated instrument panel provides operators with a centralized interface for monitoring and managing key operating parameters during the soldering process.
For production environments, clear process controls can help operators maintain repeatable soldering conditions between batches. Process parameters should be configured according to PCB thickness, component structure, solder material, and the manufacturer's recommended operating procedures.
