Lead-free technology requirements for reflow soldering

Lead-free technology imposes the following core requirements on reflow soldering equipment and processes:

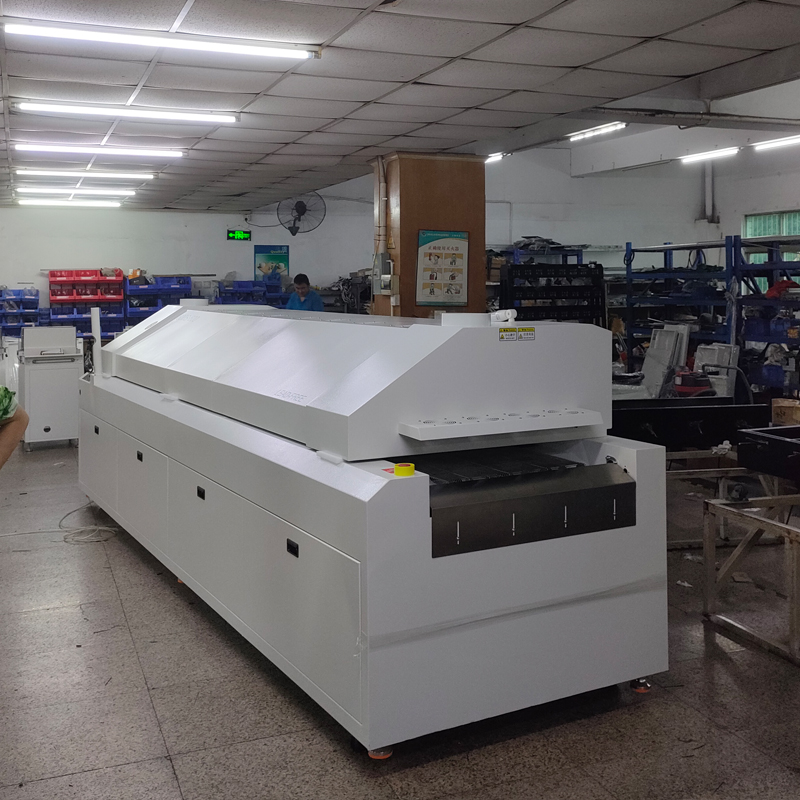

1. Equipment performance requirements

‌Number and length of temperature zones‌

At least 8 temperature zones must be configured, with a preference for ≥10 zones to meet the demands of complex temperature curve control.

The longer the heating zone length, the more advantageous it is for precise temperature curve control.

Temperature Control Precision

Temperature fluctuations must be ≤±0.2°C to ensure welding stability.

The lateral temperature difference across the conveyor belt must be ≤±2°C to prevent local overheating or cold soldering.

Maximum Heating Capacity

The upper heating limit must be ≥250°C to accommodate the high melting point characteristics of lead-free solder (typically 245-260°C).

2. Process Parameter Specifications

Temperature Curve Settings

‌Preheating Zone‌: Heating rate 0.7–1.5℃/s to avoid thermal shock‌45; temperature 100–180℃, duration 60–120 seconds.

‌Reflow Zone‌: Peak temperature 220–250℃, duration 30–90 seconds‌27; cooling rate ≥6℃/s to reduce thermal stress.

The holding zone time is shortened by 20–30 seconds compared to leaded processes, with the temperature increased by approximately 10°C.

‌Material Compatibility‌

Solder must comply with the RoHS standard for tin-silver-copper alloys;

Flux must be lead-free specific type, with halogen content ≤0.1%.

III. Quality Control and Safety

‌Real-time Monitoring‌

Equipment must be equipped with an internal or external temperature curve data logger to calibrate furnace temperature in real time.

‌Post-Soldering Inspection‌

Mandatory full-scope inspections including X-ray inspection, shear testing, and tensile testing.

‌Safety Protection‌

Equipped with an acidic gas filtration system to control welding fume pollution;

Operators must wear protective gear and undergo rigorous training on lead-free process risks.

Key Differences: Compared to leaded processes, lead-free reflow soldering requires a greater number of high-temperature zones (starting at 8 zones), stricter temperature difference control (±2°C), faster cooling rates (>6°C/s), and the use of dedicated solder and flux.
