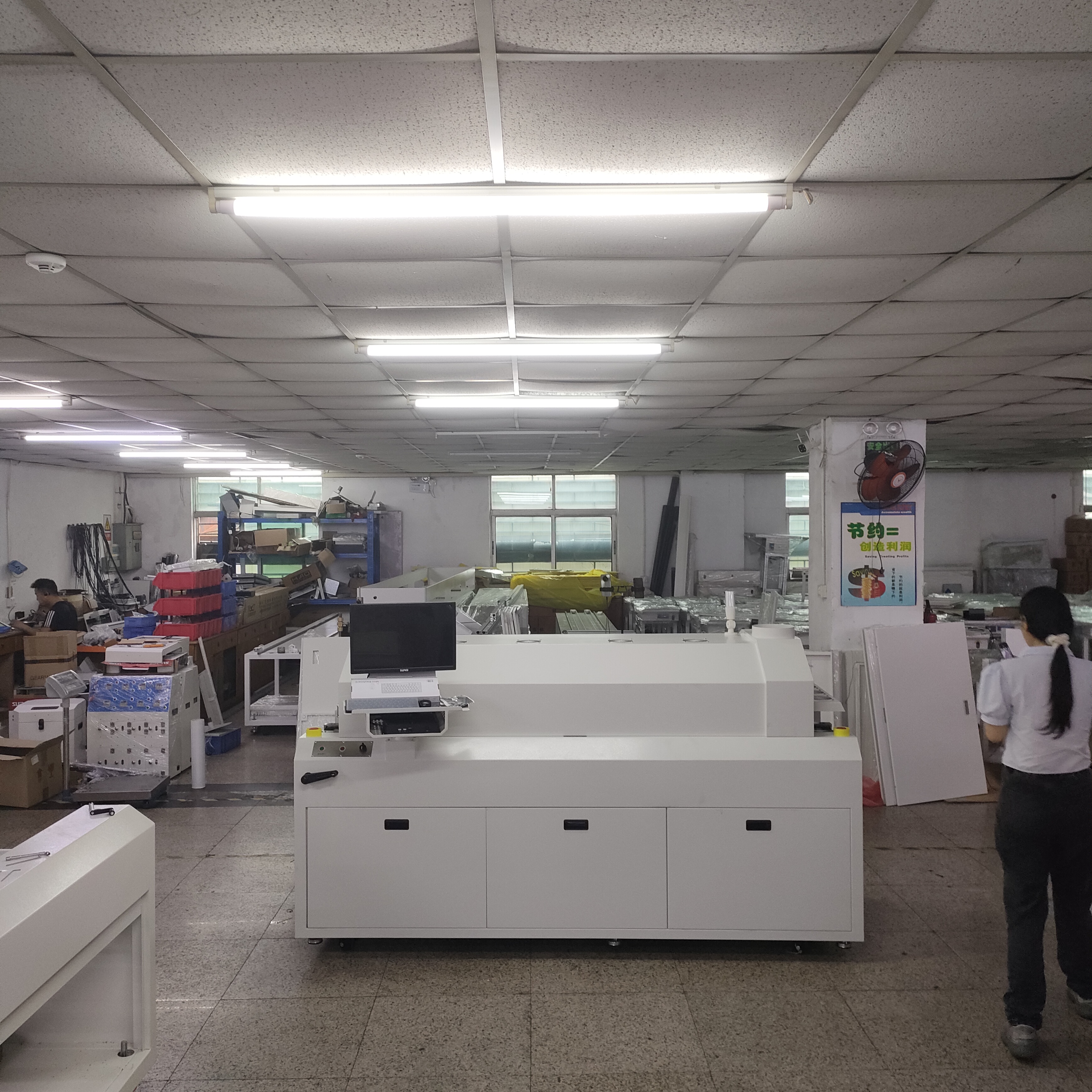

Reflow soldering temperature curves play a crucial role in SMT processes by precisely controlling temperature changes at each stage to ensure焊接 quality and reliability. The core functions and technical key points are as follows:

1. Core Functions of Temperature Curves

Ensuring焊接 Quality

Optimising solder melting and wetting processes to prevent defects such as bridging, cold soldering, and incomplete soldering.

Controlling thermal stress in the preheating zone to prevent component cracking or PCB deformation (temperature rise rate ≤ 3°C/s).

Rapidly solidifying solder joints in the cooling zone (cooling rate 1–4°C/s) to reduce oxidation and grain coarsening.

Improving Production Efficiency and Yield Rate

The constant-temperature zone (120-160°C) balances the overall temperature of the PCB, eliminating defects such as ‘standing’ and ‘wicking’ effects.

The peak temperature and duration in the reflow zone (e.g., 230°C/30-60 seconds) ensure the density of the solder joint alloy layer.

‌Protect components and substrates

Avoid overheating damage to heat-sensitive components (e.g., capacitor failure due to temperatures exceeding 230°C).

Solvent evaporation and flux activation in the preheating zone remove oxide from the pads.

II. Key points for process optimisation

Curve design principles:

The cooling zone slope must be mirror-symmetrical with the reflow zone to ensure dense solder joint structure.

Use thermocouples to measure multiple points and calibrate lateral temperature differences (must be ≤±2°C).

Defect Prevention:

Too fast preheating → solder balls; too slow → oxidation; insufficient reflow → cold solder joints; too slow cooling → darkened solder joints.

Double-sided boards must be welded separately to avoid secondary heat damage.

The reflow soldering temperature curve is a decisive factor for SMT yield and must be dynamically adjusted based on solder paste characteristics, PCB layer count, and component layout, and continuously validated using a furnace temperature tester.
